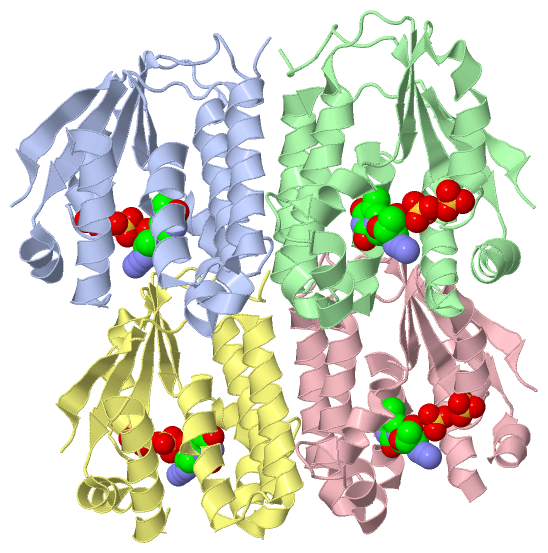

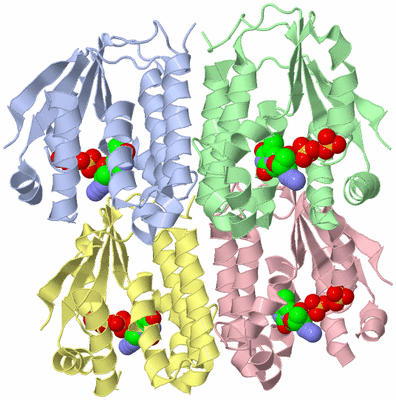

Asymmetric Unit (Jmol Viewer)

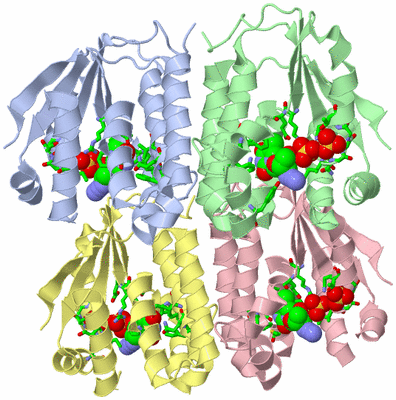

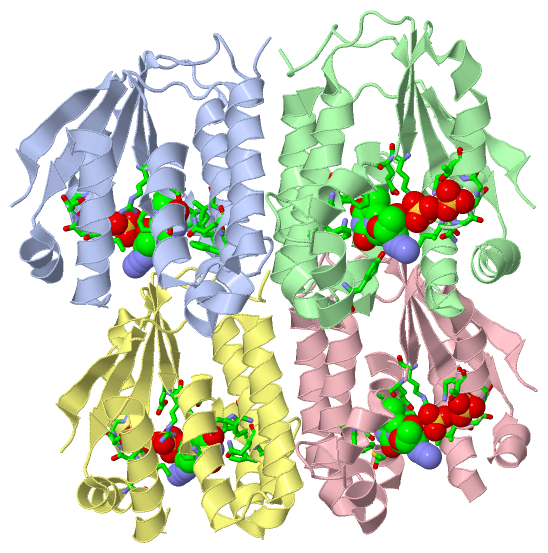

Asym. Unit - sites (Jmol Viewer)

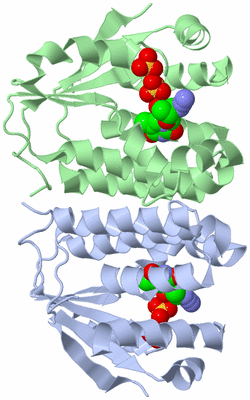

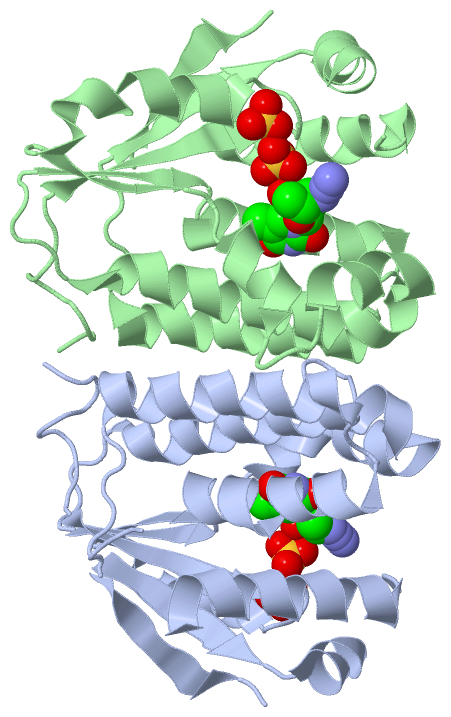

Biological Unit 1 (Jmol Viewer)

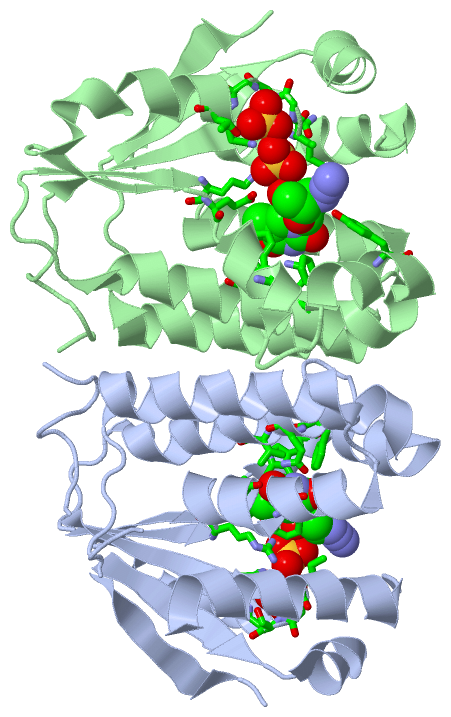

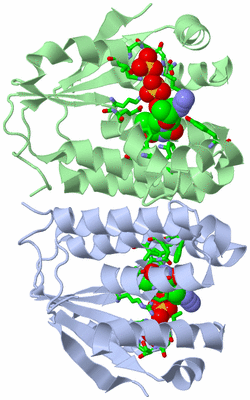

Biol. Unit 1 - sites (Jmol Viewer)

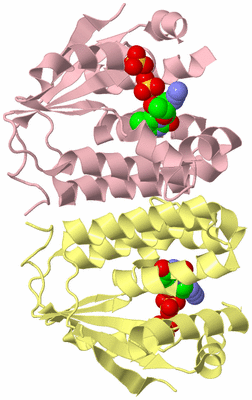

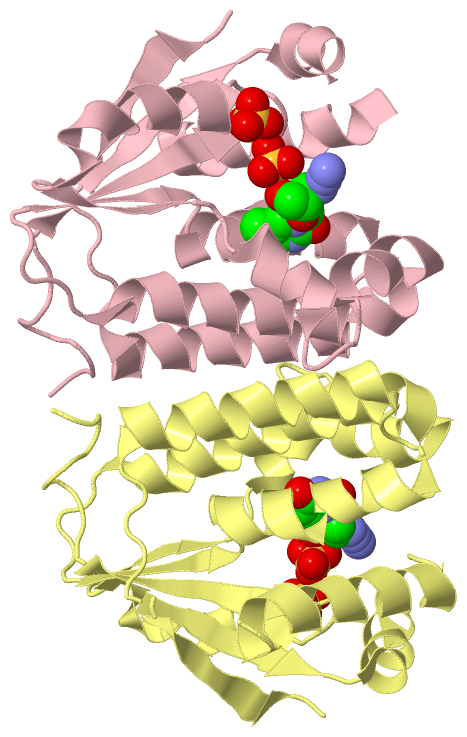

Biological Unit 2 (Jmol Viewer)

Title :   STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE

Authors :   N. E. Mikkelsen, B. Munch-Petersen, H. Eklund

Date :   19 Mar 08 (Deposition) - 29 Apr 08 (Release) - 25 Jul 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Atp-Binding, Dna Synthesis, Phosphoprotein, Feedback Inhibition, Salvage Pathway, Nucleotide-Binding, Dttp, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   N. E. Mikkelsen, B. Munch-Petersen, H. Eklund
Structural Studies Of Nucleoside Analog And Feedback Inhibitor Binding To Drosophila Melanogaster Multisubstrate Deoxyribonucleoside Kinase.
Febs J. V. 275 2151 2008
PubMed-ID: 18384378 | Reference-DOI: 10.1111/J.1742-4658.2008.06369.X

Molecule 1 - DEOXYNUCLEOSIDE KINASE
	Chains	:	A, B, C, D
	EC Number	:	2.7.1.145
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PGEX-2T
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Fragment	:	RESIDUES 1-230
	Organism Common	:	FRUIT FLY
	Organism Scientific	:	DROSOPHILA MELANOGASTER
	Organism Taxid	:	7227
	Synonym	:	DEOXYRIBONUCLEOSIDE KINASE, DM-DNK

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 12)

No.	Name	Count	Type	Full Name
1	AZZ	4	Ligand/Ion	3'-AZIDO-3'-DEOXYTHYMIDINE
2	SO4	8	Ligand/Ion	SULFATE ION

Biological Unit 1 (2, 6)

No.	Name	Count	Type	Full Name
1	AZZ	2	Ligand/Ion	3'-AZIDO-3'-DEOXYTHYMIDINE
2	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 2 (2, 6)

No.	Name	Count	Type	Full Name
1	AZZ	2	Ligand/Ion	3'-AZIDO-3'-DEOXYTHYMIDINE
2	SO4	4	Ligand/Ion	SULFATE ION

Asymmetric Unit (12, 12)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ILE A:29 , LYS A:33 , GLU A:52 , ARG A:105 , SO4 A:1210 , AZZ A:1211	BINDING SITE FOR RESIDUE SO4 A1209
02	AC2	SOFTWARE	GLY A:30 , SER A:31 , GLY A:32 , LYS A:33 , THR A:34 , SO4 A:1209	BINDING SITE FOR RESIDUE SO4 A1210
03	AC3	SOFTWARE	GLU A:52 , TRP A:57 , PHE A:80 , GLN A:81 , VAL A:84 , ARG A:105 , ALA A:110 , PHE A:114 , SO4 A:1209	BINDING SITE FOR RESIDUE AZZ A1211
04	AC4	SOFTWARE	ASN B:28 , GLY B:30 , SER B:31 , GLY B:32 , LYS B:33 , THR B:34 , SO4 B:1210	BINDING SITE FOR RESIDUE SO4 B1209
05	AC5	SOFTWARE	ILE B:29 , LYS B:33 , GLU B:52 , ARG B:105 , SO4 B:1209 , AZZ B:1211	BINDING SITE FOR RESIDUE SO4 B1210
06	AC6	SOFTWARE	GLU B:52 , TRP B:57 , TYR B:70 , PHE B:80 , GLN B:81 , VAL B:84 , ARG B:105 , ALA B:110 , PHE B:114 , SO4 B:1210	BINDING SITE FOR RESIDUE AZZ B1211
07	AC7	SOFTWARE	GLY C:30 , SER C:31 , GLY C:32 , LYS C:33 , THR C:34 , SO4 C:1210	BINDING SITE FOR RESIDUE SO4 C1209
08	AC8	SOFTWARE	ILE C:29 , LYS C:33 , GLU C:52 , ARG C:105 , SO4 C:1209 , AZZ C:1211	BINDING SITE FOR RESIDUE SO4 C1210
09	AC9	SOFTWARE	GLU C:52 , TRP C:57 , PHE C:80 , GLN C:81 , ARG C:105 , ALA C:110 , PHE C:114 , MET C:118 , SO4 C:1210	BINDING SITE FOR RESIDUE AZZ C1211
10	BC1	SOFTWARE	ASN D:28 , GLY D:30 , SER D:31 , GLY D:32 , LYS D:33 , THR D:34 , GLU D:104 , ARG D:167 , SO4 D:1210 , HOH D:2015	BINDING SITE FOR RESIDUE SO4 D1209
11	BC2	SOFTWARE	ILE D:29 , LYS D:33 , GLU D:52 , ARG D:105 , SO4 D:1209 , AZZ D:1211	BINDING SITE FOR RESIDUE SO4 D1210
12	BC3	SOFTWARE	GLU D:52 , TRP D:57 , PHE D:80 , GLN D:81 , VAL D:84 , ARG D:105 , ALA D:110 , PHE D:114 , SO4 D:1210	BINDING SITE FOR RESIDUE AZZ D1211

(no "SS Bond" information available for 2JJ8)

(no "Cis Peptide Bond" information available for 2JJ8)

(no "SAP(SNP)/Variant" information available for 2JJ8)

(no "PROSITE Motif" information available for 2JJ8)

(no "Exon" information available for 2JJ8)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:184
 aligned with DNK_DROME | Q9XZT6 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:197
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
            DNK_DROME    12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYERIRQRARSEESCVPLKYLQELHELHEDWLIHQRRPQSCKVLVLDAD 208
               SCOP domains d2jj8a_ A: Deoxyribonucleoside kinase                                                                                                                                                                 SCOP domains
               CATH domains 2jj8A00 A:12-208 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                 CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeee....hhhhhhhhhhhhh..eeee..hhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.....eeeeee.hhhhhhhh----------..hhhhhhhhhhhhhhhhh.---....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2jj8 A  12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYER----------CVPLKYLQELHELHEDWLIH---PQSCKVLVLDAD 208
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161 |       -  |    181       191 |   | 201
                                                                                                                                                                                 163        174                193 197

Chain B from PDB  Type:PROTEIN  Length:186
 aligned with DNK_DROME | Q9XZT6 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:197
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
            DNK_DROME    12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYERIRQRARSEESCVPLKYLQELHELHEDWLIHQRRPQSCKVLVLDAD 208
               SCOP domains d2jj8b_ B: Deoxyribonucleoside kinase                                                                                                                                                                 SCOP domains
               CATH domains 2jj8B00 B:12-208 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                 CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeee....hhhhhhhhhhhhh..eeee..hhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.....eeeeee.hhhhhhhhhhhh------..hhhhhhhhhhhhhhhhh..-----.eeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2jj8 B  12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYERIRQR------CVPLKYLQELHELHEDWLIHQ-----CKVLVLDAD 208
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161     |   -  |    181       191  |    201
                                                                                                                                                                                     167    174                 194   200

Chain C from PDB  Type:PROTEIN  Length:180
 aligned with DNK_DROME | Q9XZT6 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:197
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
            DNK_DROME    12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYERIRQRARSEESCVPLKYLQELHELHEDWLIHQRRPQSCKVLVLDAD 208
               SCOP domains d2jj8c_ C: Deoxyribonucleoside kinase                                                                                                                                                                 SCOP domains
               CATH domains 2jj8C00 C:12-208 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                 CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeee....hhhhhhhhhhhhh..eeee..hhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.....eeeeee.hhhhhhhhh-----------hhhhhhhhhhhhhhhhh.------.eeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2jj8 C  12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYERI-----------PLKYLQELHELHEDWLIH------CKVLVLDAD 208
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161  |      -    |  181       191 |     201
                                                                                                                                                                                  164         176              193    200

Chain D from PDB  Type:PROTEIN  Length:186
 aligned with DNK_DROME | Q9XZT6 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:197
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
            DNK_DROME    12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYERIRQRARSEESCVPLKYLQELHELHEDWLIHQRRPQSCKVLVLDAD 208
               SCOP domains d2jj8d_ D: Deoxyribonucleoside kinase                                                                                                                                                                 SCOP domains
               CATH domains 2jj8D00 D:12-208 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                 CATH domains
           Pfam domains (1) --------------------------------------------------------------------dNK-2jj8D01 D:80-208                                                                                                              Pfam domains (1)
           Pfam domains (2) --------------------------------------------------------------------dNK-2jj8D02 D:80-208                                                                                                              Pfam domains (2)
           Pfam domains (3) --------------------------------------------------------------------dNK-2jj8D03 D:80-208                                                                                                              Pfam domains (3)
           Pfam domains (4) --------------------------------------------------------------------dNK-2jj8D04 D:80-208                                                                                                              Pfam domains (4)
         Sec.struct. author .........eeeeeee....hhhhhhhhhhhhh..eeee..hhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.....eeeeee.hhhhhhhhhhh.------..hhhhhhhhhhhhhhhhh..-----.eeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2jj8 D  12 TKYAEGTQPFTVLIEGNIGSGKTTYLNHFEKYKNDICLLTEPVEKWRNVNGVNLLELMYKDPKKWAMPFQSYVTLTMLQSHTAPTNKKLKIMERSIFSARYCFVENMRRNGSLEQGMYNTLEEWYKFIEESIHVQADLIIYLRTSPEVAYERIRQR------CVPLKYLQELHELHEDWLIHQ-----CKVLVLDAD 208
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161     |   -  |    181       191  |    201
                                                                                                                                                                                     167    174                 194   200

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: P-loop containing nucleotide triphosphate hydrolases (1378)

Fruit fly (Drosophila melanogaster) (15)

1a	2jj8B00	B:12-208
1b	2jj8D00	D:12-208
1c	2jj8A00	A:12-208
1d	2jj8C00	C:12-208

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: P-loop_NTPase (1112)

Family: dNK (33)

Drosophila melanogaster (Fruit fly) (13)

1a	dNK-2jj8D01	D:80-208
1b	dNK-2jj8D02	D:80-208
1c	dNK-2jj8D03	D:80-208
1d	dNK-2jj8D04	D:80-208

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (DNK_DROME | Q9XZT6)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0019136	deoxynucleoside kinase activity	Catalysis of the reaction: ATP + 2'-deoxynucleoside = ADP + 2'-deoxynucleoside 5'-phosphate.
	GO:0016301	kinase activity	Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
	GO:0019206	nucleoside kinase activity	Catalysis of the reaction: ATP + nucleoside = ADP + nucleoside monophosphate.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0004797	thymidine kinase activity	Catalysis of the reaction: ATP + thymidine = ADP + thymidine 5'-phosphate.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0071897	DNA biosynthetic process	The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
	GO:0006230	TMP biosynthetic process	The chemical reactions and pathways resulting in the formation of TMP, ribosylthymine monophosphate.
	GO:0006139	nucleobase-containing compound metabolic process	Any cellular metabolic process involving nucleobases, nucleosides, nucleotides and nucleic acids.
	GO:0006165	nucleoside diphosphate phosphorylation	The process of introducing a phosphate group into a nucleoside diphosphate to produce a nucleoside triphosphate.
	GO:0046939	nucleotide phosphorylation	The process of introducing one or more phosphate groups into a nucleotide to produce a phosphorylated nucleoside.
	GO:0016310	phosphorylation	The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005739	mitochondrion	A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		AZZ	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2jj8)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2jj8
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	DNK_DROME \| Q9XZT6
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.7.1.145
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	DNK_DROME \| Q9XZT6
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	DNK_DROME \| Q9XZT6	:	1j90 1oe0 1ot3 1zm7 1zmx 2jcs 2vp0 2vp2 2vp4 2vp5 2vp6 2vp9 2vpp 2vqs

1j90	CRYSTAL STRUCTURE OF DROSOPHILA DEOXYRIBONUCLEOSIDE KINASE
1oe0	CRYSTAL STRUCTURE OF DROSOPHILA DEOXYRIBONUCLEOSIDE KINASE IN COMPLEX WITH DTTP
1ot3	CRYSTAL STRUCTURE OF DROSOPHILA DEOXYRIBONUCLEOTIDE KINASECOMPLEXED WITH THE SUBSTRATE DEOXYTHYMIDINE
1zm7	CRYSTAL STRUCTURE OF D. MELANOGASTER DEOXYRIBONUCLEOSIDEKINASE MUTANT N64D IN COMPLEX WITH DTTP
1zmx	CRYSTAL STRUCTURE OF D. MELANOGASTER DEOXYRIBONUCLEOSIDEKINASE N64D MUTANT IN COMPLEX WITH THYMIDINE
2jcs	ACTIVE SITE MUTANT OF DNK FROM D. MELANOGASTER WITH DTTP BOUND
2vp0	STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE
2vp2	STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE
2vp4	STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE
2vp5	STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE
2vp6	STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE
2vp9	STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE
2vpp	DROSOPHILA MELANOGASTER DEOXYRIBONUCLEOSIDE KINASE SUCCESSFULLY ACTIVATES GEMCITABINE IN TRANSDUCED CANCER CELL LINES
2vqs	STRUCTURAL STUDIES OF NUCLEOSIDE ANALOG AND FEEDBACK INHIBITOR BINDING TO DROSOPHILA MELANOGASTER MULTISUBSTRATE DEOXYRIBONUCLEOSIDE KINASE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 12)

Sites (12, 12)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (15, 15)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
