2IVQ - JenaLib

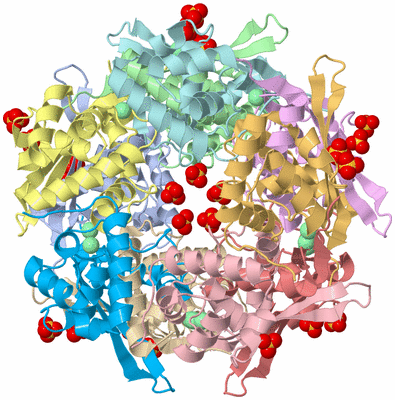

Asym./Biol. Unit (Jmol Viewer)

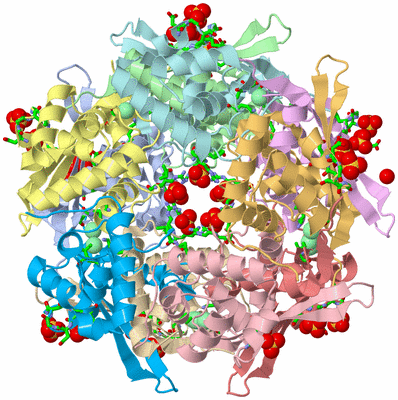

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE

Authors :   M. Guilloton, M. A. Walsh, A. Joachimiak, P. M. Anderson

Date :   14 Jun 06 (Deposition) - 28 Oct 08 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym./Biol. Unit : A,B,C,D,E,F,G,H,I,J

Keywords :   Cyanate Degradation, Lyase, Mcsg, Midwest Center For Structural Genomics, Protein Structure Initiative, Psi (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Guilloton, M. A. Walsh, A. Joachimiak, P. M. Anderson
A Twin Set Of Low Pka Arginines Ensures The Concerted Acid Base Catalytic Mechanism Of Cyanase
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - CYANATE HYDRATASE
	Chains	:	A, B, C, D, E, F, G, H, I, J
	EC Number	:	4.2.1.104
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Strain	:	XL1-BLUE
	Expression System Taxid	:	562
	Mutation	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	CYANASE LYASE, CYANASE, CYANATE HYDROLASE

		1	2	3	4	5	6	7	8	9	10
Asymmetric/Biological Unit	:	A	B	C	D	E	F	G	H	I	J

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 37)

No.	Name	Count	Type	Full Name
1	CL	13	Ligand/Ion	CHLORIDE ION
2	SO4	24	Ligand/Ion	SULFATE ION

Asymmetric Unit (33, 33)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ALA A:39 , GLU A:40 , HOH A:2112	BINDING SITE FOR RESIDUE SO4 A1157
02	AC2	SOFTWARE	ALA B:39 , GLU B:40 , HOH B:2051 , HOH B:2130	BINDING SITE FOR RESIDUE SO4 B1157
03	AC3	SOFTWARE	ALA C:39 , GLU C:40 , HOH C:2107	BINDING SITE FOR RESIDUE SO4 C1157
04	AC4	SOFTWARE	ALA D:39 , GLU D:40	BINDING SITE FOR RESIDUE SO4 D1157
05	AC5	SOFTWARE	ALA E:39 , GLU E:40 , HOH E:2131	BINDING SITE FOR RESIDUE SO4 E1157
06	AC6	SOFTWARE	ALA F:39 , GLU F:40 , HOH F:2038 , HOH F:2039	BINDING SITE FOR RESIDUE SO4 F1157
07	AC7	SOFTWARE	ALA G:39 , GLU G:40 , HOH G:2098	BINDING SITE FOR RESIDUE SO4 G1157
08	AC8	SOFTWARE	ALA H:39 , GLU H:40 , HOH H:2108	BINDING SITE FOR RESIDUE SO4 H1157
09	AC9	SOFTWARE	ALA I:39 , GLU I:40 , HOH I:2091	BINDING SITE FOR RESIDUE SO4 I1157
10	BC1	SOFTWARE	ALA J:39 , GLU J:40	BINDING SITE FOR RESIDUE SO4 J1157
11	BC2	SOFTWARE	ARG A:87 , ILE A:88 , ARG B:87 , ARG D:87 , HOH D:2073 , ARG J:87	BINDING SITE FOR RESIDUE SO4 D1158
12	BC3	SOFTWARE	ARG A:87 , ARG C:87 , ARG I:87 , ILE I:88 , ARG J:87 , ILE J:88	BINDING SITE FOR RESIDUE SO4 I1158
13	BC4	SOFTWARE	ARG C:87 , ARG G:87 , ARG H:87 , ARG I:87	BINDING SITE FOR RESIDUE SO4 H1158
14	BC5	SOFTWARE	ARG E:87 , ARG F:87 , ARG G:87 , ARG H:87	BINDING SITE FOR RESIDUE SO4 G1158
15	BC6	SOFTWARE	ARG B:87 , ILE B:88 , ARG D:87 , ARG E:87 , ARG F:87	BINDING SITE FOR RESIDUE SO4 F1158
16	BC7	SOFTWARE	ALA A:33 , ASP A:34 , GLY A:35 , THR A:36 , GLY A:37 , HOH E:2120	BINDING SITE FOR RESIDUE SO4 A1158
17	BC8	SOFTWARE	ASP D:34 , GLY D:35 , THR D:36 , GLY D:37 , LEU D:38	BINDING SITE FOR RESIDUE SO4 D1159
18	BC9	SOFTWARE	ALA E:33 , ASP E:34 , GLY E:35 , THR E:36 , GLY E:37 , LEU E:38 , HOH E:2049	BINDING SITE FOR RESIDUE SO4 E1158
19	CC1	SOFTWARE	ASP H:34 , GLY H:35 , THR H:36 , GLY H:37 , LEU H:38	BINDING SITE FOR RESIDUE SO4 H1159
20	CC2	SOFTWARE	ALA J:33 , ASP J:34 , GLY J:35 , THR J:36 , GLY J:37	BINDING SITE FOR RESIDUE SO4 J1158
21	CC3	SOFTWARE	ALA B:33 , ASP B:34 , GLY B:35 , THR B:36 , GLY B:37 , LEU B:38	BINDING SITE FOR RESIDUE SO4 B1158
22	CC4	SOFTWARE	ASP F:34 , GLY F:35 , THR F:36 , GLY F:37 , LEU F:38	BINDING SITE FOR RESIDUE SO4 F1159
23	CC5	SOFTWARE	ASP G:34 , GLY G:35 , THR G:36 , GLY G:37	BINDING SITE FOR RESIDUE SO4 G1159
24	CC6	SOFTWARE	ALA I:33 , GLY I:35 , THR I:36 , GLY I:37 , LEU I:38	BINDING SITE FOR RESIDUE SO4 I1159
25	CC7	SOFTWARE	SER B:122 , LYS F:96	BINDING SITE FOR RESIDUE CL B1159
26	CC8	SOFTWARE	SER A:122 , ALA A:123 , LYS D:96	BINDING SITE FOR RESIDUE CL A1159
27	CC9	SOFTWARE	CL C:1159 , LYS E:96 , SER G:122 , ILE H:120	BINDING SITE FOR RESIDUE CL G1160
28	DC1	SOFTWARE	LYS I:96 , SER J:122 , ILE J:124	BINDING SITE FOR RESIDUE CL J1159
29	DC2	SOFTWARE	LYS A:96 , ILE B:120 , SER D:122	BINDING SITE FOR RESIDUE CL D1160
30	DC3	SOFTWARE	LYS B:96 , SER F:122 , ALA F:123	BINDING SITE FOR RESIDUE CL F1160
31	DC4	SOFTWARE	SER C:122 , LYS H:96 , ILE I:120 , CL J:1160	BINDING SITE FOR RESIDUE CL C1158
32	DC5	SOFTWARE	GLU F:40 , ASP F:129 , VAL F:130 , HOH F:2039	BINDING SITE FOR RESIDUE CL F1161
33	DC6	SOFTWARE	SER E:122 , ILE F:120 , LYS G:96	BINDING SITE FOR RESIDUE CL E1159

(no "SS Bond" information available for 2IVQ)

(no "Cis Peptide Bond" information available for 2IVQ)

(no "SAP(SNP)/Variant" information available for 2IVQ)

(no "PROSITE Motif" information available for 2IVQ)

(no "Exon" information available for 2IVQ)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqa1 A:1-86 automated matches                                                      d2ivqa2 A:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqA01 A:1-88 lambda repressor-like DNA-binding domains                                2ivqA02 A:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq A   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain B from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqb1 B:1-86 automated matches                                                      d2ivqb2 B:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqB01 B:1-88 lambda repressor-like DNA-binding domains                                2ivqB02 B:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq B   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain C from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqc1 C:1-86 automated matches                                                      d2ivqc2 C:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqC01 C:1-88 lambda repressor-like DNA-binding domains                                2ivqC02 C:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq C   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain D from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqd1 D:1-86 automated matches                                                      d2ivqd2 D:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqD01 D:1-88 lambda repressor-like DNA-binding domains                                2ivqD02 D:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq D   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain E from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqe1 E:1-86 automated matches                                                      d2ivqe2 E:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqE01 E:1-88 lambda repressor-like DNA-binding domains                                2ivqE02 E:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq E   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain F from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqf1 F:1-86 automated matches                                                      d2ivqf2 F:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqF01 F:1-88 lambda repressor-like DNA-binding domains                                2ivqF02 F:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhh.hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq F   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain G from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqg1 G:1-86 automated matches                                                      d2ivqg2 G:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqG01 G:1-88 lambda repressor-like DNA-binding domains                                2ivqG02 G:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhh.hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq G   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain H from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqh1 H:1-86 automated matches                                                      d2ivqh2 H:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqH01 H:1-88 lambda repressor-like DNA-binding domains                                2ivqH02 H:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq H   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain I from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqi1 I:1-86 automated matches                                                      d2ivqi2 I:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqI01 I:1-88 lambda repressor-like DNA-binding domains                                2ivqI02 I:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhh.hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq I   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain J from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2ivqj1 J:1-86 automated matches                                                      d2ivqj2 J:87-156 automated matches                                     SCOP domains
               CATH domains 2ivqJ01 J:1-88 lambda repressor-like DNA-binding domains                                2ivqJ02 J:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhh.....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2ivq J   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: lambda repressor-like DNA-binding domains (180)

Superfamily: lambda repressor-like DNA-binding domains (180)

Family: Cyanase N-terminal domain (8)

Protein domain: automated matches (6)

Escherichia coli [TaxId: 562] (6)

1a	d2ivqa1	A:1-86
1b	d2ivqb1	B:1-86
1c	d2ivqc1	C:1-86
1d	d2ivqd1	D:1-86
1e	d2ivqe1	E:1-86
1f	d2ivqf1	F:1-86
1g	d2ivqg1	G:1-86
1h	d2ivqh1	H:1-86
1i	d2ivqi1	I:1-86
1j	d2ivqj1	J:1-86

Class: Alpha and beta proteins (a+b) (23004)

Fold: Cyanase C-terminal domain (8)

Superfamily: Cyanase C-terminal domain (8)

Family: Cyanase C-terminal domain (8)

Protein domain: automated matches (6)

Escherichia coli [TaxId: 562] (6)

2a	d2ivqa2	A:87-156
2b	d2ivqb2	B:87-156
2c	d2ivqc2	C:87-156
2d	d2ivqd2	D:87-156
2e	d2ivqe2	E:87-156
2f	d2ivqf2	F:87-156
2g	d2ivqg2	G:87-156
2h	d2ivqh2	H:87-156
2i	d2ivqi2	I:87-156
2j	d2ivqj2	J:87-156

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Cyanate Lyase; Chain: A, domain 2 (8)

Homologous Superfamily: [code=3.30.1160.10, no name defined] (8)

Escherichia coli. Organism_taxid: 562. (8)

1a	2ivqA02	A:89-156
1b	2ivqB02	B:89-156
1c	2ivqC02	C:89-156
1d	2ivqD02	D:89-156
1e	2ivqE02	E:89-156
1f	2ivqF02	F:89-156
1g	2ivqG02	G:89-156
1h	2ivqH02	H:89-156
1i	2ivqI02	I:89-156
1j	2ivqJ02	J:89-156

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: 434 Repressor (Amino-terminal Domain) (116)

Homologous Superfamily: lambda repressor-like DNA-binding domains (100)

Escherichia coli. Organism_taxid: 562. (10)

2a	2ivqA01	A:1-88
2b	2ivqB01	B:1-88
2c	2ivqC01	C:1-88
2d	2ivqD01	D:1-88
2e	2ivqE01	E:1-88
2f	2ivqF01	F:1-88
2g	2ivqG01	G:1-88
2h	2ivqH01	H:1-88
2i	2ivqI01	I:1-88
2j	2ivqJ01	J:1-88

(no "Pfam Domain" information available for 2IVQ)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H,I,J (CYNS_ECOLI | P00816)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0008824	cyanate hydratase activity	Catalysis of the reaction: cyanate + H2O = carbamate.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
	GO:0009440	cyanate catabolic process	The chemical reactions and pathways resulting in the breakdown of cyanate, NCO-, the anion of cyanic acid.
	GO:0009439	cyanate metabolic process	The chemical reactions and pathways involving cyanate, NCO-, the anion of cyanic acid.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]
		CC5	[ RasMol ]	+environment [ RasMol ]
		CC6	[ RasMol ]	+environment [ RasMol ]
		CC7	[ RasMol ]	+environment [ RasMol ]
		CC8	[ RasMol ]	+environment [ RasMol ]
		CC9	[ RasMol ]	+environment [ RasMol ]
		DC1	[ RasMol ]	+environment [ RasMol ]
		DC2	[ RasMol ]	+environment [ RasMol ]
		DC3	[ RasMol ]	+environment [ RasMol ]
		DC4	[ RasMol ]	+environment [ RasMol ]
		DC5	[ RasMol ]	+environment [ RasMol ]
		DC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ivq)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2ivq
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CYNS_ECOLI \| P00816
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	4.2.1.104
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CYNS_ECOLI \| P00816
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CYNS_ECOLI \| P00816	:	1dw9 1dwk 2iu7 2iuo 2iv1 2ivb 2ivg

1dw9	STRUCTURE OF CYANASE REVEALS THAT A NOVEL DIMERIC AND DECAMERICARRANGEMENT OF SUBUNITS IS REQUIRED FOR FORMATION OF THE ENZYME ACTIVESITE
1dwk	STRUCTURE OF CYANASE WITH THE DI-ANION OXALATE BOUND AT THE ENZYME ACTIVE SITE
2iu7	SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE
2iuo	SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE
2iv1	SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE
2ivb	SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE
2ivg	SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 37)

Sites (33, 33)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 20)

CATH Domains (2, 20)

Pfam Domains (0, 0)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
