2IU7 - JenaLib

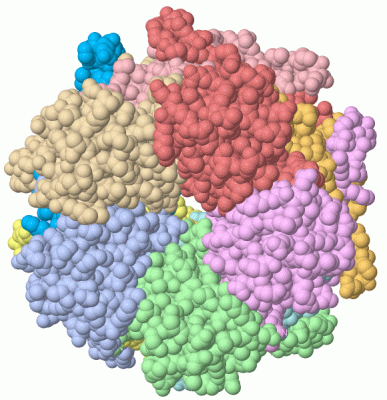

Asym./Biol. Unit - manually (Jmol Viewer)

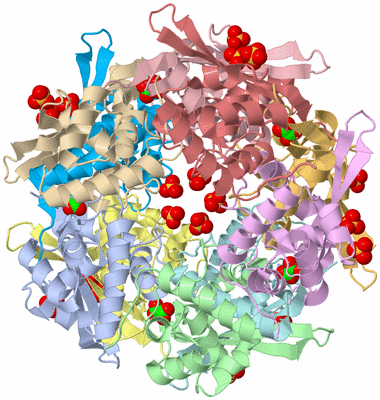

Asym./Biol. Unit (Jmol Viewer)

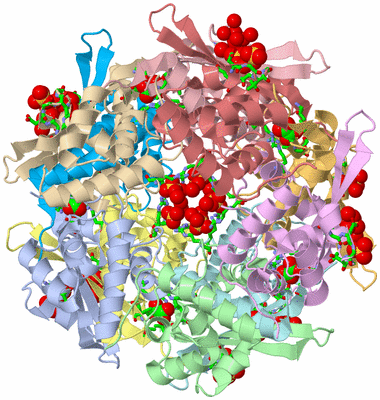

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE

Authors :   M. Guilloton, M. A. Walsh, A. Joachimiak, P. M. Anderson

Date :   30 May 06 (Deposition) - 06 Jun 06 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.91

Chains :   Asym./Biol. Unit : A,B,C,D,E,F,G,H,I,J

Keywords :   Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Guilloton, M. A. Walsh, A. Joachimiak, P. M. Anderson
A Twin Set Of Low Pka Arginines Ensures The Concerted Acid Base Catalytic Mechanism Of Cyanase
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - CYANATE HYDRATASE
	Chains	:	A, B, C, D, E, F, G, H, I, J
	EC Number	:	4.2.1.104
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Strain	:	XL1-BLUE
	Expression System Taxid	:	562
	Mutation	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	CYANASE LYASE, CYANASE, CYANATE HYDROLASE

		1	2	3	4	5	6	7	8	9	10
Asymmetric/Biological Unit	:	A	B	C	D	E	F	G	H	I	J

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 26)

No.	Name	Count	Type	Full Name
1	OXL	5	Ligand/Ion	OXALATE ION
2	SO4	21	Ligand/Ion	SULFATE ION

Asymmetric Unit (26, 26)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ILE A:120 , SER A:122 , LEU A:151 , ARG D:96 , ARG I:96 , ILE J:120 , SER J:122 , LEU J:151	BINDING SITE FOR RESIDUE OXL A1157
02	AC2	SOFTWARE	ALA A:39 , GLU A:40 , HOH A:2278	BINDING SITE FOR RESIDUE SO4 A1158
03	AC3	SOFTWARE	ARG A:87 , HOH A:2201 , HOH A:2279 , HOH A:2280 , ARG B:87 , ARG D:87 , ARG J:87	BINDING SITE FOR RESIDUE SO4 A1159
04	AC4	SOFTWARE	ARG A:87 , HOH A:2279 , HOH A:2281 , HOH A:2282 , ARG C:87 , ARG I:87 , ARG J:87	BINDING SITE FOR RESIDUE SO4 A1160
05	AC5	SOFTWARE	ALA B:39 , GLU B:40 , HOH B:2309 , HOH B:2310 , HOH B:2313	BINDING SITE FOR RESIDUE SO4 B1157
06	AC6	SOFTWARE	ARG B:87 , HOH B:2223 , HOH B:2314 , HOH B:2315 , ARG D:87 , ARG E:87 , ARG F:87	BINDING SITE FOR RESIDUE SO4 B1158
07	AC7	SOFTWARE	ILE C:120 , SER C:122 , ALA C:123 , LEU C:151 , ARG H:96 , ILE I:120 , SER I:122 , LEU I:151 , ARG J:96	BINDING SITE FOR RESIDUE OXL C1157
08	AC8	SOFTWARE	ALA C:39 , GLU C:40 , HOH C:2305 , HOH C:2306 , HOH C:2307 , HOH C:2308 , HOH C:2309 , HOH C:2310	BINDING SITE FOR RESIDUE SO4 C1158
09	AC9	SOFTWARE	ARG A:96 , ILE B:120 , SER B:122 , LEU B:151 , ILE D:120 , SER D:122 , LEU D:151 , ARG F:96	BINDING SITE FOR RESIDUE OXL D1157
10	BC1	SOFTWARE	ALA D:39 , GLU D:40 , HOH D:2299 , HOH D:2300 , HOH D:2301 , HOH D:2302 , HOH D:2303	BINDING SITE FOR RESIDUE SO4 D1158
11	BC2	SOFTWARE	ALA D:33 , ASP D:34 , GLY D:35 , THR D:36 , GLY D:37 , HOH D:2110	BINDING SITE FOR RESIDUE SO4 D1159
12	BC3	SOFTWARE	ALA E:39 , GLU E:40 , HOH E:2290 , HOH E:2291 , HOH E:2292 , HOH E:2293	BINDING SITE FOR RESIDUE SO4 E1157
13	BC4	SOFTWARE	ARG E:87 , HOH E:2294 , HOH E:2295 , ARG F:87 , ARG G:87 , HOH G:2212 , ARG H:87	BINDING SITE FOR RESIDUE SO4 E1158
14	BC5	SOFTWARE	ALA E:33 , ASP E:34 , GLY E:35 , THR E:36 , GLY E:37	BINDING SITE FOR RESIDUE SO4 E1159
15	BC6	SOFTWARE	ARG B:96 , ILE E:120 , SER E:122 , LEU E:151 , ILE F:120 , SER F:122 , LEU F:151 , ARG G:96	BINDING SITE FOR RESIDUE OXL F1157
16	BC7	SOFTWARE	ALA F:39 , GLU F:40 , HOH F:2321 , HOH F:2322 , HOH F:2323	BINDING SITE FOR RESIDUE SO4 F1158
17	BC8	SOFTWARE	ALA F:33 , ASP F:34 , GLY F:35 , THR F:36 , GLY F:37 , HOH F:2325 , HOH F:2326	BINDING SITE FOR RESIDUE SO4 F1159
18	BC9	SOFTWARE	ARG C:96 , ARG E:96 , ILE G:120 , SER G:122 , LEU G:151 , ILE H:120 , SER H:122 , LEU H:151	BINDING SITE FOR RESIDUE OXL G1157
19	CC1	SOFTWARE	ALA G:39 , GLU G:40 , HOH G:2288 , HOH G:2290	BINDING SITE FOR RESIDUE SO4 G1158
20	CC2	SOFTWARE	ALA H:39 , GLU H:40 , HOH H:2277 , HOH H:2324 , HOH H:2325 , HOH H:2326	BINDING SITE FOR RESIDUE SO4 H1157
21	CC3	SOFTWARE	ASP H:34 , GLY H:35 , THR H:36 , GLY H:37 , HOH H:2142	BINDING SITE FOR RESIDUE SO4 H1158
22	CC4	SOFTWARE	ALA I:39 , GLU I:40 , HOH I:2324 , HOH I:2325 , HOH I:2326 , HOH I:2328 , HOH I:2330	BINDING SITE FOR RESIDUE SO4 I1157
23	CC5	SOFTWARE	ARG C:87 , HOH C:2219 , ARG G:87 , ARG H:87 , ARG I:87 , HOH I:2331	BINDING SITE FOR RESIDUE SO4 I1158
24	CC6	SOFTWARE	ALA I:33 , ASP I:34 , GLY I:35 , THR I:36 , GLY I:37	BINDING SITE FOR RESIDUE SO4 I1159
25	CC7	SOFTWARE	ALA J:39 , GLU J:40 , HOH J:2370 , HOH J:2371 , HOH J:2372	BINDING SITE FOR RESIDUE SO4 J1157
26	CC8	SOFTWARE	ALA J:33 , ASP J:34 , GLY J:35 , THR J:36 , GLY J:37 , HOH J:2149 , HOH J:2373 , HOH J:2374	BINDING SITE FOR RESIDUE SO4 J1158

(no "SS Bond" information available for 2IU7)

(no "Cis Peptide Bond" information available for 2IU7)

(no "SAP(SNP)/Variant" information available for 2IU7)

(no "PROSITE Motif" information available for 2IU7)

(no "Exon" information available for 2IU7)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7a1 A:1-86 automated matches                                                      d2iu7a2 A:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7A01 A:1-88 lambda repressor-like DNA-binding domains                                2iu7A02 A:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 A   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain B from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7b1 B:1-86 automated matches                                                      d2iu7b2 B:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7B01 B:1-88 lambda repressor-like DNA-binding domains                                2iu7B02 B:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 B   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain C from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7c1 C:1-86 automated matches                                                      d2iu7c2 C:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7C01 C:1-88 lambda repressor-like DNA-binding domains                                2iu7C02 C:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 C   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain D from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7d1 D:1-86 automated matches                                                      d2iu7d2 D:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7D01 D:1-88 lambda repressor-like DNA-binding domains                                2iu7D02 D:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 D   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain E from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7e1 E:1-86 automated matches                                                      d2iu7e2 E:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7E01 E:1-88 lambda repressor-like DNA-binding domains                                2iu7E02 E:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 E   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain F from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7f1 F:1-86 automated matches                                                      d2iu7f2 F:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7F01 F:1-88 lambda repressor-like DNA-binding domains                                2iu7F02 F:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 F   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain G from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7g1 G:1-86 automated matches                                                      d2iu7g2 G:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7G01 G:1-88 lambda repressor-like DNA-binding domains                                2iu7G02 G:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 G   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain H from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7h1 H:1-86 automated matches                                                      d2iu7h2 H:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7H01 H:1-88 lambda repressor-like DNA-binding domains                                2iu7H02 H:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 H   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain I from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7i1 I:1-86 automated matches                                                      d2iu7i2 I:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7I01 I:1-88 lambda repressor-like DNA-binding domains                                2iu7I02 I:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 I   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain J from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d2iu7j1 J:1-86 automated matches                                                      d2iu7j2 J:87-156 automated matches                                     SCOP domains
               CATH domains 2iu7J01 J:1-88 lambda repressor-like DNA-binding domains                                2iu7J02 J:89-156  [code=3.30.1160.10, no name defined]               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2iu7 J   1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMFRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: lambda repressor-like DNA-binding domains (180)

Superfamily: lambda repressor-like DNA-binding domains (180)

Family: Cyanase N-terminal domain (8)

Protein domain: automated matches (6)

Escherichia coli [TaxId: 562] (6)

1a	d2iu7a1	A:1-86
1b	d2iu7b1	B:1-86
1c	d2iu7c1	C:1-86
1d	d2iu7d1	D:1-86
1e	d2iu7e1	E:1-86
1f	d2iu7f1	F:1-86
1g	d2iu7g1	G:1-86
1h	d2iu7h1	H:1-86
1i	d2iu7i1	I:1-86
1j	d2iu7j1	J:1-86

Class: Alpha and beta proteins (a+b) (23004)

Fold: Cyanase C-terminal domain (8)

Superfamily: Cyanase C-terminal domain (8)

Family: Cyanase C-terminal domain (8)

Protein domain: automated matches (6)

Escherichia coli [TaxId: 562] (6)

2a	d2iu7a2	A:87-156
2b	d2iu7b2	B:87-156
2c	d2iu7c2	C:87-156
2d	d2iu7d2	D:87-156
2e	d2iu7e2	E:87-156
2f	d2iu7f2	F:87-156
2g	d2iu7g2	G:87-156
2h	d2iu7h2	H:87-156
2i	d2iu7i2	I:87-156
2j	d2iu7j2	J:87-156

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Cyanate Lyase; Chain: A, domain 2 (8)

Homologous Superfamily: [code=3.30.1160.10, no name defined] (8)

Escherichia coli. Organism_taxid: 562. (8)

1a	2iu7A02	A:89-156
1b	2iu7B02	B:89-156
1c	2iu7C02	C:89-156
1d	2iu7D02	D:89-156
1e	2iu7E02	E:89-156
1f	2iu7F02	F:89-156
1g	2iu7G02	G:89-156
1h	2iu7H02	H:89-156
1i	2iu7I02	I:89-156
1j	2iu7J02	J:89-156

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: 434 Repressor (Amino-terminal Domain) (116)

Homologous Superfamily: lambda repressor-like DNA-binding domains (100)

Escherichia coli. Organism_taxid: 562. (10)

2a	2iu7A01	A:1-88
2b	2iu7B01	B:1-88
2c	2iu7C01	C:1-88
2d	2iu7D01	D:1-88
2e	2iu7E01	E:1-88
2f	2iu7F01	F:1-88
2g	2iu7G01	G:1-88
2h	2iu7H01	H:1-88
2i	2iu7I01	I:1-88
2j	2iu7J01	J:1-88

(no "Pfam Domain" information available for 2IU7)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H,I,J (CYNS_ECOLI | P00816)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0008824	cyanate hydratase activity	Catalysis of the reaction: cyanate + H2O = carbamate.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
	GO:0009440	cyanate catabolic process	The chemical reactions and pathways resulting in the breakdown of cyanate, NCO-, the anion of cyanic acid.
	GO:0009439	cyanate metabolic process	The chemical reactions and pathways involving cyanate, NCO-, the anion of cyanic acid.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		OXL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]
		CC5	[ RasMol ]	+environment [ RasMol ]
		CC6	[ RasMol ]	+environment [ RasMol ]
		CC7	[ RasMol ]	+environment [ RasMol ]
		CC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2iu7)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2iu7
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CYNS_ECOLI \| P00816
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	4.2.1.104
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CYNS_ECOLI \| P00816
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CYNS_ECOLI \| P00816	:	1dw9 1dwk 2iuo 2iv1 2ivb 2ivg 2ivq

1dw9	STRUCTURE OF CYANASE REVEALS THAT A NOVEL DIMERIC AND DECAMERICARRANGEMENT OF SUBUNITS IS REQUIRED FOR FORMATION OF THE ENZYME ACTIVESITE
1dwk	STRUCTURE OF CYANASE WITH THE DI-ANION OXALATE BOUND AT THE ENZYME ACTIVE SITE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 26)

Sites (26, 26)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 20)

CATH Domains (2, 20)

Pfam Domains (0, 0)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
