2HYG - JenaLib

Title :   THE STRUCTURE OF APO-MNTR FROM BACILLUS SUBTILIS, NATIVE FORM

Authors :   A. Glasfeld, J. I. Kliegman

Date :   06 Aug 06 (Deposition) - 07 Nov 06 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : D
Biol. Unit 1: D  (2x)

Keywords :   Transcriptional Regulator, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. A. Dewitt, J. I. Kliegman, J. D. Helmann, R. G. Brennan, D. L. Farrens A. Glasfeld
The Conformations Of The Manganese Transport Regulator Of Bacillus Subtilis In Its Metal-Free State.
J. Mol. Biol. V. 365 1257 2007
PubMed-ID: 17118401 | Reference-DOI: 10.1016/J.JMB.2006.10.080

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain D from PDB  Type:PROTEIN  Length:133
 aligned with MNTR_BACSU | P54512 from UniProtKB/Swiss-Prot  Length:142

    Alignment length:133
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
           MNTR_BACSU     3 TPSMEDYIEQIYMLIEEKGYARVSDIAEALAVHPSSVTKMVQKLDKDEYLIYEKYRGLVLTSKGKKIGKRLVYRHELLEQFLRIIGVDEEKIYNDVEGIEHHLSWNSIDRIGDLVQYFEEDDARKKDLKSIQK 135
               SCOP domains d2hygd1 D:3-62 Manganese transport regulator MntR           d2hygd2 D:63-135 Manganese transport regulator MntR                       SCOP domains
               CATH domains 2hygD01 D:3-73 'winged helix' repressor DNA binding domain             2hygD02 D:74-135 Diphtheria Toxin Repressor, domain 2          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh..hhhhhhhh...hhhhhhhhhhhhhhh..eee.....eeehhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...hhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hyg D   3 TPSMEDYIEQIYMLIEEKGYARVSDIAEALAVHPSSVTKMVQKLDKDEYLIYEKYRGLVLTSKGKKIGKRLVYRHELLEQFLRIIGVDEEKIYNDVEGIEHHLSWNSIDRIGDLVQYFEEDDARKKDLKSIQK 135
                                    12        22        32        42        52        62        72        82        92       102       112       122       132

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (2, 2)

CATH Domains (2, 2)

Pfam Domains (0, 0)

Gene Ontology (10, 10)

Asymmetric Unit(hide GO term definitions)

Chain D (MNTR_BACSU | P54512)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0030145	manganese ion binding	Interacting selectively and non-covalently with manganese (Mn) ions.
	GO:0046983	protein dimerization activity	The formation of a protein dimer, a macromolecular structure consists of two noncovalently associated identical or nonidentical subunits.
	GO:0003700	transcription factor activity, sequence-specific DNA binding	Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
	GO:0046914	transition metal ion binding	Interacting selectively and non-covalently with a transition metal ions; a transition metal is an element whose atom has an incomplete d-subshell of extranuclear electrons, or which gives rise to a cation or cations with an incomplete d-subshell. Transition metals often have more than one valency state. Biologically relevant transition metals include vanadium, manganese, iron, copper, cobalt, nickel, molybdenum and silver.
biological process
	GO:0030026	cellular manganese ion homeostasis	Any process involved in the maintenance of an internal steady state of manganese ions at the level of a cell.
	GO:0045893	positive regulation of transcription, DNA-templated	Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Visualization

Interactive Views

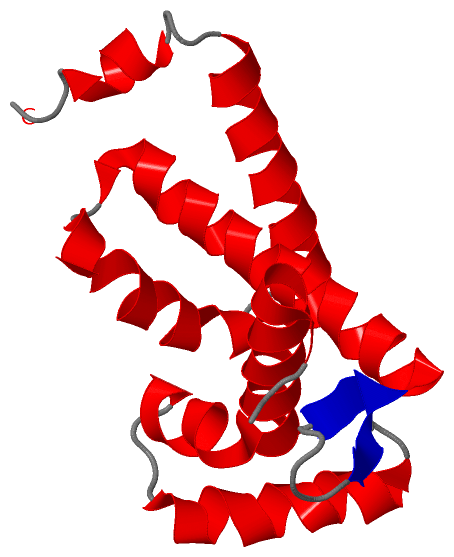

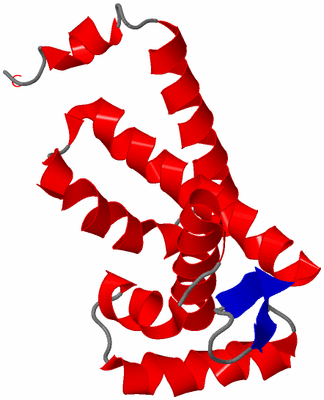

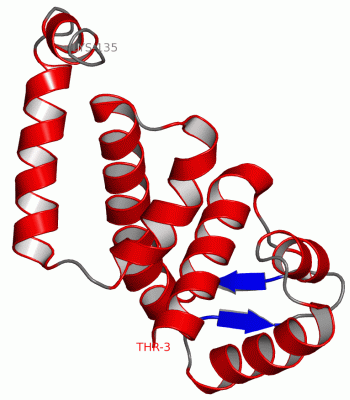

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2hyg)

	Sites
(no "Sites" information available for 2hyg)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2hyg)

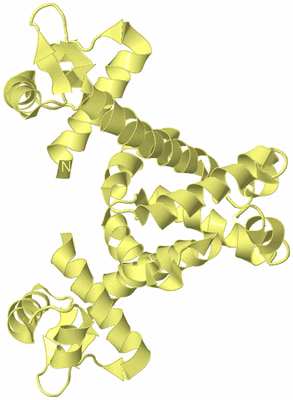

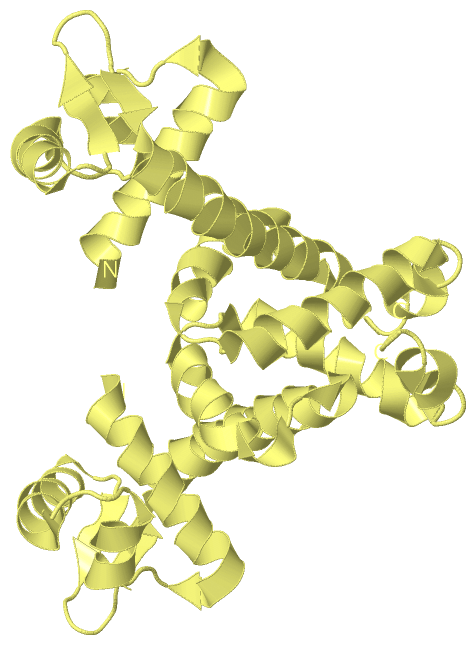

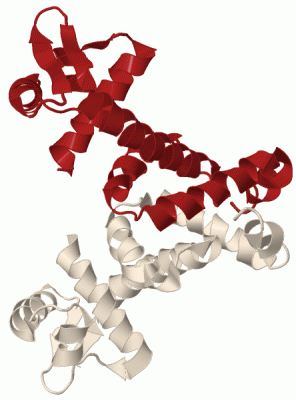

Biological Unit
