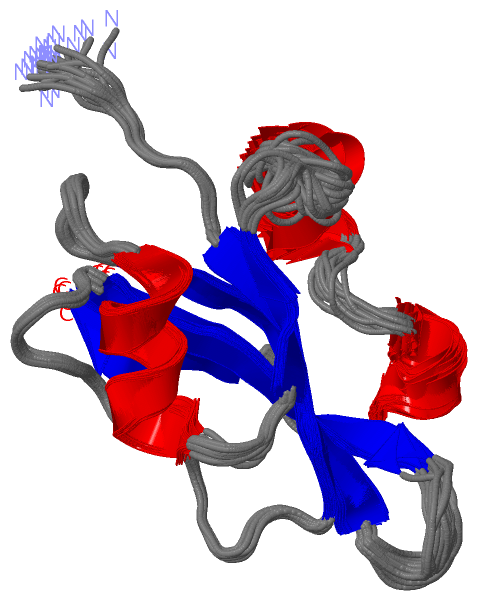

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR SOLUTION STRUCTURE OF THE MASTER-REP PROTEIN NUCLEASE DOMAIN (2-95) FROM THE FABA BEAN NECROTIC YELLOWS VIRUS

Authors :  S. Vega-Rocha, B. Gronenborn, A. M. Gronenborn, R. Campos-Olivas
Date :  02 Aug 06  (Deposition) - 26 Jun 07  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (31x)
Keywords :  Alpha, Beta, Replication, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. Vega-Rocha, B. Gronenborn, A. M. Gronenborn, R. Campos-Olivas
Solution Structure Of The Endonuclease Domain From The Master Replication Initiator Protein Of The Nanovirus Faba Bean Necrotic Yellows Virus And Comparison With The Corresponding Geminivirus And Circovirus Structures
Biochemistry V. 46 6201 2007
PubMed-ID: 17472345  |  Reference-DOI: 10.1021/BI700159Q
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PUTATIVE REPLICASE-ASSOCIATED PROTEIN
    ChainsA
    EC Number3.1.21.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET3A
    Expression System StrainROSETTA (DE3) PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentNUCLEASE DOMAIN (RESIDUES 2-95)
    GeneC2 COMPONENT 2
    Organism ScientificFABA BEAN NECROTIC YELLOWS VIRUS
    Organism Taxid59817

 Structural Features

(-) Chains, Units


NMR Structure (31x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2HWT)

(-) Sites  (0, 0)

(no "Site" information available for 2HWT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2HWT)

(-) Cis Peptide Bonds  (1, 31)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31Gly A:89 -Pro A:90

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2HWT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2HWT)

(-) Exons   (0, 0)

(no "Exon" information available for 2HWT)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:94
 aligned with MREP_FBNY2 | O39828 from UniProtKB/Swiss-Prot  Length:286

    Alignment length:94
                                    11        21        31        41        51        61        71        81        91
            MREP_FBNY2    2 ARQVICWCFTLNNPLSPLSLHDSMKYLVYQTEQGEAGNIHFQGYIEMKKRTSLAGMKKLIPGAHFEKRRGTQGEARAYSMKEDTRLEGPWEYGE 95
               SCOP domains ---------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeee.............eeeeeeee.....eeeeeeee.....hhhhhhhhh...eee......hhhhh...hhhhh....eeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                  2hwt A  2 ARQVICWCFTLNNPLSPLSLHDSMKYLVYQTEQGEAGNIHFQGYIEMKKRTSLAGMKKLIPGAHFEKRRGTQGEARAYSMKEDTRLEGPWEYGE 95
                                    11        21        31        41        51        61        71        81        91

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2HWT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2HWT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2HWT)

(-) Gene Ontology  (21, 21)

NMR Structure(hide GO term definitions)
Chain A   (MREP_FBNY2 | O39828)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016887    ATPase activity    Catalysis of the reaction: ATP + H2O = ADP + phosphate + 2 H+. May or may not be coupled to another reaction.
    GO:0042624    ATPase activity, uncoupled    Catalysis of the reaction: ATP + H2O = ADP + phosphate; this reaction is not directly coupled to any other reaction.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0003724    RNA helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a RNA helix.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016888    endodeoxyribonuclease activity, producing 5'-phosphomonoesters    Catalysis of the hydrolysis of ester linkages within deoxyribonucleic acids by creating internal breaks to yield 5'-phosphomonoesters.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004386    helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a DNA or RNA helix.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
    GO:0018142    protein-DNA covalent cross-linking    The formation of a covalent cross-link between DNA and a protein.
cellular component
    GO:0042025    host cell nucleus    A membrane-bounded organelle as it is found in the host cell in which chromosomes are housed and replicated. The host is defined as the larger of the organisms involved in a symbiotic interaction.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2hwt)

  Sites
(no "Sites" information available for 2hwt)

  Cis Peptide Bonds
    Gly A:89 - Pro A:90   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2hwt
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MREP_FBNY2 | O39828
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.21.-
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  MREP_FBNY2 | O39828
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2HWT)

(-) Related Entries Specified in the PDB File

7112 RESONANCE ASSIGNMENT
