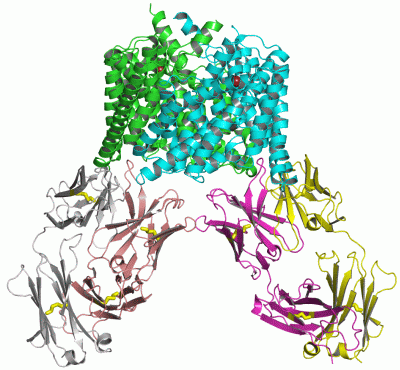

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

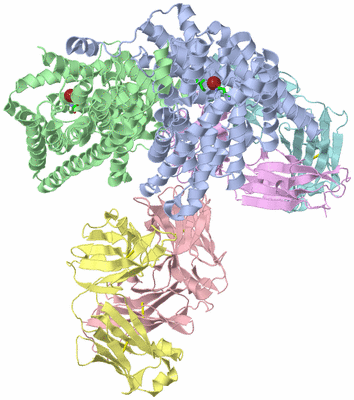

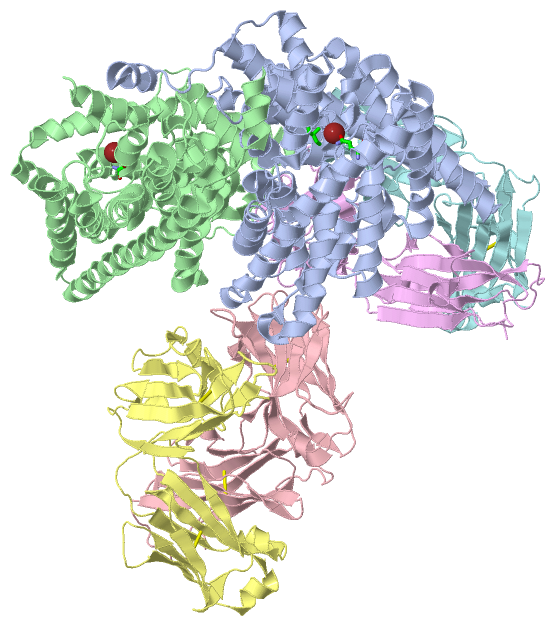

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE ESCHERICHIS COLI CLC CHLORIDE CHANNEL Y445E MUTANT AND FAB COMPLEX

Authors :  A. Accardi, S. Lobet, C. Williams, C. Miller, R. Dutzler
Date :  07 Jul 06  (Deposition) - 19 Sep 06  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.30
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Clc Family Of Channels And Transpoters, H+/Cl- Antiporter, Membrane Protein, Fab Complex, Proton Transport, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Accardi, S. Lobet, C. Williams, C. Miller, R. Dutzler
Synergism Between Halide Binding And Proton Transport In A Clc-Type Exchanger
J. Mol. Biol. V. 362 691 2006
PubMed-ID: 16949616  |  Reference-DOI: 10.1016/J.JMB.2006.07.081
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - H(+)/CL(-) EXCHANGE TRANSPORTER CLCA
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET28
    Expression System Strain: BL21DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: CLCA, ERIC
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Other Details: EACH SUBUNIT OF THE MUTANT HAS A SINGLE BR- ION BOUND IN THE SELECTIVITY FILTER
    Synonym: 1ECCLC H+/CL- ANTIPORTER;
CLC-EC1

Molecule 2 - FAB FRAGMENT, HEAVY CHAIN
    Cell Line: HYBRIDOMA CELL LINE
    Chains: C, E
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 3 - FAB FRAGMENT, LIGHT CHAIN
    Cell Line: HYBRIDOMA CELL LINE
    Chains: D, F
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1BR2Ligand/IonBROMIDE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:277 , ILE A:448BINDING SITE FOR RESIDUE BR A 1
2AC2SOFTWARESER B:107 , GLY B:108 , PRO B:110BINDING SITE FOR RESIDUE BR B 2

(-) SS Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1C:22 -C:96
2C:148 -C:203
3D:23 -D:87
4D:133 -D:193
5E:22 -E:96
6E:148 -E:203
7F:23 -F:87
8F:133 -F:193

(-) Cis Peptide Bonds  (9, 9)

Asymmetric/Biological Unit
No.Residues
1Phe C:154 -Pro C:155
2Glu C:156 -Pro C:157
3Trp C:196 -Pro C:197
4His D:93 -Pro D:94
5Phe E:154 -Pro E:155
6Glu E:156 -Pro E:157
7Trp E:196 -Pro E:197
8His F:93 -Pro F:94
9Tyr F:139 -Pro F:140

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2HLF)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2HLF)

(-) Exons   (0, 0)

(no "Exon" information available for 2HLF)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:444
 aligned with CLCA_ECOLI | P37019 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:444
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456
           CLCA_ECOLI    17 RRRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEAEQ 460
               SCOP domains d2hlfa1 A:17-460 Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 2hlfA00 A:17-460 Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh.....hhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2hlf A  17 RRRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLESAILARTLAKQEAEQ 460
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456


Chain B from PDB  Type:PROTEIN  Length:441
 aligned with CLCA_ECOLI | P37019 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:441
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457
           CLCA_ECOLI    18 RRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEA 458
               SCOP domains d2hlfb1 B:18-458 Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 2hlfB00 B:18-458 Clc chloride channel                                                                                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhh....hhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hlf B  18 RRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLESAILARTLAKQEA 458
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457


Chain C from PDB  Type:PROTEIN  Length:221
 aligned with HVM38_MOUSE | P01808 from UniProtKB/Swiss-Prot  Length:119

    Alignment length:221
                                                                                                                                   104
                                                                                                                                103  |
                                                                                                                               102|  |
                                                                                                                             101 ||  |            119
                                    11        21        31        41        51        61        71        81        91       101 ||  | 108       118|        -         -         -         -         -         -         -         -         -         -
          HVM38_MOUSE     2 VKLLESGGGLVQPGGSLKLSCAASGFDFSRYWMSWVRQAPGKGLEWIGEINPDSSTINYTPSLKDKFIISRDNAKNTLYLQMSKVRSEDTALYYCARLGY-YG--YFDVWGAGTTVTVSSE----------------------------------------------------------------------------------------------------   -
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2hlfC01 C:2-121 Immunoglobulins                                                                                         2hlfC02 C:122-220 Immunoglobulins                                                                  -- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..eee.....eeeeeeee.......eeeeeee.....eeeeeee......eee.......eeeeee....eeeeee...hhhhheeeeeeeee......eeeee...eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee........eeeeeeehhhheeeeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hlf C   2 VRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCARLYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA 222
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221


Chain C from PDB  Type:PROTEIN  Length:221
 aligned with Q4VBH1_RAT | Q4VBH1 from UniProtKB/TrEMBL  Length:467

    Alignment length:223
                                                                                                                                      128
                                                                                                                                    127 |
                                    30        40        50        60        70        80        90       100       110       120      |129       139       149       159       169       179       189       199       209       219       229       239
           Q4VBH1_RAT    21 VQLVETGGGLVQPGRSLKLSCVASGFTFSSYWMYWIRQAPGKGLEWVSSINTDGGSTYYPDSVKGRFTISRDNAENTVYLQMNSLRSEDTATYYCAKGGEYYGYNYP-FDYWGQGVMVTVSSAETTAPSVYPLAPGTALKSNSMVTLGCLVKGYFPEPVTVTWNSGALSSGVHTFPAVLQSGLYTLTSSVTVPSSTWPSQTVTCNVAHPASSTKVDKKIVPRN 242
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2hlfC01 C:2-121 Immunoglobulins                                                                                           2hlfC02 C:122-220 Immunoglobulins                                                                  -- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..eee.....eeeeeeee.......eeeeeee.....eeeeeee......eee.......eeeeee....eeeeee...hhhhheeeeeee--ee......eeeee...eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee........eeeeeeehhhheeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hlf C   2 VRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCAR--LYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA 222
                                    11        21        31        41        51        61        71        81        91      | 99       109       119       129       139       149       159       169       179       189       199       209       219
                                                                                                                           98 99


Chain D from PDB  Type:PROTEIN  Length:211

               SCOP domains d2hlfd1 D:1-105 Immunoglobulin light chain kappa variable domain, VL-kappa                               -d2hlfd2 D:107-210 Immunoglobulin light chain kappa constant domain, CL-kappa                            - SCOP domains
               CATH domains 2hlfD01 D:1-107 Immunoglobulins                                                                            2hlfD02 D:108-210 Immunoglobulins                                                                      - CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee...eeee.....eeeeeee.......eeeee......eeeee...ee.......eeeeee..eeeeee...hhhhheeeeeee......ee...eeeee.......eeeee..hhhhhh..eeeeeeeeeee.....eeeeee..eee...eeeee.........eeeeeeeeeehhhhhh..eeeeeee.......eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hlf D   1 DIVLTQSPAIMSAAPGDKVTMTCSASSSVSYIHWYQQKSGTSPKRWIYDTSKLTSGVPVRFSGSGSGTSYSLTINTMEAEDAATYYCQQWSSHPQTFGGGTKLEILRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRA 211
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain E from PDB  Type:PROTEIN  Length:221
 aligned with HVM38_MOUSE | P01808 from UniProtKB/Swiss-Prot  Length:119

    Alignment length:221
                                                                                                                                   104
                                                                                                                                103  |
                                                                                                                               102|  |
                                                                                                                             101 ||  |            119
                                    11        21        31        41        51        61        71        81        91       101 ||  | 108       118|        -         -         -         -         -         -         -         -         -         -
          HVM38_MOUSE     2 VKLLESGGGLVQPGGSLKLSCAASGFDFSRYWMSWVRQAPGKGLEWIGEINPDSSTINYTPSLKDKFIISRDNAKNTLYLQMSKVRSEDTALYYCARLGY-YG--YFDVWGAGTTVTVSSE----------------------------------------------------------------------------------------------------   -
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2hlfE01 E:2-121 Immunoglobulins                                                                                         2hlfE02 E:122-220 Immunoglobulins                                                                  -- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..eee.....eeeeeeee.......eeeeeee.....eeeeeee......eee.......eeeeee....eeeeee...hhhhheeeeeeeee......eeeee...eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eee...ee....eeeeeeeeee.........eeeeee....eeeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hlf E   2 VRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCARLYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA 222
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221


Chain E from PDB  Type:PROTEIN  Length:221
 aligned with Q4VBH1_RAT | Q4VBH1 from UniProtKB/TrEMBL  Length:467

    Alignment length:223
                                                                                                                                      128
                                                                                                                                    127 |
                                    30        40        50        60        70        80        90       100       110       120      |129       139       149       159       169       179       189       199       209       219       229       239
           Q4VBH1_RAT    21 VQLVETGGGLVQPGRSLKLSCVASGFTFSSYWMYWIRQAPGKGLEWVSSINTDGGSTYYPDSVKGRFTISRDNAENTVYLQMNSLRSEDTATYYCAKGGEYYGYNYP-FDYWGQGVMVTVSSAETTAPSVYPLAPGTALKSNSMVTLGCLVKGYFPEPVTVTWNSGALSSGVHTFPAVLQSGLYTLTSSVTVPSSTWPSQTVTCNVAHPASSTKVDKKIVPRN 242
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2hlfE01 E:2-121 Immunoglobulins                                                                                           2hlfE02 E:122-220 Immunoglobulins                                                                  -- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..eee.....eeeeeeee.......eeeeeee.....eeeeeee......eee.......eeeeee....eeeeee...hhhhheeeeeee--ee......eeeee...eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eee...ee....eeeeeeeeee.........eeeeee....eeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hlf E   2 VRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCAR--LYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA 222
                                    11        21        31        41        51        61        71        81        91      | 99       109       119       129       139       149       159       169       179       189       199       209       219
                                                                                                                           98 99


Chain F from PDB  Type:PROTEIN  Length:211

               SCOP domains d2hlff1 F:1-105 Immunoglobulin light chain kappa variable domain, VL-kappa                               -d2hlff2 F:107-210 Immunoglobulin light chain kappa constant domain, CL-kappa                            - SCOP domains
               CATH domains 2hlfF01 F:1-107 Immunoglobulins                                                                            2hlfF02 F:108-210 Immunoglobulins                                                                      - CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee...eeee.....eeeeeeeeeee...eeeee......eeeee...ee.......eeeeeeeeeeeeee...hhhhheeeeeee......ee...eeeee.......eeeee..hhhhhh..eeeeeeeeeee....eeeeeee..eee...eeeee.........eeeeeeeeeehhhhhh..eeeeeeee......eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2hlf F   1 DIVLTQSPAIMSAAPGDKVTMTCSASSSVSYIHWYQQKSGTSPKRWIYDTSKLTSGVPVRFSGSGSGTSYSLTINTMEAEDAATYYCQQWSSHPQTFGGGTKLEILRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRA 211
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 6)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (2, 10)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)
(-)
Class: Mainly Beta (13760)
(-)
Architecture: Sandwich (5577)
(-)
Topology: Immunoglobulin-like (3897)
(-)
Homologous Superfamily: Immunoglobulins (2282)
(-)
Escherichia coli. Organism_taxid: 562. (17)
2a2hlfD02D:108-210
2b2hlfC01C:2-121
2c2hlfE01E:2-121
2d2hlfF02F:108-210
2e2hlfD01D:1-107
2f2hlfF01F:1-107
2g2hlfC02C:122-220
2h2hlfE02E:122-220

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2HLF)

(-) Gene Ontology  (32, 32)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (CLCA_ECOLI | P37019)
molecular function
    GO:0043168    anion binding    Interacting selectively and non-covalently with anions, charged atoms or groups of atoms with a net negative charge.
    GO:0015297    antiporter activity    Enables the active transport of a solute across a membrane by a mechanism whereby two or more species are transported in opposite directions in a tightly coupled process not directly linked to a form of energy other than chemiosmotic energy. The reaction is: solute A(out) + solute B(in) = solute A(in) + solute B(out).
    GO:0031404    chloride ion binding    Interacting selectively and non-covalently with chloride ions (Cl-).
    GO:0015108    chloride transmembrane transporter activity    Enables the transfer of chloride ions from one side of a membrane to the other.
    GO:0005216    ion channel activity    Enables the facilitated diffusion of an ion (by an energy-independent process) by passage through a transmembrane aqueous pore or channel without evidence for a carrier-mediated mechanism. May be either selective (it enables passage of a specific ion only) or non-selective (it enables passage of two or more ions of same charge but different size).
    GO:0015299    solute:proton antiporter activity    Catalysis of the transfer of a solute or solutes from one side of a membrane to the other according to the reaction: solute(out) + H+(in) = solute(in) + H+(out).
    GO:0005247    voltage-gated chloride channel activity    Enables the transmembrane transfer of a chloride ion by a voltage-gated channel. A voltage-gated channel is a channel whose open state is dependent on the voltage across the membrane in which it is embedded.
biological process
    GO:1902476    chloride transmembrane transport    The directed movement of chloride across a membrane.
    GO:0006821    chloride transport    The directed movement of chloride into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:1902600    hydrogen ion transmembrane transport    The directed movement of hydrogen ion (proton) across a membrane.
    GO:0034220    ion transmembrane transport    A process in which an ion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0015706    nitrate transport    The directed movement of nitrate into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:1903959    regulation of anion transmembrane transport    Any process that modulates the frequency, rate or extent of anion transmembrane transport.
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Chain C,E   (Q4VBH1_RAT | Q4VBH1)

Chain C,E   (HVM38_MOUSE | P01808)
molecular function
    GO:0003823    antigen binding    Interacting selectively and non-covalently with an antigen, any substance which is capable of inducing a specific immune response and of reacting with the products of that response, the specific antibody or specifically sensitized T-lymphocytes, or both. Binding may counteract the biological activity of the antigen.
    GO:0034987    immunoglobulin receptor binding    Interacting selectively and non-covalently with one or more specific sites on an immunoglobulin receptor molecule.
biological process
    GO:0050853    B cell receptor signaling pathway    A series of molecular signals initiated by the cross-linking of an antigen receptor on a B cell.
    GO:0006958    complement activation, classical pathway    Any process involved in the activation of any of the steps of the classical pathway of the complement cascade which allows for the direct killing of microbes, the disposal of immune complexes, and the regulation of other immune processes.
    GO:0042742    defense response to bacterium    Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.
    GO:0045087    innate immune response    Innate immune responses are defense responses mediated by germline encoded components that directly recognize components of potential pathogens.
    GO:0006911    phagocytosis, engulfment    The internalization of bacteria, immune complexes and other particulate matter or of an apoptotic cell by phagocytosis, including the membrane and cytoskeletal processes required, which involves one of three mechanisms: zippering of pseudopods around a target via repeated receptor-ligand interactions, sinking of the target directly into plasma membrane of the phagocytosing cell, or induced uptake via an enhanced membrane ruffling of the phagocytosing cell similar to macropinocytosis.
    GO:0006910    phagocytosis, recognition    The initial step in phagocytosis involving adhesion to bacteria, immune complexes and other particulate matter, or an apoptotic cell and based on recognition of factors such as bacterial cell wall components, opsonins like complement and antibody or protein receptors and lipids like phosphatidyl serine, and leading to intracellular signaling in the phagocytosing cell.
    GO:0050871    positive regulation of B cell activation    Any process that activates or increases the frequency, rate or extent of B cell activation.
cellular component
    GO:0072562    blood microparticle    A phospholipid microvesicle that is derived from any of several cell types, such as platelets, blood cells, endothelial cells, or others, and contains membrane receptors as well as other proteins characteristic of the parental cell. Microparticles are heterogeneous in size, and are characterized as microvesicles free of nucleic acids.
    GO:0009897    external side of plasma membrane    The leaflet of the plasma membrane that faces away from the cytoplasm and any proteins embedded or anchored in it or attached to its surface.
    GO:0042571    immunoglobulin complex, circulating    An immunoglobulin complex that is secreted into extracellular space and found in mucosal areas or other tissues or circulating in the blood or lymph. In its canonical form, a circulating immunoglobulin complex is composed of two identical heavy chains and two identical light chains, held together by disulfide bonds. Some forms of are polymers of the basic structure and contain additional components such as J-chain and the secretory component.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Glu C:156 - Pro C:157   [ RasMol ]
    Glu E:156 - Pro E:157   [ RasMol ]
    His D:93 - Pro D:94   [ RasMol ]
    His F:93 - Pro F:94   [ RasMol ]
    Phe C:154 - Pro C:155   [ RasMol ]
    Phe E:154 - Pro E:155   [ RasMol ]
    Trp C:196 - Pro C:197   [ RasMol ]
    Trp E:196 - Pro E:197   [ RasMol ]
    Tyr F:139 - Pro F:140   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2hlf
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CLCA_ECOLI | P37019
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  HVM38_MOUSE | P01808
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  Q4VBH1_RAT | Q4VBH1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CLCA_ECOLI | P37019
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  HVM38_MOUSE | P01808
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q4VBH1_RAT | Q4VBH1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CLCA_ECOLI | P37019: 1kpk 1ots 1ott 1otu 2exw 2exy 2ez0 2fec 2fed 2fee 2h2p 2h2s 2ht2 2ht3 2ht4 2htk 2htl 2r9h 3det 3ejy 3ejz 3nmo 4ene 4fg6 4ftp 4kjp 4kjq 4kjw 4kk5 4kk6 4kk8 4kk9 4kka 4kkb 4kkc 4kkl 4lou 4mqx 5hd8
        HVM38_MOUSE | P01808: 1ots 1ott 1otu 2exw 2exy 2ez0 2h2p 2h2s 2ht2 2ht3 2ht4 2htk 2htl 3det 3ejy 3ejz 3u0w 4kkb 4mqx
UniProtKB/TrEMBL
        Q4VBH1_RAT | Q4VBH1: 2h2p 2h2s 2ht2 2ht3 2ht4 2htk 2htl

(-) Related Entries Specified in the PDB File

1ots
