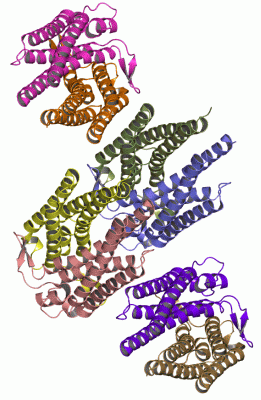

Asym.Unit - manually (Jmol Viewer)

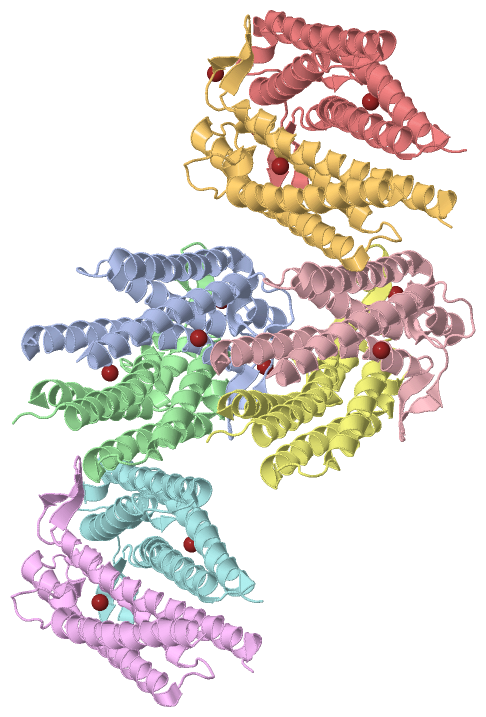

Asymmetric Unit (Jmol Viewer)

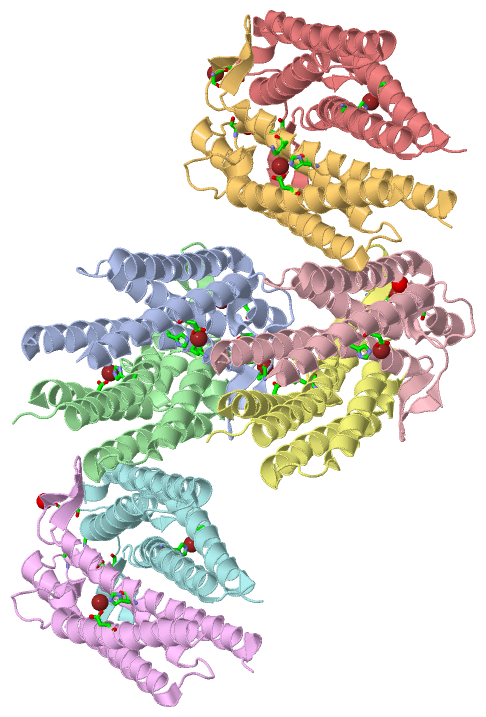

Asym. Unit - sites (Jmol Viewer)

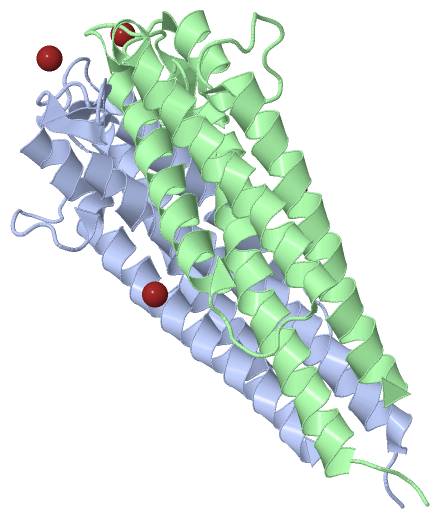

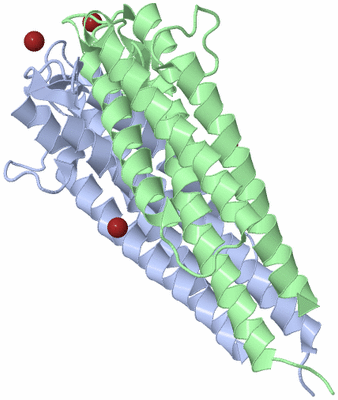

Biological Unit 1 (Jmol Viewer)

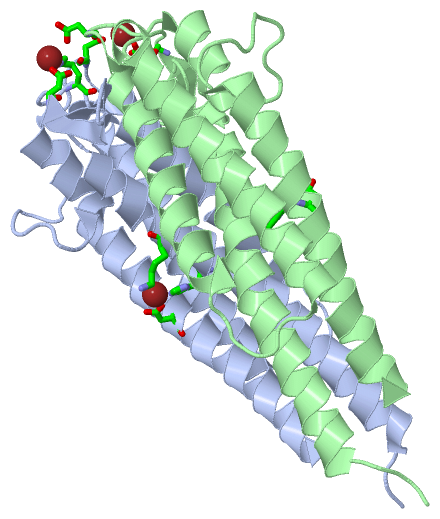

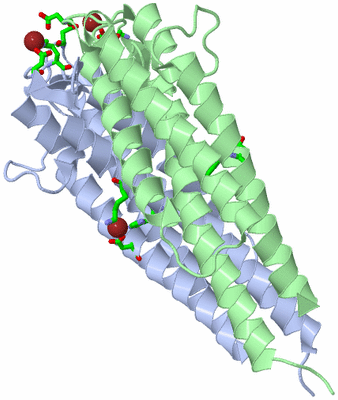

Biol. Unit 1 - sites (Jmol Viewer)

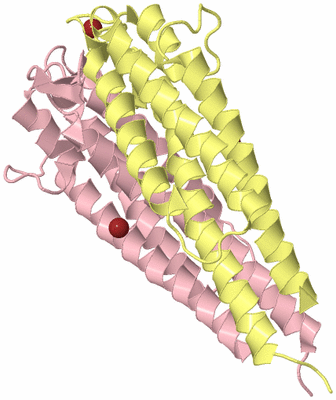

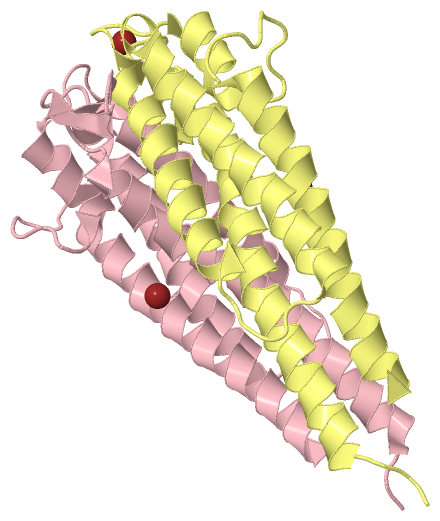

Biological Unit 2 (Jmol Viewer)

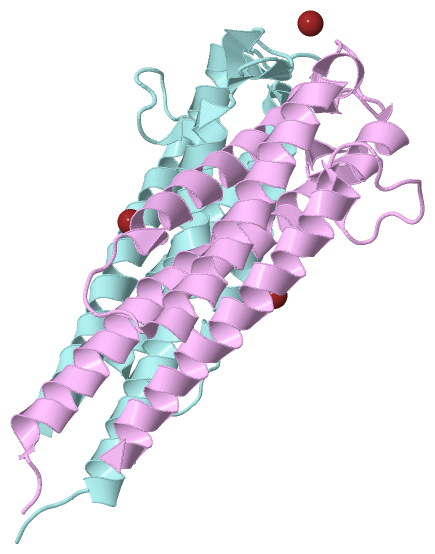

Biological Unit 3 (Jmol Viewer)

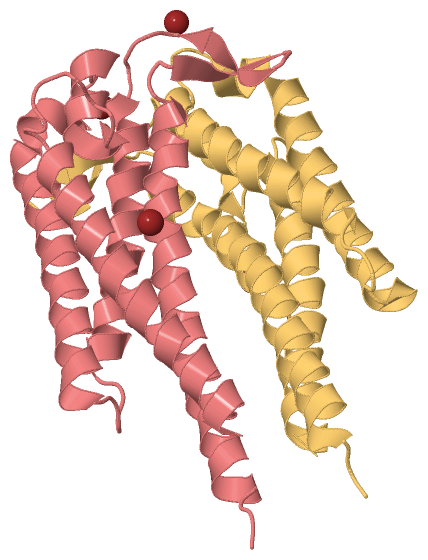

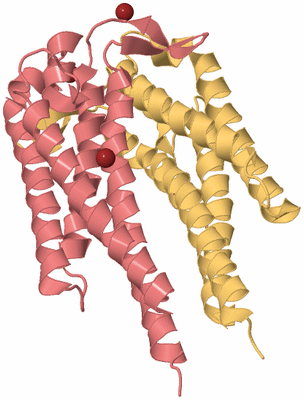

Biological Unit 4 (Jmol Viewer)

Title :   VARIABLE SMALL PROTEIN 1 OF BORRELIA TURICATAE (VSPA OR VSP1)

Authors :   C. L. Lawson, B. H. Yung, A. G. Barbour, W. R. Zuckert

Date :   07 Mar 06 (Deposition) - 27 Jun 06 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.70

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)
Biol. Unit 3: E,F  (1x)
Biol. Unit 4: G,H  (1x)

Keywords :   Helical Bundle, Ni(Ii) Binding Sites, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. L. Lawson, B. H. Yung, A. G. Barbour, W. R. Zuckert
Crystal Structure Of Neurotropism-Associated Variable Surface Protein 1 (Vsp1) Of Borrelia Turicatae.
J. Bacteriol. V. 188 4522 2006
PubMed-ID: 16740958 | Reference-DOI: 10.1128/JB.00028-06
(for further references see the PDB file header)

Molecule 1 - SURFACE PROTEIN VSPA
	Chains	:	A, B, C, D, E, F, G, H
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PET29B
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	RESIDUES 34-214
	Gene	:	VSP1, VSPA
	Organism Scientific	:	BORRELIA TURICATAE
	Organism Taxid	:	142
	Synonym	:	VARIABLE SURFACE PROTEIN 1

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D
Biological Unit 3 (1x)	:					E	F
Biological Unit 4 (1x)	:							G	H

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 14)

No.	Name	Count	Type	Full Name
1	NI	14	Ligand/Ion	NICKEL (II) ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	NI	-1	Ligand/Ion	NICKEL (II) ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	NI	-1	Ligand/Ion	NICKEL (II) ION

Biological Unit 3 (0, 0)

No.	Name	Count	Type	Full Name
1	NI	-1	Ligand/Ion	NICKEL (II) ION

Biological Unit 4 (0, 0)

No.	Name	Count	Type	Full Name
1	NI	-1	Ligand/Ion	NICKEL (II) ION

Asymmetric Unit (14, 14)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	HIS D:62 , ASP D:184	BINDING SITE FOR RESIDUE NI D 1
02	AC2	SOFTWARE	HIS B:62 , ASP B:184 , HOH B:229	BINDING SITE FOR RESIDUE NI B 2
03	AC3	SOFTWARE	HIS C:62 , ASP C:184	BINDING SITE FOR RESIDUE NI C 3
04	AC4	SOFTWARE	ASP A:150 , ASP B:87 , ASP H:150	BINDING SITE FOR RESIDUE NI B 4
05	AC5	SOFTWARE	HIS E:62 , ASP E:184	BINDING SITE FOR RESIDUE NI E 5
06	AC6	SOFTWARE	HIS F:62 , ASP F:184	BINDING SITE FOR RESIDUE NI F 6
07	AC7	SOFTWARE	HIS A:62 , LYS A:66 , ASP A:184 , HOH A:234	BINDING SITE FOR RESIDUE NI A 7
08	AC8	SOFTWARE	ASP C:150 , ASP D:87 , HOH D:223 , HOH E:219 , ASP F:150	BINDING SITE FOR RESIDUE NI D 8
09	AC9	SOFTWARE	HIS G:62 , LYS G:66 , ASP G:184	BINDING SITE FOR RESIDUE NI G 9
10	BC1	SOFTWARE	HIS H:62 , ASP H:184 , HOH H:231	BINDING SITE FOR RESIDUE NI H 10
11	BC2	SOFTWARE	ASP G:87 , ASP H:150	BINDING SITE FOR RESIDUE NI G 11
12	BC3	SOFTWARE	ASP E:150 , ASP F:87 , LYS F:90	BINDING SITE FOR RESIDUE NI E 12
13	BC4	SOFTWARE	ASP G:150 , HOH G:215 , ASP H:87 , HOH H:232	BINDING SITE FOR RESIDUE NI H 13
14	BC5	SOFTWARE	ASP A:87 , LYS A:90 , ASP B:150	BINDING SITE FOR RESIDUE NI A 14

(no "SS Bond" information available for 2GA0)

(no "Cis Peptide Bond" information available for 2GA0)

(no "SAP(SNP)/Variant" information available for 2GA0)

(no "PROSITE Motif" information available for 2GA0)

(no "Exon" information available for 2GA0)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0a_ A: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0A00 A:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 A  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Chain B from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0b_ B: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0B00 B:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 B  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Chain C from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0c_ C: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0C00 C:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 C  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Chain D from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0d_ D: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0D00 D:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 D  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Chain E from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0e_ E: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0E00 E:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 E  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Chain F from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0f_ F: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0F00 F:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 F  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Chain G from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0g_ G: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0G00 G:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 G  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Chain H from PDB  Type:PROTEIN  Length:164
 aligned with O34000_BORTU | O34000 from UniProtKB/TrEMBL  Length:214

    Alignment length:164
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197
         O34000_BORTU    38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
               SCOP domains d2ga0h_ H: automated matches                                                                                                                                         SCOP domains
               CATH domains 2ga0H00 H:38-201  [code=1.20.120.240, no name defined]                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeee..eeee....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ga0 H  38 VIDLATITKNITDAVAFAKSVKDVHTLVKSIDELAKAIGKKIGANGLETDADKNAKLISGAYSVISAVDTKLASLEKKVGISDDLKGKITTVKNASTSFLTKAKSKTADLGKDDVKDADAKTAIDIADTGAKDKGAEELIKLNTAIDALLTSAEAAVTAAINAL 201
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Four-helical up-and-down bundle (308)

Superfamily: Outer surface protein C (OspC) (5)

Family: automated matches (2)

Protein domain: automated matches (2)

Borrelia turicatae [TaxId: 142] (2)

1a	d2ga0a_	A:
1b	d2ga0g_	G:
1c	d2ga0h_	H:
1d	d2ga0b_	B:
1e	d2ga0c_	C:
1f	d2ga0d_	D:
1g	d2ga0e_	E:
1h	d2ga0f_	F:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Four Helix Bundle (Hemerythrin (Met), subunit A) (300)

Homologous Superfamily: [code=1.20.120.240, no name defined] (5)

Borrelia turicatae. Organism_taxid: 142. (2)

1a	2ga0A00	A:38-201
1b	2ga0G00	G:38-201
1c	2ga0H00	H:38-201
1d	2ga0B00	B:38-201
1e	2ga0C00	C:38-201
1f	2ga0D00	D:38-201
1g	2ga0E00	E:38-201
1h	2ga0F00	F:38-201

(no "Pfam Domain" information available for 2GA0)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H (O34000_BORTU | O34000)

biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
cellular component
	GO:0009279	cell outer membrane	A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		NI	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ga0)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2ga0
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	O34000_BORTU \| O34000
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	O34000_BORTU \| O34000
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/TrEMBL
	O34000_BORTU \| O34000	:	1yjg

1yjg	45-202 CONSTRUCT OF VSP1, WAS USED TO SOLVE THE STRUCTURE OF THIS ENTRY BY MOLECULAR REPLACEMENT

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 14)

Sites (14, 14)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 8)

CATH Domains (1, 8)

Pfam Domains (0, 0)

Gene Ontology (2, 2)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
