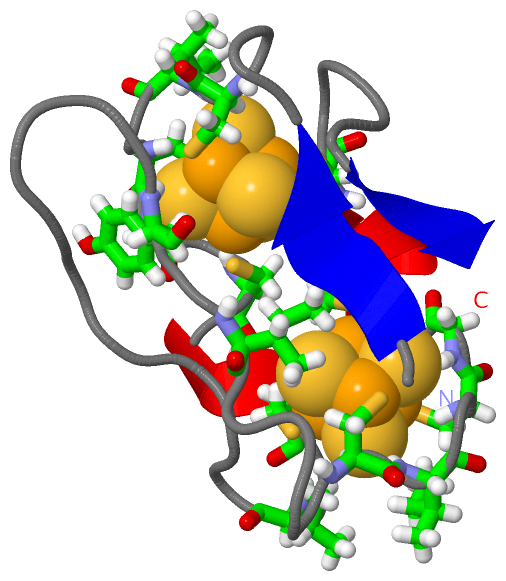

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  2[4FE-4S] FERREDOXIN FROM CLOSTRIDIUM ACIDI-URICI

Authors :  Z. Dauter, K. S. Wilson, L. C. Sieker, J. Meyer, J. M. Moulis
Date :  01 Oct 97  (Deposition) - 08 Apr 98  (Release) - 24 Mar 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  0.94
Chains :  Asym./Biol. Unit :  A
Keywords :  Electron Transport, Iron-Sulfur, 4Fe-4S (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Z. Dauter, K. S. Wilson, L. C. Sieker, J. Meyer, J. M. Moulis
Atomic Resolution (0. 94 A) Structure Of Clostridium Acidurici Ferredoxin. Detailed Geometry Of [4Fe-4S] Clusters In A Protein.
Biochemistry V. 36 16065 1997
PubMed-ID: 9405040  |  Reference-DOI: 10.1021/BI972155Y
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FERREDOXIN
    Atcc7906
    ChainsA
    Organism ScientificCLOSTRIDIUM ACIDURICI
    Organism Taxid1556

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1SF42Ligand/IonIRON/SULFUR CLUSTER

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:8 , ILE A:9 , CYS A:11 , GLY A:12 , CYS A:14 , TYR A:30 , CYS A:47BINDING SITE FOR RESIDUE SF4 A 61
2AC2SOFTWARECYS A:18 , VAL A:20 , ILE A:32 , CYS A:37 , ILE A:38 , CYS A:40 , GLY A:41 , CYS A:43BINDING SITE FOR RESIDUE SF4 A 62

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2FDN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2FDN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2FDN)

(-) PROSITE Motifs  (2, 3)

Asymmetric/Biological Unit (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
14FE4S_FER_1PS00198 4Fe-4S ferredoxin-type iron-sulfur binding region signature.FER_CLOA99-20
38-49
  2A:8-19
A:37-48
24FE4S_FER_2PS51379 4Fe-4S ferredoxin-type iron-sulfur binding domain profile.FER_CLOA929-56
1-28
  1A:28-55
-

(-) Exons   (0, 0)

(no "Exon" information available for 2FDN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:55
 aligned with FER_CLOA9 | P00198 from UniProtKB/Swiss-Prot  Length:56

    Alignment length:55
                                    11        21        31        41        51
             FER_CLOA9    2 AYVINEACISCGACEPECPVNAISSGDDRYVIDADTCIDCGACAGVCPVDAPVQA 56
               SCOP domains d2fdna_ A: Ferredoxin II                                SCOP domains
               CATH domains 2fdnA00 A:1-55  [code=3.30.70.20, no name defined]      CATH domains
               Pfam domains ------------------------------------------------------- Pfam domains
         Sec.struct. author .eee..........hhh........................hhhhh.....eee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------4FE4S_FER_1 -----------------4FE4S_FER_1 ------- PROSITE (1)
                PROSITE (2) 4FE4S_FER_2  PDB: -        4FE4S_FER_2  PDB: A:28-55    PROSITE (2)
                 Transcript ------------------------------------------------------- Transcript
                  2fdn A  1 AYVINEACISCGACEPECPVNAISSGDDRYVIDADTCIDCGACAGVCPVDAPVQA 55
                                    10        20        30        40        50

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2FDN)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (FER_CLOA9 | P00198)
molecular function
    GO:0051539    4 iron, 4 sulfur cluster binding    Interacting selectively and non-covalently with a 4 iron, 4 sulfur (4Fe-4S) cluster; this cluster consists of four iron atoms, with the inorganic sulfur atoms found between the irons and acting as bridging ligands.
    GO:0009055    electron carrier activity    Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0051536    iron-sulfur cluster binding    Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
