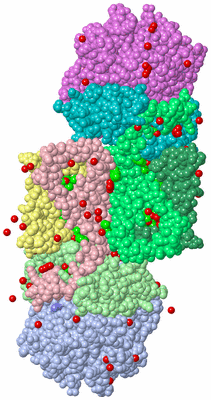

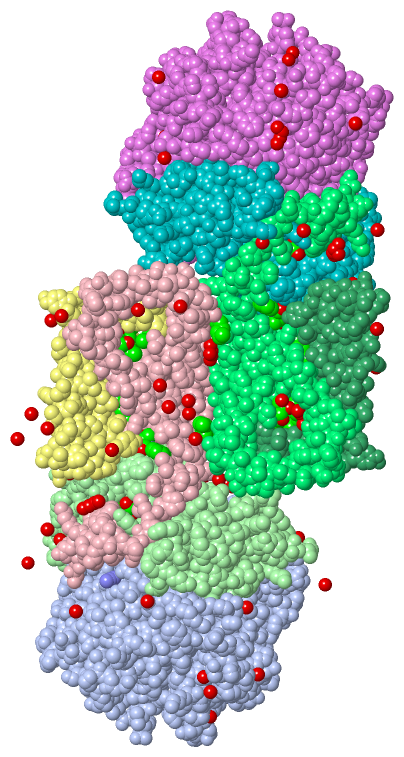

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

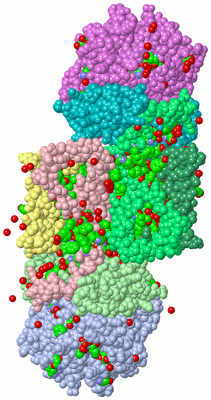

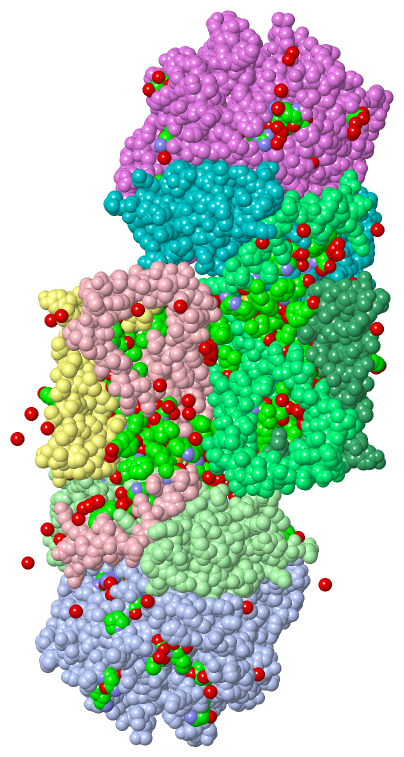

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

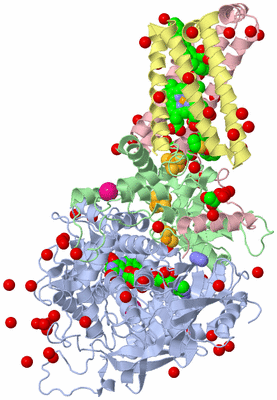

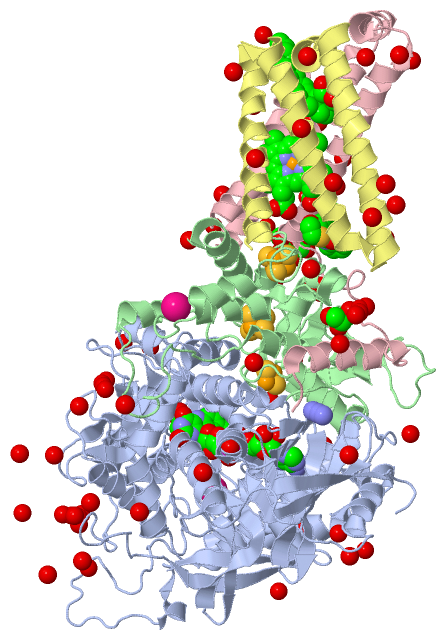

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

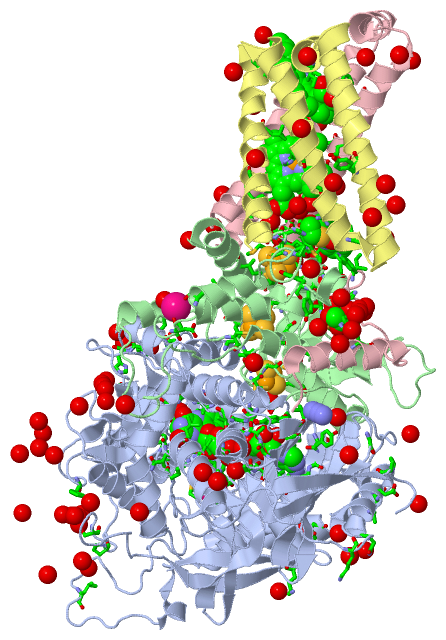

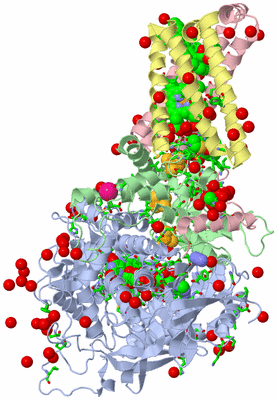

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

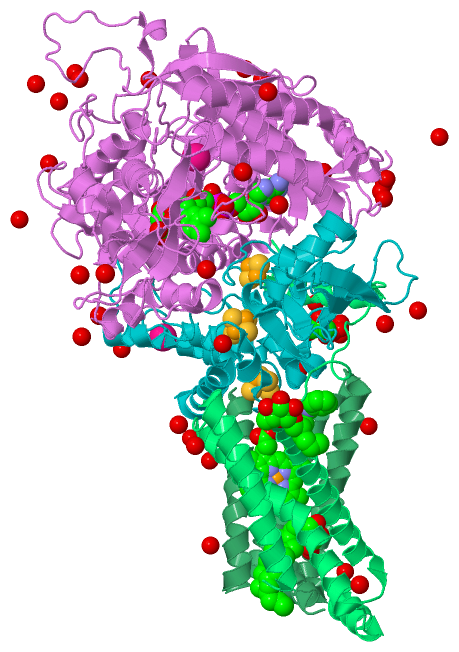

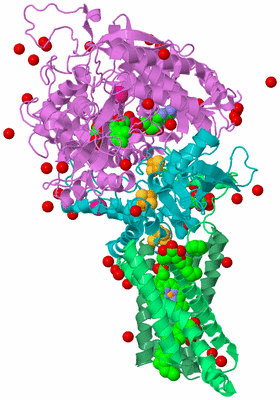

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  AVIAN RESPIRATORY COMPLEX II WITH CARBOXIN BOUND

Authors :  L. S. Huang, G. Sun, D. Cobessi, A. C. Wang, J. T. Shen, E. Y. Tung, V. E. And E. A. Berry
Date :  10 Dec 05  (Deposition) - 20 Dec 05  (Release) - 29 Oct 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B,C,D,N,O,P,Q
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  N,O,P,Q  (1x)
Keywords :  Complex Ii, Membrane Protein, Heme Protein, Iron Sulfur Protein, Cytochrome B, Oxidoreductase, Redox Enzyme, Respiratory Chain, Oxaloacetate Nitropropionate Ubiquinone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. S. Huang, G. Sun, D. Cobessi, A. C. Wang, J. T. Shen, E. Y. Tung, V. E. Anderson, E. A. Berry
3-Nitropropionic Acid Is A Suicide Inhibitor Of Mitochondrial Respiration That, Upon Oxidation By Complex Ii, Forms A Covalent Adduct With A Catalytic Base Arginine In The Active Site Of The Enzyme.
J. Biol. Chem. V. 281 5965 2006
PubMed-ID: 16371358  |  Reference-DOI: 10.1074/JBC.M511270200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SUCCINATE DEHYDROGENASE FLAVOPROTEIN SUBUNIT
    Chains: A, N
    EC Number: 1.3.5.1
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031

Molecule 2 - SUCCINATE DEHYDROGENASE IP SUBUNIT
    Chains: B, O
    EC Number: 1.3.5.1
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031

Molecule 3 - SUCCINATE DEHYDROGENASE CYTOCHROME B, LARGE SUBUNIT
    Chains: C, P
    EC Number: 1.3.5.1
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031

Molecule 4 - SUCCINATE DEHYDROGENASE CYTOCHROME B, SMALL SUBUNIT
    Chains: D, Q
    EC Number: 1.3.5.1
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDNOPQ
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     NOPQ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (13, 122)

Asymmetric Unit (13, 122)
No.NameCountTypeFull Name
1AZI1Ligand/IonAZIDE ION
2BHG2Ligand/Ion2-HEXYLOXY-6-HYDROXYMETHYL-TETRAHYDRO-PYRAN-3,4,5-TRIOL
3CBE2Ligand/Ion2-METHYL-N-PHENYL-5,6-DIHYDRO-1,4-OXATHIINE-3-CARBOXAMIDE
4F3S2Ligand/IonFE3-S4 CLUSTER
5FAD2Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE
6FES2Ligand/IonFE2/S2 (INORGANIC) CLUSTER
7GOL4Ligand/IonGLYCEROL
8HEM2Ligand/IonPROTOPORPHYRIN IX CONTAINING FE
9K4Ligand/IonPOTASSIUM ION
10PEE2Ligand/Ion1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOETHANOLAMINE
11SF42Ligand/IonIRON/SULFUR CLUSTER
12TEO2Ligand/IonMALATE LIKE INTERMEDIATE
13UNL95Ligand/IonUNKNOWN LIGAND
Biological Unit 1 (12, 67)
No.NameCountTypeFull Name
1AZI1Ligand/IonAZIDE ION
2BHG1Ligand/Ion2-HEXYLOXY-6-HYDROXYMETHYL-TETRAHYDRO-PYRAN-3,4,5-TRIOL
3CBE1Ligand/Ion2-METHYL-N-PHENYL-5,6-DIHYDRO-1,4-OXATHIINE-3-CARBOXAMIDE
4F3S1Ligand/IonFE3-S4 CLUSTER
5FAD1Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE
6FES1Ligand/IonFE2/S2 (INORGANIC) CLUSTER
7GOL2Ligand/IonGLYCEROL
8HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE
9K-1Ligand/IonPOTASSIUM ION
10PEE1Ligand/Ion1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOETHANOLAMINE
11SF41Ligand/IonIRON/SULFUR CLUSTER
12TEO1Ligand/IonMALATE LIKE INTERMEDIATE
13UNL55Ligand/IonUNKNOWN LIGAND
Biological Unit 2 (11, 51)
No.NameCountTypeFull Name
1AZI-1Ligand/IonAZIDE ION
2BHG1Ligand/Ion2-HEXYLOXY-6-HYDROXYMETHYL-TETRAHYDRO-PYRAN-3,4,5-TRIOL
3CBE1Ligand/Ion2-METHYL-N-PHENYL-5,6-DIHYDRO-1,4-OXATHIINE-3-CARBOXAMIDE
4F3S1Ligand/IonFE3-S4 CLUSTER
5FAD1Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE
6FES1Ligand/IonFE2/S2 (INORGANIC) CLUSTER
7GOL2Ligand/IonGLYCEROL
8HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE
9K-1Ligand/IonPOTASSIUM ION
10PEE1Ligand/Ion1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOETHANOLAMINE
11SF41Ligand/IonIRON/SULFUR CLUSTER
12TEO1Ligand/IonMALATE LIKE INTERMEDIATE
13UNL40Ligand/IonUNKNOWN LIGAND

(-) Sites  (64, 64)

Asymmetric Unit (64, 64)
No.NameEvidenceResiduesDescription
01AC1SOFTWARELYS C:31 , TRP C:32 , SER C:33 , LEU C:34 , PRO C:35 , GLU C:120 , UNL C:289 , HOH C:1750 , HOH C:2605 , TYR P:85BINDING SITE FOR RESIDUE BHG C 142
02AC2SOFTWAREALA C:139 , TRP P:32 , LEU P:34 , PRO P:35 , GLU P:120 , HOH P:1172 , HOH P:2485 , HOH P:2548BINDING SITE FOR RESIDUE BHG P 204
03AC3SOFTWARETYR A:365 , ASN A:366 , MET A:367 , GLY A:368 , GLU A:397 , ALA A:399BINDING SITE FOR RESIDUE K A 622
04AC4SOFTWAREMET B:191 , ASP B:193 , ASP B:196 , THR B:199 , HOH B:1900BINDING SITE FOR RESIDUE K B 253
05AC5SOFTWARETYR N:365 , ASN N:366 , MET N:367 , GLY N:368 , GLU N:397 , ALA N:399BINDING SITE FOR RESIDUE K N 622
06AC6SOFTWAREMET O:191 , ASP O:193 , ASP O:196 , THR O:199 , HOH O:1041BINDING SITE FOR RESIDUE K O 253
07AC7SOFTWARETYR A:172 , VAL A:174 , HOH A:1854BINDING SITE FOR RESIDUE AZI A 623
08AC8SOFTWAREVAL A:24 , GLY A:25 , ALA A:26 , GLY A:27 , GLY A:28 , ALA A:29 , THR A:48 , LYS A:49 , LEU A:50 , SER A:55 , HIS A:56 , THR A:57 , ALA A:59 , ALA A:60 , GLN A:61 , GLY A:62 , GLY A:63 , TYR A:176 , PHE A:177 , ALA A:178 , ALA A:212 , THR A:213 , THR A:224 , ASP A:232 , LEU A:263 , HIS A:364 , TYR A:365 , GLY A:396 , GLU A:397 , ARG A:408 , ALA A:411 , ASN A:412 , SER A:413 , LEU A:414 , LEU A:417 , TEO A:1002 , HOH A:1692 , HOH A:1708 , HOH A:1735 , HOH A:1880BINDING SITE FOR RESIDUE FAD A 1001
09AC9SOFTWARESER B:64 , CYS B:65 , ARG B:66 , GLY B:68 , CYS B:70 , GLY B:71 , CYS B:73 , CYS B:85BINDING SITE FOR RESIDUE FES B 1002
10BC1SOFTWARECYS B:158 , ILE B:159 , CYS B:161 , ALA B:162 , CYS B:164 , CYS B:225 , PRO B:226 , LYS B:227BINDING SITE FOR RESIDUE SF4 B 1003
11BC2SOFTWARECYS B:168 , TYR B:178 , CYS B:215 , HIS B:216 , THR B:217 , ILE B:218 , MET B:219 , ASN B:220 , CYS B:221 , ILE B:235BINDING SITE FOR RESIDUE F3S B 1004
12BC3SOFTWAREGLY N:25 , ALA N:26 , GLY N:27 , GLY N:28 , ALA N:29 , THR N:48 , LYS N:49 , LEU N:50 , SER N:55 , HIS N:56 , THR N:57 , ALA N:59 , ALA N:60 , GLN N:61 , GLY N:62 , GLY N:63 , TYR N:176 , PHE N:177 , ALA N:178 , ALA N:212 , THR N:213 , THR N:224 , ASP N:232 , LEU N:263 , HIS N:364 , TYR N:365 , GLY N:396 , GLU N:397 , ARG N:408 , ALA N:411 , ASN N:412 , SER N:413 , LEU N:414 , LEU N:417 , TEO N:1002 , HOH N:1026 , HOH N:1038 , HOH N:1051 , HOH N:1054 , HOH N:1133BINDING SITE FOR RESIDUE FAD N 1001
13BC4SOFTWARESER O:64 , CYS O:65 , ARG O:66 , GLY O:68 , CYS O:70 , GLY O:71 , CYS O:73 , CYS O:85BINDING SITE FOR RESIDUE FES O 1002
14BC5SOFTWARECYS O:158 , ILE O:159 , CYS O:161 , ALA O:162 , CYS O:164 , ALA O:182 , CYS O:225 , PRO O:226BINDING SITE FOR RESIDUE SF4 O 1003
15BC6SOFTWARECYS O:168 , TYR O:178 , CYS O:215 , HIS O:216 , THR O:217 , ILE O:218 , MET O:219 , ASN O:220 , CYS O:221 , ILE O:235BINDING SITE FOR RESIDUE F3S O 1004
16BC7SOFTWAREHIS C:42 , ARG C:43 , GLY C:46 , LEU C:49 , SER C:50 , HIS C:98 , GLY C:102 , HIS C:105 , HOH C:1879 , HOH C:1903 , HOH C:2103 , ARG D:14 , LEU D:20 , LEU D:43 , HIS D:46 , GLY D:50BINDING SITE FOR RESIDUE HEM C 143
17BC8SOFTWAREPRO B:169 , TRP B:173 , HIS B:216 , ILE C:27 , TRP C:32 , MET C:36 , SER C:39 , ILE C:40 , ARG C:43 , HOH C:1687 , TYR D:58BINDING SITE FOR RESIDUE CBE C 144
18BC9SOFTWAREGLY A:62 , HIS A:253 , LEU A:263 , THR A:265 , GLU A:266 , ARG A:297 , HIS A:364 , ARG A:408 , GLY A:410 , ALA A:411 , FAD A:1001BINDING SITE FOR RESIDUE TEO A 1002
19CC1SOFTWAREGOL C:294 , ALA D:27 , TYR D:28 , TRP D:101BINDING SITE FOR RESIDUE PEE D 109
20CC2SOFTWAREHOH C:2865BINDING SITE FOR RESIDUE UNL C 145
21CC3SOFTWAREHOH O:1079 , HIS P:42 , ARG P:43 , GLY P:46 , LEU P:49 , SER P:50 , HIS P:98 , THR P:99 , GLY P:102 , HIS P:105 , HOH P:1002 , HOH P:1199 , ARG Q:14 , LEU Q:20 , LEU Q:43 , HIS Q:46 , GLY Q:50BINDING SITE FOR RESIDUE HEM P 201
22CC4SOFTWAREPRO O:169 , TRP O:173 , HIS O:216 , ILE O:218 , ILE P:27 , TRP P:32 , MET P:36 , SER P:39 , ILE P:40 , ARG P:43 , HOH P:1004 , TYR Q:58BINDING SITE FOR RESIDUE CBE P 202
23CC5SOFTWAREGLY N:62 , HIS N:253 , LEU N:263 , THR N:265 , GLU N:266 , ARG N:297 , HIS N:364 , ARG N:408 , GLY N:410 , ALA N:411 , FAD N:1001BINDING SITE FOR RESIDUE TEO N 1002
24CC6SOFTWARESER P:141 , GOL P:208 , UNL P:211 , ALA Q:27 , VAL Q:97 , TRP Q:101BINDING SITE FOR RESIDUE PEE Q 210
25CC7SOFTWAREGOL P:208 , PEE Q:210BINDING SITE FOR RESIDUE UNL P 211
26CC8SOFTWAREGLN N:11 , TYR N:12 , GLN N:136 , ARG N:457BINDING SITE FOR RESIDUE UNL N 1003
27CC9SOFTWAREASP O:176 , TRP P:13BINDING SITE FOR RESIDUE UNL O 1005
28DC1SOFTWARETYR C:85 , HOH C:2876 , LEU P:127BINDING SITE FOR RESIDUE UNL C 214
29DC2SOFTWAREALA B:78 , HOH B:1906 , HOH B:2343 , LYS C:31BINDING SITE FOR RESIDUE UNL B 1005
30DC3SOFTWAREPHE A:137 , SER A:612 , HOH A:2231BINDING SITE FOR RESIDUE UNL A 1003
31DC4SOFTWAREGLY A:272 , HOH A:2942BINDING SITE FOR RESIDUE UNL A 1004
32DC5SOFTWAREGLN N:11BINDING SITE FOR RESIDUE UNL N 1006
33DC6SOFTWAREGLN P:118BINDING SITE FOR RESIDUE UNL P 224
34DC7SOFTWAREGLU N:608BINDING SITE FOR RESIDUE UNL N 1007
35DC8SOFTWARETYR N:258BINDING SITE FOR RESIDUE UNL N 1011
36DC9SOFTWAREPHE O:210BINDING SITE FOR RESIDUE UNL O 1008
37EC1SOFTWARETHR C:41BINDING SITE FOR RESIDUE UNL C 240
38EC2SOFTWARETYR D:73BINDING SITE FOR RESIDUE UNL D 245
39EC3SOFTWAREUNL C:251BINDING SITE FOR RESIDUE UNL C 248
40EC4SOFTWAREUNL C:248BINDING SITE FOR RESIDUE UNL C 251
41EC5SOFTWAREASP B:46BINDING SITE FOR RESIDUE UNL B 258
42EC6SOFTWARELYS A:442 , ASN A:444BINDING SITE FOR RESIDUE UNL A 1009
43EC7SOFTWAREHOH A:2810BINDING SITE FOR RESIDUE UNL A 1011
44EC8SOFTWAREPRO B:209BINDING SITE FOR RESIDUE UNL B 268
45EC9SOFTWARELYS A:354 , GLU A:355BINDING SITE FOR RESIDUE UNL A 1014
46FC1SOFTWAREHOH A:2544 , HOH A:2640 , HOH A:2892BINDING SITE FOR RESIDUE UNL B 277
47FC2SOFTWARELYS A:593BINDING SITE FOR RESIDUE UNL A 1017
48FC3SOFTWARETYR A:500BINDING SITE FOR RESIDUE UNL A 1018
49FC4SOFTWAREARG B:10BINDING SITE FOR RESIDUE UNL B 280
50FC5SOFTWAREALA A:451 , ASP A:454 , LYS A:455BINDING SITE FOR RESIDUE UNL A 1019
51FC6SOFTWARETYR Q:73BINDING SITE FOR RESIDUE UNL Q 288
52FC7SOFTWAREBHG C:142BINDING SITE FOR RESIDUE UNL C 289
53FC8SOFTWAREPHE N:137 , SER N:612BINDING SITE FOR RESIDUE UNL N 1017
54FC9SOFTWAREGLU N:491BINDING SITE FOR RESIDUE UNL N 1019
55GC1SOFTWAREGLU N:18 , HOH N:1566BINDING SITE FOR RESIDUE UNL N 1020
56GC2SOFTWARELYS N:474BINDING SITE FOR RESIDUE UNL N 1021
57GC3SOFTWAREPRO A:13 , GLY A:199BINDING SITE FOR RESIDUE UNL A 1020
58GC4SOFTWAREHIS A:326 , HIS A:327 , HOH A:2959BINDING SITE FOR RESIDUE UNL A 1021
59GC5SOFTWARELYS N:474BINDING SITE FOR RESIDUE UNL N 1022
60GC6SOFTWARELEU A:567 , PRO A:615BINDING SITE FOR RESIDUE UNL A 1023
61GC7SOFTWAREPHE C:56 , ILE D:93 , PEE D:109BINDING SITE FOR RESIDUE GOL C 294
62GC8SOFTWAREHIS B:104 , MET B:105 , TYR B:171 , HOH B:1772 , HOH B:1792 , HOH B:1821 , HOH B:1952 , HOH B:2154 , TRP C:13BINDING SITE FOR RESIDUE GOL B 1010
63GC9SOFTWAREHIS O:104 , MET O:105 , GLY O:175 , HOH O:1039 , HOH O:1047 , HOH O:1055 , HOH O:1099 , HOH O:1156 , PHE P:12 , TRP P:13BINDING SITE FOR RESIDUE GOL O 1009
64HC1SOFTWARELEU P:91 , UNL P:211 , PEE Q:210BINDING SITE FOR RESIDUE GOL P 208

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2FBW)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Ala A:401 -Ser A:402
2Ala N:401 -Ser N:402

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2FBW)

(-) PROSITE Motifs  (5, 10)

Asymmetric Unit (5, 10)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
12FE2S_FER_2PS51085 2Fe-2S ferredoxin-type iron-sulfur binding domain profile.SDHB_CHICK50-143
 		  2B:12-105
O:12-105
2FRD_SDH_FAD_BINDINGPS00504 Fumarate reductase / succinate dehydrogenase FAD-binding site.SDHA_CHICK98-107
 		  2A:54-63
N:54-63
32FE2S_FER_1PS00197 2Fe-2S ferredoxin-type iron-sulfur binding region signature.SDHB_CHICK103-111
 		  2B:65-73
O:65-73
44FE4S_FER_2PS51379 4Fe-4S ferredoxin-type iron-sulfur binding domain profile.SDHB_CHICK186-216
 		  2B:148-178
O:148-178
54FE4S_FER_1PS00198 4Fe-4S ferredoxin-type iron-sulfur binding region signature.SDHB_CHICK196-207
 		  2B:158-169
O:158-169
Biological Unit 1 (5, 5)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
12FE2S_FER_2PS51085 2Fe-2S ferredoxin-type iron-sulfur binding domain profile.SDHB_CHICK50-143
 		  1B:12-105
-
2FRD_SDH_FAD_BINDINGPS00504 Fumarate reductase / succinate dehydrogenase FAD-binding site.SDHA_CHICK98-107
 		  1A:54-63
-
32FE2S_FER_1PS00197 2Fe-2S ferredoxin-type iron-sulfur binding region signature.SDHB_CHICK103-111
 		  1B:65-73
-
44FE4S_FER_2PS51379 4Fe-4S ferredoxin-type iron-sulfur binding domain profile.SDHB_CHICK186-216
 		  1B:148-178
-
54FE4S_FER_1PS00198 4Fe-4S ferredoxin-type iron-sulfur binding region signature.SDHB_CHICK196-207
 		  1B:158-169
-
Biological Unit 2 (5, 5)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
12FE2S_FER_2PS51085 2Fe-2S ferredoxin-type iron-sulfur binding domain profile.SDHB_CHICK50-143
 		  1-
O:12-105
2FRD_SDH_FAD_BINDINGPS00504 Fumarate reductase / succinate dehydrogenase FAD-binding site.SDHA_CHICK98-107
 		  1-
N:54-63
32FE2S_FER_1PS00197 2Fe-2S ferredoxin-type iron-sulfur binding region signature.SDHB_CHICK103-111
 		  1-
O:65-73
44FE4S_FER_2PS51379 4Fe-4S ferredoxin-type iron-sulfur binding domain profile.SDHB_CHICK186-216
 		  1-
O:148-178
54FE4S_FER_1PS00198 4Fe-4S ferredoxin-type iron-sulfur binding region signature.SDHB_CHICK196-207
 		  1-
O:158-169

(-) Exons   (0, 0)

(no "Exon" information available for 2FBW)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:613
 aligned with SDHA_CHICK | Q9YHT1 from UniProtKB/Swiss-Prot  Length:665

    Alignment length:613
                                    62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       582       592       602       612       622       632       642       652       662
           SDHA_CHICK    53 STQYPVVDHEFDAVVVGAGGAGLRAAFGLSEAGFNTACVTKLFPTRSHTVAAQGGINAALGNMEDDNWRWHFYDTVKGSDWLGDQDAIHYMTEQAPAAVIELENYGMPFSRTEEGKIYQRAFGGQSLQFGKGGQAHRCCCVADRTGHSLLHTLYGRSLRYDTSYFVEYFALDLLMENGECRGVIALCIEDGTIHRFRAKNTVIATGGYGRTYFSCTSAHTSTGDGTAMVTRAGLPCQDLEFVQFHPTGIYGAGCLITEGCRGEGGILINSQGERFMERYAPVAKDLASRDVVSRSMTIEIREGRGCGPEKDHVYLQLHHLPPQQLATRLPGISETAMIFAGVDVTKEPIPVLPTVHYNMGGIPTNYKGQVITHVNGEDKVVPGLYACGEAASASVHGANRLGANSLLDLVVFGRACALTIAETCKPGEPVPSIKPNAGEESVANLDKLRFADGTIRTSEARLNMQKTMQSHAAVFRTGSILQEGCEKLSQIYCDLAHLKTFDRGIVWNTDLVETLELQNLMLCALQTIYGAEARKESRGAHAREDYKFRIDDFDYSKPLQGQQKRPFEEHWRKHTLSYVDVKSGKVTLKYRPVIDRTLNEEDCSSVPPAIRSY 665
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2fbwA01 A:9-256,A:361-439  [code=3.50.50.60, no name defined]                                                                                                                                                                                           --------------------------------------------------------------------------------------------------------2fbwA01 A:9-256,A:361-439  [code=3.50.50.60, no name defined]                  2fbwA03 A:440-556  [code=1.20.58.100, no name defined]                                                               2fbwA04 A:557-621 succinate dehydrogenase protein domain          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeeeeeee..hhhhhhhhhhhhhh...eeeee..hhhhhhhhhh...ee.........hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.............eeeeeeee.......eeeeee....hhhhhhhhhhhhhhh....eeee.eeeeeeeee..eeeeeeeee.....eeeeeeeeeee....hhhhh..........hhhhhhhhhh...ee....eeeeeeee........hhhhhh..eee......hhhhhh..hhhhhhhhhhhhhhhhhhhh..........eeee....hhhhhhhhhhhhhhhhhhhhh.......eeeeeeeeee...ee.....eeeeee..eeeeeeeeee....ee...........hhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhh....eehhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..ee........hhhhhhhhhhhhhhhhhhhhhhhhhhh...............................hhhhh..eeeeeeee....eeeeeeee..................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------------------------FRD_SDH_FA------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2fbw A   9 STQYPVVDHEFDAVVVGAGGAGLRAAFGLSEAGFNTACVTKLFPTRSHTVAAQGGINAALGNMEDDNWRWHFYDTVKGSDWLGDQDAIHYMTEQAPAAVIELENYGMPFSRTEEGKIYQRAFGGQSLQFGKGGQAHRCCCVADRTGHSLLHTLYGRSLRYDTSYFVEYFALDLLMENGECRGVIALCIEDGTIHRFRAKNTVIATGGYGRTYFSCTSAHTSTGDGTAMVTRAGLPCQDLEFVQFHPTGIYGAGCLITEGCRGEGGILINSQGERFMERYAPVAKDLASRDVVSRSMTIEIREGRGCGPEKDHVYLQLHHLPPQQLATRLPGISETAMIFAGVDVTKEPIPVLPTVHYNMGGIPTNYKGQVITHVNGEDKVVPGLYACGEAASASVHGANRLGANSLLDLVVFGRACALTIAETCKPGEPVPSIKPNAGEESVANLDKLRFADGTIRTSEARLNMQKTMQSHAAVFRTGSILQEGCEKLSQIYRDLAHLKTFDRGIVWNTDLVETLELQNLMLCALQTIYGAEARKESRGAHAREDYKLRIDEFDYSKPLQGQQKRPFEEHWRKHTLSYVDVKSGKVTLKYRPVIDRTLNEEDCSSVPPAIRSY 621
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478       488       498       508       518       528       538       548       558       568       578       588       598       608       618


Chain B from PDB  Type:PROTEIN  Length:239
 aligned with SDHB_CHICK | Q9YHT2 from UniProtKB/Swiss-Prot  Length:290

    Alignment length:239
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275
           SDHB_CHICK    46 TSRIKKFSIYRWDPDKPGDKPRMQTYEVDLNKCGPMVLDALIKIKNELDSTLTFRRSCREGICGSCAMNIAGGNTLACTKKIDPDLSKTTKIYPLPHMYVVKDLVPDLSNFYAQYKSIEPYLKKKDESKQGKEQYLQSIEDRQKLDGLYECILCACCSTSCPSYWWNGDKYLGPAVLMQAYRWMIDSRDDYTEERLAQLQDPFSLYRCHTIMNCTRTCPKGLNPGKAIAEIKKMMATYK 284
               SCOP domains d2fbwb1 B:8-114 Succinate dehydogenase iron-sulfur protein, N-terminal domain                              d2fbwb2 B:115-246 Succinate dehydogenase                                                                                             SCOP domains
               CATH domains 2fbwB01 B:8-114  [code=3.10.20.30, no name defined]                                                        2fbwB02 B:115-246 Fumarate Reductase Iron-sulfur Protein; Chain B, domain 2                                                          CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeee..........eeeeeeee.hhh..hhhhhhhhhhhhh..................eeee..eeee.hhh.........eeee......eee..ee.hhhhhhhhhhh...................hhhhhhh............hhhhhhhhhhhh....hhhhhhhhhhhhh.....hhhhhhhh.............hhhhhhh....hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----2FE2S_FER_2  PDB: B:12-105 UniProt: 50-143                                                    ------------------------------------------4FE4S_FER_2  PDB: B:148-178    -------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------------------------------------------------------------------------------------------4FE4S_FER_1 ----------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ---------------------------------------------------------2FE2S_FER----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2fbw B   8 TSRIKKFSIYRWDPDKPGDKPRMQTYEVDLNKCGPMVLDALIKIKNELDSTLTFRRSCREGICGSCAMNIAGGNTLACTKKIDPDLSKTTKIYPLPHMYVVKDLVPDLSNFYAQYKSIEPYLKKKDESKQGKEQYLQSIEDRQKLDGLYECILCACCSTSCPSYWWNGDKYLGPAVLMQAYRWMIDSRDDYTEERLAQLQDPFSLYRCHTIMNCTRTCPKGLNPGKAIAEIKKMMATYK 246
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237


Chain C from PDB  Type:PROTEIN  Length:140
 aligned with D0VWW3_CHICK | D0VWW3 from UniProtKB/TrEMBL  Length:140

    Alignment length:140
                                                                                                                                                                    140
                                    11        21        31        41        51        61        71        81        91       101       111       121       131        |-
         D0VWW3_CHICK     2 ATTAKEEMARFWEKNTKSSRPLSPHISIYKWSLPMAMSITHRGTGVALSLGVSLFSLAALLLPEQFPHYVAVVKSLSLSPALIYSAKFALVFPLSYHTWNGIRHLVWDMGKGFKLSQVEQSGVVVLILTLLSSAAIASE-   -
               SCOP domains d2fbwc_ C: automated matches                                                                                                                 SCOP domains
               CATH domains 2fbwC01 C:2-32 Single helix bin2fbwC02 C:33-141 Fumarate reductase respiratory complex transmembrane subunits                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2fbw C   2 ATTAKEEMARFWEKNTKSSRPLSPHISIYKWSLPMAMSITHRGTGVALSLGVSLFSVAALLLPEQFPHYVAVVKSLSLSPALIYSAKFALVFPLSYHTWNGIRHLVWDMGKGFKLSQVEQSGVVVLILTLLSSAGIAAIS 141
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141


Chain D from PDB  Type:PROTEIN  Length:101
 aligned with DHSD_CHICK | Q5ZIS0 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:101
                                    66        76        86        96       106       116       126       136       146       156
           DHSD_CHICK    57 SKAASLHWTSERAVSALLLGLLPAAYLYPGPAVDYSLAAALTLHGHWGLGQVITDYVHGDTPIKVANTGLYVLSAITFTGLCYFNYYDVGICKAVAMLWSI 157
               SCOP domains d2fbwd_ D: automated matches                                                                          SCOP domains
               CATH domains 2fbwD00 D:3-103 Fumarate reductase respiratory complex transmembrane subunits                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 2fbw D   3 SKAASLHWTSERAVSALLLGLLPAAYLYPGPAVDYSLAAALTLHGHWGLGQVITDYVHGDTPIKVANTGLYVLSAITFTGLCYFNYYDVGICKAVAMLWSI 103
                                    12        22        32        42        52        62        72        82        92       102


Chain N from PDB  Type:PROTEIN  Length:612
 aligned with SDHA_CHICK | Q9YHT1 from UniProtKB/Swiss-Prot  Length:665

    Alignment length:612
                                    63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543       553       563       573       583       593       603       613       623       633       643       653       663
           SDHA_CHICK    54 TQYPVVDHEFDAVVVGAGGAGLRAAFGLSEAGFNTACVTKLFPTRSHTVAAQGGINAALGNMEDDNWRWHFYDTVKGSDWLGDQDAIHYMTEQAPAAVIELENYGMPFSRTEEGKIYQRAFGGQSLQFGKGGQAHRCCCVADRTGHSLLHTLYGRSLRYDTSYFVEYFALDLLMENGECRGVIALCIEDGTIHRFRAKNTVIATGGYGRTYFSCTSAHTSTGDGTAMVTRAGLPCQDLEFVQFHPTGIYGAGCLITEGCRGEGGILINSQGERFMERYAPVAKDLASRDVVSRSMTIEIREGRGCGPEKDHVYLQLHHLPPQQLATRLPGISETAMIFAGVDVTKEPIPVLPTVHYNMGGIPTNYKGQVITHVNGEDKVVPGLYACGEAASASVHGANRLGANSLLDLVVFGRACALTIAETCKPGEPVPSIKPNAGEESVANLDKLRFADGTIRTSEARLNMQKTMQSHAAVFRTGSILQEGCEKLSQIYCDLAHLKTFDRGIVWNTDLVETLELQNLMLCALQTIYGAEARKESRGAHAREDYKFRIDDFDYSKPLQGQQKRPFEEHWRKHTLSYVDVKSGKVTLKYRPVIDRTLNEEDCSSVPPAIRSY 665
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains 2fbwN01 N:10-256,N:361-439  [code=3.50.50.60, no name defined]                                                                                                                                                                                         --------------------------------------------------------------------------------------------------------2fbwN01 N:10-256,N:361-439  [code=3.50.50.60, no name defined]                 2fbwN03 N:440-556  [code=1.20.58.100, no name defined]                                                               2fbwN04 N:557-621 succinate dehydrogenase protein domain          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee..eeee..hhhhhhhhhhhhhh...eeeee..hhhhhhhhhh...ee.........hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.............eeeeeeee.......eeeeee....hhhhhhhhhhhhhhh....eeee.eeeeeeeee..eeeeeeeee.....eeeee..eeee....hhhhh..........hhhhhhhhhh...ee....eeeeeeee........hhhhhh..eee......hhhhhh..hhhhhhhhhhhhhhhhhhhh..........eeee....hhhhhhhhhhhhhhhhhhhhh.......eeeeeeeeee...ee.....eeeeee..eeeeeeeeee....ee...........hhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhh....eehhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..ee........hhhhhhhhhhhhhhhhhhhhhhhhhhh...............................hhhhh..eeeeeee......eeeeeee..................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) --------------------------------------------FRD_SDH_FA------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2fbw N  10 TQYPVVDHEFDAVVVGAGGAGLRAAFGLSEAGFNTACVTKLFPTRSHTVAAQGGINAALGNMEDDNWRWHFYDTVKGSDWLGDQDAIHYMTEQAPAAVIELENYGMPFSRTEEGKIYQRAFGGQSLQFGKGGQAHRCCCVADRTGHSLLHTLYGRSLRYDTSYFVEYFALDLLMENGECRGVIALCIEDGTIHRFRAKNTVIATGGYGRTYFSCTSAHTSTGDGTAMVTRAGLPCQDLEFVQFHPTGIYGAGCLITEGCRGEGGILINSQGERFMERYAPVAKDLASRDVVSRSMTIEIREGRGCGPEKDHVYLQLHHLPPQQLATRLPGISETAMIFAGVDVTKEPIPVLPTVHYNMGGIPTNYKGQVITHVNGEDKVVPGLYACGEAASASVHGANRLGANSLLDLVVFGRACALTIAETCKPGEPVPSIKPNAGEESVANLDKLRFADGTIRTSEARLNMQKTMQSHAAVFRTGSILQEGCEKLSQIYRDLAHLKTFDRGIVWNTDLVETLELQNLMLCALQTIYGAEARKESRGAHAREDYKLRIDEFDYSKPLQGQQKRPFEEHWRKHTLSYVDVKSGKVTLKYRPVIDRTLNEEDCSSVPPAIRSY 621
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419       429       439       449       459       469       479       489       499       509       519       529       539       549       559       569       579       589       599       609       619


Chain O from PDB  Type:PROTEIN  Length:239
 aligned with SDHB_CHICK | Q9YHT2 from UniProtKB/Swiss-Prot  Length:290

    Alignment length:239
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275
           SDHB_CHICK    46 TSRIKKFSIYRWDPDKPGDKPRMQTYEVDLNKCGPMVLDALIKIKNELDSTLTFRRSCREGICGSCAMNIAGGNTLACTKKIDPDLSKTTKIYPLPHMYVVKDLVPDLSNFYAQYKSIEPYLKKKDESKQGKEQYLQSIEDRQKLDGLYECILCACCSTSCPSYWWNGDKYLGPAVLMQAYRWMIDSRDDYTEERLAQLQDPFSLYRCHTIMNCTRTCPKGLNPGKAIAEIKKMMATYK 284
               SCOP domains d2fbwo1 O:8-114 Succinate dehydogenase iron-sulfur protein, N-terminal domain                              d2fbwo2 O:115-246 Succinate dehydogenase                                                                                             SCOP domains
               CATH domains 2fbwO01 O:8-114  [code=3.10.20.30, no name defined]                                                        2fbwO02 O:115-246 Fumarate Reductase Iron-sulfur Protein; Chain B, domain 2                                                          CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeee..........eeeeeeee.hhh..hhhhhhhhhhhhh..................eeee..eeee.hhh.........eeee......eee..ee.hhhhhhhhhhh...................hhhhhhh............hhhhhhhhhhhh....hhhhhhhhhhhhh.....hhhhhhhh.............hhhhhhh....hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----2FE2S_FER_2  PDB: O:12-105 UniProt: 50-143                                                    ------------------------------------------4FE4S_FER_2  PDB: O:148-178    -------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------------------------------------------------------------------------------------------4FE4S_FER_1 ----------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ---------------------------------------------------------2FE2S_FER----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2fbw O   8 TSRIKKFSIYRWDPDKPGDKPRMQTYEVDLNKCGPMVLDALIKIKNELDSTLTFRRSCREGICGSCAMNIAGGNTLACTKKIDPDLSKTTKIYPLPHMYVVKDLVPDLSNFYAQYKSIEPYLKKKDESKQGKEQYLQSIEDRQKLDGLYECILCACCSTSCPSYWWNGDKYLGPAVLMQAYRWMIDSRDDYTEERLAQLQDPFSLYRCHTIMNCTRTCPKGLNPGKAIAEIKKMMATYK 246
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237


Chain P from PDB  Type:PROTEIN  Length:140
 aligned with D0VWW3_CHICK | D0VWW3 from UniProtKB/TrEMBL  Length:140

    Alignment length:140
                                                                                                                                                                    140
                                    11        21        31        41        51        61        71        81        91       101       111       121       131        |-
         D0VWW3_CHICK     2 ATTAKEEMARFWEKNTKSSRPLSPHISIYKWSLPMAMSITHRGTGVALSLGVSLFSLAALLLPEQFPHYVAVVKSLSLSPALIYSAKFALVFPLSYHTWNGIRHLVWDMGKGFKLSQVEQSGVVVLILTLLSSAAIASE-   -
               SCOP domains d2fbwp_ P: automated matches                                                                                                                 SCOP domains
               CATH domains 2fbwP01 P:2-32 Single helix bin2fbwP02 P:33-141 Fumarate reductase respiratory complex transmembrane subunits                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2fbw P   2 ATTAKEEMARFWEKNTKSSRPLSPHISIYKWSLPMAMSITHRGTGVALSLGVSLFSVAALLLPEQFPHYVAVVKSLSLSPALIYSAKFALVFPLSYHTWNGIRHLVWDMGKGFKLSQVEQSGVVVLILTLLSSAGIAAIS 141
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141


Chain Q from PDB  Type:PROTEIN  Length:101
 aligned with DHSD_CHICK | Q5ZIS0 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:101
                                    66        76        86        96       106       116       126       136       146       156
           DHSD_CHICK    57 SKAASLHWTSERAVSALLLGLLPAAYLYPGPAVDYSLAAALTLHGHWGLGQVITDYVHGDTPIKVANTGLYVLSAITFTGLCYFNYYDVGICKAVAMLWSI 157
               SCOP domains d2fbwq_ Q: automated matches                                                                          SCOP domains
               CATH domains 2fbwQ00 Q:3-103 Fumarate reductase respiratory complex transmembrane subunits                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 2fbw Q   3 SKAASLHWTSERAVSALLLGLLPAAYLYPGPAVDYSLAAALTLHGHWGLGQVITDYVHGDTPIKVANTGLYVLSAITFTGLCYFNYYDVGICKAVAMLWSI 103
                                    12        22        32        42        52        62        72        82        92       102
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 8)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (7, 16)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Few Secondary Structures (1120)
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2FBW)

(-) Gene Ontology  (25, 51)

Asymmetric Unit(hide GO term definitions)
Chain A,N   (SDHA_CHICK | Q9YHT1)
molecular function
    GO:0050660    flavin adenine dinucleotide binding    Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016627    oxidoreductase activity, acting on the CH-CH group of donors    Catalysis of an oxidation-reduction (redox) reaction in which a CH-CH group acts as a hydrogen or electron donor and reduces a hydrogen or electron acceptor.
    GO:0008177    succinate dehydrogenase (ubiquinone) activity    Catalysis of the reaction: succinate + ubiquinone = fumarate + ubiquinol.
    GO:0000104    succinate dehydrogenase activity    Catalysis of the reaction: succinate + acceptor = fumarate + reduced acceptor.
biological process
    GO:0022900    electron transport chain    A process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0022904    respiratory electron transport chain    A process in which a series of electron carriers operate together to transfer electrons from donors such as NADH and FADH2 to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0006105    succinate metabolic process    The chemical reactions and pathways involving succinate, also known as butanedioate or ethane dicarboxylate, the dianion of succinic acid. Succinate is an important intermediate in metabolism and a component of the TCA cycle.
    GO:0006099    tricarboxylic acid cycle    A nearly universal metabolic pathway in which the acetyl group of acetyl coenzyme A is effectively oxidized to two CO2 and four pairs of electrons are transferred to coenzymes. The acetyl group combines with oxaloacetate to form citrate, which undergoes successive transformations to isocitrate, 2-oxoglutarate, succinyl-CoA, succinate, fumarate, malate, and oxaloacetate again, thus completing the cycle. In eukaryotes the tricarboxylic acid is confined to the mitochondria. See also glyoxylate cycle.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005743    mitochondrial inner membrane    The inner, i.e. lumen-facing, lipid bilayer of the mitochondrial envelope. It is highly folded to form cristae.
    GO:0005749    mitochondrial respiratory chain complex II, succinate dehydrogenase complex (ubiquinone)    A protein complex located in the mitochondrial inner membrane that forms part of the mitochondrial respiratory chain. Contains the four polypeptide subunits of succinate dehydrogenase, flavin-adenine dinucleotide and iron-sulfur. Catalyzes the oxidation of succinate by ubiquinone. Connects the TCA cycle with the respiratory chain.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

Chain B,O   (SDHB_CHICK | Q9YHT2)
molecular function
    GO:0051537    2 iron, 2 sulfur cluster binding    Interacting selectively and non-covalently with a 2 iron, 2 sulfur (2Fe-2S) cluster; this cluster consists of two iron atoms, with two inorganic sulfur atoms found between the irons and acting as bridging ligands.
    GO:0051538    3 iron, 4 sulfur cluster binding    Interacting selectively and non-covalently with a 3 iron, 4 sulfur (3Fe-4S) cluster; this cluster consists of three iron atoms, with the inorganic sulfur atoms found between the irons and acting as bridging ligands. It is essentially a 4Fe-4S cluster with one iron missing.
    GO:0051539    4 iron, 4 sulfur cluster binding    Interacting selectively and non-covalently with a 4 iron, 4 sulfur (4Fe-4S) cluster; this cluster consists of four iron atoms, with the inorganic sulfur atoms found between the irons and acting as bridging ligands.
    GO:0009055    electron carrier activity    Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0051536    iron-sulfur cluster binding    Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0008177    succinate dehydrogenase (ubiquinone) activity    Catalysis of the reaction: succinate + ubiquinone = fumarate + ubiquinol.
    GO:0048039    ubiquinone binding    Interacting selectively and non-covalently with ubiquinone, a quinone derivative with a tail of isoprene units.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0006099    tricarboxylic acid cycle    A nearly universal metabolic pathway in which the acetyl group of acetyl coenzyme A is effectively oxidized to two CO2 and four pairs of electrons are transferred to coenzymes. The acetyl group combines with oxaloacetate to form citrate, which undergoes successive transformations to isocitrate, 2-oxoglutarate, succinyl-CoA, succinate, fumarate, malate, and oxaloacetate again, thus completing the cycle. In eukaryotes the tricarboxylic acid is confined to the mitochondria. See also glyoxylate cycle.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005743    mitochondrial inner membrane    The inner, i.e. lumen-facing, lipid bilayer of the mitochondrial envelope. It is highly folded to form cristae.
    GO:0005749    mitochondrial respiratory chain complex II, succinate dehydrogenase complex (ubiquinone)    A protein complex located in the mitochondrial inner membrane that forms part of the mitochondrial respiratory chain. Contains the four polypeptide subunits of succinate dehydrogenase, flavin-adenine dinucleotide and iron-sulfur. Catalyzes the oxidation of succinate by ubiquinone. Connects the TCA cycle with the respiratory chain.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

Chain C,P   (D0VWW3_CHICK | D0VWW3)
molecular function
    GO:0009055    electron carrier activity    Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016627    oxidoreductase activity, acting on the CH-CH group of donors    Catalysis of an oxidation-reduction (redox) reaction in which a CH-CH group acts as a hydrogen or electron donor and reduces a hydrogen or electron acceptor.
    GO:0008177    succinate dehydrogenase (ubiquinone) activity    Catalysis of the reaction: succinate + ubiquinone = fumarate + ubiquinol.
    GO:0000104    succinate dehydrogenase activity    Catalysis of the reaction: succinate + acceptor = fumarate + reduced acceptor.
biological process
    GO:0006099    tricarboxylic acid cycle    A nearly universal metabolic pathway in which the acetyl group of acetyl coenzyme A is effectively oxidized to two CO2 and four pairs of electrons are transferred to coenzymes. The acetyl group combines with oxaloacetate to form citrate, which undergoes successive transformations to isocitrate, 2-oxoglutarate, succinyl-CoA, succinate, fumarate, malate, and oxaloacetate again, thus completing the cycle. In eukaryotes the tricarboxylic acid is confined to the mitochondria. See also glyoxylate cycle.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
    GO:0045281    succinate dehydrogenase complex    A multimeric complex which consists of flavoprotein (subunit A ; InterPro:IPR003952), iron-sulfur protein (subunit B) and membrane-bound cytochrome b560 (subunit C; InterPro:IPR000701). In some Archaea, the membrane-bound subunits (C or C and D) do not necessarily contain heme. Membrane-bound subunits can bind or react with quinones.

Chain D,Q   (DHSD_CHICK | Q5ZIS0)
molecular function
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000104    succinate dehydrogenase activity    Catalysis of the reaction: succinate + acceptor = fumarate + reduced acceptor.
    GO:0048039    ubiquinone binding    Interacting selectively and non-covalently with ubiquinone, a quinone derivative with a tail of isoprene units.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0006099    tricarboxylic acid cycle    A nearly universal metabolic pathway in which the acetyl group of acetyl coenzyme A is effectively oxidized to two CO2 and four pairs of electrons are transferred to coenzymes. The acetyl group combines with oxaloacetate to form citrate, which undergoes successive transformations to isocitrate, 2-oxoglutarate, succinyl-CoA, succinate, fumarate, malate, and oxaloacetate again, thus completing the cycle. In eukaryotes the tricarboxylic acid is confined to the mitochondria. See also glyoxylate cycle.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005740    mitochondrial envelope    The double lipid bilayer enclosing the mitochondrion and separating its contents from the cell cytoplasm; includes the intermembrane space.
    GO:0005743    mitochondrial inner membrane    The inner, i.e. lumen-facing, lipid bilayer of the mitochondrial envelope. It is highly folded to form cristae.
    GO:0005749    mitochondrial respiratory chain complex II, succinate dehydrogenase complex (ubiquinone)    A protein complex located in the mitochondrial inner membrane that forms part of the mitochondrial respiratory chain. Contains the four polypeptide subunits of succinate dehydrogenase, flavin-adenine dinucleotide and iron-sulfur. Catalyzes the oxidation of succinate by ubiquinone. Connects the TCA cycle with the respiratory chain.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    AZI  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    BHG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CBE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    F3S  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FAD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FES  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    HEM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    K  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PEE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SF4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TEO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    UNL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]
    EC1  [ RasMol ]  +environment [ RasMol ]
    EC2  [ RasMol ]  +environment [ RasMol ]
    EC3  [ RasMol ]  +environment [ RasMol ]
    EC4  [ RasMol ]  +environment [ RasMol ]
    EC5  [ RasMol ]  +environment [ RasMol ]
    EC6  [ RasMol ]  +environment [ RasMol ]
    EC7  [ RasMol ]  +environment [ RasMol ]
    EC8  [ RasMol ]  +environment [ RasMol ]
    EC9  [ RasMol ]  +environment [ RasMol ]
    FC1  [ RasMol ]  +environment [ RasMol ]
    FC2  [ RasMol ]  +environment [ RasMol ]
    FC3  [ RasMol ]  +environment [ RasMol ]
    FC4  [ RasMol ]  +environment [ RasMol ]
    FC5  [ RasMol ]  +environment [ RasMol ]
    FC6  [ RasMol ]  +environment [ RasMol ]
    FC7  [ RasMol ]  +environment [ RasMol ]
    FC8  [ RasMol ]  +environment [ RasMol ]
    FC9  [ RasMol ]  +environment [ RasMol ]
    GC1  [ RasMol ]  +environment [ RasMol ]
    GC2  [ RasMol ]  +environment [ RasMol ]
    GC3  [ RasMol ]  +environment [ RasMol ]
    GC4  [ RasMol ]  +environment [ RasMol ]
    GC5  [ RasMol ]  +environment [ RasMol ]
    GC6  [ RasMol ]  +environment [ RasMol ]
    GC7  [ RasMol ]  +environment [ RasMol ]
    GC8  [ RasMol ]  +environment [ RasMol ]
    GC9  [ RasMol ]  +environment [ RasMol ]
    HC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:401 - Ser A:402   [ RasMol ]
    Ala N:401 - Ser N:402   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2fbw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  D0VWW3_CHICK | D0VWW3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  DHSD_CHICK | Q5ZIS0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  SDHA_CHICK | Q9YHT1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  SDHB_CHICK | Q9YHT2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.3.5.1
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  D0VWW3_CHICK | D0VWW3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  DHSD_CHICK | Q5ZIS0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SDHA_CHICK | Q9YHT1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SDHB_CHICK | Q9YHT2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DHSD_CHICK | Q5ZIS0: 1yq3 1yq4 2h88 2h89 2wqy
        SDHA_CHICK | Q9YHT1: 1yq3 1yq4 2h88 2h89 2wqy
        SDHB_CHICK | Q9YHT2: 1yq3 1yq4 2h88 2h89 2wqy
UniProtKB/TrEMBL
        D0VWW3_CHICK | D0VWW3: 1yq3 1yq4 2h88 2h89 2wqy

(-) Related Entries Specified in the PDB File

1nek E.COLI HOMOLOG
1qjd FLAVOCYTOCHROME C3 HAS SIMILAR FAD DOMAIN, DICARBOXYLATE BINDING SITE
1yq3 ANOTHER CRYSTAL FORM
1yq4 OTHER CRYSTAL FORM, WITH 3-NITROPROPIONIC ACID BOUND
1zoy PORCINE HOMOLOG
1zpo PORCINE HOMOLOG WITH 3-NPA AND THENOYL TRIFLUOROACETONE BOUND
