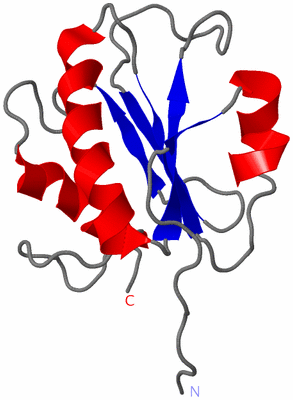

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE THIOREDOXIN-LIKE DOMAIN OF PHOSDUCIN-LIKE PROTEIN 2(PDCL2)

Authors :  C. Kurosaki, M. Yoshida, F. Hayashi, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  15 Dec 05  (Deposition) - 15 Jun 06  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Phosducin-Like Protein, Thioredoxin_fold, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Kurosaki, M. Yoshida, F. Hayashi, S. Yokoyama
Solution Structure Of The Thioredoxin-Like Domain Of Phosducin-Like Protein 2(Pdcl2)
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UNNAMED PROTEIN PRODUCT
    Chains: A
    Engineered: YES
    Expression System: CELL FREE SYNTHESIS
    Expression System Plasmid: P050302-72
    Expression System Vector Type: PLASMID
    Fragment: THIOREDOXIN-LIKE DOMAIN, RESIDUES 8-129
    Gene: PDCL2
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL FREE PROTEIN SYNTHESIS
    Synonym: PDCL2

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2DBC)

(-) Sites  (0, 0)

(no "Site" information available for 2DBC)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2DBC)

(-) Cis Peptide Bonds  (1, 20)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Leu A:81 -Pro A:82

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2DBC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2DBC)

(-) Exons   (0, 0)

(no "Exon" information available for 2DBC)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:135
 aligned with PDCL2_MOUSE | Q78Y63 from UniProtKB/Swiss-Prot  Length:240

    Alignment length:154
                                    90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
          PDCL2_MOUSE    81 KALKKKQKFGELREISGNQYVNEVTNAEKDLWVVIHLYRSSVPMCLVVNQHLSVLARKFPETKFVKAIVNSCIEHYHDNCLPTIFVYKNGQIEGKFIGIIECGGINLKLEELEWKLSEVGAIQSDLEENPKKGIADMMVSSIRNISIYDSDSSG 234
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............ee.hhhhhhhhh.......eeeeee....hhhhhhhhhhhhhhhhhh..eeeeee...............eeeee......eeee..........hhhhhhhhhhhhh..........-------------------..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2dbc A   1 GSSGSSGKFGELREISGNQYVNEVTNAEKDLWVVIHLYRSSVPMCLVVNQHLSVLARKFPETKFVKAIVNSCIEHYHDNCLPTIFVYKNGQIEGKFIGIIECGGINLKLEELEWKLSEVGAIQSDLEENS-------------------GPSSG 135
                                    10        20        30        40        50        60        70        80        90       100       110       120       130         -       131
                                                                                                                                                           130                 131
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2DBC)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2DBC)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2DBC)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (PDCL2_MOUSE | Q78Y63)
molecular function
    GO:0008479    queuine tRNA-ribosyltransferase activity    Catalysis of the reaction: tRNA guanine + queuine = tRNA queuine + guanine.
biological process
    GO:0008616    queuosine biosynthetic process    The chemical reactions and pathways resulting in the formation of queuosines, any of a series of nucleosides found in tRNA and having an additional pentenyl ring added via an NH group to the methyl group of 7-methylguanosine. The pentenyl ring may carry other substituents.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2dbc)

  Sites
(no "Sites" information available for 2dbc)

  Cis Peptide Bonds
    Leu A:81 - Pro A:82   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
