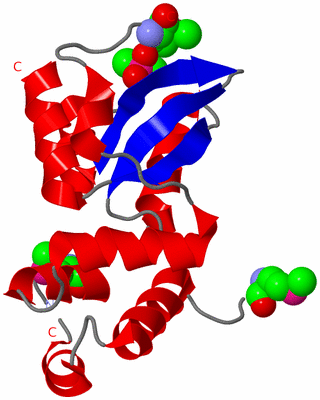

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

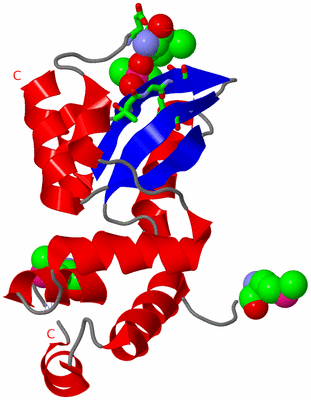

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE N-TERMINAL DOMAIN OF XPSE (CRYSTAL FORM P43212)

Authors :  Y. Chen, S. -J. Shiue, C. -W. Huang, J. -L. Chang, Y. -L. Chien, N. -T. Hu, N
Date :  03 Sep 05  (Deposition) - 20 Sep 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  C
Keywords :  Alpha-Beta Sandwich, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Y. Chen, S. -J. Shiue, C. -W. Huang, J. -L. Chang, Y. -L. Chien, N. -T. Hu, N. -L. Chan
Structure And Function Of The Xpse N-Terminal Domain, An Essential Component Of The Xanthomonas Campestris Type Ii Secretion System
J. Biol. Chem. V. 280 42356 2005
PubMed-ID: 16162504  |  Reference-DOI: 10.1074/JBC.M506843200

(-) Compounds

Molecule 1 - TYPE II SECRETION ATPASE XPSE
    ChainsC
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System PlasmidPET16B
    Expression System StrainBL21 (DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    FragmentN-TERMINAL DOMAIN
    GeneXPSE
    MutationYES
    Organism ScientificXANTHOMONAS CAMPESTRIS
    Organism Taxid339
    SynonymXPSE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric/Biological Unit (2, 4)
No.NameCountTypeFull Name
1CAC1Ligand/IonCACODYLATE ION
2MSE3Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU C:78 , MSE C:79 , VAL C:83 , PRO C:98 , VAL C:99 , GLY C:100 , GLU C:101 , LEU C:106BINDING SITE FOR RESIDUE CAC C 200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2D28)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2D28)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2D28)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2D28)

(-) Exons   (0, 0)

(no "Exon" information available for 2D28)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain C from PDB  Type:PROTEIN  Length:144
 aligned with GSPE_XANCP | P31742 from UniProtKB/Swiss-Prot  Length:567

    Alignment length:149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           GSPE_XANCP     1 MEQRSAETRIVEALLERRRLKDTDLVRARQLQAESGMGLLALLGRLGLVSERDHAETCAEVLGLPLVDARQLGDTPPEMLPEVQGLSLRFLKQFHLCPVGERDGRLDLWIADPYDDYAIDAVRLATGLPLLLQVGLRSEIDDLIERWYG 149
               SCOP domains d2d28c1 C:1-149 Type II secret   ion ATPase XpsE                                                                                                      SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhh...hhhhhhhh..---....hhhhhhhhh...hhhhhhhhhhhhhh....hhhhh.......--.....hhhhhhhhheeeeeee..eeeeee....hhhhhhhhhhhhh..eeeee.hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2d28 C   1 mEQRSAETRIVEALLERRRLKDTDLVRARQ---ESGmGLLALLGRLGLVSERDHAETCAEVLGLPLVDARQLGDTPPEm--EVQGLSLRFLKQFHLCPVGERDGRLDLWIADPYDDYAIDAVRLATGLPLLLHVGLRSEIDDLIERWYG 149
                            |       10        20        30   |  | 40        50        60        70        |- |      90       100       110       120       130       140
                            |                           30  34  |                                        79-MSE
                            1-MSE                              37-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2D28)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2D28)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain C   (GSPE_XANCP | P31742)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0008565    protein transporter activity    Enables the directed movement of proteins into, out of or within a cell, or between cells.
biological process
    GO:0015628    protein secretion by the type II secretion system    The process in which proteins are secreted across the outer membrane of Gram-negative bacteria by the type II secretion system. Proteins using this pathway are first translocated across the cytoplasmic membrane via the Sec or Tat pathways.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0015627    type II protein secretion system complex    A large protein complex, containing 12-15 subunits, that spans the cell envelope of Gram-negative bacteria and mediates the movement of proteins into the extracellular environment. The complex includes a component in the cytoplasm, an inner membrane subcomplex that reaches into the periplasmic compartment and a secretion pore in the outer membrane. Proteins using the Type II pathway are transported across the cytoplasmic membrane by the Sec or Tat complex.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CAC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2d28)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2d28
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GSPE_XANCP | P31742
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  GSPE_XANCP | P31742
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GSPE_XANCP | P317422d27

(-) Related Entries Specified in the PDB File

2d27 THE SAME PROTEIN IN CRYSTAL FORM I4122
