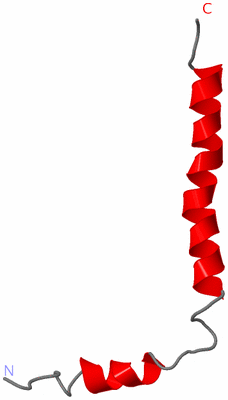

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

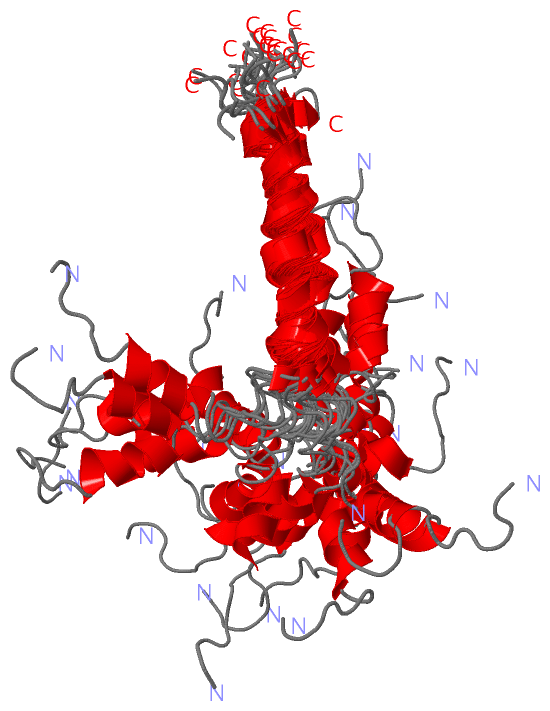

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION NMR STRUCTURES OF THE MAJOR COAT PROTEIN OF FILAMENTOUS BACTERIOPHAGE M13 SOLUBILIZED IN SODIUM DODECYL SULPHATE MICELLES, 25 LOWEST ENERGY STRUCTURES

Authors :  C. H. M. Papavoine, B. E. C. Christiaans, R. H. A. Folmer, R. N. H. Konings, C. W. Hilbers
Date :  16 Apr 98  (Deposition) - 11 Nov 98  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (25x)
Keywords :  Major Coat Protein, Bacteriophage M13, Assembly, Micelle, Membrane, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  C. H. Papavoine, B. E. Christiaans, R. H. Folmer, R. N. Konings, C. W. Hilbers
Solution Structure Of The M13 Major Coat Protein In Detergent Micelles: A Basis For A Model Of Phage Assembly Involving Specific Residues.
J. Mol. Biol. V. 282 401 1998
PubMed-ID: 9735296  |  Reference-DOI: 10.1006/JMBI.1998.1860
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - M13 MAJOR COAT PROTEIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidM13
    Expression System Taxid562
    Organism ScientificENTEROBACTERIA PHAGE M13
    Organism Taxid10870
    SynonymM13 GENE-VIII-PROTEIN OR M13 GVIIIP

 Structural Features

(-) Chains, Units


NMR Structure (25x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2CPS)

(-) Sites  (0, 0)

(no "Site" information available for 2CPS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CPS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2CPS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CPS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2CPS)

(-) Exons   (0, 0)

(no "Exon" information available for 2CPS)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:50
 aligned with CAPSD_BPM13 | P69541 from UniProtKB/Swiss-Prot  Length:73

    Alignment length:50
                                    33        43        53        63        73
           CAPSD_BPM13   24 AEGDDPAKAAFNSLQASATEYIGYAWAMVVVIVGATIGIKLFKKFTSKAS 73
               SCOP domains d2cpsa_ A:                                         SCOP domains
               CATH domains 2cpsA00 A:1-50  [code=1.20.5.80, no name defined]  CATH domains
               Pfam domains -------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------- Transcript
                  2cps A  1 AEGDDPAKAAFNSLQASATEYIGYAWAMVVVIVGATIGIKLFKKFTSKAS 50
                                    10        20        30        40        50

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CPS)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (CAPSD_BPM13 | P69541)
cellular component
    GO:0019029    helical viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles; the subunits are arranged to form a protein helix with the genetic material contained within. Tobacco mosaic virus has such a capsid structure.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0020002    host cell plasma membrane    The plasma membrane surrounding a host cell.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2cps)

  Sites
(no "Sites" information available for 2cps)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2cps)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2cps
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CAPSD_BPM13 | P69541
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  CAPSD_BPM13 | P69541
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CAPSD_BPM13 | P695412cpb 2mjz

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2CPS)
