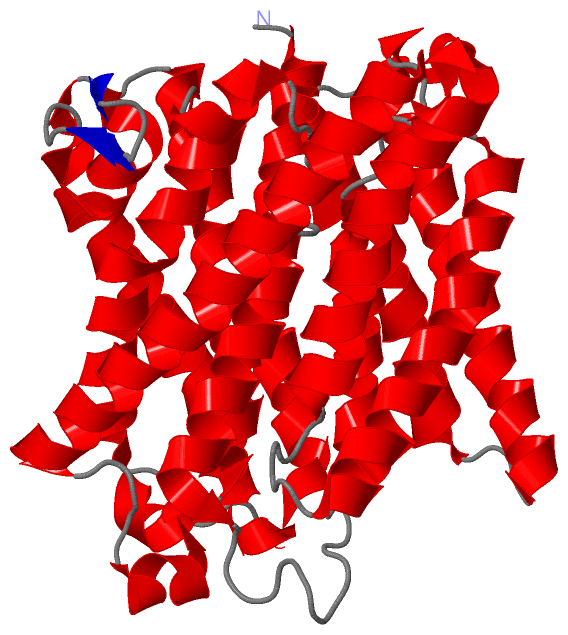

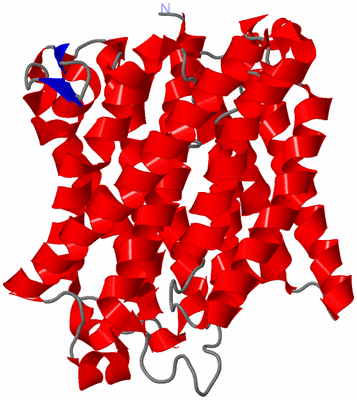

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

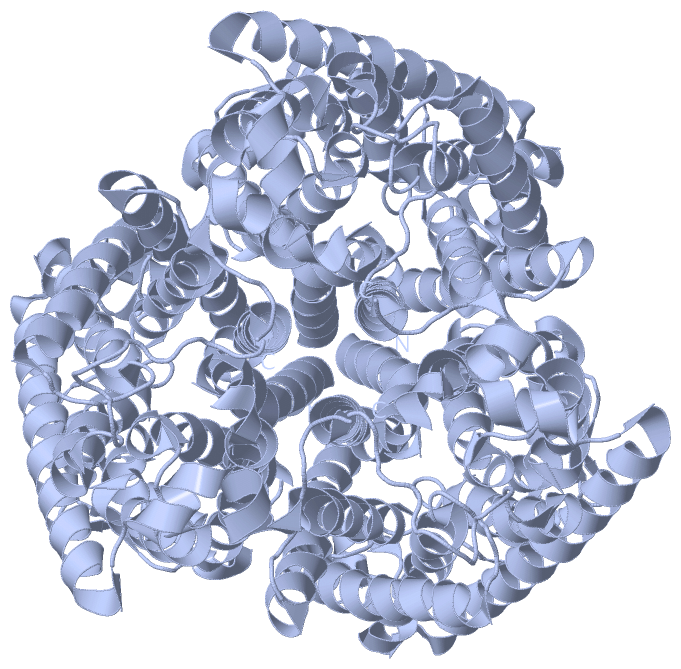

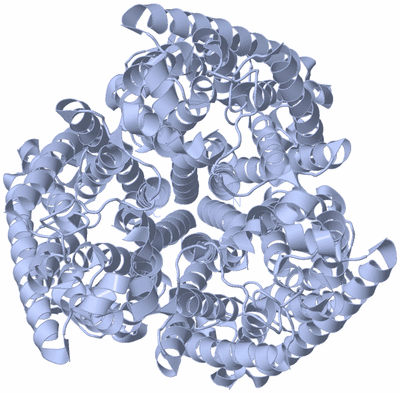

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  AMMONIUM TRANSPORTER AMT-1 FROM A. FULGIDUS (MA)

Authors :  S. L. A. Andrade, A. Dickmanns, R. Ficner, O. Einsle
Date :  19 Sep 05  (Deposition) - 11 Oct 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Membrane Protein, Transporter, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. L. Andrade, A. Dickmanns, R. Ficner, O. Einsle
Crystal Structure Of The Archaeal Ammonium Transporter Amt- From Archaeoglobus Fulgidus
Proc. Natl. Acad. Sci. Usa V. 102 14994 2005
PubMed-ID: 16214888  |  Reference-DOI: 10.1073/PNAS.0506254102

(-) Compounds

Molecule 1 - AMMONIUM TRANSPORTER
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET
    Expression System Strain: C43
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: AMT1
    Organism Scientific: ARCHAEOGLOBUS FULGIDUS
    Organism Taxid: 2234
    Synonym: AMT-1

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2B2I)

(-) Sites  (0, 0)

(no "Site" information available for 2B2I)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2B2I)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2B2I)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2B2I)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2B2I)

(-) Exons   (0, 0)

(no "Exon" information available for 2B2I)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:391
 aligned with O29285_ARCFU | O29285 from UniProtKB/TrEMBL  Length:391

    Alignment length:391
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
         O29285_ARCFU     1 MSDGNVAWILASTALVMLMVPGVGFFYAGMVRRKNAVNMIALSFISLIITVLLWIFYGYSVSFGNDISGIIGGLNYALLSGVKGEDLLFMMYQMMFAAVTIAILTSAIAERAKVSSFILLSALWLTFVYAPFAHWLWGGGWLAKLGALDFAGGMVVHISSGFAALAVAMTIGKRAGFEEYSIEPHSIPLTLIGAALLWFGWFGFNGGSALAANDVAINAVVVTNTSAAVAGFVWMVIGWIKGKPGSLGIVSGAIAGLAAITPAAGFVDVKGAIVIGLVAGIVCYLAMDFRIKKKIDESLDAWAIHGIGGLWGSVAVGILANPEVNGYAGLLFGNPQLLVSQLIAVASTTAYAFLVTLILAKAVDAAVGLRVSSQEEYVGLDLSQHEEVAYT 391
               SCOP domains d2b2ia_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 2b2iA00 A:1-391 Ammonium transporter AmtB like domains                                                                                                                                                                                                                                                                                                                                                  CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.ee...ee...hhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh..........hhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2b2i A   1 MSDGNVAWILASTALVMLMVPGVGFFYAGMVRRKNAVNMIALSFISLIITVLLWIFYGYSVSFGNDISGIIGGLNYALLSGVKGEDLLFMMYQMMFAAVTIAILTSAIAERAKVSSFILLSALWLTFVYAPFAHWLWGGGWLAKLGALDFAGGMVVHISSGFAALAVAMTIGKRAGFEEYSIEPHSIPLTLIGAALLWFGWFGFNGGSALAANDVAINAVVVTNTSAAVAGFVWMVIGWIKGKPGSLGIVSGAIAGLAAITPAAGFVDVKGAIVIGLVAGIVCYLAMDFRIKKKIDESLDAWAIHGIGGLWGSVAVGILANPEVNGYAGLLFGNPQLLVSQLIAVASTTAYAFLVTLILAKAVDAAVGLRVSSQEEYVGLDLSQHEEVAYT 391
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2B2I)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (O29285_ARCFU | O29285)
molecular function
    GO:0008519    ammonium transmembrane transporter activity    Enables the transfer of ammonium from one side of a membrane to the other. Ammonium is the cation NH4+ which is formed from N2 by root-nodule bacteria in leguminous plants and is an excretory product in ammonotelic animals.
biological process
    GO:0072488    ammonium transmembrane transport    The directed movement of ammonium across a membrane by means of some agent such as a transporter or pore. Ammonium is the cation NH4+.
    GO:0015696    ammonium transport    The directed movement of ammonium into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore. Ammonium is the cation NH4+ which is formed from N2 by root-nodule bacteria in leguminous plants and is an excretory product in ammonotelic animals.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2b2i)

  Sites
(no "Sites" information available for 2b2i)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2b2i)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2b2i
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O29285_ARCFU | O29285
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O29285_ARCFU | O29285
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        O29285_ARCFU | O29285: 2b2f 2b2h 2b2j

(-) Related Entries Specified in the PDB File

2b2f NATIVE STRUCTURE
2b2h AMMONIUM TRANSPORTER AMT-1 (AS)
2b2j AMMONIUM TRANSPORTER AMT-1 (XE)
