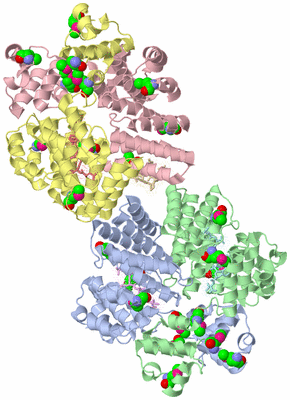

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

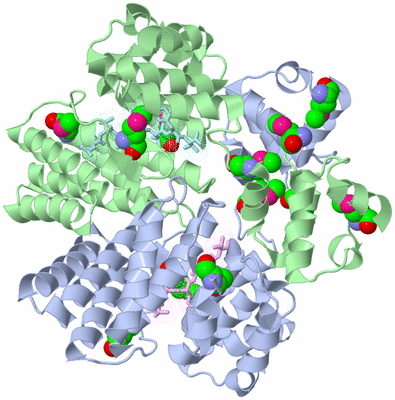

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

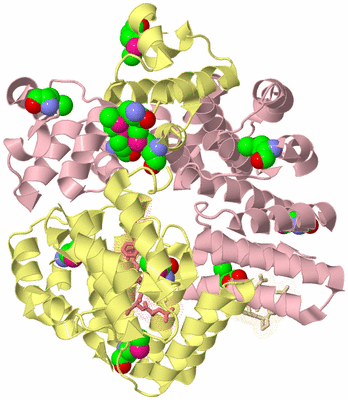

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

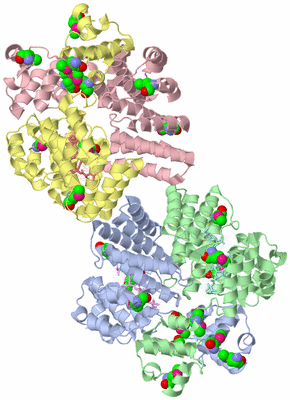

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PRGX/CCF10 COMPLEX

Authors :  K. Shi, C. K. Brown, Z. Y. Gu, B. K. Kozlowicz, G. M. Dunny, D. H. Ohlendorf, C. A. Earhart
Date :  06 Sep 05  (Deposition) - 06 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A,B,C,D,E,F,H,I
Biol. Unit 1:  A,B,E,F  (1x)
Biol. Unit 2:  C,D,H,I  (1x)
Biol. Unit 3:  A,B,C,D,E,F,H  (1x)
Keywords :  Repressor, Pheromone, Dna Binding, Domain, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. Shi, C. K. Brown, Z. Y. Gu, B. K. Kozlowicz, G. M. Dunny, D. H. Ohlendorf, C. A. Earhart
Structure Of Peptide Sex Pheromone Receptor Prgx And Prgx/Pheromone Complexes And Regulation Of Conjugation In Enterococcus Faecalis.
Proc. Natl. Acad. Sci. Usa V. 102 18596 2005
PubMed-ID: 16339309  |  Reference-DOI: 10.1073/PNAS.0506163102
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PRGX
    ChainsA, B, C, D
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism ScientificENTEROCOCCUS FAECALIS
    Organism Taxid1351

Molecule 2 - LVTLVFV PEPTIDE
    ChainsE, F, H
    EngineeredYES
    SyntheticYES

Molecule 3 - TPPKEVT(MSE) PEPTIDE
    ChainsI
    EngineeredYES
    SyntheticYES

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit ABCDEFHI
Biological Unit 1 (1x)AB  EF
Biological Unit 2 (1x)  CD  HI
Biological Unit 3 (1x)ABCDEFH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 23)

Asymmetric Unit (1, 23)
No.NameCountTypeFull Name
1MSE23Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 12)
No.NameCountTypeFull Name
1MSE12Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 11)
No.NameCountTypeFull Name
1MSE11Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 22)
No.NameCountTypeFull Name
1MSE22Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2AXZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AXZ)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Tyr A:176 -Pro A:177
2Tyr B:176 -Pro B:177
3Tyr C:176 -Pro C:177
4Tyr D:176 -Pro D:177

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AXZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AXZ)

(-) Exons   (0, 0)

(no "Exon" information available for 2AXZ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:306
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:306
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
         Q04114_ENTFL     1 MFKIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYENYVAIE 306
               SCOP domains d2axza1 A:1-66 automated matches                                  d2axza2 A:67-306 automated matches                                                                                                                                                                                                               SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh...hhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh.......hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh..........eee...eee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2axz A   1 mFKIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTmYYENYVAIE 306
                            |       10        20      | 30        40        50        60      | 70        80        90       100       110       120       130       140       150       160       170    |  180       190       200  |    210       220       230       240       250       260       270       280       290      |300
                            1-MSE                    27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE                                                                                       297-MSE

Chain B from PDB  Type:PROTEIN  Length:305
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:305
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
         Q04114_ENTFL     1 MFKIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYENYVAI 305
               SCOP domains d2axzb1 B:1-66 automated matches                                  d2axzb2 B:67-305 automated matches                                                                                                                                                                                                              SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh...hhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh......hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...........ee...ee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2axz B   1 mFKIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTmYYENYVAI 305
                            |       10        20      | 30        40        50        60      | 70        80        90       100       110       120       130       140       150       160       170    |  180       190       200  |    210       220       230       240       250       260       270       280       290      |300
                            1-MSE                    27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE                                                                                       297-MSE

Chain C from PDB  Type:PROTEIN  Length:279
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
         Q04114_ENTFL     2 FKIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKIS 284
               SCOP domains d2axzc1 C:2-66 automated matches                                 d2    axzc2 C:67-284 automated matches                                                                                                                                                                                     SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh...hhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh..----.hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2axz C   2 FKIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN----NETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKIS 284
                                    11        21     |  31        41        51        61     ||  - |      81        91       101       111       121       131       141       151       161       171   |   181       191       201 |     211       221       231       241       251       261       271       281
                                                    27-MSE                                  67-MSE73                                                                                                   175-MSE                     203-MSE
                                                                                             68

Chain D from PDB  Type:PROTEIN  Length:305
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:305
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
         Q04114_ENTFL     1 MFKIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYENYVAI 305
               SCOP domains d2axzd1 D:1-66 automated matches                                  d2axzd2 D:67-305 automated matches                                                                                                                                                                                                              SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh...hhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh......hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh...........eee...eee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2axz D   1 mFKIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTmYYENYVAI 305
                            |       10        20      | 30        40        50        60      | 70        80        90       100       110       120       130       140       150       160       170    |  180       190       200  |    210       220       230       240       250       260       270       280       290      |300
                            1-MSE                    27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE                                                                                       297-MSE

Chain E from PDB  Type:PROTEIN  Length:7
 aligned with CCF1_ENTFL | P20104 from UniProtKB/Swiss-Prot  Length:7

    Alignment length:7
           CCF1_ENTFL     1 LVTLVFV   7
               SCOP domains ------- SCOP domains
               CATH domains ------- CATH domains
               Pfam domains ------- Pfam domains
         Sec.struct. author ...ee.. Sec.struct. author
                 SAPs(SNPs) ------- SAPs(SNPs)
                    PROSITE ------- PROSITE
                 Transcript ------- Transcript
                 2axz E   1 LVTLVFV   7

Chain F from PDB  Type:PROTEIN  Length:7
 aligned with CCF1_ENTFL | P20104 from UniProtKB/Swiss-Prot  Length:7

    Alignment length:7
           CCF1_ENTFL     1 LVTLVFV   7
               SCOP domains ------- SCOP domains
               CATH domains ------- CATH domains
               Pfam domains ------- Pfam domains
         Sec.struct. author ...ee.. Sec.struct. author
                 SAPs(SNPs) ------- SAPs(SNPs)
                    PROSITE ------- PROSITE
                 Transcript ------- Transcript
                 2axz F   1 LVTLVFV   7

Chain H from PDB  Type:PROTEIN  Length:7
 aligned with CCF1_ENTFL | P20104 from UniProtKB/Swiss-Prot  Length:7

    Alignment length:7
           CCF1_ENTFL     1 LVTLVFV   7
               SCOP domains ------- SCOP domains
               CATH domains ------- CATH domains
               Pfam domains ------- Pfam domains
         Sec.struct. author ...ee.. Sec.struct. author
                 SAPs(SNPs) ------- SAPs(SNPs)
                    PROSITE ------- PROSITE
                 Transcript ------- Transcript
                 2axz H   1 LVTLVFV   7

Chain I from PDB  Type:PROTEIN  Length:8

               SCOP domains -------- SCOP domains
               CATH domains -------- CATH domains
               Pfam domains -------- Pfam domains
         Sec.struct. author ........ Sec.struct. author
                 SAPs(SNPs) -------- SAPs(SNPs)
                    PROSITE -------- PROSITE
                 Transcript -------- Transcript
                 2axz I 290 TPPKEVTm 297
                                   |
                                 297-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 8)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2AXZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AXZ)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (Q04114_ENTFL | Q04114)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
cellular component
    GO:0017053    transcriptional repressor complex    A protein complex that possesses activity that prevents or downregulates transcription.

Chain E,F,H   (CCF1_ENTFL | P20104)
molecular function
    GO:0005186    pheromone activity    The activity of binding to and activating specific cell surface receptors, thereby inducing behavioral, developmental, or physiological response(s) from a responding organism or cell. The substance may be released or retained on the cell surface. Pheromones may serve as a specific attractant, social communicator, or sexual stimulant.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2axz)

  Cis Peptide Bonds
    Tyr A:176 - Pro A:177   [ RasMol ]
    Tyr B:176 - Pro B:177   [ RasMol ]
    Tyr C:176 - Pro C:177   [ RasMol ]
    Tyr D:176 - Pro D:177   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2axz
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CCF1_ENTFL | P20104
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  Q04114_ENTFL | Q04114
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  CCF1_ENTFL | P20104
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q04114_ENTFL | Q04114
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CCF1_ENTFL | P201042aw6 4faj
UniProtKB/TrEMBL
        Q04114_ENTFL | Q041142aw6 2awi 2axu 2axv 2grl

(-) Related Entries Specified in the PDB File

2aw6 2awi 2axu 2axv
