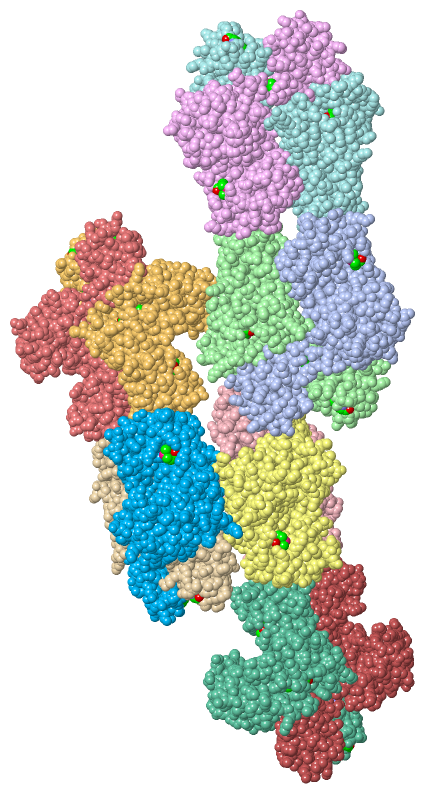

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

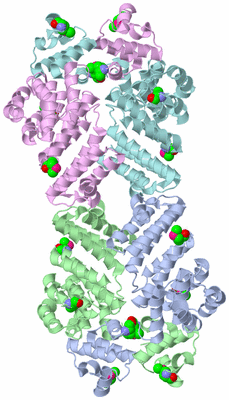

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

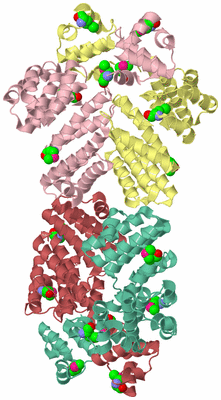

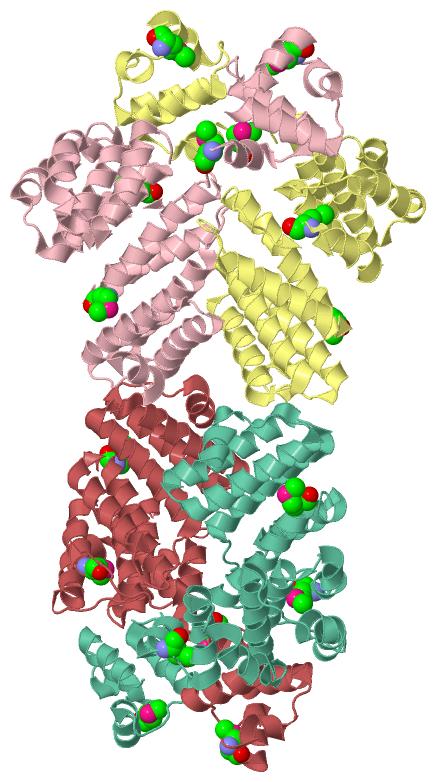

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

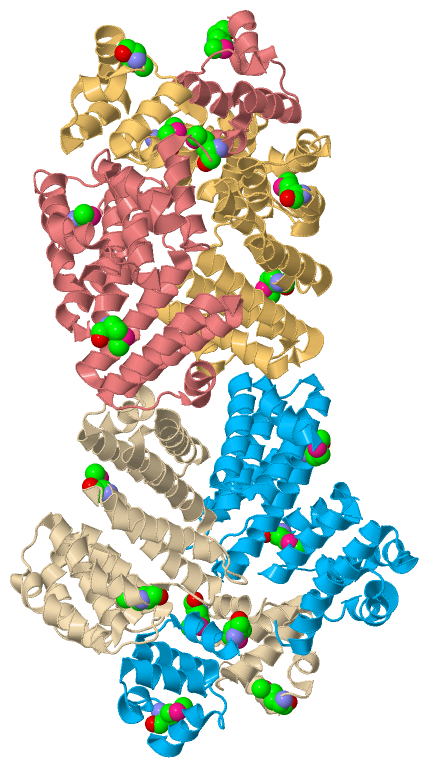

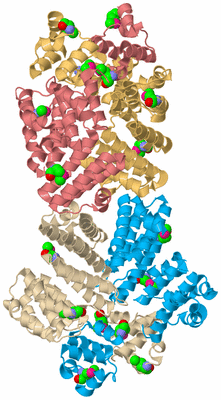

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF PRGX Y153C MUTANT

Authors :  K. Shi, C. K. Brown, Z. Y. Gu, B. K. Kozlowicz, G. M. Dunny, D. H. Ohlendorf, C. A. Earhart
Date :  01 Sep 05  (Deposition) - 06 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.25
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,B,E,F  (1x)
Biol. Unit 2:  C,D,K,L  (1x)
Biol. Unit 3:  G,H,I,J  (1x)
Keywords :  Repressor, Pheromone, Dna Binding, Regulatory Domain, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Shi, C. K. Brown, Z. Y. Gu, B. K. Kozlowicz, G. M. Dunny, D. H. Ohlendorf, C. A. Earhart
Structure Of Peptide Sex Pheromone Receptor Prgx And Prgx/Pheromone Complexes And Regulation Of Conjugation In Enterococcus Faecalis.
Proc. Natl. Acad. Sci. Usa V. 102 18596 2005
PubMed-ID: 16339309  |  Reference-DOI: 10.1073/PNAS.0506163102
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PRGX
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: ENTEROCOCCUS FAECALIS
    Organism Taxid: 1351

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): AB  EF
Biological Unit 2 (1x):   CD      KL
Biological Unit 3 (1x):       GHIJ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 48)

Asymmetric Unit (1, 48)
No.NameCountTypeFull Name
1MSE48Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 16)
No.NameCountTypeFull Name
1MSE16Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 16)
No.NameCountTypeFull Name
1MSE16Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 16)
No.NameCountTypeFull Name
1MSE16Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2AWI)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AWI)

(-) Cis Peptide Bonds  (12, 12)

Asymmetric Unit
No.Residues
1Tyr A:176 -Pro A:177
2Tyr B:176 -Pro B:177
3Tyr C:176 -Pro C:177
4Tyr D:176 -Pro D:177
5Tyr E:176 -Pro E:177
6Tyr F:176 -Pro F:177
7Tyr G:176 -Pro G:177
8Tyr H:176 -Pro H:177
9Tyr I:176 -Pro I:177
10Tyr J:176 -Pro J:177
11Tyr K:176 -Pro K:177
12Tyr L:176 -Pro L:177

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AWI)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AWI)

(-) Exons   (0, 0)

(no "Exon" information available for 2AWI)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:298
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:300
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
         Q04114_ENTFL     2 FKIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awia1 A:2-66 PrgX                                              ----d2awia2 A:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2awi A   2 FKIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    11        21     |  31        41        51        61     || 71        81        91       101       111       121       131       141       151       161       171   |   181       191       201 |     211       221       231       241       251       261       271       281       291       301
                                                    27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                             68


Chain B from PDB  Type:PROTEIN  Length:298
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:300
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
         Q04114_ENTFL     2 FKIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awib1 B:2-66 PrgX                                              ----d2awib2 B:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2awi B   2 FKIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    11        21     |  31        41        51        61     || 71        81        91       101       111       121       131       141       151       161       171   |   181       191       201 |     211       221       231       241       251       261       271       281       291       301
                                                    27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                             68


Chain C from PDB  Type:PROTEIN  Length:297
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:299
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292
         Q04114_ENTFL     3 KIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awic1 C:3-66 PrgX                                             ----d2awic2 C:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh...hhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi C   3 KIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    12        22    |   32        42        52        62    ||  72        82        92       102       112       122       132       142       152       162       172  |    182       192       202|      212       222       232       242       252       262       272       282       292
                                                   27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                            68


Chain D from PDB  Type:PROTEIN  Length:297
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:299
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292
         Q04114_ENTFL     3 KIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awid1 D:3-66 PrgX                                             ----d2awid2 D:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh.....hhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi D   3 KIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    12        22    |   32        42        52        62    ||  72        82        92       102       112       122       132       142       152       162       172  |    182       192       202|      212       222       232       242       252       262       272       282       292
                                                   27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                            68


Chain E from PDB  Type:PROTEIN  Length:297
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:299
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292
         Q04114_ENTFL     3 KIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awie1 E:3-66 PrgX                                             ----d2awie2 E:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.hhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi E   3 KIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    12        22    |   32        42        52        62    ||  72        82        92       102       112       122       132       142       152       162       172  |    182       192       202|      212       222       232       242       252       262       272       282       292
                                                   27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                            68


Chain F from PDB  Type:PROTEIN  Length:297
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:299
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292
         Q04114_ENTFL     3 KIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awif1 F:3-66 PrgX                                             ----d2awif2 F:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.hhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi F   3 KIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    12        22    |   32        42        52        62    ||  72        82        92       102       112       122       132       142       152       162       172  |    182       192       202|      212       222       232       242       252       262       272       282       292
                                                   27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                            68


Chain G from PDB  Type:PROTEIN  Length:296
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:298
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
         Q04114_ENTFL     4 IGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awig1 G:4-66 PrgX                                            ----d2awig2 G:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi G   4 IGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    13        23   |    33        43        53        63   ||  |73        83        93       103       113       123       133       143       153       163       173 |     183       193       203       213       223       233       243       253       263       273       283       293
                                                  27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                           68


Chain H from PDB  Type:PROTEIN  Length:296
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:298
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
         Q04114_ENTFL     4 IGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awih1 H:4-66 PrgX                                            ----d2awih2 H:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhh...hhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh..--..hhhhhhhhhhhhhh....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi H   4 IGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    13        23   |    33        43        53        63   ||  |73        83        93       103       113       123       133       143       153       163       173 |     183       193       203       213       223       233       243       253       263       273       283       293
                                                  27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                           68


Chain I from PDB  Type:PROTEIN  Length:298
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:300
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
         Q04114_ENTFL     2 FKIGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awii1 I:2-66 PrgX                                              ----d2awii2 I:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhh......hhhhhhhhhhhhh.hhhhhhhhhh..--....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2awi I   2 FKIGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    11        21     |  31        41        51        61     || 71        81        91       101       111       121       131       141       151       161       171   |   181       191       201 |     211       221       231       241       251       261       271       281       291       301
                                                    27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                             68


Chain J from PDB  Type:PROTEIN  Length:296
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:298
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
         Q04114_ENTFL     4 IGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awij1 J:4-66 PrgX                                            ----d2awij2 J:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhh..--..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi J   4 IGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    13        23   |    33        43        53        63   ||  |73        83        93       103       113       123       133       143       153       163       173 |     183       193       203       213       223       233       243       253       263       273       283       293
                                                  27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                           68


Chain K from PDB  Type:PROTEIN  Length:296
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:298
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
         Q04114_ENTFL     4 IGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awik1 K:4-66 PrgX                                            ----d2awik2 K:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi K   4 IGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    13        23   |    33        43        53        63   ||  |73        83        93       103       113       123       133       143       153       163       173 |     183       193       203       213       223       233       243       253       263       273       283       293
                                                  27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                           68


Chain L from PDB  Type:PROTEIN  Length:296
 aligned with Q04114_ENTFL | Q04114 from UniProtKB/TrEMBL  Length:317

    Alignment length:298
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
         Q04114_ENTFL     4 IGSVLKQIRQELNYHQIDLYSGIMSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGMNTKSVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDYEIVSNLLNVLPYEEVSSIIKPMYPIVDSFGKDYDLTIQTVLKNALTISIMNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
               SCOP domains d2awil1 L:4-66 PrgX                                            ----d2awil2 L:71-301 PrgX                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhh..hhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...--..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....hhhhhhhhhhhhh...hhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awi L   4 IGSVLKQIRQELNYHQIDLYSGImSKSVYIKVEADSRPISVEELSKFSERLGVNFFEILNRAGmN--SVNETGKEKLLISKIFTNPDLFDKNFQRIEPKRLTSLQYFSIYLGYISIAHHYNIEVPTFNKTITSDLKHLYDKRTTFFGIDCEIVSNLLNVLPYEEVSSIIKPmYPIVDSFGKDYDLTIQTVLKNALTISImNRNLKEAQYYINQFEHLKTIKNISINGYYDLEINYLKQIYQFLTDKNIDSYLNAVNIINIFKIIGKEDIHRSLVEELTKISAKEKFTPPKEVTMYYEN 301
                                    13        23   |    33        43        53        63   ||  |73        83        93       103       113       123       133       143       153       163       173 |     183       193       203       213       223       233       243       253       263       273       283       293
                                                  27-MSE                                  67-MSE                                                                                                     175-MSE                     203-MSE
                                                                                           68
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 24)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2AWI)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AWI)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L   (Q04114_ENTFL | Q04114)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
cellular component
    GO:0017053    transcriptional repressor complex    A protein complex that possesses activity that prevents or downregulates transcription.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2awi)

  Cis Peptide Bonds
    Tyr A:176 - Pro A:177   [ RasMol ]
    Tyr B:176 - Pro B:177   [ RasMol ]
    Tyr C:176 - Pro C:177   [ RasMol ]
    Tyr D:176 - Pro D:177   [ RasMol ]
    Tyr E:176 - Pro E:177   [ RasMol ]
    Tyr F:176 - Pro F:177   [ RasMol ]
    Tyr G:176 - Pro G:177   [ RasMol ]
    Tyr H:176 - Pro H:177   [ RasMol ]
    Tyr I:176 - Pro I:177   [ RasMol ]
    Tyr J:176 - Pro J:177   [ RasMol ]
    Tyr K:176 - Pro K:177   [ RasMol ]
    Tyr L:176 - Pro L:177   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2awi
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q04114_ENTFL | Q04114
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q04114_ENTFL | Q04114
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q04114_ENTFL | Q04114: 2aw6 2axu 2axv 2axz 2grl

(-) Related Entries Specified in the PDB File

2aw6 2axu 2axv 2axz
