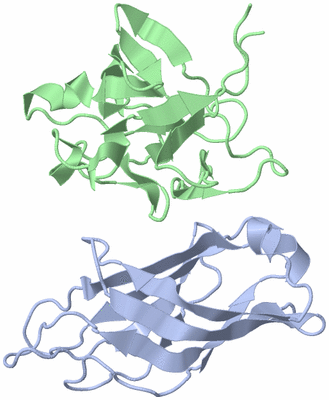

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

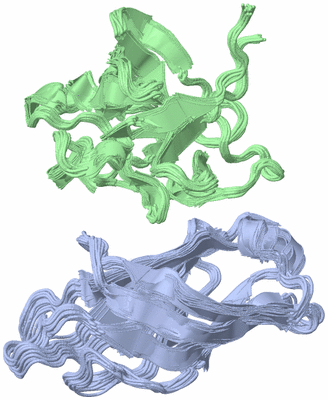

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  FGF-1-C2A BINARY COMPLEX STRUCTURE: A KEY COMPONENT IN THE FIBROBLAST GROWTHFACTOR NON-CLASSICAL PATHWAY

Authors :  C. Yu, S. K. Mohan
Date :  02 Jun 08  (Deposition) - 09 Jun 09  (Release) - 09 Jun 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (20x)
Keywords :  Beta Barrel, Fgf1-C2A Binary Complex, Calcium, Cell Junction, Cytoplasmic Vesicle, Glycoprotein, Lipoprotein, Membrane, Metal-Binding, Palmitate, Phosphoprotein, Synapse, Transmembrane, Acetylation, Angiogenesis, Developmental Protein, Differentiation, Growth Factor, Heparin-Binding, Mitogen, Polymorphism, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. K. Mohan, C. Yu
Fgf-1-C2A Binary Complex Structure: Key Component In The Acidic Fibroblast Growth Factor Release
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SYNAPTOTAGMIN-1
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System VectorPGEX
    Expression System Vector TypeVECTOR
    FragmentC2 DOMAIN, UNP RESIDUES 141-268
    GeneSYT1, SVP65, SYT
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymSYNAPTOTAGMIN I, SYTI, P65, C2A

Molecule 2 - HEPARIN-BINDING GROWTH FACTOR 1
    ChainsB
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System VectorPET20
    Expression System Vector TypeVECTOR
    FragmentUNP RESIDUES 23-155
    GeneFGF1, FGFA
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymHBGF-1, ACIDIC FIBROBLAST GROWTH FACTOR, AFGF, BETA-ENDOTHELIAL CELL GROWTH FACTOR, ECGF-BETA

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2K4A)

(-) Sites  (0, 0)

(no "Site" information available for 2K4A)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2K4A)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2K4A)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2K4A)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HBGF_FGFPS00247 HBGF/FGF family signature.FGF1_HUMAN86-109  1B:64-87
2C2PS50004 C2 domain profile.SYT1_HUMAN157-245
287-378
  1A:17-105
-

(-) Exons   (6, 6)

NMR Structure (6, 6)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.3ENST000003780463ENSE00001476010chr5:142065237-142065079159FGF1_HUMAN-00--
1.8bENST000003780468bENSE00002155500chr5:141993726-141993524203FGF1_HUMAN1-57571B:1-3535
1.9bENST000003780469bENSE00000766692chr5:141980370-141980267104FGF1_HUMAN57-91351B:35-6935
1.10fENST0000037804610fENSE00001476009chr5:141975049-1419729342116FGF1_HUMAN92-155641B:70-13364

2.1ENST000003932401ENSE00001514587chr12:79257773-79258115343SYT1_HUMAN-00--
2.2bENST000003932402bENSE00001514586chr12:79258778-79258889112SYT1_HUMAN-00--
2.3ENST000003932403ENSE00001411176chr12:79371579-79371711133SYT1_HUMAN-00--
2.6ENST000003932406ENSE00001399568chr12:79441077-7944114266SYT1_HUMAN-00--
2.7ENST000003932407ENSE00001164727chr12:79611283-79611465183SYT1_HUMAN1-56560--
2.8ENST000003932408ENSE00001098488chr12:79679567-79679751185SYT1_HUMAN56-117620--
2.9ENST000003932409ENSE00001272133chr12:79685788-79685910123SYT1_HUMAN118-158411A:1-1818
2.10bENST0000039324010bENSE00001272119chr12:79689849-79690016168SYT1_HUMAN159-214561A:19-7456
2.11ENST0000039324011ENSE00000910597chr12:79693164-79693331168SYT1_HUMAN215-270561A:75-12854
2.12ENST0000039324012ENSE00001620152chr12:79747282-79747399118SYT1_HUMAN271-310400--
2.13ENST0000039324013ENSE00001657879chr12:79837853-79837986134SYT1_HUMAN310-354450--
2.14aENST0000039324014aENSE00001824637chr12:79842698-798440591362SYT1_HUMAN355-422680--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:128
 aligned with SYT1_HUMAN | P21579 from UniProtKB/Swiss-Prot  Length:422

    Alignment length:128
                                   150       160       170       180       190       200       210       220       230       240       250       260
           SYT1_HUMAN   141 EKLGKLQYSLDYDFQNNQLLVGIIQAAELPALDMGGTSDPYVKVFLLPDKKKKFETKVHRKTLNPVFNEQFTFKVPYSELGGKTLVMAVYDFDRFSKHDIIGEFKVPMNTVDFGHVTEEWRDLQSAEK 268
               SCOP domains d2k4aa_ A: Synaptogamin I                                                                                                        SCOP domains
               CATH domains 2k4aA00 A:1-128 C2- domain Calcium/lipid binding domain                                                                          CATH domains
               Pfam domains ------------------C2-2k4aA01 A:19-105                                                                    ----------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeee....eeeeeeeeee.............eeeeee.......ee..............eeeee.hhhhhh..eeeeeee.........eeeeeeee.hhh....eeeeeeee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------C2  PDB: A:17-105 UniProt: 157-245                                                       ----------------------- PROSITE
               Transcript 2 Exon 2.9          Exon 2.10b  PDB: A:19-74 UniProt: 159-214               Exon 2.11  PDB: A:75-128 UniProt: 215-270 [INCOMPLETE] Transcript 2
                 2k4a A   1 EKLGKLQYSLDYDFQNNQLLVGIIQAAELPALDMGGTSDPYVKVFLLPDKKKKFETKVHRKTLNPVFNEQFTFKVPYSELGGKTLVMAVYDFDRFSKHDIIGEFKVPMNTVDFGHVTEEWRDLQSAEK 128
                                    10        20        30        40        50        60        70        80        90       100       110       120

Chain B from PDB  Type:PROTEIN  Length:133
 aligned with FGF1_HUMAN | P05230 from UniProtKB/Swiss-Prot  Length:155

    Alignment length:133
                                    32        42        52        62        72        82        92       102       112       122       132       142       152
           FGF1_HUMAN    23 YKKPKLLYCSNGGHFLRILPDGTVDGTRDRSDQHIQLQLSAESVGEVYIKSTETGQYLAMDTDGLLYGSQTPNEECLFLERLEENHYNTYISKKHAEKNWFVGLKKNGSCKRGPRTHYGQKAILFLPLPVSSD 155
               SCOP domains d2k4ab_ B: Acidic FGF (FGF1)                                                                                                          SCOP domains
               CATH domains 2k4aB00 B:1-133  [code=2.80.10.50, no name defined]                                                                                   CATH domains
               Pfam domains --FGF-2k4aB01 B:3-126                                                                                                         ------- Pfam domains
         Sec.struct. author ......eee.....eee.......eee............eeee..eee........ee.........ee...hhh.eeeeeee...eeeeehhhhhh......ee...ee.hhhhh...hhhh.eee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------HBGF_FGF  PDB: B:64-87  ---------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.8b  PDB: B:1-35 [INCOMPLETE]----------------------------------Exon 1.10f  PDB: B:70-133 UniProt: 92-155                        Transcript 1 (1)
           Transcript 1 (2) ----------------------------------Exon 1.9b  PDB: B:35-69            ---------------------------------------------------------------- Transcript 1 (2)
                 2k4a B   1 YKKPKLLYCSNGGHFLRILPDGTVDGTRDRSDQHIQLQLSAESVGEVYIKSTETGQYLAMDTDGLLYGSQTPNEECLFLERLEENHYNTYISKKHAEKNWFVGLKKNGSCKRGPRTHYGQKAILFLPLPVSSD 133
                                    10        20        30        40        50        60        70        80        90       100       110       120       130

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

NMR Structure

(-) CATH Domains  (2, 2)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (2, 2)

NMR Structure
(-)
Clan: C2 (71)
(-)
Family: C2 (34)
(-)
Clan: Trefoil (131)

(-) Gene Ontology  (118, 122)

NMR Structure(hide GO term definitions)
Chain A   (SYT1_HUMAN | P21579)
molecular function
    GO:0005545    1-phosphatidylinositol binding    Interacting selectively and non-covalently with phosphatidylinositol, any glycophospholipid with its sn-glycerol 3-phosphate residue is esterified to the 1-hydroxyl group of 1D-myo-inositol.
    GO:0000149    SNARE binding    Interacting selectively and non-covalently with a SNARE (soluble N-ethylmaleimide-sensitive factor attached protein receptor) protein.
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0005544    calcium-dependent phospholipid binding    Interacting selectively and non-covalently with phospholipids, a class of lipids containing phosphoric acid as a mono- or diester, in the presence of calcium.
    GO:0048306    calcium-dependent protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules), in the presence of calcium.
    GO:0005516    calmodulin binding    Interacting selectively and non-covalently with calmodulin, a calcium-binding protein with many roles, both in the calcium-bound and calcium-free states.
    GO:0030276    clathrin binding    Interacting selectively and non-covalently with a clathrin heavy or light chain, the main components of the coat of coated vesicles and coated pits, and which also occurs in synaptic vesicles.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0050750    low-density lipoprotein particle receptor binding    Interacting selectively and non-covalently with a low-density lipoprotein receptor.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005546    phosphatidylinositol-4,5-bisphosphate binding    Interacting selectively and non-covalently with phosphatidylinositol-4,5-bisphosphate, a derivative of phosphatidylinositol in which the inositol ring is phosphorylated at the 4' and 5' positions.
    GO:0001786    phosphatidylserine binding    Interacting selectively and non-covalently with phosphatidylserine, a class of glycophospholipids in which a phosphatidyl group is esterified to the hydroxyl group of L-serine.
    GO:0005543    phospholipid binding    Interacting selectively and non-covalently with phospholipids, a class of lipids containing phosphoric acid as a mono- or diester.
    GO:0008022    protein C-terminus binding    Interacting selectively and non-covalently with a protein C-terminus, the end of any peptide chain at which the 1-carboxy function of a constituent amino acid is not attached in peptide linkage to another amino-acid residue.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019905    syntaxin binding    Interacting selectively and non-covalently with a syntaxin, a SNAP receptor involved in the docking of synaptic vesicles at the presynaptic zone of a synapse.
    GO:0017075    syntaxin-1 binding    Interacting selectively and non-covalently with the SNAP receptor syntaxin-1.
biological process
    GO:0007420    brain development    The process whose specific outcome is the progression of the brain over time, from its formation to the mature structure. Brain development begins with patterning events in the neural tube and ends with the mature structure that is the center of thought and emotion. The brain is responsible for the coordination and control of bodily activities and the interpretation of information from the senses (sight, hearing, smell, etc.).
    GO:0048791    calcium ion-regulated exocytosis of neurotransmitter    The release of a neurotransmitter into the synaptic cleft by exocytosis of synaptic vesicles, where the release step is dependent on a rise in cytosolic calcium ion levels.
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0071277    cellular response to calcium ion    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a calcium ion stimulus.
    GO:0007268    chemical synaptic transmission    The vesicular release of classical neurotransmitter molecules from a presynapse, across a chemical synapse, the subsequent activation of neurotransmitter receptors at the postsynapse of a target cell (neuron, muscle, or secretory cell) and the effects of this activation on the postsynaptic membrane potential and ionic composition of the postsynaptic cytosol. This process encompasses both spontaneous and evoked release of neurotransmitter and all parts of synaptic vesicle exocytosis. Evoked transmission starts with the arrival of an action potential at the presynapse.
    GO:0005513    detection of calcium ion    The series of events in which a calcium ion stimulus is received by a cell and converted into a molecular signal.
    GO:0098746    fast, calcium ion-dependent exocytosis of neurotransmitter    The fast, initial phase of calcium ion-induced neurotransmitter release, via exocytosis, into the synaptic cleft. This depends on low affinity calcium sensors and typically begins a fraction of a millisecond after Ca2+ influx, and decays rapidly (1-10ms) with a decay constant of around 5-10ms. The underlying molecular mechanisms of this process are distinct from those of the later, slow phase of release.
    GO:0014047    glutamate secretion    The controlled release of glutamate by a cell. The glutamate is the most abundant excitatory neurotransmitter in the nervous system.
    GO:0007269    neurotransmitter secretion    The regulated release of neurotransmitter from the presynapse into the synaptic cleft via calcium regualated exocytosis during synaptic transmission.
    GO:0045956    positive regulation of calcium ion-dependent exocytosis    Any process that activates or increases the frequency, rate or extent of calcium ion-dependent exocytosis.
    GO:1903861    positive regulation of dendrite extension    Any process that activates or increases the frequency, rate or extent of dendrite extension.
    GO:0050806    positive regulation of synaptic transmission    Any process that activates or increases the frequency, rate or extent of synaptic transmission, the process of communication from a neuron to a target (neuron, muscle, or secretory cell) across a synapse.
    GO:0031340    positive regulation of vesicle fusion    Any process that activates or increases the frequency, rate or extent of vesicle fusion.
    GO:0051260    protein homooligomerization    The process of creating protein oligomers, compounds composed of a small number, usually between three and ten, of identical component monomers. Oligomers may be formed by the polymerization of a number of monomers or the depolymerization of a large protein polymer.
    GO:0017158    regulation of calcium ion-dependent exocytosis    Any process that modulates the frequency, rate or extent of calcium ion-dependent exocytosis.
    GO:0017157    regulation of exocytosis    Any process that modulates the frequency, rate or extent of exocytosis.
    GO:1903305    regulation of regulated secretory pathway    Any process that modulates the frequency, rate or extent of regulated secretory pathway.
    GO:0051966    regulation of synaptic transmission, glutamatergic    Any process that modulates the frequency, rate or extent of glutamatergic synaptic transmission, the process of communication from a neuron to another neuron across a synapse using the neurotransmitter glutamate.
    GO:0051592    response to calcium ion    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a calcium ion stimulus.
    GO:0048488    synaptic vesicle endocytosis    Clathrin-mediated endocytosis of presynaptic membrane that recycles synaptic vesicle membrane and its components following synaptic vesicle exocytosis. This process starts with coating of the membrane with adaptor proteins and clathrin prior to invagination and ends when uncoating has finished.
    GO:0016079    synaptic vesicle exocytosis    Fusion of intracellular membrane-bounded vesicles with the pre-synaptic membrane of the neuronal cell resulting in release of neurotransmitter into the synaptic cleft.
    GO:0048278    vesicle docking    The initial attachment of a transport vesicle membrane to the target membrane, mediated by proteins protruding from the membrane of the vesicle and the target membrane. Docking requires only that the two membranes come close enough for these proteins to interact and adhere.
    GO:0006906    vesicle fusion    Fusion of the membrane of a transport vesicle with its target membrane.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0031201    SNARE complex    A protein complex involved in membrane fusion; a stable ternary complex consisting of a four-helix bundle, usually formed from one R-SNARE and three Q-SNAREs with an ionic layer sandwiched between hydrophobic layers. One well-characterized example is the neuronal SNARE complex formed of synaptobrevin 2, syntaxin 1a, and SNAP-25.
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0042584    chromaffin granule membrane    The lipid bilayer surrounding a chromaffin granule, a specialized secretory vesicle found in the cells of adrenal glands and various other organs, which is concerned with the synthesis, storage, metabolism, and secretion of epinephrine and norepinephrine.
    GO:0060201    clathrin-sculpted acetylcholine transport vesicle membrane    The lipid bilayer surrounding a clathrin-sculpted acetylcholine transport vesicle.
    GO:0061202    clathrin-sculpted gamma-aminobutyric acid transport vesicle membrane    The lipid bilayer surrounding a clathrin-sculpted gamma-aminobutyric acid transport vesicle.
    GO:0060203    clathrin-sculpted glutamate transport vesicle membrane    The lipid bilayer surrounding a clathrin-sculpted glutamate transport vesicle.
    GO:0070083    clathrin-sculpted monoamine transport vesicle membrane    The lipid bilayer surrounding a clathrin-sculpted monoamine transport vesicle.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0031410    cytoplasmic vesicle    A vesicle found in the cytoplasm of a cell.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0031045    dense core granule    Electron-dense organelle with a granular internal matrix; contains proteins destined to be secreted.
    GO:0060076    excitatory synapse    A synapse in which an action potential in the presynaptic cell increases the probability of an action potential occurring in the postsynaptic cell.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0043229    intracellular organelle    Organized structure of distinctive morphology and function, occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, vesicles, ribosomes and the cytoskeleton. Excludes the plasma membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0043005    neuron projection    A prolongation or process extending from a nerve cell, e.g. an axon or dendrite.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0042734    presynaptic membrane    A specialized area of membrane of the axon terminal that faces the plasma membrane of the neuron or muscle fiber with which the axon terminal establishes a synaptic junction; many synaptic junctions exhibit structural presynaptic characteristics, such as conical, electron-dense internal protrusions, that distinguish it from the remainder of the axon plasma membrane.
    GO:0030141    secretory granule    A small subcellular vesicle, surrounded by a membrane, that is formed from the Golgi apparatus and contains a highly concentrated protein destined for secretion. Secretory granules move towards the periphery of the cell and upon stimulation, their membranes fuse with the cell membrane, and their protein load is exteriorized. Processing of the contained protein may take place in secretory granules.
    GO:0045202    synapse    The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.
    GO:0008021    synaptic vesicle    A secretory organelle, typically 50 nm in diameter, of presynaptic nerve terminals; accumulates in high concentrations of neurotransmitters and secretes these into the synaptic cleft by fusion with the 'active zone' of the presynaptic plasma membrane.
    GO:0030672    synaptic vesicle membrane    The lipid bilayer surrounding a synaptic vesicle.
    GO:0043195    terminal bouton    Terminal inflated portion of the axon, containing the specialized apparatus necessary to release neurotransmitters. The axon terminus is considered to be the whole region of thickening and the terminal bouton is a specialized region of it.
    GO:0030658    transport vesicle membrane    The lipid bilayer surrounding a transport vesicle.

Chain B   (FGF1_HUMAN | P05230)
molecular function
    GO:0016303    1-phosphatidylinositol-3-kinase activity    Catalysis of the reaction: 1-phosphatidyl-1D-myo-inositol + ATP = a 1-phosphatidyl-1D-myo-inositol 3-phosphate + ADP + 2 H(+).
    GO:0030544    Hsp70 protein binding    Interacting selectively and non-covalently with Hsp70 proteins, any of a group of heat shock proteins around 70kDa in size.
    GO:0005088    Ras guanyl-nucleotide exchange factor activity    Stimulates the exchange of guanyl nucleotides associated with a GTPase of the Ras superfamily. Under normal cellular physiological conditions, the concentration of GTP is higher than that of GDP, favoring the replacement of GDP by GTP in association with the GTPase.
    GO:0044548    S100 protein binding    Interacting selectively and non-covalently with a S100 protein. S100 is a small calcium and zinc binding protein produced in astrocytes that is implicated in Alzheimer's disease, Down Syndrome and ALS.
    GO:0005104    fibroblast growth factor receptor binding    Interacting selectively and non-covalently with the fibroblast growth factor receptor (FGFR).
    GO:0008083    growth factor activity    The function that stimulates a cell to grow or proliferate. Most growth factors have other actions besides the induction of cell growth or proliferation.
    GO:0008201    heparin binding    Interacting selectively and non-covalently with heparin, any member of a group of glycosaminoglycans found mainly as an intracellular component of mast cells and which consist predominantly of alternating alpha-(1->4)-linked D-galactose and N-acetyl-D-glucosamine-6-sulfate residues.
    GO:0005178    integrin binding    Interacting selectively and non-covalently with an integrin.
    GO:0046934    phosphatidylinositol-4,5-bisphosphate 3-kinase activity    Catalysis of the reaction: 1-phosphatidyl-1D-myo-inositol 4,5-bisphosphate + ATP = a 1-phosphatidyl-1D-myo-inositol 3,4,5-trisphosphate + ADP + 2 H(+).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004713    protein tyrosine kinase activity    Catalysis of the reaction: ATP + a protein tyrosine = ADP + protein tyrosine phosphate.
    GO:0005102    receptor binding    Interacting selectively and non-covalently with one or more specific sites on a receptor molecule, a macromolecule that undergoes combination with a hormone, neurotransmitter, drug or intracellular messenger to initiate a change in cell function.
biological process
    GO:0000165    MAPK cascade    An intracellular protein kinase cascade containing at least a MAPK, a MAPKK and a MAP3K. The cascade can also contain two additional tiers: the upstream MAP4K and the downstream MAP Kinase-activated kinase (MAPKAPK). The kinases in each tier phosphorylate and activate the kinases in the downstream tier to transmit a signal within a cell.
    GO:0000187    activation of MAPK activity    The initiation of the activity of the inactive enzyme MAP kinase (MAPK).
    GO:0032148    activation of protein kinase B activity    Any process that initiates the activity of the inactive enzyme protein kinase B.
    GO:0009653    anatomical structure morphogenesis    The process in which anatomical structures are generated and organized. Morphogenesis pertains to the creation of form.
    GO:0001525    angiogenesis    Blood vessel formation when new vessels emerge from the proliferation of pre-existing blood vessels.
    GO:0060681    branch elongation involved in ureteric bud branching    The growth of a branch of the ureteric bud along its axis.
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0008283    cell proliferation    The multiplication or reproduction of cells, resulting in the expansion of a cell population.
    GO:0034605    cellular response to heat    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a heat stimulus, a temperature stimulus above the optimal temperature for that organism.
    GO:0008543    fibroblast growth factor receptor signaling pathway    The series of molecular signals generated as a consequence of a fibroblast growth factor receptor binding to one of its physiological ligands.
    GO:0030324    lung development    The process whose specific outcome is the progression of the lung over time, from its formation to the mature structure. In all air-breathing vertebrates the lungs are developed from the ventral wall of the oesophagus as a pouch which divides into two sacs. In amphibians and many reptiles the lungs retain very nearly this primitive sac-like character, but in the higher forms the connection with the esophagus becomes elongated into the windpipe and the inner walls of the sacs become more and more divided, until, in the mammals, the air spaces become minutely divided into tubes ending in small air cells, in the walls of which the blood circulates in a fine network of capillaries. In mammals the lungs are more or less divided into lobes, and each lung occupies a separate cavity in the thorax.
    GO:0072163    mesonephric epithelium development    The process whose specific outcome is the progression of an epithelium in the mesonephros over time, from its formation to the mature structure. An epithelium is a tissue that covers the internal or external surfaces of an anatomical structure.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:0001759    organ induction    The interaction of two or more cells or tissues that causes them to change their fates and specify the development of an organ.
    GO:0018108    peptidyl-tyrosine phosphorylation    The phosphorylation of peptidyl-tyrosine to form peptidyl-O4'-phospho-L-tyrosine.
    GO:0046854    phosphatidylinositol phosphorylation    The process of introducing one or more phosphate groups into a phosphatidylinositol, any glycerophosphoinositol having one phosphatidyl group esterified to one of the hydroxy groups of inositol.
    GO:0036092    phosphatidylinositol-3-phosphate biosynthetic process    The chemical reactions and pathways resulting in the formation of phosphatidylinositol-3-phosphate, a phosphatidylinositol monophosphate carrying the phosphate group at the 3-position.
    GO:0048015    phosphatidylinositol-mediated signaling    A series of molecular signals in which a cell uses a phosphatidylinositol-mediated signaling to convert a signal into a response. Phosphatidylinositols include phosphatidylinositol (PtdIns) and its phosphorylated derivatives.
    GO:0070374    positive regulation of ERK1 and ERK2 cascade    Any process that activates or increases the frequency, rate or extent of signal transduction mediated by the ERK1 and ERK2 cascade.
    GO:0043547    positive regulation of GTPase activity    Any process that activates or increases the activity of a GTPase.
    GO:0043406    positive regulation of MAP kinase activity    Any process that activates or increases the frequency, rate or extent of MAP kinase activity.
    GO:0045766    positive regulation of angiogenesis    Any process that activates or increases angiogenesis.
    GO:0051781    positive regulation of cell division    Any process that activates or increases the frequency, rate or extent of cell division.
    GO:0030335    positive regulation of cell migration    Any process that activates or increases the frequency, rate or extent of cell migration.
    GO:0008284    positive regulation of cell proliferation    Any process that activates or increases the rate or extent of cell proliferation.
    GO:0045542    positive regulation of cholesterol biosynthetic process    Any process that activates or increases the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of cholesterol.
    GO:0010595    positive regulation of endothelial cell migration    Any process that increases the rate, frequency, or extent of the orderly movement of an endothelial cell into the extracellular matrix to form an endothelium.
    GO:0050679    positive regulation of epithelial cell proliferation    Any process that activates or increases the rate or extent of epithelial cell proliferation.
    GO:1902533    positive regulation of intracellular signal transduction    Any process that activates or increases the frequency, rate or extent of intracellular signal transduction.
    GO:0001934    positive regulation of protein phosphorylation    Any process that activates or increases the frequency, rate or extent of addition of phosphate groups to amino acids within a protein.
    GO:1903672    positive regulation of sprouting angiogenesis    Any process that activates or increases the frequency, rate or extent of sprouting angiogenesis.
    GO:0045944    positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:2000544    regulation of endothelial cell chemotaxis to fibroblast growth factor    Any process that modulates the frequency, rate or extent of endothelial cell chemotaxis to fibroblast growth factor.
    GO:1901509    regulation of endothelial tube morphogenesis    Any process that modulates the frequency, rate or extent of endothelial tube morphogenesis.
    GO:0014066    regulation of phosphatidylinositol 3-kinase signaling    Any process that modulates the frequency, rate or extent of signal transduction mediated by the phosphatidylinositol 3-kinase cascade.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
cellular component
    GO:0005938    cell cortex    The region of a cell that lies just beneath the plasma membrane and often, but not always, contains a network of actin filaments and associated proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
    GO:0005730    nucleolus    A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005578    proteinaceous extracellular matrix    A layer consisting mainly of proteins (especially collagen) and glycosaminoglycans (mostly as proteoglycans) that forms a sheet underlying or overlying cells such as endothelial and epithelial cells. The proteins are secreted by cells in the vicinity. An example of this component is found in Mus musculus.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2k4a)

  Sites
(no "Sites" information available for 2k4a)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2k4a)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2k4a
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FGF1_HUMAN | P05230
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  SYT1_HUMAN | P21579
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  FGF1_HUMAN | P05230
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SYT1_HUMAN | P21579
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FGF1_HUMAN | P052301axm 1djs 1dzc 1dzd 1e0o 1evt 1hkn 1jqz 1jt3 1jt4 1jt5 1jt7 1jtc 1jy0 1k5u 1k5v 1m16 1nzk 1p63 1pzz 1q03 1q04 1qct 1rg8 1rml 1ry7 1yto 1z2v 1z4s 2afg 2aqz 2axm 2erm 2hw9 2hwa 2hwm 2hz9 2k43 2k8r 2ki4 2ki6 2ntd 2q9x 2rq9 3b9u 3ba4 3ba5 3ba7 3bad 3bag 3bah 3bao 3baq 3bau 3bav 3bb2 3cqa 3crg 3crh 3cri 3cu1 3fgm 3fj8 3fj9 3fja 3fjb 3fjc 3fjd 3fje 3fjf 3fjh 3fji 3fjj 3fjk 3hom 3jut 3k1x 3o3q 3oj2 3ojm 3ojv 3ud7 3ud8 3ud9 3uda 4j23 4q91 4q9g 4q9p 4qal 4qbc 4qbv 4qc4 4qo3 4xki 4yol
        SYT1_HUMAN | P215792k45 2k8m 2ki6 2lha 2n1t 2r83 3f00 3f01 3f04 3f05 4isq 4v11

(-) Related Entries Specified in the PDB File

2k43 FGF-1
2k45 C2A RELATED ID: 15794 RELATED DB: BMRB
