(-) Description

Authors :  M. N. Greco, M. J. Hawkins, E. T. Powell, H. R Almond, L. De Garavilla, Y. Wang, L. A. Minor, G. I. Wells, E. Di Cera, A. M. Cantwell, S. N. Savvides, B. P. Damiano, B. E. Maryanoff
Date :  31 Jul 06  (Deposition) - 12 Jun 07  (Release) - 24 Feb 09  (Revision)
Resolution :  2.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Serine Protease, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))
Reference :  M. N. Greco, M. J. Hawkins, E. T. Powell, H. R. Almond, L. De Garavilla, J. Hall, L. K. Minor, Y. Wang, T. W. Corcoran, E. Di Cera, A. M. Cantwell, S. N. Savvides, B. P. Damiano, B. E. Maryanoff
Discovery Of Potent, Selective, Orally Active, Nonpeptide Inhibitors Of Human Mast Cell Chymase.
J. Med. Chem. V. 50 1727 2007
PubMed-ID: 17361995  |  Reference-DOI: 10.1021/JM0700619
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CHYMASE
    EC Number3.4.21.39
    Expression System CommonFALL ARMYWORM
    Expression System Taxid7108
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606

 Structural Features

(-) Chains, Units

Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
1AC1SOFTWAREHIS A:57 , TYR A:94 , ASN A:95 , THR A:96 , LEU A:99 , ASP A:102 , ALA A:190 , PHE A:191 , LYS A:192 , GLY A:193 , SER A:195 , VAL A:213 , SER A:214 , GLY A:216 , ARG A:217 , HOH A:404BINDING SITE FOR RESIDUE DRX A 500

(-) SS Bonds  (3, 3)

Asymmetric/Biological Unit
1A:42 -A:58
2A:136 -A:201
3A:168 -A:182

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
1Pro A:224 -Pro A:225

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (3, 3)

Asymmetric/Biological Unit (3, 3)
1TRYPSIN_DOMPS50240 Serine proteases, trypsin domain profile.CMA1_HUMAN22-245  1A:16-243
2TRYPSIN_HISPS00134 Serine proteases, trypsin family, histidine active site.CMA1_HUMAN62-67  1A:53-58
3TRYPSIN_SERPS00135 Serine proteases, trypsin family, serine active site.CMA1_HUMAN197-208  1A:189-200

(-) Exons   (4, 4)

Asymmetric/Biological Unit (4, 4)
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.3ENST000002503783ENSE00000586440chr14:24975810-24975675136CMA1_HUMAN70-115461A:61-107 (gaps)48
1.4aENST000002503784aENSE00000654524chr14:24975488-24975234255CMA1_HUMAN116-200851A:108-192 (gaps)88
1.5bENST000002503785bENSE00001816406chr14:24974865-24974561305CMA1_HUMAN201-247471A:193-245 (gaps)53

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:226
 aligned with CMA1_HUMAN | P23946 from UniProtKB/Swiss-Prot  Length:247

    Alignment length:226
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241
               SCOP domains d2hvxa_ A: Chymase (mast cell protease I)                                                                                                                                                                                          SCOP domains
               CATH domains 2hvxA01     2hvxA02 A:28-120,A:233-245 Trypsin-like serine proteases                                       2hvxA01 A:16-27,A:121-232 Trypsin-like serine proteases                                                   2hvxA02       CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author Sec.struct. author
                 SAPs(SNPs) ------------------------R-------------------R-------------------------------H----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) TRYPSIN_DOM  PDB: A:16-243 UniProt: 22-245                                                                                                                                                                                      -- PROSITE (1)
                PROSITE (2) ----------------------------------------TRYPSI---------------------------------------------------------------------------------------------------------------------------------TRYPSIN_SER --------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.2a  PDB: A:16-61 UniProt: 20-70           ---------------------------------------------Exon 1.4a  PDB: A:108-192 (gaps) UniProt: 116-200                                    Exon 1.5b  PDB: A:193-245 (gaps)                Transcript 1 (1)
           Transcript 1 (2) ------------------------------------------------Exon 1.3  PDB: A:61-107 (gaps) UniProt: 70-115------------------------------------------------------------------------------------------------------------------------------------ Transcript 1 (2)
                                    25        35 |||    42        52        63        73 ||  |  83        93       103       113       123       133       143    || 154       164    || 176 |     185||     193       207       217   ||  229       239
                                               36A||                       61|          75|  |                                                                  148|                169|  177A     185A|              202|           221|
                                                36B|                        63           77  |                                                                   150                 172            185B               207            224
                                                 36C                                       79A

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2HVX)

(-) Gene Ontology  (21, 21)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CMA1_HUMAN | P23946)
molecular function
    GO:0004175    endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0042277    peptide binding    Interacting selectively and non-covalently with peptides, any of a group of organic compounds comprising two or more amino acids linked by peptide bonds.
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
    GO:0008236    serine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0002003    angiotensin maturation    The process leading to the attainment of the full functional capacity of angiotensin by conversion of renin substrate into mature angiotensin in the blood.
    GO:0071333    cellular response to glucose stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a glucose stimulus.
    GO:0022617    extracellular matrix disassembly    A process that results in the breakdown of the extracellular matrix.
    GO:0006955    immune response    Any immune system process that functions in the calibrated response of an organism to a potential internal or invasive threat.
    GO:0050720    interleukin-1 beta biosynthetic process    The chemical reactions and pathways resulting in the formation of interleukin-1 beta.
    GO:0030901    midbrain development    The process whose specific outcome is the progression of the midbrain over time, from its formation to the mature structure. The midbrain is the middle division of the three primary divisions of the developing chordate brain or the corresponding part of the adult brain (in vertebrates, includes a ventral part containing the cerebral peduncles and a dorsal tectum containing the corpora quadrigemina and that surrounds the aqueduct of Sylvius connecting the third and fourth ventricles).
    GO:0006518    peptide metabolic process    The chemical reactions and pathways involving peptides, compounds of two or more amino acids where the alpha carboxyl group of one is bound to the alpha amino group of another.
    GO:0045766    positive regulation of angiogenesis    Any process that activates or increases angiogenesis.
    GO:0016485    protein processing    Any protein maturation process achieved by the cleavage of a peptide bond or bonds within a protein. Protein maturation is the process leading to the attainment of the full functional capacity of a protein.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0050727    regulation of inflammatory response    Any process that modulates the frequency, rate or extent of the inflammatory response, the immediate defensive reaction (by vertebrate tissue) to infection or injury caused by chemical or physical agents.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0031012    extracellular matrix    A structure lying external to one or more cells, which provides structural support for cells or tissues.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0043231    intracellular membrane-bounded organelle    Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.


(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)
  Ligands, Modified Residues, Ions
    DRX  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    AC1  [ RasMol ]  +environment [ RasMol ]
  Cis Peptide Bonds
    Pro A:224 - Pro A:225   [ RasMol ]

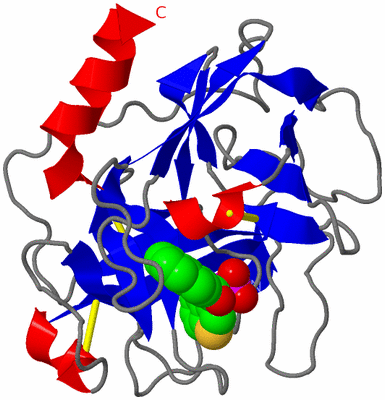

(-) Still Images

  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK
Access by UniProt ID/Accession number
  CMA1_HUMAN | P23946
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
Access by Enzyme Classificator   (EC Number)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc
Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM
Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING
Access by UniProt ID/Accession number
  CMA1_HUMAN | P23946
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

        CMA1_HUMAN | P239461klt 1nn6 1pjp 1t31 3n7o 3s0n 4afq 4afs 4afu 4afz 4ag1 4ag2 4k2y 4k5z 4k60 4k69 4kp0
