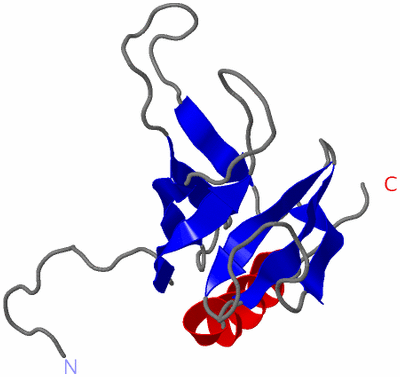

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

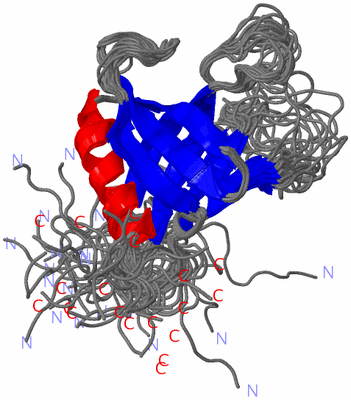

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE PH DOMAIN OF DOCKING PROTEIN 2 FROM HUMAN

Authors :  H. Li, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  13 Dec 05  (Deposition) - 13 Jun 06  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Ph Domain, Docking Protein 2, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  H. Li, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The Ph Domain Of Docking Protein 2 From Human
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DOCKING PROTEIN 2
    ChainsA
    EngineeredYES
    Expression System PlasmidP050302-66
    Expression System Vector TypePLASMID
    FragmentPH DOMAIN
    GeneDOK2
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    Other DetailsCELL-FREE PROTEIN SYNTHESIS
    SynonymDOWNSTREAM OF TYROSINE KINASE 2, P56DOK-2

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2D9W)

(-) Sites  (0, 0)

(no "Site" information available for 2D9W)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2D9W)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2D9W)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2D9W)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PH_DOMAINPS50003 PH domain profile.DOK2_HUMAN4-114  1A:11-121

(-) Exons   (3, 3)

NMR Structure (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1aENST000002764201aENSE00002111538chr8:21771371-21771050322DOK2_HUMAN1-21211A:8-2821
1.2cENST000002764202cENSE00001160466chr8:21770021-21769740282DOK2_HUMAN22-115941A:29-12193
1.3ENST000002764203ENSE00001108735chr8:21769499-2176941288DOK2_HUMAN116-145301A:122-127 (gaps)21
1.4bENST000002764204bENSE00000980128chr8:21768368-21768184185DOK2_HUMAN145-206620--
1.5eENST000002764205eENSE00001283358chr8:21767442-217663841059DOK2_HUMAN207-4122060--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:127
 aligned with DOK2_HUMAN | O60496 from UniProtKB/Swiss-Prot  Length:412

    Alignment length:149
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123       133
           DOK2_HUMAN     - -------MGDGAVKQGFLYLQQQQTFGKKWRRFGASLYGGSDCALARLELQEGPEKPRRCEAARKVIRLSDCLRVAEAGGEASSPRDTSAFFLETKERLYLLAAPAAERGDWVQAICLLAFPGQRKELSGPEGKQSRPCMEENELYSSA 142
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeeeee...........eeeeeee........eeeee............eeee....eeeeee...........eeeeeee...eeeeee.hhhhhhhhhhhhhhh.-------...---------------... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------PH_DOMAIN  PDB: A:11-121 UniProt: 4-114                                                                        ---------------------------- PROSITE
               Transcript 1 -------Exon 1.1a  PDB: A:8-2Exon 1.2c  PDB: A:29-121 UniProt: 22-115 [INCOMPLETE]                                         Exon 1.3 UniProt: 116-145   Transcript 1
                 2d9w A   1 GSSGSSGMGDGAVKQGFLYLQQQQTFGKKWRRFGASLYGGSDCALARLELQEGPEKPRRCEAARKVIRLSDCLRVAEAGGEASSPRDTSAFFLETKERLYLLAAPAAERGDWVQAICLLAF-------SGP---------------SSG 127
                                    10        20        30        40        50        60        70        80        90       100       110       120|      123|        -      |
                                                                                                                                                  121     122 |             125
                                                                                                                                                            124

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2D9W)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2D9W)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2D9W)

(-) Gene Ontology  (11, 11)

NMR Structure(hide GO term definitions)
Chain A   (DOK2_HUMAN | O60496)
molecular function
    GO:0005158    insulin receptor binding    Interacting selectively and non-covalently with the insulin receptor.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0005057    signal transducer activity, downstream of receptor    Conveys a signal from an upstream receptor or intracellular signal transducer, converting the signal into a form where it can ultimately trigger a change in the state or activity of a cell.
    GO:0005068    transmembrane receptor protein tyrosine kinase adaptor activity    The binding activity of a molecule that brings together a transmembrane receptor protein tyrosine kinase and one or more other molecules, permitting them to function in a coordinated way.
biological process
    GO:0007265    Ras protein signal transduction    A series of molecular signals within the cell that are mediated by a member of the Ras superfamily of proteins switching to a GTP-bound active state.
    GO:0007166    cell surface receptor signaling pathway    A series of molecular signals initiated by activation of a receptor on the surface of a cell. The pathway begins with binding of an extracellular ligand to a cell surface receptor, or for receptors that signal in the absence of a ligand, by ligand-withdrawal or the activity of a constitutively active receptor. The pathway ends with regulation of a downstream cellular process, e.g. transcription.
    GO:0050900    leukocyte migration    The movement of a leukocyte within or between different tissues and organs of the body.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0007169    transmembrane receptor protein tyrosine kinase signaling pathway    A series of molecular signals initiated by the binding of an extracellular ligand to a receptor on the surface of the target cell where the receptor possesses tyrosine kinase activity, and ending with regulation of a downstream cellular process, e.g. transcription.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2d9w)

  Sites
(no "Sites" information available for 2d9w)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2d9w)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2d9w
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DOK2_HUMAN | O60496
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DOK2_HUMAN | O60496
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DOK2_HUMAN | O604962dlw

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2D9W)
