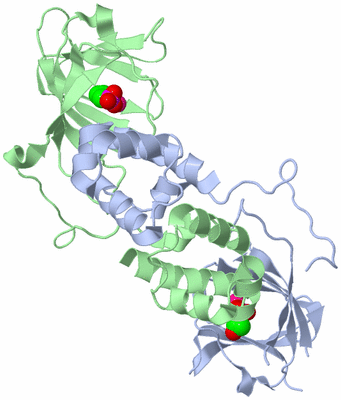

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

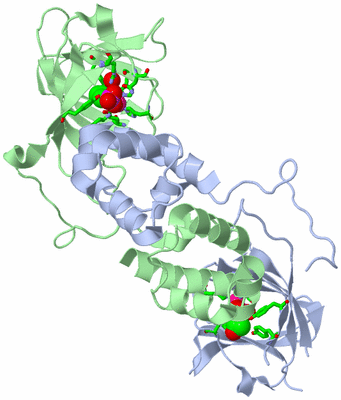

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

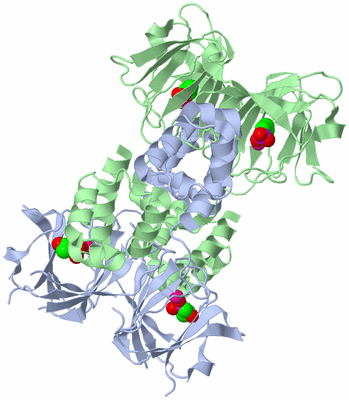

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

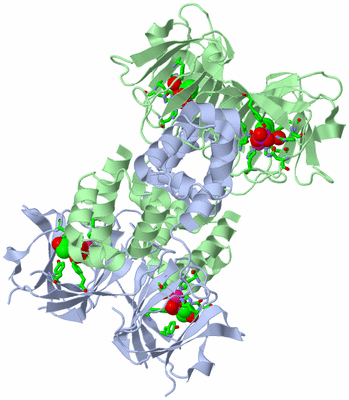

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF COII HPPE IN COMPLEX WITH SUBSTRATE

Authors :  L. J. Higgins, F. Yan, P. Liu, H. W. Liu, C. L. Drennan
Date :  13 Jun 05  (Deposition) - 26 Jul 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Mononuclear Iron Enzyme, Cupin, Holo-Hppe, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  L. J. Higgins, F. Yan, P. Liu, H. W. Liu, C. L. Drennan
Structural Insight Into Antibiotic Fosfomycin Biosynthesis By A Mononuclear Iron Enzyme
Nature V. 437 838 2005
PubMed-ID: 16015285  |  Reference-DOI: 10.1038/NATURE03924

(-) Compounds

Molecule 1 - HYDROXYPROPYLPHOSPHONIC ACID EPOXIDASE
    ChainsA, B
    EC Number1.14.-.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System PlasmidPET24B
    Expression System StrainBL21 (DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    GeneFOM4
    Organism ScientificSTREPTOMYCES WEDMORENSIS
    Organism Taxid43759

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (2x)AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric Unit (2, 4)
No.NameCountTypeFull Name
1CO2Ligand/IonCOBALT (II) ION
2S0H2Ligand/Ion(S)-2-HYDROXYPROPYLPHOSPHONIC ACID
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1CO-1Ligand/IonCOBALT (II) ION
2S0H4Ligand/Ion(S)-2-HYDROXYPROPYLPHOSPHONIC ACID

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS B:138 , GLU B:142 , HIS B:180 , S0H B:1001BINDING SITE FOR RESIDUE CO B 199
2AC2SOFTWAREHIS A:138 , GLU A:142 , HIS A:180 , S0H A:1002 , HOH A:1035BINDING SITE FOR RESIDUE CO A 199
3AC3SOFTWARELYS A:23 , ARG B:97 , TYR B:105 , ASN B:135 , HIS B:138 , GLU B:142 , HIS B:180 , PHE B:182 , CO B:199 , HOH B:1011BINDING SITE FOR RESIDUE S0H B 1001
4AC4SOFTWARETYR A:103 , TYR A:105 , ASN A:135 , HIS A:138 , HIS A:180 , CO A:199 , HOH A:1035 , LYS B:23BINDING SITE FOR RESIDUE S0H A 1002

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZZB)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ZZB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZZB)

(-) PROSITE Motifs  (1, 2)

Asymmetric Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_CROC1PS50943 Cro/C1-type HTH domain profile.HPPE_STRWE15-70

  2A:15-70
B:15-70
Biological Unit 1 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_CROC1PS50943 Cro/C1-type HTH domain profile.HPPE_STRWE15-70

  4A:15-70
B:15-70

(-) Exons   (0, 0)

(no "Exon" information available for 1ZZB)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:181
 aligned with HPPE_STRWE | Q56185 from UniProtKB/Swiss-Prot  Length:198

    Alignment length:193
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195
           HPPE_STRWE     6 TASTGFAELLKDRREQVKMDHAALASLLGETPETVAAWENGEGGELTLTQLGRIAHVLGTSIGALTPPAGNDLDDGVIIQMPDERPILKGVRDNVDYYVYNCLVRTKRAPSLVPLVVDVLTDNPDDAKFNSGHAGNEFLFVLEGEIHMKWGDKENPKEALLPTGASMFVEEHVPHAFTAAKGTGSAKLIAVNF 198
               SCOP domains d1zzba1 A:6-76                                                         d1zzba2 A:77-1          98 Hydroxypropylphosphonic acid epoxidase Fom4, C-terminal domain                                  SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh..hhhhhhhhh..hhhhhhhhh.......hhhhhhhhhhhh...hhhhh...................----------..eeeee..........eeeeeee...hhhhh........eeeeeeee..eeeeeee..eeeeeee....eeee.....eeeee...--.eeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------HTH_CROC1  PDB: A:15-70 UniProt: 15-70                  -------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zzb A   6 TASTGFAELLKDRREQVKMDHAALASLLGETPETVAAWENGEGGELTLTQLGRIAHVLGTSIGALTPPAGNDLDDGVIIQMPDER----------DYYVYNCLVRTKRAPSLVPLVVDVLTDNPDDAKFNSGHAGNEFLFVLEGEIHMKWGDKENPKEALLPTGASMFVEEHVPHAFTAAKG--SAKLIAVNF 198
                                    15        25        35        45        55        65        75        85    |    -     | 105       115       125       135       145       155       165       175       185 |  |  195
                                                                                                               90        101                                                                                   187  |
                                                                                                                                                                                                                  190

Chain B from PDB  Type:PROTEIN  Length:193
 aligned with HPPE_STRWE | Q56185 from UniProtKB/Swiss-Prot  Length:198

    Alignment length:193
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195
           HPPE_STRWE     6 TASTGFAELLKDRREQVKMDHAALASLLGETPETVAAWENGEGGELTLTQLGRIAHVLGTSIGALTPPAGNDLDDGVIIQMPDERPILKGVRDNVDYYVYNCLVRTKRAPSLVPLVVDVLTDNPDDAKFNSGHAGNEFLFVLEGEIHMKWGDKENPKEALLPTGASMFVEEHVPHAFTAAKGTGSAKLIAVNF 198
               SCOP domains d1zzbb1 B:6-76                                                         d1zzbb2 B:77-198 Hydroxypropylphosphonic acid epoxidase Fom4, C-terminal domain                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh..hhhhhhhhhh.hhhhhhhhh.......hhhhhhhhhhhh...hhhhh..............hhhhh.eeeee....eeeeeee..........eeeeeee...hhhhh.........eeeeeee..eeeee......eeeee....eeee.....eeeee......eeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------HTH_CROC1  PDB: B:15-70 UniProt: 15-70                  -------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zzb B   6 TASTGFAELLKDRREQVKMDHAALASLLGETPETVAAWENGEGGELTLTQLGRIAHVLGTSIGALTPPAGNDLDDGVIIQMPDERPILKGVRDNVDYYVYNCLVRTKRAPSLVPLVVDVLTDNPDDAKFNSGHAGNEFLFVLEGEIHMKWGDKENPKEALLPTGASMFVEEHVPHAFTAAKGTGSAKLIAVNF 198
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1ZZB)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ZZB)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (HPPE_STRWE | Q56185)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0051213    dioxygenase activity    Catalysis of an oxidation-reduction (redox) reaction in which both atoms of oxygen from one molecule of O2 are incorporated into the (reduced) product(s) of the reaction. The two atoms of oxygen may be distributed between two different products.
    GO:0008198    ferrous iron binding    Interacting selectively and non-covalently with ferrous iron, Fe(II).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016717    oxidoreductase activity, acting on paired donors, with oxidation of a pair of donors resulting in the reduction of molecular oxygen to two molecules of water    Catalysis of an oxidation-reduction (redox) reaction in which hydrogen or electrons are transferred from each of two donors, and molecular oxygen is reduced to two molecules of water.
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:1901766    phosphinothricin biosynthetic process    The chemical reactions and pathways resulting in the formation of phosphinothricin.
    GO:0051289    protein homotetramerization    The formation of a protein homotetramer, a macromolecular structure consisting of four noncovalently associated identical subunits.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    S0H  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1zzb)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1zzb
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HPPE_STRWE | Q56185
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.14.-.-
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  HPPE_STRWE | Q56185
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HPPE_STRWE | Q561851zz6 1zz7 1zz8 1zz9 1zzc 2bnm 2bnn 2bno 3scf 3scg 3sch 4j1w 4j1x

(-) Related Entries Specified in the PDB File

1zz6 CRYSTAL STRUCTURE OF APO-HPPE
1zz7 CRYSTAL STRUCTURE OF FEII HPPE IN COMPLEX WITH SUBSTRATE FORM 1
1zz8 CRYSTAL STRUCTURE OF FEII HPPE IN COMPLEX WITH SUBSTRATE FORM 2
1zz9 CRYSTAL STRUCTURE OF FEII HPPE HOLOENZYME
1zzc CRYSTAL STRUCTURE OF COII HPPE IN COMPLEX WITH TRIS BUFFER
