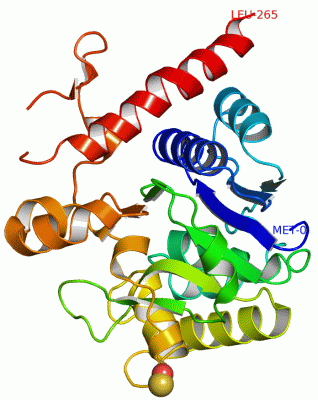

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

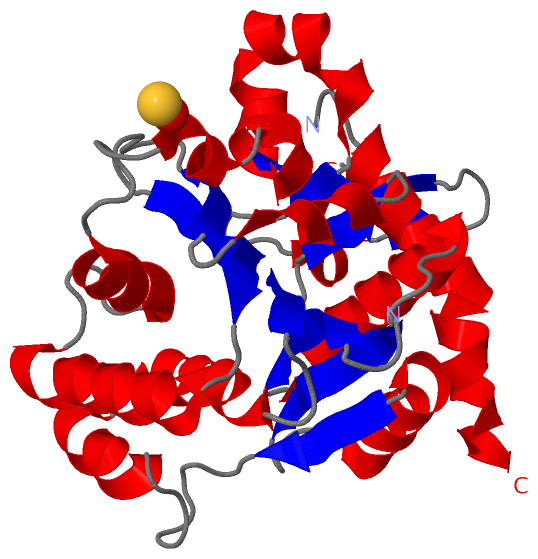

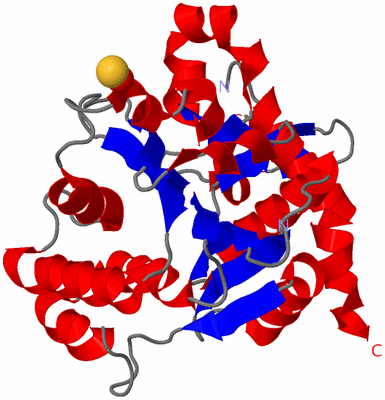

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

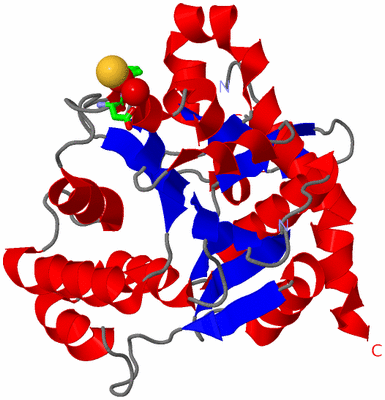

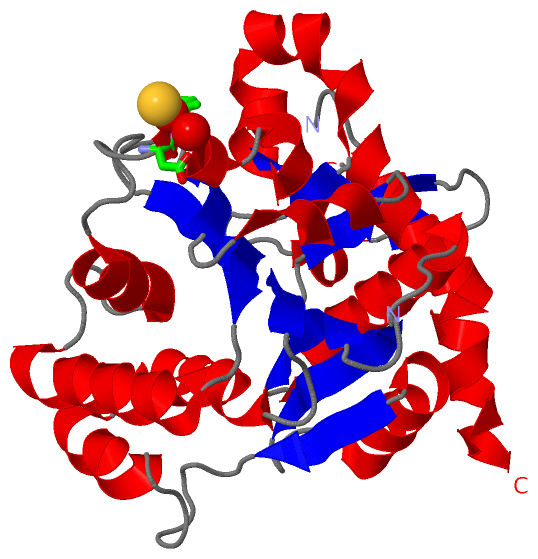

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

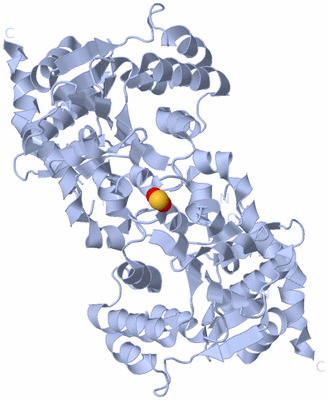

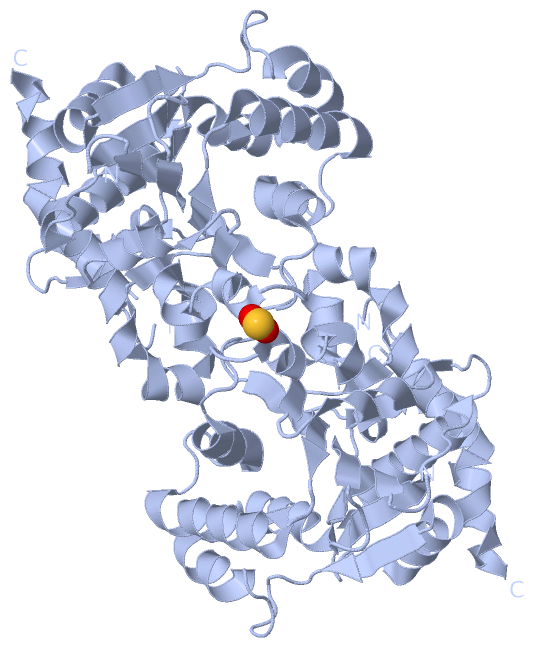

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

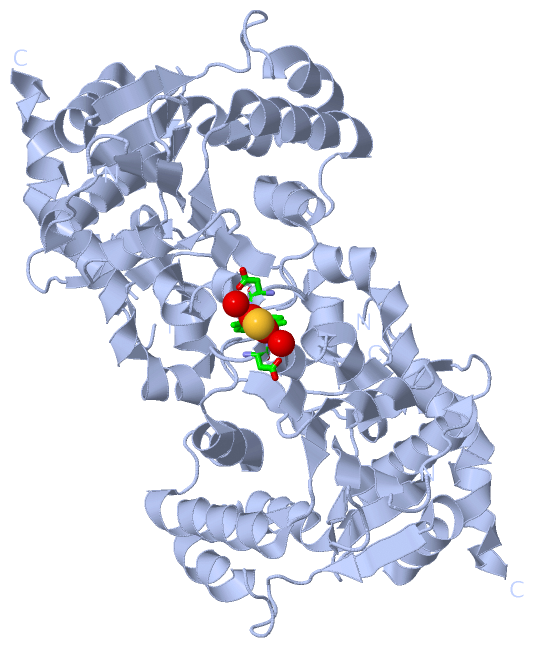

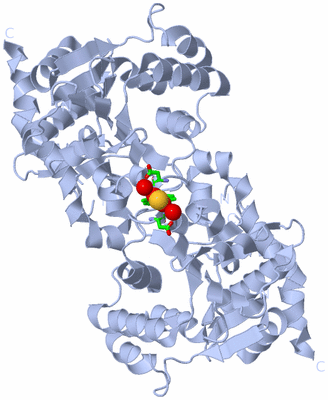

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  APO FORM OF A MUTANT OF GLYCOGENIN IN WHICH ASP159 IS REPLACED BY ASN

Authors :  T. D. Hurley, S. L. Stout, E. Miner, J. Zhou, P. J. Roach
Date :  13 Apr 05  (Deposition) - 26 Apr 05  (Release) - 16 Nov 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.98
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Glycosyltransferase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. D. Hurley, S. Stout, E. Miner, J. Zhou, P. J. Roach
Requirements For Catalysis In Mammalian Glycogenin.
J. Biol. Chem. V. 280 23892 2005
PubMed-ID: 15849187  |  Reference-DOI: 10.1074/JBC.M502344200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLYCOGENIN-1
    Chains: A
    EC Number: 2.4.1.186
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET15B
    Expression System Strain: BL 21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: GYG, GYG1
    Mutation: YES
    Organism Common: RABBIT
    Organism Scientific: ORYCTOLAGUS CUNICULUS
    Organism Taxid: 9986

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:177 , ILE A:178 , HOH A:432BINDING SITE FOR RESIDUE SO4 A 401

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZCV)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Glu A:118 -Leu A:119

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZCV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZCV)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZCV)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:260
 aligned with GLYG_RABIT | P13280 from UniProtKB/Swiss-Prot  Length:333

    Alignment length:266
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260
           GLYG_RABIT     1 MTDQAFVTLTTNDAYAKGALVLGSSLKQHRTSRRLAVLTTPQVSDTMRKALEIVFDEVITVDILDSGDSAHLTLMKRPELGVTLTKLHCWSLTQYSKCVFMDADTLVLANIDDLFEREELSAAPDPGWPDCFNSGVFVYQPSVETYNQLLHVASEQGSFDGGDQGLLNTFFNSWATTDIRKHLPFIYNLSSISIYSYLPAFKAFGANAKVVHFLGQTKPWNYTYDTKTKSVRSEGHDPTMTHPQFLNVWWDIFTTSVVPLLQQFGL 266
               SCOP domains -d1zcva1 A:1-265 Glycogenin                                                                                                                                                                                                                                                SCOP domains
               CATH domains 1zcvA00 A:0-265 Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A                                                                                                                                                                                               CATH domains
               Pfam domains -----Glyco_transf_8-1zcvA01 A:5-223                                                                                                                                                                                             ------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeee.hhhhhhhhhhhhhhhhhh....eeeeee....hhhhhhhhhhhh.eeee.........hhhhhhhh..hhhhhhhhhhhhh....eeeee...eee...hhhhhhh...eeee.......eeeeeeee..hhhhhhhhhhhhhhh.....hhhhhhhhhh......hhhhh.hhhhheehhhhhhhhhhhhhhhhhh.eee.....hhhhh.ee....ee..------...hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1zcv A   0 MTDQAFVTLTTNDAYAKGALVLGSSLKQHRTSRRLAVLTTPQVSDTMRKALEIVFDEVITVDILDSGDSAHLTLMKRPELGVTLTKLHCWSLTQYSKCVFMDADTLVLANIDDLFEREELSAAPDPGWPDCFNSGVFVYQPSVETYNQLLHVASEQGSFNGGDQGLLNTFFNSWATTDIRKHLPFIYNLSSISIYSYLPAFKAFGANAKVVHFLGQTKPWNYTYDTKTKSVRS------MTHPQFLNVWWDIFTTSVVPLLQQFGL 265
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229  |    239       249       259
                                                                                                                                                                                                                                                                  232    239
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: GT-A (172)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (GLYG_RABIT | P13280)
molecular function
    GO:0008466    glycogenin glucosyltransferase activity    Catalysis of the reaction: UDP-glucose + glycogenin = UDP + glucosylglycogenin.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0005978    glycogen biosynthetic process    The chemical reactions and pathways resulting in the formation of glycogen, a polydisperse, highly branched glucan composed of chains of D-glucose residues.
