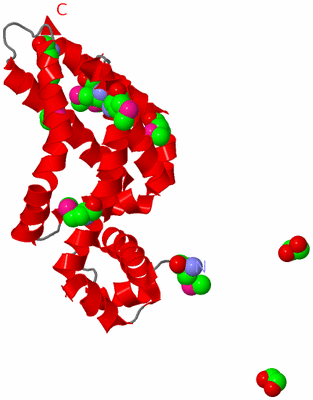

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

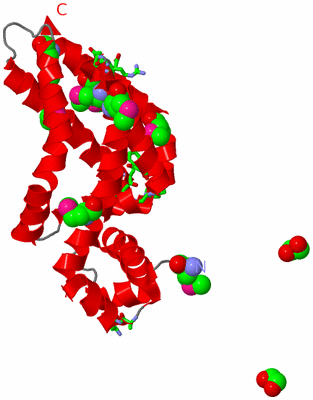

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TRANSCRIPTIONAL REGULATOR PROTEIN FROM THERMOTOGA MARITIMA.

Authors :  K. D. Koclega, M. Chruszcz, M. D. Zimmerman, M. Cymborowski, M. Kudritska, W. Minor, Midwest Center For Structural Genomics (Mcsg)
Date :  24 Mar 05  (Deposition) - 10 May 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Transcriptional Regulator, Tetr Family, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. D. Koclega, M. Chruszcz, M. D. Zimmerman, M. Cymborowski, E. Evdokimova, W. Minor
Crystal Structure Of A Transcriptional Regulator Tm1030 From Thermotoga Maritima Solved By An Unusual Mad Experiment.
J. Struct. Biol. V. 159 424 2007
PubMed-ID: 17588774  |  Reference-DOI: 10.1016/J.JSB.2007.04.012
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TRANSCRIPTIONAL REGULATOR (TETR FAMILY)
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET-15B
    Expression System StrainB834(DE3)PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    Organism ScientificTHERMOTOGA MARITIMA
    Organism Taxid2336

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 10)

Asymmetric/Biological Unit (2, 10)
No.NameCountTypeFull Name
1EDO2Ligand/Ion1,2-ETHANEDIOL
2MSE8Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:36 , LYS A:37 , ARG A:76 , ASP A:77 , ASP A:80BINDING SITE FOR RESIDUE EDO A 2201
2AC2SOFTWARESER A:93 , PRO A:97 , ALA A:100 , TYR A:169 , GLY A:171 , LYS A:172 , PRO A:173 , HOH A:2204BINDING SITE FOR RESIDUE EDO A 2202

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Z77)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Z77)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Z77)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1Z77)

(-) Exons   (0, 0)

(no "Exon" information available for 1Z77)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:200
 aligned with Q9X0C0_THEMA | Q9X0C0 from UniProtKB/TrEMBL  Length:200

    Alignment length:200
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
         Q9X0C0_THEMA     1 MLSKRDAILKAAVEVFGKKGYDRATTDEIAEKAGVAKGLIFHYFKNKEELYYQAYMSVTEKLQKEFENFLMKNRNRDIFDFMERWIEKKLEYSASHPEEADFLITLVSVDEGLRKRILLDLEKSQRVFFDFVREKLKDLDLAEDVTEEIALKFLMWFFSGFEEVYLRTYQGKPELLKRDMNTLVEEVKVMLRILKKGMTK 200
               SCOP domains d1z77a1 A:1-75 Transcriptional regulator TM1030                            d1z77a2 A:76-200 Transcriptional regulator TM1030                                                                             SCOP domains
               CATH domains -1z77A01 A:2-46 Homeodomain-like              1z77A02 A:47-200 Tetracycline Repressor, domain 2                                                                                                          CATH domains
               Pfam domains -------TetR_N-1z77A01 A:8-53                         --------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1z77 A   1 mLSKRDAILKAAVEVFGKKGYDRATTDEIAEKAGVAKGLIFHYFKNKEELYYQAYmSVTEKLQKEFENFLmKNRNRDIFDFmERWIEKKLEYSASHPEEADFLITLVSVDEGLRKRILLDLEKSQRVFFDFVREKLKDLDLAEDVTEEIALKFLmWFFSGFEEVYLRTYQGKPELLKRDmNTLVEEVKVmLRILKKGmTK 200
                            |       10        20        30        40        50     |  60        70|       80 |      90       100       110       120       130       140       150    |  160       170       180       190       200
                            |                                                     56-MSE         71-MSE     82-MSE                                                                  155-MSE                  180-MSE   190-MSE 198-MSE
                            1-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: HTH (544)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q9X0C0_THEMA | Q9X0C0)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1z77)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1z77
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9X0C0_THEMA | Q9X0C0
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  Q9X0C0_THEMA | Q9X0C0
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q9X0C0_THEMA | Q9X0C01zkg 2id6 2iek 3ih2 3ih3 3ih4 4i6z 4i76
