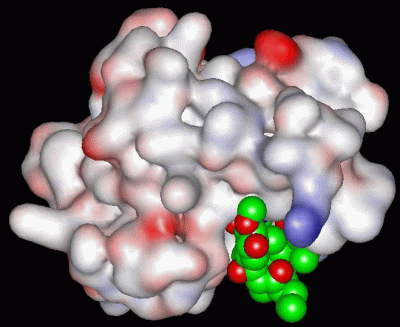

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

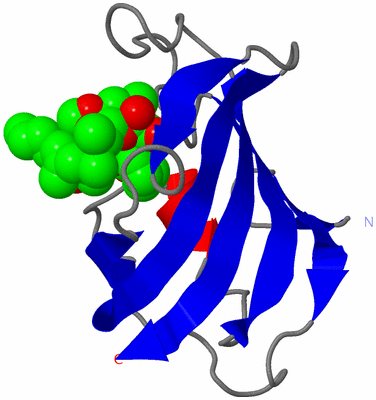

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

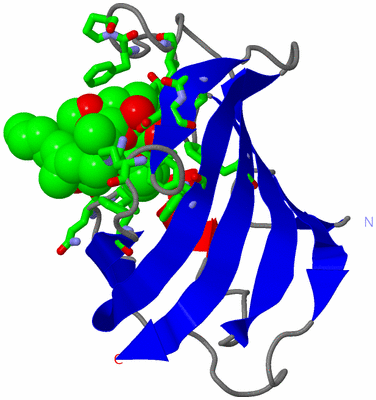

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  IMPROVED CALCINEURIN INHIBITION BY YEAST FKBP12-DRUG COMPLEXES. CRYSTALLOGRAPHIC AND FUNCTIONAL ANALYSIS

Authors :  J. Rotonda, J. W. Becker
Date :  06 Jan 93  (Deposition) - 31 Oct 93  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Rotonda, J. J. Burbaum, H. K. Chan, A. I. Marcy, J. W. Becker
Improved Calcineurin Inhibition By Yeast Fkbp12-Drug Complexes. Crystallographic And Functional Analysis.
J. Biol. Chem. V. 268 7607 1993
PubMed-ID: 7681823
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FK506 BINDING PROTEIN
    Chains: A
    Engineered: YES
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1FK51Ligand/Ion8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1506UNKNOWNTYR A:26 , PHE A:36 , ASP A:37 , PHE A:46 , GLN A:54 , VAL A:55 , ILE A:56 , TRP A:59 , PHE A:87 , ILE A:91 , TYR A:82 , PHE A:99NULL
2AC1SOFTWARETYR A:26 , PHE A:36 , ASP A:37 , ARG A:42 , PHE A:46 , GLN A:54 , VAL A:55 , ILE A:56 , TRP A:59 , ALA A:81 , TYR A:82 , PRO A:88 , ILE A:91BINDING SITE FOR RESIDUE FK5 A 108

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YAT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YAT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YAT)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FKBP_PPIASEPS50059 FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.FKBP_YEAST26-114  1A:19-107

(-) Exons   (1, 1)

Asymmetric/Biological Unit (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YNL135C1YNL135C.1XIV:372228-371884345FKBP_YEAST1-1141141A:-5-107113

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:113
 aligned with FKBP_YEAST | P20081 from UniProtKB/Swiss-Prot  Length:114

    Alignment length:113
                                    11        21        31        41        51        61        71        81        91       101       111
           FKBP_YEAST     2 SEVIEGNVKIDRISPGDGATFPKTGDLVTIHYTGTLENGQKFDSSVDRGSPFQCNIGVGQVIKGWDVGIPKLSVGEKARLTIPGPYAYGPRGFPGLIPPNSTLVFDVELLKVN 114
               SCOP domains d1yata_ A: Calcineurin (FKBP12.6)                                                                                 SCOP domains
               CATH domains 1yatA00 A:-5-107  [code=3.10.50.40, no name defined]                                                              CATH domains
               Pfam domains -----------------FKBP_C-1yatA01 A:12-104                                                                      --- Pfam domains
         Sec.struct. author .ee.....eeeeee..........eeeeeeeeeeee....eeee.......eeeee......hhhhhh......eeeeeeeee..................eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------FKBP_PPIASE  PDB: A:19-107 UniProt: 26-114                                                PROSITE
               Transcript 1 Exon 1.1  PDB: A:-5-107 UniProt: 1-114 [INCOMPLETE]                                                               Transcript 1
                 1yat A  -5 SEVIEGNVKIDRISPGDGATFPKTGDLVTIHYTGTLENGQKFDSSVDRGSPFQCNIGVGQVIKGWDVGIPKLSVGEKARLTIPGPYAYGPRGFPGLIPPNSTLVFDVELLKVN 107
                                     4        14        24        34        44        54        64        74        84        94       104
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: FKBP_C] (58)

(-) Gene Ontology  (12, 12)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (FKBP_YEAST | P20081)
molecular function
    GO:0005528    FK506 binding    Interacting selectively and non-covalently with the 23-membered macrolide lactone FK506.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0005527    macrolide binding    Interacting selectively and non-covalently with a macrolide, any of a large group of structurally related antibiotics produced by Streptomyces species.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0061077    chaperone-mediated protein folding    The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
    GO:0006325    chromatin organization    Any process that results in the specification, formation or maintenance of the physical structure of eukaryotic chromatin.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
    GO:1901710    regulation of homoserine biosynthetic process    Any process that modulates the frequency, rate or extent of homoserine biosynthetic process.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005789    endoplasmic reticulum membrane    The lipid bilayer surrounding the endoplasmic reticulum.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    FK5  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    506  [ RasMol ]  +environment [ RasMol ]
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yat)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

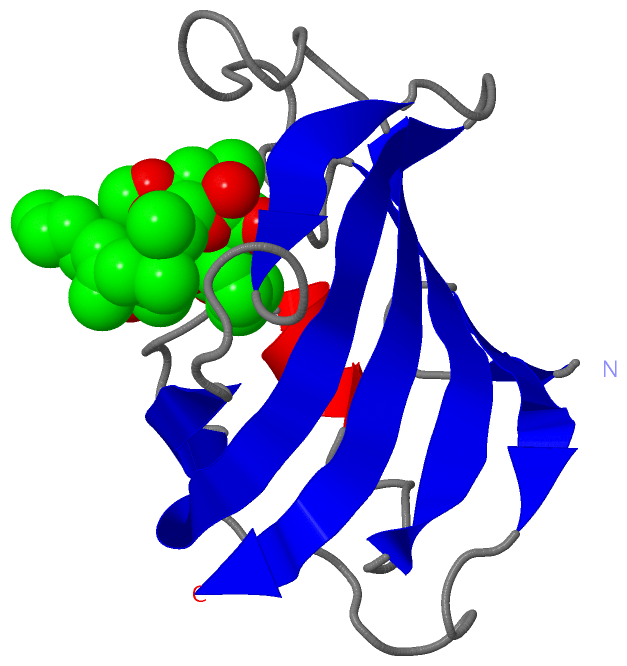

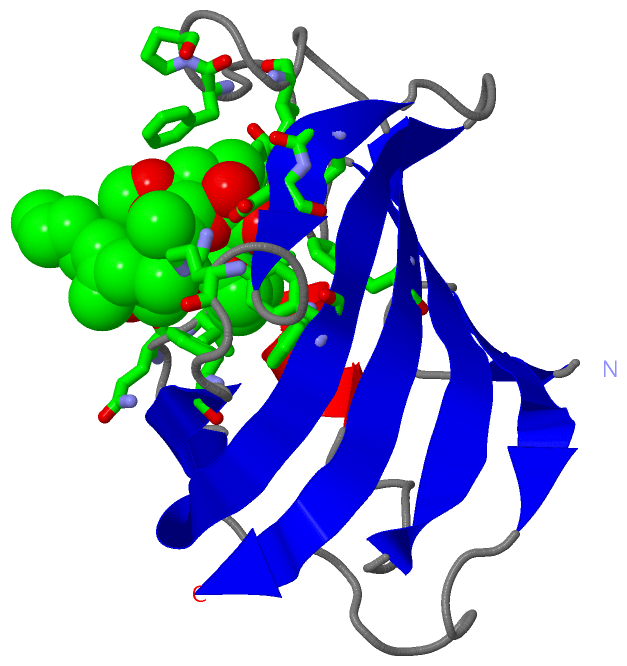

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
