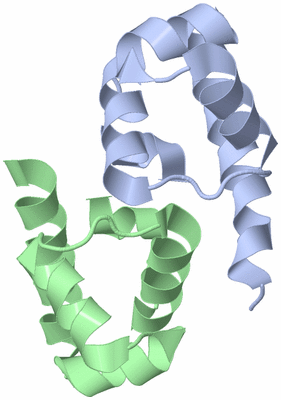

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  HIGH-RESOLUTION CRYSTAL STRUCTURE OF THE RESTRICTION-MODIFICATION CONTROLLER PROTEIN C.AHDI FROM AEROMONAS HYDROPHILA

Authors :  J. E. Mcgeehan, S. D. Streeter, I. Papapanagiotou, G. C. Fox, G. G. Kneale
Date :  10 Dec 04  (Deposition) - 22 Feb 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.69
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Helix-Turn-Helix, Dna-Binding Protein, Transcriptional Regulator, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. E. Mcgeehan, S. D. Streeter, I. Papapanagiotou, G. C. Fox, G. G. Kneale
High-Resolution Crystal Structure Of The Restriction-Modification Controller Protein C. Ahdi From Aeromonas Hydrophila.
J. Mol. Biol. V. 346 689 2005
PubMed-ID: 15713456  |  Reference-DOI: 10.1016/J.JMB.2004.12.025
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - C.AHDI
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Strain: BL21(DE3) GOLD
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: AEROMONAS HYDROPHILA
    Organism Taxid: 644

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1Y7Y)

(-) Sites  (0, 0)

(no "Site" information available for 1Y7Y)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Y7Y)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Y7Y)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Y7Y)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1Y7Y)

(-) Exons   (0, 0)

(no "Exon" information available for 1Y7Y)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:69
 aligned with Q7X0F0_AERHY | Q7X0F0 from UniProtKB/TrEMBL  Length:74

    Alignment length:69
                                    14        24        34        44        54        64
          Q7X0F0_AERHY    5 HDHYADLVKFGQRLRELRTAKGLSQETLAFLSGLDRSYVGGVERGQRNVSLVNILKLATALDIEPRELF 73
               SCOP domains d1y7ya1 A:5-73 Restriction-modification controller protein C.AhdI     SCOP domains
               CATH domains --------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------- Transcript
                  1y7y A  5 HDHYADLVKFGQRLRELRTAKGLSQETLAFLSGLDRSYVGGVERGQRNVSLVNILKLATALDIEPRELF 73
                                    14        24        34        44        54        64


Chain B from PDB  Type:PROTEIN  Length:66
 aligned with Q7X0F0_AERHY | Q7X0F0 from UniProtKB/TrEMBL  Length:74

    Alignment length:66
                                    17        27        37        47        57        67
          Q7X0F0_AERHY    8 YADLVKFGQRLRELRTAKGLSQETLAFLSGLDRSYVGGVERGQRNVSLVNILKLATALDIEPRELF 73
               SCOP domains d1y7yb_ B: automated matches                                       SCOP domains
               CATH domains ------------------------------------------------------------------ CATH domains
           Pfam domains (1) ----------HTH_3-1y7yB01 B:18-72                                  - Pfam domains (1)
           Pfam domains (2) ----------HTH_3-1y7yB02 B:18-72                                  - Pfam domains (2)
         Sec.struct. author hhhhhhhhhhhhhhhhhh..hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------ Transcript
                  1y7y B  8 YADLVKFGQRLRELRTAKGLSQETLAFLSGLDRSYVGGVERGQRNVSLVNILKLATALDIEPRELF 73
                                    17        27        37        47        57        67
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1Y7Y)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: HTH (544)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q7X0F0_AERHY | Q7X0F0)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1y7y)

  Sites
(no "Sites" information available for 1y7y)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1y7y)

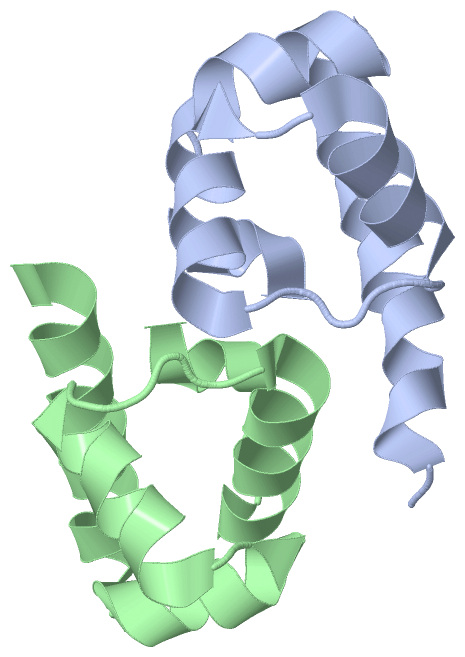

(-) Still Images
