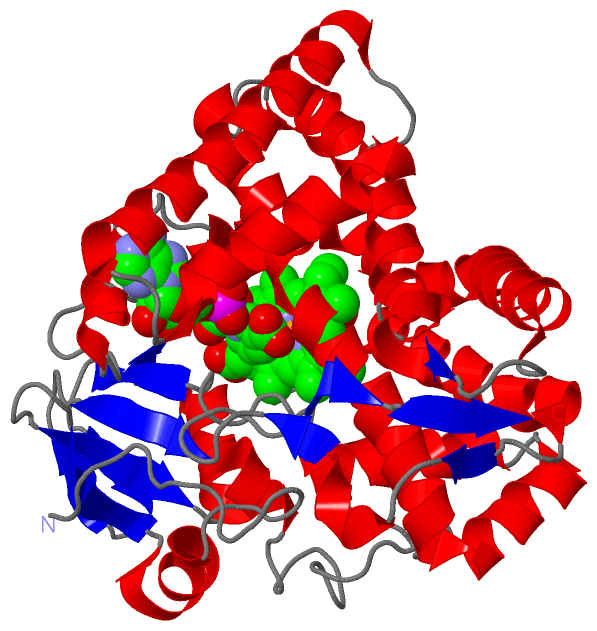

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

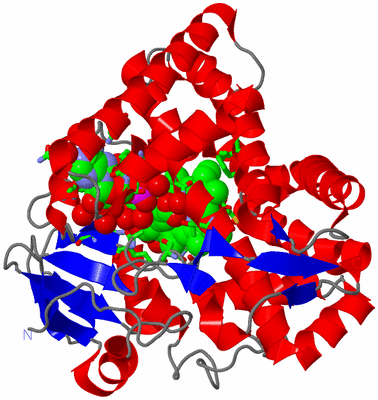

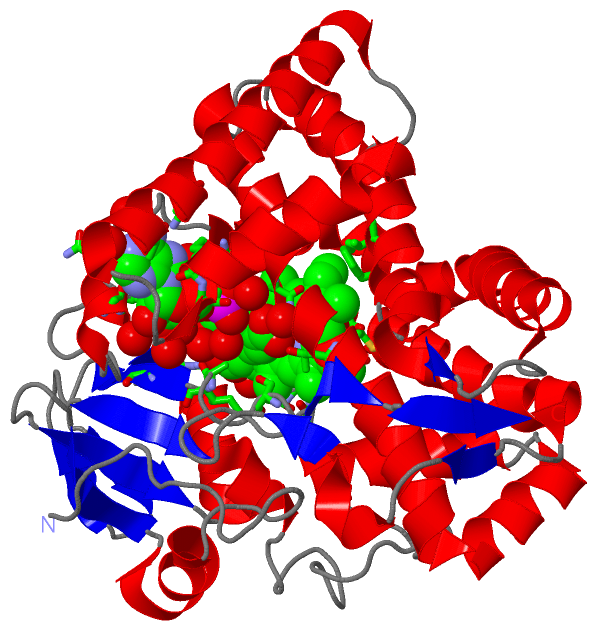

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF P450NOR COMPLEXED WITH 3-PYRIDINEALDEHYDE ADENINE DINUCLEOTIDE

Authors :  R. Oshima, S. Fushinobu, N. Takaya, F. Su, T. Wakagi, H. Shoun
Date :  12 Oct 04  (Deposition) - 26 Oct 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Nitric Oxide Reductase, Cytochrome P450Nor, Nadh Complex, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Oshima, S. Fushinobu, F. Su, L. Zhang, N. Takaya, H. Shoun
Structural Evidence For Direct Hydride Transfer From Nadh To Cytochrome P450Nor
J. Mol. Biol. V. 342 207 2004
PubMed-ID: 15313618  |  Reference-DOI: 10.1016/J.JMB.2004.07.009
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYTOCHROME P450 55A1
    Chains: A
    EC Number: 1.7.99.7
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PRSET-C
    Expression System Strain: JM109(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: FUSARIUM OXYSPORUM
    Organism Taxid: 5507
    Synonym: P450NOR

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1DND1Ligand/IonNICOTINIC ACID ADENINE DINUCLEOTIDE
2HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:62 , PHE A:86 , VAL A:87 , HIS A:94 , ARG A:98 , PHE A:105 , ILE A:153 , ALA A:239 , GLY A:240 , THR A:243 , MET A:244 , ALA A:289 , ILE A:290 , ARG A:292 , GLY A:344 , PHE A:345 , GLY A:346 , HIS A:350 , CYS A:352 , ILE A:353 , ALA A:354 , DND A:502 , HOH A:580 , HOH A:661BINDING SITE FOR RESIDUE HEM A 501
2AC2SOFTWAREARG A:64 , GLY A:75 , GLY A:76 , GLN A:78 , ALA A:79 , VAL A:87 , ARG A:174 , THR A:175 , ALA A:184 , ASN A:188 , ALA A:239 , GLY A:240 , THR A:243 , SER A:286 , ALA A:289 , HEM A:501 , HOH A:525 , HOH A:541 , HOH A:556 , HOH A:565 , HOH A:568 , HOH A:580 , HOH A:582 , HOH A:608 , HOH A:621 , HOH A:646 , HOH A:715 , HOH A:737 , HOH A:789BINDING SITE FOR RESIDUE DND A 502

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XQD)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Phe A:8 -Pro A:9
2Pro A:91 -Pro A:92

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XQD)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CYTOCHROME_P450PS00086 Cytochrome P450 cysteine heme-iron ligand signature.NOR_FUSOX345-354  1A:345-354

(-) Exons   (0, 0)

(no "Exon" information available for 1XQD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:399
 aligned with NOR_FUSOX | P23295 from UniProtKB/Swiss-Prot  Length:403

    Alignment length:399
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394
            NOR_FUSOX     5 APSFPFSRASGPEPPAEFAKLRATNPVSQVKLFDGSLAWLVTKHKDVCFVATSEKLSKVRTRQGFPELSASGKQAAKAKPTFVDMDPPEHMHQRSMVEPTFTPEAVKNLQPYIQRTVDDLLEQMKQKGCANGPVDLVKEFALPVPSYIIYTLLGVPFNDLEYLTQQNAIRTNGSSTAREASAANQELLDYLAILVEQRLVEPKDDIISKLCTEQVKPGNIDKSDAVQIAFLLLVAGNATMVNMIALGVATLAQHPDQLAQLKANPSLAPQFVEELCRYHTASALAIKRTAKEDVMIGDKLVRANEGIIASNQSANRDEEVFENPDEFNMNRKWPPQDPLGFGFGDHRCIAEHLAKAELTTVFSTLYQKFPDLKVAVPLGKINYTPLNRDVGIVDLPVIF 403
               SCOP domains d1xqda_ A: Cytochrome P450-NOR, nitric reductase                                                                                                                                                                                                                                                                                                                                                                SCOP domains
               CATH domains 1xqdA00 A:5-403 Cytochrome p450                                                                                                                                                                                                                                                                                                                                                                                 CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------------------------------------------------------------------------------------p450-1xqdA01 A:165-379                                                                                                                                                                                                 ------------------------ Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------p450-1xqdA02 A:165-379                                                                                                                                                                                                 ------------------------ Pfam domains (2)
         Sec.struct. author ...............hhhhhhhhhh.eeeee.....eeeee.hhhhhhhhhhh..ee...........hhhhhhhh....hhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eehhhhh.hhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh.......eeee...eee..eee....eeeehhhhhh..................................hhhhhhhhhhhhhhhhhhhh...ee..hhhhhee........eee.eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------CYTOCHROME------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xqd A   5 APSFPFSRASGPEPPAEFAKLRATNPVSQVKLFDGSLAWLVTKHKDVCFVATSEKLSKVRTRQGFPELGAGGKQAAKAKPTFVDMDPPEHMHQRSMVEPTFTPEAVKNLQPYIQRTVDDLLEQMKQKGCANGPVDLVKEFALPVPSYIIYTLLGVPFNDLEYLTQQNAIRTNGSSTARQASAANQELLDYLAILVEQRLVEPKDDIISKLCTEQVKPGNIDKSDAVQIAFLLLVAGNATMVNMIALGVATLAQHPDQLAQLKANPSLAPQFVEELCRYHTASALAIKRTAKEDVMIGDKLVRANEGIIASNQSANRDEEVFENPDEFNMNRKWPPQDPLGFGFGDHRCIAEHLAKAELTTVFSTLYQKFPDLKVAVPLGKINYTPLNRDVGIVDLPVIF 403
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (NOR_FUSOX | P23295)
molecular function
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0005506    iron ion binding    Interacting selectively and non-covalently with iron (Fe) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004497    monooxygenase activity    Catalysis of the incorporation of one atom from molecular oxygen into a compound and the reduction of the other atom of oxygen to water.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016705    oxidoreductase activity, acting on paired donors, with incorporation or reduction of molecular oxygen    Catalysis of an oxidation-reduction (redox) reaction in which hydrogen or electrons are transferred from each of two donors, and molecular oxygen is reduced or incorporated into a donor.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    DND  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    HEM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Phe A:8 - Pro A:9   [ RasMol ]
    Pro A:91 - Pro A:92   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1xqd
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  NOR_FUSOX | P23295
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.7.99.7
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  NOR_FUSOX | P23295
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        NOR_FUSOX | P23295: 1cl6 1cmj 1cmn 1ehe 1ehf 1ehg 1f24 1f25 1f26 1ged 1gei 1gej 1jfb 1jfc 1rom 1ulw 2rom

(-) Related Entries Specified in the PDB File

1ulw CRYSTAL STRUCTURE OF P450NOR SER73GLY/SER75GLY MUTANT
