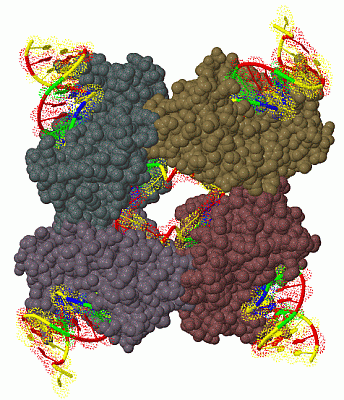

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  HIGH RESOLUTION STRUCTURE OF THE HOLLIDAY JUNCTION INTERMEDIATE IN CRE-LOXP SITE-SPECIFIC RECOMBINATION

Authors :  K. Ghosh, C. K. Lau, F. Guo, A. M. Segall, G. D. Van Duyne
Date :  05 Oct 04  (Deposition) - 14 Dec 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B,C,D  (2x)
Keywords :  Cre Recombinase, Holliday Junction, Recombination, Complex (Recombinase/Dna), Hydrolase, Ligase/Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Ghosh, C. K. Lau, F. Guo, A. M. Segall, G. D. Van Duyne
Peptide Trapping Of The Holliday Junction Intermediate In Cre-Loxp Site-Specific Recombination.
J. Biol. Chem. V. 280 8290 2005
PubMed-ID: 15591069  |  Reference-DOI: 10.1074/JBC.M411668200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LOXP
    Chains: C
    Engineered: YES
    Other Details: PART OF HOLLIDAY JUNCTION
    Synthetic: YES

Molecule 2 - LOXP
    Chains: D
    Engineered: YES
    Other Details: PART OF HOLLIDAY JUNCTION
    Synthetic: YES

Molecule 3 - RECOMBINASE CRE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Gene: CRE
    Mutation: YES
    Organism Scientific: ENTEROBACTERIA PHAGE P1
    Organism Taxid: 10678

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (2x): ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1XO0)

(-) Sites  (0, 0)

(no "Site" information available for 1XO0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XO0)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Phe A:64 -Pro A:65
2Phe B:64 -Pro B:65

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XO0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1XO0)

(-) Exons   (0, 0)

(no "Exon" information available for 1XO0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:322
 aligned with RECR_BPP1 | P06956 from UniProtKB/Swiss-Prot  Length:343

    Alignment length:322
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339
            RECR_BPP1    20 SDEVRKNLMDMFRDRQAFSEHTWKMLLSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGLPRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAFLGIAYNTLLRIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVERWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQRYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLED 341
               SCOP domains d1xo0a1 A:20-129 Cre recombinase                                                                              d1xo0a2 A:130-341 Cre recombinase                                                                                                                                                                                    SCOP domains
               CATH domains 1xo0A01 A:20-130  [code=1.10.150.130, no name defined]                                                         -1xo0A02 A:132-331 Intergrase catalytic core                                                                                                                                                             ---------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhh.eeeee..eeeeee...........eeeeehhhhhhhhhhhhhhhhhhhh.......ee.....ee.......hhhhhhhhhhhhhhhhhh..............hhhhhhhhhhhhhh..hhhhhhhhhh.....hhhhhh..hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xo0 A  20 SDEVRKNLMDMFRDRQAFSEHTWKMLLSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGLPRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAFLGIAYNTLLKIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVERWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQRYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLED 341
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339


Chain B from PDB  Type:PROTEIN  Length:322
 aligned with RECR_BPP1 | P06956 from UniProtKB/Swiss-Prot  Length:343

    Alignment length:322
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339
            RECR_BPP1    20 SDEVRKNLMDMFRDRQAFSEHTWKMLLSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGLPRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAFLGIAYNTLLRIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVERWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQRYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLED 341
               SCOP domains d1xo0b1 B:20-129 Cre recombinase                                                                              d1xo0b2 B:130-341 Cre recombinase                                                                                                                                                                                    SCOP domains
               CATH domains 1xo0B01 B:20-130  [code=1.10.150.130, no name defined]                                                         -1xo0B02 B:132-331 Intergrase catalytic core                                                                                                                                                             ---------- CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------------------------------------------Phage_integrase-1xo0B01 B:138-331                                                                                                                                                                 ---------- Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------------------------------------------Phage_integrase-1xo0B02 B:138-331                                                                                                                                                                 ---------- Pfam domains (2)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhhhhh.eee.....eeeee...........eeee.hhhhhhhhhhhhhhhhhhhh.......................hhhhhhhhhhhhhhhhhh..............hhhhhhhhhhhhh...hhhhhhhhhh..hhhhhhhhhhhh.....hhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xo0 B  20 SDEVRKNLMDMFRDRQAFSEHTWKMLLSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGLPRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAFLGIAYNTLLKIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVERWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQRYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLED 341
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339


Chain C from PDB  Type:DNA  Length:35

                 1xo0 C   1 TATAACTTCGTATAATGTATGCTATACGAAGTTAT  35
                                    10        20        30


Chain D from PDB  Type:DNA  Length:35

                 1xo0 D   1 TATAACTTCGTATAGCATACATTATACGAAGTTAT  35
                                    10        20        30
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 4)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: DNA-mend (28)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (RECR_BPP1 | P06956)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0015074    DNA integration    The process in which a segment of DNA is incorporated into another, usually larger, DNA molecule such as a chromosome.
    GO:0006310    DNA recombination    Any process in which a new genotype is formed by reassortment of genes resulting in gene combinations different from those that were present in the parents. In eukaryotes genetic recombination can occur by chromosome assortment, intrachromosomal recombination, or nonreciprocal interchromosomal recombination. Intrachromosomal recombination occurs by crossing over. In bacteria it may occur by genetic transformation, conjugation, transduction, or F-duction.
