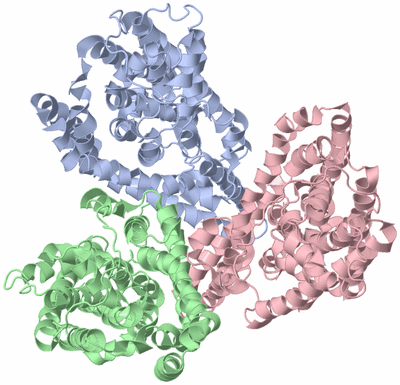

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF GLUTAMATE TRANSPORTER HOMOLOG FROM PYROCOCCUS HORIKOSHII

Authors :  D. Yernool, O. Boudker, Y. Jin, E. Gouaux
Date :  14 Sep 04  (Deposition) - 26 Oct 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.50
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Trimeric Helical Transmembrane Protein, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Yernool, O. Boudker, Y. Jin, E. Gouaux
Structure Of A Glutamate Transporter Homologue From Pyrococcus Horikoshii
Nature V. 431 811 2004
PubMed-ID: 15483603  |  Reference-DOI: 10.1038/NATURE03018

(-) Compounds

Molecule 1 - PROTON GLUTAMATE SYMPORT PROTEIN
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PBAD
    Expression System Strain: TOP10
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: GLTPH
    Mutation: YES
    Organism Scientific: PYROCOCCUS HORIKOSHII
    Organism Taxid: 70601
    Strain: OT3
    Synonym: GLUTAMATE TRANSPORTER HOMOLOG

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1XFH)

(-) Sites  (0, 0)

(no "Site" information available for 1XFH)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XFH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1XFH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XFH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1XFH)

(-) Exons   (0, 0)

(no "Exon" information available for 1XFH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:406
 aligned with O59010_PYRHO | O59010 from UniProtKB/TrEMBL  Length:425

    Alignment length:406
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411
         O59010_PYRHO    12 VLQKILIGLILGAIVGLILGHYGYADAVKTYVKPFGDLFVRLLKMLVMPIVFASLVVGAASISPARLGRVGVKIVVYYLLTSAFAVTLGIIMARLFNPGAGIHLAVGGQQFQPKQAPPLVKILLDIVPTNPFGALANGQVLPTIFFAIILGIAITYLMNSENEKVRKSAETLLDAINGLAEAMYKIVNGVMQYAPIGVFALIAYVMAEQGVKVVGELAKVTAAVYVGLTLQILLVYFVLLKIYGIDPISFIKKAKDAMLTAFVTRSSSGTLPVTMRVAKEMGISEGIYSFTLPLGATINMDGTALYQGVCTFFIANALGSHLTVGQQLTIVLTAVLASIGTAGVPGAGAIMLAMVLESVGLPLTDPNVAAAYAMILGIDAILDMGRTMVNVTGDLTGTAIVAKTEG 417
               SCOP domains d1xfha_ A: Proton glutamate symport protein                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1xfhA00 A:12-417 Proton glutamate symport protein                                                                                                                                                                                                                                                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................hhhhhhhhh..hhhhhhh....hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhh...hhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhh..........hhhhhhhhh......hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xfh A  12 VLQKILIGLILGAIVGLILGHYGYAHAVHTYVKPFGDLFVRLLKMLVMPIVFASLVVGAASISPARLGRVGVKIVVYYLLTSAFAVTLGIIMARLFNPGAGIHLAVGGQQFQPHQAPPLVHILLDIVPTNPFGALANGQVLPTIFFAIILGIAITYLMNSENEKVRKSAETLLDAINGLAEAMYKIVNGVMQYAPIGVFALIAYVMAEQGVHVVGELAKVTAAVYVGLTLQILLVYFVLLKIYGIDPISFIKHAKDAMLTAFVTRSSSGTLPVTMRVAKEMGISEGIYSFTLPLGATINMDGTALYQGVCTFFIANALGSHLTVGQQLTIVLTAVLASIGTAGVPGAGAIMLAMVLHSVGLPLTDPNVAAAYAMILGIDAILDMGRTMVNVTGDLTGTAIVAKTEG 417
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411


Chain B from PDB  Type:PROTEIN  Length:406
 aligned with O59010_PYRHO | O59010 from UniProtKB/TrEMBL  Length:425

    Alignment length:406
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411
         O59010_PYRHO    12 VLQKILIGLILGAIVGLILGHYGYADAVKTYVKPFGDLFVRLLKMLVMPIVFASLVVGAASISPARLGRVGVKIVVYYLLTSAFAVTLGIIMARLFNPGAGIHLAVGGQQFQPKQAPPLVKILLDIVPTNPFGALANGQVLPTIFFAIILGIAITYLMNSENEKVRKSAETLLDAINGLAEAMYKIVNGVMQYAPIGVFALIAYVMAEQGVKVVGELAKVTAAVYVGLTLQILLVYFVLLKIYGIDPISFIKKAKDAMLTAFVTRSSSGTLPVTMRVAKEMGISEGIYSFTLPLGATINMDGTALYQGVCTFFIANALGSHLTVGQQLTIVLTAVLASIGTAGVPGAGAIMLAMVLESVGLPLTDPNVAAAYAMILGIDAILDMGRTMVNVTGDLTGTAIVAKTEG 417
               SCOP domains d1xfhb_ B: Proton glutamate symport protein                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1xfhB00 B:12-417 Proton glutamate symport protein                                                                                                                                                                                                                                                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................hhhhhhhhh..hhhhhhh....hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhh...hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh.........hhhhhhhhh.....hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xfh B  12 VLQKILIGLILGAIVGLILGHYGYAHAVHTYVKPFGDLFVRLLKMLVMPIVFASLVVGAASISPARLGRVGVKIVVYYLLTSAFAVTLGIIMARLFNPGAGIHLAVGGQQFQPHQAPPLVHILLDIVPTNPFGALANGQVLPTIFFAIILGIAITYLMNSENEKVRKSAETLLDAINGLAEAMYKIVNGVMQYAPIGVFALIAYVMAEQGVHVVGELAKVTAAVYVGLTLQILLVYFVLLKIYGIDPISFIKHAKDAMLTAFVTRSSSGTLPVTMRVAKEMGISEGIYSFTLPLGATINMDGTALYQGVCTFFIANALGSHLTVGQQLTIVLTAVLASIGTAGVPGAGAIMLAMVLHSVGLPLTDPNVAAAYAMILGIDAILDMGRTMVNVTGDLTGTAIVAKTEG 417
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411


Chain C from PDB  Type:PROTEIN  Length:406
 aligned with O59010_PYRHO | O59010 from UniProtKB/TrEMBL  Length:425

    Alignment length:406
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411
         O59010_PYRHO    12 VLQKILIGLILGAIVGLILGHYGYADAVKTYVKPFGDLFVRLLKMLVMPIVFASLVVGAASISPARLGRVGVKIVVYYLLTSAFAVTLGIIMARLFNPGAGIHLAVGGQQFQPKQAPPLVKILLDIVPTNPFGALANGQVLPTIFFAIILGIAITYLMNSENEKVRKSAETLLDAINGLAEAMYKIVNGVMQYAPIGVFALIAYVMAEQGVKVVGELAKVTAAVYVGLTLQILLVYFVLLKIYGIDPISFIKKAKDAMLTAFVTRSSSGTLPVTMRVAKEMGISEGIYSFTLPLGATINMDGTALYQGVCTFFIANALGSHLTVGQQLTIVLTAVLASIGTAGVPGAGAIMLAMVLESVGLPLTDPNVAAAYAMILGIDAILDMGRTMVNVTGDLTGTAIVAKTEG 417
               SCOP domains d1xfhc_ C: Proton glutamate symport protein                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1xfhC00 C:12-417 Proton glutamate symport protein                                                                                                                                                                                                                                                                                                                                                                      CATH domains
           Pfam domains (1) SDF-1xfhC01 C:12-415                                                                                                                                                                                                                                                                                                                                                                                                -- Pfam domains (1)
           Pfam domains (2) SDF-1xfhC02 C:12-415                                                                                                                                                                                                                                                                                                                                                                                                -- Pfam domains (2)
           Pfam domains (3) SDF-1xfhC03 C:12-415                                                                                                                                                                                                                                                                                                                                                                                                -- Pfam domains (3)
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................hhhhhhhhh..hhhhhhh....hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh......hhhhhhhhhh...hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh.......hhhhhhhhhhhh.....hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xfh C  12 VLQKILIGLILGAIVGLILGHYGYAHAVHTYVKPFGDLFVRLLKMLVMPIVFASLVVGAASISPARLGRVGVKIVVYYLLTSAFAVTLGIIMARLFNPGAGIHLAVGGQQFQPHQAPPLVHILLDIVPTNPFGALANGQVLPTIFFAIILGIAITYLMNSENEKVRKSAETLLDAINGLAEAMYKIVNGVMQYAPIGVFALIAYVMAEQGVHVVGELAKVTAAVYVGLTLQILLVYFVLLKIYGIDPISFIKHAKDAMLTAFVTRSSSGTLPVTMRVAKEMGISEGIYSFTLPLGATINMDGTALYQGVCTFFIANALGSHLTVGQQLTIVLTAVLASIGTAGVPGAGAIMLAMVLHSVGLPLTDPNVAAAYAMILGIDAILDMGRTMVNVTGDLTGTAIVAKTEG 417
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: SDF] (5)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C   (O59010_PYRHO | O59010)
molecular function
    GO:0015293    symporter activity    Enables the active transport of a solute across a membrane by a mechanism whereby two or more species are transported together in the same direction in a tightly coupled process not directly linked to a form of energy other than chemiosmotic energy.
biological process
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
