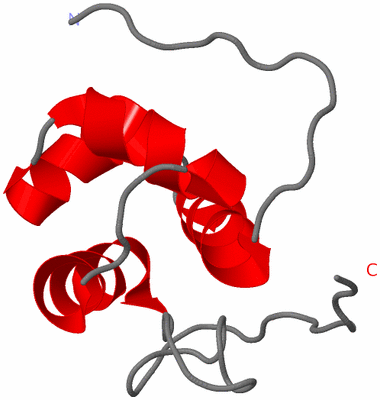

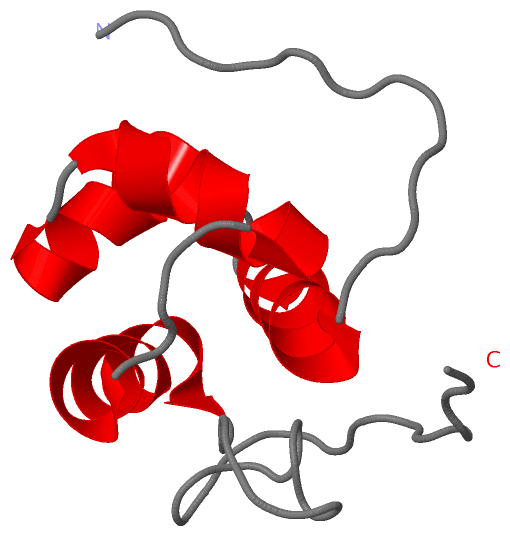

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

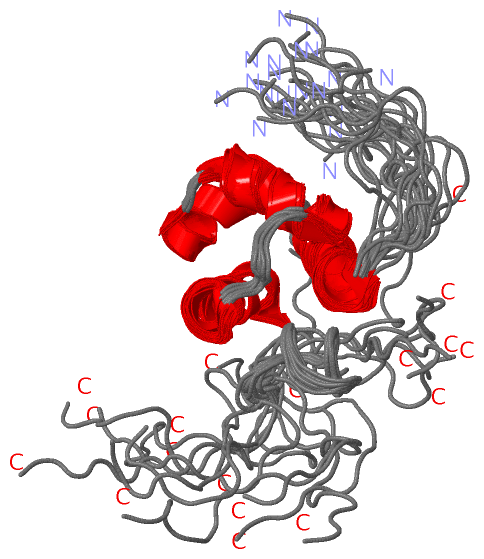

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURES OF THE HTH DOMAIN OF HUMAN EDF-1 PROTEIN

Authors :  N. Nameki, M. Sato, N. Tochio, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  15 May 05  (Deposition) - 15 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Edf1, Hmbf1Alpha, Helix-Turn-Helix, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  N. Nameki, M. Sato, N. Tochio, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structures Of The Hth Domain Of Human Edf-1 Protein
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ENDOTHELIAL DIFFERENTIATION-RELATED FACTOR 1
    ChainsA
    EngineeredYES
    Expression System PlasmidP041012-15
    Expression System Vector TypePLASMID
    FragmentHTH DOMAIN
    GeneEDF-1
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    Other DetailsCELL-FREE PROTEIN SYNTHESIS
    SynonymEDF-1, MULTIPROTEIN BRIDGING FACTOR 1, MBF1

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1X57)

(-) Sites  (0, 0)

(no "Site" information available for 1X57)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1X57)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1X57)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1X57)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_CROC1PS50943 Cro/C1-type HTH domain profile.EDF1_HUMAN81-135  1A:18-72

(-) Exons   (3, 3)

NMR Structure (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1aENST000002240731aENSE00001042853chr9:139760738-139760633106EDF1_HUMAN1-26260--
1.2ENST000002240732ENSE00000870750chr9:139758323-13975827252EDF1_HUMAN27-44180--
1.3ENST000002240733ENSE00000733887chr9:139757900-139757740161EDF1_HUMAN44-97541A:2-34 (gaps)53
1.4aENST000002240734aENSE00001364523chr9:139757451-13975735894EDF1_HUMAN98-129321A:35-6632
1.4dENST000002240734dENSE00000870751chr9:139756797-139756571227EDF1_HUMAN129-148201A:66-8520

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:91
 aligned with EDF1_HUMAN | O60869 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:139
                                                                                                                                                              148
                                    25        35        45        55        65        75        85        95       105       115       125       135       145  |
           EDF1_HUMAN    16 GPTAAQAKSKQAILAAQRRGEDVETSKKWAAGQNKQHSITKNTAKLDRETEELHHDRVTLEVGKVIQQGRQSKGLTQKDLATKINEKPQVIADYESGRAIPNNQVLGKIERAIGLKLRGKDIGKPIEKGPRAK------   -
               SCOP domains -------------------------------------------------------d1x57a1 A:8-85 Endothelial differentiation-related factor 1, EDF1             ------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----------------------------------------------------------------HTH_3-1x57A01 A:18-71                                 -------------------- Pfam domains
         Sec.struct. author .----------------------------......--------------------....hhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhh....hhhhhhhhhhhhh......................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------HTH_CROC1  PDB: A:18-72 UniProt: 81-135                ------------------- PROSITE
           Transcript 1 (1) Exon 1.1a  Exon 1.2  PDB: -  -----------------------------------------------------Exon 1.4a  PDB: A:35-66         ------------------------- Transcript 1 (1)
           Transcript 1 (2) ----------------------------Exon 1.3  PDB: A:2-34 (gaps) UniProt: 44-97           -------------------------------Exon 1.4d           ------ Transcript 1 (2)
                 1x57 A   1 G----------------------------SSGSSG--------------------DRVTLEVGKVIQQGRQSKGLTQKDLATKINEKPQVIADYESGRAIPNNQVLGKIERAIGLKLRGKDIGKPIEKGPRAKSGPSSG  91
                            |        -         -         2    |    -         -     |  12        22        32        42        52        62        72        82
                            |                            2    7                    8
                            1

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1X57)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: HTH (544)

(-) Gene Ontology  (22, 22)

NMR Structure(hide GO term definitions)
Chain A   (EDF1_HUMAN | O60869)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0005516    calmodulin binding    Interacting selectively and non-covalently with calmodulin, a calcium-binding protein with many roles, both in the calcium-bound and calcium-free states.
    GO:0004402    histone acetyltransferase activity    Catalysis of the reaction: acetyl-CoA + histone = CoA + acetyl-histone.
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
    GO:0003713    transcription coactivator activity    Interacting selectively and non-covalently with a activating transcription factor and also with the basal transcription machinery in order to increase the frequency, rate or extent of transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between activating transcription factors and the basal transcription machinery.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0045446    endothelial cell differentiation    The process in which a mesodermal, bone marrow or neural crest cell acquires specialized features of an endothelial cell, a thin flattened cell. A layer of such cells lines the inside surfaces of body cavities, blood vessels, and lymph vessels, making up the endothelium.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:0043388    positive regulation of DNA binding    Any process that increases the frequency, rate or extent of DNA binding. DNA binding is any process in which a gene product interacts selectively with DNA (deoxyribonucleic acid).
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0019216    regulation of lipid metabolic process    Any process that modulates the frequency, rate or extent of the chemical reactions and pathways involving lipids.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0005730    nucleolus    A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005669    transcription factor TFIID complex    A complex composed of TATA binding protein (TBP) and TBP associated factors (TAFs); the total mass is typically about 800 kDa. Most of the TAFs are conserved across species. In TATA-containing promoters for RNA polymerase II (Pol II), TFIID is believed to recognize at least two distinct elements, the TATA element and a downstream promoter element. TFIID is also involved in recognition of TATA-less Pol II promoters. Binding of TFIID to DNA is necessary but not sufficient for transcription initiation from most RNA polymerase II promoters.
