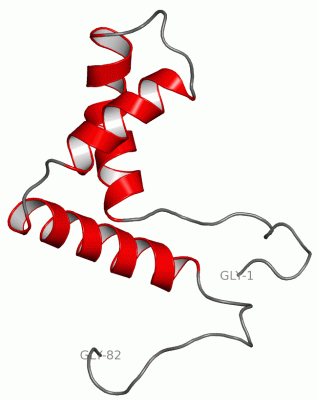

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

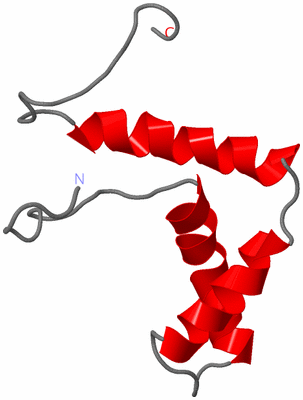

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

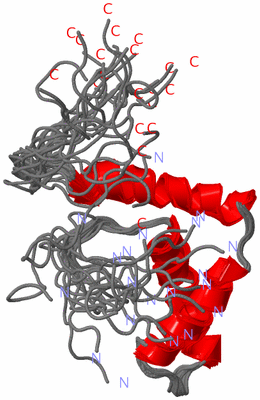

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE HMG_BOX DOMAIN OF MURINE BOBBY SOX HOMOLOG

Authors :  H. Li, N. Tochio, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  25 Feb 05  (Deposition) - 25 Aug 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Bobby Sox Homolog, Transcription Factor, Hmg_box Domain, Structural Genomics, Nppsfa, Riken Structural Genomics/Proteomics Initiative, Rsgi, National Project On Protein Structural And Functional Analyses, Nppsfa, National Project On Protein Structural And Functional Analyses (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Li, N. Tochio, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The Hmg_box Domain Of Murine Bobby Sox Homolog
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HMG-BOX TRANSCRIPTION FACTOR BBX
    Chains: A
    Engineered: YES
    Expression System Plasmid: P040719-04
    Expression System Vector Type: PLASMID
    Fragment: HMG_BOX DOMAIN
    Gene: BBX
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS
    Synonym: BOBBY SOX HOMOLOG

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WZ6)

(-) Sites  (0, 0)

(no "Site" information available for 1WZ6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WZ6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WZ6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WZ6)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HMG_BOX_2PS50118 HMG boxes A and B DNA-binding domains profile.BBX_MOUSE80-148  1A:8-76

(-) Exons   (0, 0)

(no "Exon" information available for 1WZ6)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:82
 aligned with BBX_MOUSE | Q8VBW5 from UniProtKB/Swiss-Prot  Length:907

    Alignment length:152
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152
            BBX_MOUSE     3 GSNRNKDHSTEGEGDGKRPKRKCLQWHPLLAKKLLDFSEEEEEDEEEEDIDKVQLLEADGLEQDVAETEDDESPEQRARRPMNAFLLFCKRHRSLVRQEHPRLDNRGATKILADWWAVLDPKEKQKYTDMAKEYKDAFMKANPGYRWCPTTN 154
               SCOP domains d1w     z6a_                                                                  A: automated matches                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----------------------------------------------------------------------------HMG_box-1wz6A01 A:8-76                                               ------ Pfam domains
         Sec.struct. author ...-----....-----------------------------------------------------------------......hhhhhhhhhhhhhhhh......hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------HMG_BOX_2  PDB: A:8-76 UniProt: 80-148                               ------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wz6 A   1 GSS-----GSSG-----------------------------------------------------------------ARRPMNAFLLFCKRHRSLVRQEHPRLDNRGATKILADWWAVLDPKEKQKYTDMAKEYKDAFMKANPGYRSGPSSG  82
                              |     |5 |       -         -         -         -         -         -       |10        20        30        40        50        60        70        80
                              3     4  7                                                                 8
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WZ6)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: HMG-box (15)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (BBX_MOUSE | Q8VBW5)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0060348    bone development    The process whose specific outcome is the progression of bone over time, from its formation to the mature structure. Bone is the hard skeletal connective tissue consisting of both mineral and cellular components.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
