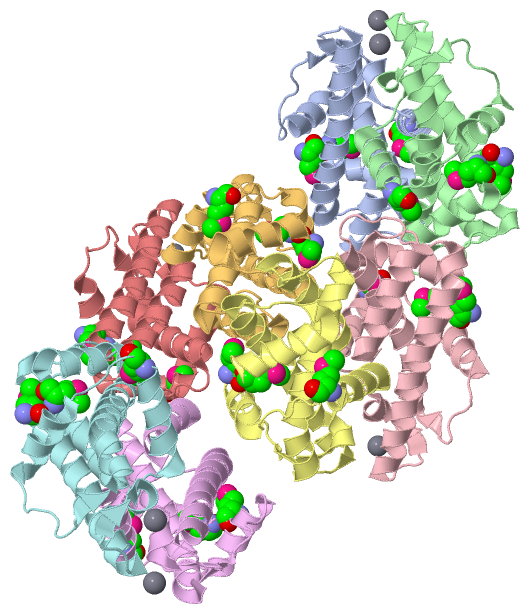

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

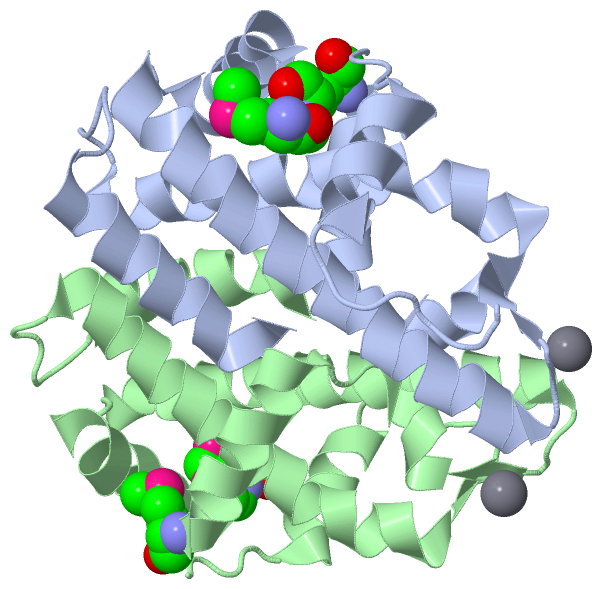

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

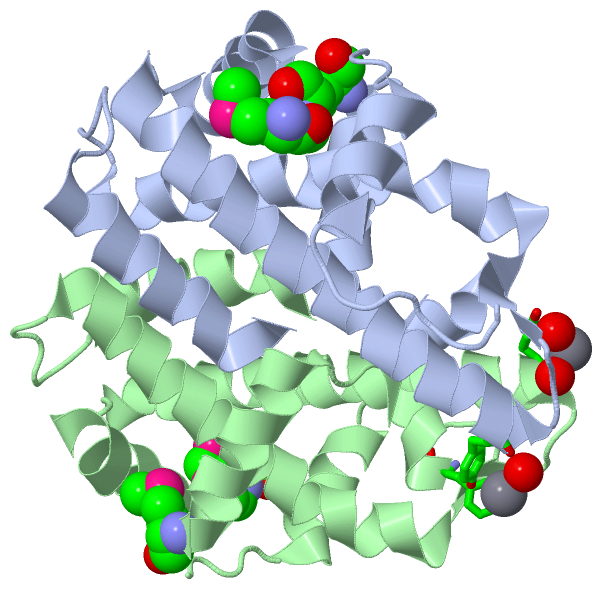

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

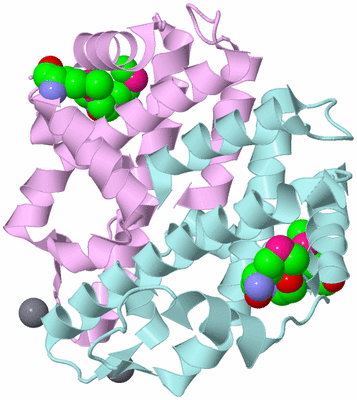

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

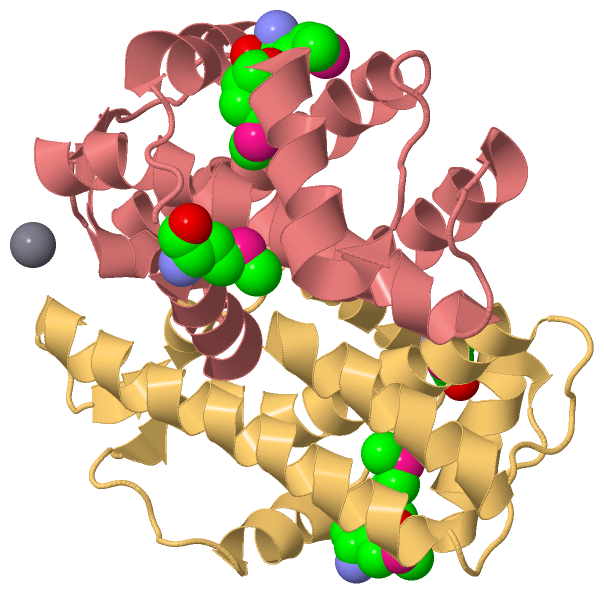

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

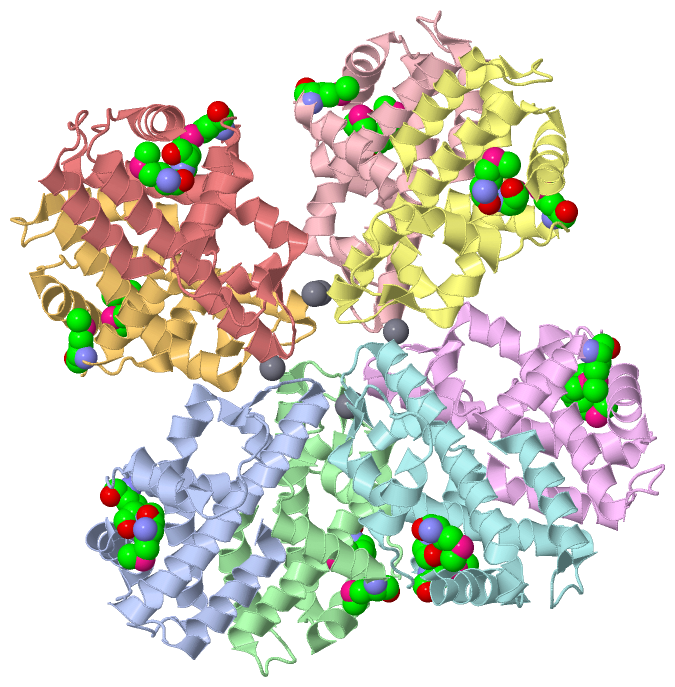

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TTK003001566 FROM THERMUS THERMOPHILUS HB8

Authors :  H. Wang, K. Murayama, T. Terada, M. Shirouzu, S. Kuramitsu, S. Yokoyama Structural Genomics/Proteomics Initiative (Rsgi)
Date :  18 Jan 05  (Deposition) - 24 Jan 06  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Biol. Unit 5:  A (1x),B (1x),C (1x),D (1x),E (1x),F (1x),G (1x),H (1x)
Keywords :  Structural Genomics, Unknown Function, Riken Structural Genomics/Proteomics Initiative, Rsgi (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Wang, K. Murayama, T. Terada, M. Shirouzu, S. Kuramitsu, S. Yokoyam
Crystal Structure Of Ttk003001566 From Thermus Thermophilus Hb8
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN TTHA1479
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8
    Synonym: TTK003001566

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH
Biological Unit 5 (1x): A (1x)B (1x)C (1x)D (1x)E (1x)F (1x)G (1x)H (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 30)

Asymmetric Unit (2, 30)
No.NameCountTypeFull Name
1CA6Ligand/IonCALCIUM ION
2MSE24Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 4 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 5 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR E:49BINDING SITE FOR RESIDUE CA E 149
2AC2SOFTWAREPHE C:56 , TYR D:49 , HOH D:193BINDING SITE FOR RESIDUE CA D 149
3AC3SOFTWARETYR G:49 , HOH G:198 , PHE H:56BINDING SITE FOR RESIDUE CA G 149
4AC4SOFTWARETYR F:49BINDING SITE FOR RESIDUE CA F 149
5AC5SOFTWARETYR A:49 , HOH A:229 , PHE B:56BINDING SITE FOR RESIDUE CA A 149
6AC6SOFTWARETYR B:49 , HOH B:153 , HOH B:166BINDING SITE FOR RESIDUE CA B 149

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WWS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WWS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WWS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1WWS)

(-) Exons   (0, 0)

(no "Exon" information available for 1WWS)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwsa_ A: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhhh.....hhhhhhhhhh.......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws A   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            | |                                                                       76-MSE
                            1-MSE
                              3-MSE


Chain B from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwsb_ B: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhhh.....hhhhhhhhhh.......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws B   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            1-MSE                                                                     76-MSE
                              3-MSE


Chain C from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwsc_ C: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhhhh....hhhhhhhhhhh......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws C   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            1-MSE                                                                     76-MSE
                              3-MSE


Chain D from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwsd_ D: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhhh......hhhhhhhhh.......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws D   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            1-MSE                                                                     76-MSE
                              3-MSE


Chain E from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwse_ E: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhh......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws E   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            1-MSE                                                                     76-MSE
                              3-MSE


Chain F from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwsf_ F: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhhh.....hhhhhhhhhh.......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws F   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            1-MSE                                                                     76-MSE
                              3-MSE


Chain G from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwsg_ G: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhh......hhhhhhhhhh.......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws G   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            1-MSE                                                                     76-MSE
                              3-MSE


Chain H from PDB  Type:PROTEIN  Length:148
 aligned with Q5SI95_THET8 | Q5SI95 from UniProtKB/TrEMBL  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q5SI95_THET8     1 MLMKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRMDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
               SCOP domains d1wwsh_ H: automated matches                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -------DUF1931-1wwsH01 H:8-145                                                                                                                   --- Pfam domains (1)
           Pfam domains (2) -------DUF1931-1wwsH02 H:8-145                                                                                                                   --- Pfam domains (2)
           Pfam domains (3) -------DUF1931-1wwsH03 H:8-145                                                                                                                   --- Pfam domains (3)
           Pfam domains (4) -------DUF1931-1wwsH04 H:8-145                                                                                                                   --- Pfam domains (4)
           Pfam domains (5) -------DUF1931-1wwsH05 H:8-145                                                                                                                   --- Pfam domains (5)
           Pfam domains (6) -------DUF1931-1wwsH06 H:8-145                                                                                                                   --- Pfam domains (6)
           Pfam domains (7) -------DUF1931-1wwsH07 H:8-145                                                                                                                   --- Pfam domains (7)
           Pfam domains (8) -------DUF1931-1wwsH08 H:8-145                                                                                                                   --- Pfam domains (8)
         Sec.struct. author ...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhh..hhhhhhhhhhhhh.....hhhhhhhhhh.......eehhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wws H   1 mLmKVAEFERLFRQAAGLDVDKNDLKRVSDFLRNKLYDLLAVAERNAKYNGRDLIFEPDLPIAKGLQETLQEFRRmDTALELKPVLDALAALPPLDLEVAEDVRNLLPELAGALVVAYARVLKELDPALKNPQTEHHERAERVFNLLL 148
                            | |     10        20        30        40        50        60        70     |  80        90       100       110       120       130       140
                            1-MSE                                                                     76-MSE
                              3-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 8)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WWS)

(-) Pfam Domains  (1, 8)

Asymmetric Unit
(-)
Clan: no clan defined [family: DUF1931] (3)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (Q5SI95_THET8 | Q5SI95)
molecular function
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wws)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1wws
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5SI95_THET8 | Q5SI95
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5SI95_THET8 | Q5SI95
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q5SI95_THET8 | Q5SI95: 1wwi

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1WWS)
