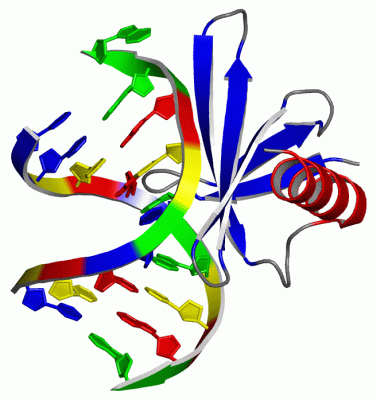

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

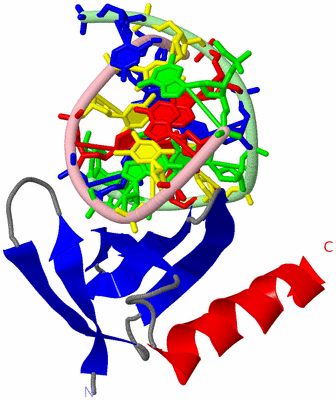

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURES OF THE HYPERTHERMOPHILIC CHROMOSOMAL PROTEIN SAC7D IN COMPLEX WITH DNA DECAMERS

Authors :  T. -P. Ko, H. -M. Chu, C. -Y. Chen, C. -C. Chou, A. H. -J. Wang
Date :  10 May 04  (Deposition) - 03 Aug 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Protein-Dna Complex, Structural Protein/Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. P. Ko, H. M. Chu, C. Y. Chen, C. C. Chou, A. H. Wang
Structures Of The Hyperthermophilic Chromosomal Protein Sac7D In Complex With Dna Decamers.
Acta Crystallogr. , Sect. D V. 60 1381 2004
PubMed-ID: 15272160  |  Reference-DOI: 10.1107/S0907444904012065
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 5'-D(*CP*CP*TP*AP*CP*GP*TP*AP*GP*G)-3'
    Chains: B, C
    Engineered: YES
    Synthetic: YES

Molecule 2 - DNA-BINDING PROTEINS 7A/7B/7D
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-3B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: SULFOLOBUS ACIDOCALDARIUS
    Organism Taxid: 2285
    Synonym: SAC7D CHROMOSOMAL PROTEIN, 7 KDA DNA-BINDING PROTEINS A/B/D, SAC7A, SAC7B, SAC7D

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WD1)

(-) Sites  (0, 0)

(no "Site" information available for 1WD1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WD1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WD1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WD1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1WD1)

(-) Exons   (0, 0)

(no "Exon" information available for 1WD1)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:64
 aligned with DN7D_SULAC | P13123 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:64
                                    11        21        31        41        51        61
           DN7D_SULAC     2 VKVKFKYKGEEKEVDTSKIKKVWRVGKMVSFTYDDNGKTGRGAVSEKDAPKELLDMLARAEREK  65
               SCOP domains d1wd1a_ A: DNA-binding protein                                   SCOP domains
               CATH domains 1wd1A00 A:2-65  [code=2.40.50.40, no name defined]               CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee....eeeee...eeeeeee..eeeeeeee..eeeeeeee....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                 1wd1 A   2 VKVKFKYKGEEKEVDTSKIKKVWRVGKMVSFTYDDNGKTGRGAVSEKDAPKELLDMLARAEREK  65
                                    11        21        31        41        51        61


Chain B from PDB  Type:DNA  Length:10

                 1wd1 B 101 CCTACGTAGG 110
                                   110


Chain C from PDB  Type:DNA  Length:10

                 1wd1 C 111 CCTACGTAGG 120
                                   120
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1WD1)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DN7D_SULAC | P13123)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
biological process
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wd1)

  Sites
(no "Sites" information available for 1wd1)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wd1)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

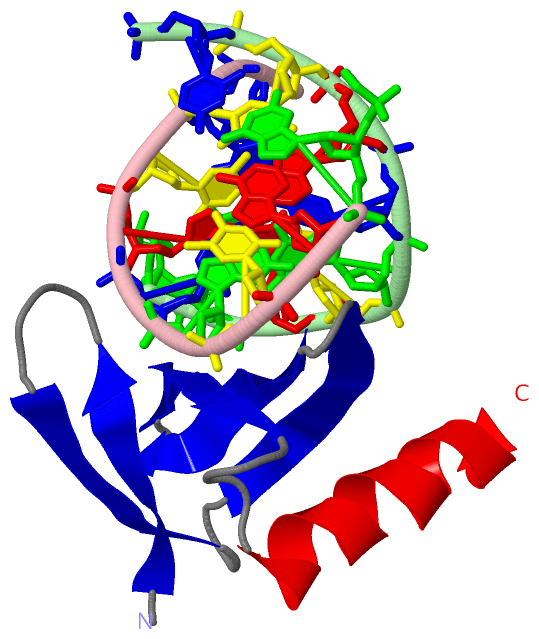

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1wd1
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DN7D_SULAC | P13123
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DN7D_SULAC | P13123
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DN7D_SULAC | P13123: 1azp 1azq 1bf4 1ca5 1ca6 1sap 1wd0 1wto 1wtp 1wtq 1wtr 1wtv 1wtw 1wtx 1wvl 1xx8 1xyi 2xiw 4cj1 4cj2

(-) Related Entries Specified in the PDB File

1azp COMPLEX WITH DNA OCTAMER
1wd0 THE SAME PROTEIN WITH DNA OF CCTATATAGG
