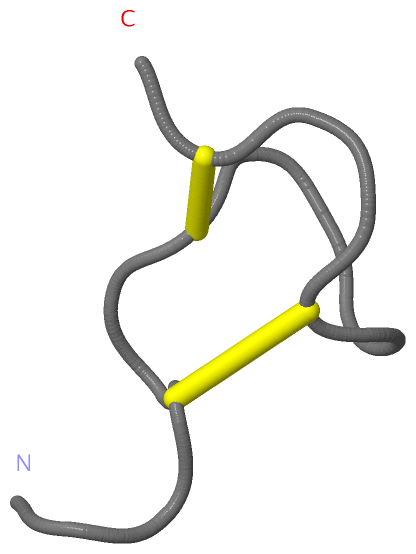

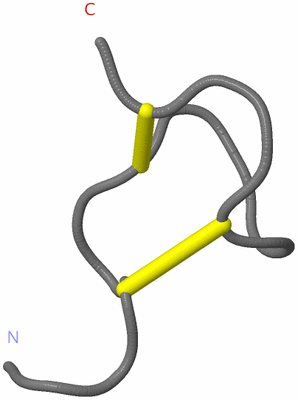

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

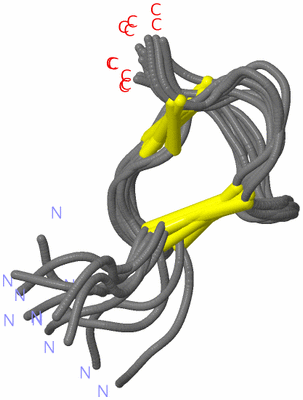

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  THE SOLUTION STRUCTURE OF THE B-FORM OF UROGUANYLIN-16 NMR, 10 STRUCTURES

Authors :  U. C. Marx, K. Adermann, W. -G. Forssmann, P. Roesch
Date :  11 Sep 97  (Deposition) - 18 Mar 98  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Hormone, Guanylyl Cyclase C Activation, Isomer A, Peptide Hormone, Solution Structure, Topological Stereoisomer, Uroguanylin, Signal (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  U. C. Marx, J. Klodt, M. Meyer, H. Gerlach, P. Rosch, W. G. Forssmann, K. Adermann
One Peptide, Two Topologies: Structure And Interconversion Dynamics Of Human Uroguanylin Isomers.
J. Pept. Res. V. 52 229 1998
PubMed-ID: 9774236
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UROGUANYLIN-16, ISOMER B
    ChainsA
    EngineeredYES
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606

 Structural Features

(-) Chains, Units


NMR Structure (10x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1UYB)

(-) Sites  (0, 0)

(no "Site" information available for 1UYB)

(-) SS Bonds  (2, 2)

NMR Structure
No.Residues
1A:4 -A:12
2A:7 -A:15

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UYB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UYB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1UYB)

(-) Exons   (1, 1)

NMR Structure (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENST000003725811ENSE00001458144chr1:42619092-42619211120GUC2B_HUMAN1-30300--
1.2ENST000003725812ENSE00000768944chr1:42620351-42620537187GUC2B_HUMAN31-93630--
1.3ENST000003725813ENSE00000870150chr1:42621206-42621495290GUC2B_HUMAN93-112201A:1-1616

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:16
 aligned with GUC2B_HUMAN | Q16661 from UniProtKB/Swiss-Prot  Length:112

    Alignment length:16
                                   106
          GUC2B_HUMAN    97 NDDCELCVNVACTGCL 112
               SCOP domains d1uyba_ A:       SCOP domains
               CATH domains ---------------- CATH domains
               Pfam domains Guanylin-1uybA0- Pfam domains
         Sec.struct. author ................ Sec.struct. author
                 SAPs(SNPs) ---------------- SAPs(SNPs)
                    PROSITE ---------------- PROSITE
               Transcript 1 Exon 1.3         Transcript 1
                 1uyb A   1 NDDCELCVNVACTGCL  16
                                    10

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Peptides (792)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1UYB)

(-) Pfam Domains  (1, 1)

NMR Structure

(-) Gene Ontology  (11, 11)

NMR Structure(hide GO term definitions)
Chain A   (GUC2B_HUMAN | Q16661)
molecular function
    GO:0008048    calcium sensitive guanylate cyclase activator activity    Binds to and increases the activity of guanylate cyclase in response to a change in calcium ion concentration.
    GO:0030250    guanylate cyclase activator activity    Binds to and increases the activity of guanylate cyclase.
biological process
    GO:0007589    body fluid secretion    The controlled release of a fluid by a cell or tissue in an animal.
    GO:0006182    cGMP biosynthetic process    The chemical reactions and pathways resulting in the formation of cyclic GMP, guanosine 3',5'-phosphate.
    GO:0007588    excretion    The elimination by an organism of the waste products that arise as a result of metabolic activity. These products include water, carbon dioxide (CO2), and nitrogenous compounds.
    GO:0045776    negative regulation of blood pressure    Any process in which the force of blood traveling through the circulatory system is decreased.
    GO:0031284    positive regulation of guanylate cyclase activity    Any process that activates or increases the frequency, rate or extent of guanylate cyclase activity.
    GO:0030802    regulation of cyclic nucleotide biosynthetic process    Any process that modulates the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of cyclic nucleotides.
cellular component
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0001750    photoreceptor outer segment    The outer segment of a vertebrate photoreceptor that contains discs of photoreceptive membranes.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1uyb)

  Sites
(no "Sites" information available for 1uyb)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1uyb)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1uyb
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GUC2B_HUMAN | Q16661
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  GUC2B_HUMAN | Q16661
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GUC2B_HUMAN | Q166611uya

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1UYB)
