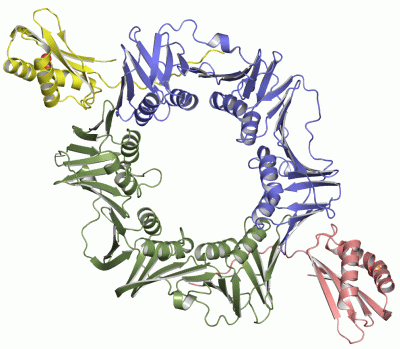

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

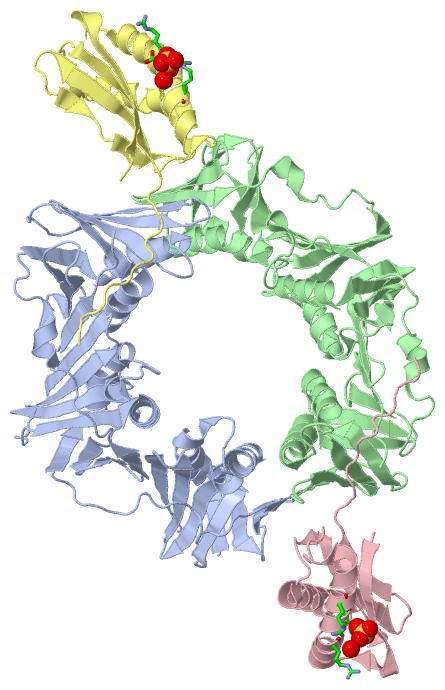

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  COMPLEX OF BETA-CLAMP PROCESSIVITY FACTOR AND LITTLE FINGER DOMAIN OF POLIV

Authors :  K. A. Bunting, S. M. Roe, L. H. Pearl
Date :  11 Sep 03  (Deposition) - 06 Nov 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Beta-Clamp, Pol Iv, Translesion, Transferase, Dna-Directed Dna Polymerase, Dna Replication (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. A. Bunting, S. M. Roe, L. H. Pearl
Structural Basis For Recruitment Of Translesion Dna Polymerase Pol Iv/Dinb To The Beta-Clamp
Embo J. V. 22 5883 2003
PubMed-ID: 14592985  |  Reference-DOI: 10.1093/EMBOJ/CDG568

(-) Compounds

Molecule 1 - DNA POLYMERASE III BETA SUBUNIT
    ChainsA, B
    EC Number2.7.7.7
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET17B
    Expression System StrainB834DE3
    Expression System Taxid562
    Organism ScientificESCHERICHIA COLI
    Organism Taxid562

Molecule 2 - DNA POLYMERASE IV
    ChainsC, D
    EC Number2.7.7.7
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET11
    Expression System StrainB834DE3
    Expression System Taxid562
    FragmentLITTLE FINGER, RESIDUES 243-351
    Organism ScientificESCHERICHIA COLI
    Organism Taxid562
    SynonymPOL IV

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU C:269 , ARG C:272 , HOH C:2116 , ARG D:265 , GLU D:269BINDING SITE FOR RESIDUE SO4 C1352
2AC2SOFTWAREARG C:265 , GLU C:269 , GLU D:269 , ARG D:272 , HOH D:2152BINDING SITE FOR RESIDUE SO4 D1352

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UNN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UNN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (2, 4)

Asymmetric/Biological Unit (2, 4)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_DPO4_ECOLI_011 *A310SDPO4_ECOLI  ---  ---C/DA310S
2UniProtVAR_DPO4_ECOLI_012 *D321NDPO4_ECOLI  ---  ---C/DD321N
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1UNN)

(-) Exons   (0, 0)

(no "Exon" information available for 1UNN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECO57 | P0A990 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECO57     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1unna1 A:1-122 DNA polymerase III, beta subunit                                                                          d1unna2 A:123-244 DNA polymerase III, beta subunit                                                                        d1unna3 A:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1unnA01 A:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1unnA02 A:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1unnA03 A:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhh....hhhh.eeeeeee..eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh....eeeeee....eeeee..eeeee.................eeeeehhhhhhhhhhhhhhhh.....hhhh.eeeeeee..eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh......eeeee...eeeeee..eeeeee.......hhhhhh.....eeeeeehhhhhhhhhhhhhh......eeeeeee..eeeeeee.....eeeeeee.......eeeeeehhhhhhhhhhhh..eeeeee......eeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1unn A   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360

Chain A from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECOL6 | P0A989 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECOL6     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1unna1 A:1-122 DNA polymerase III, beta subunit                                                                          d1unna2 A:123-244 DNA polymerase III, beta subunit                                                                        d1unna3 A:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1unnA01 A:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1unnA02 A:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1unnA03 A:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhh....hhhh.eeeeeee..eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh....eeeeee....eeeee..eeeee.................eeeeehhhhhhhhhhhhhhhh.....hhhh.eeeeeee..eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh......eeeee...eeeeee..eeeeee.......hhhhhh.....eeeeeehhhhhhhhhhhhhh......eeeeeee..eeeeeee.....eeeeeee.......eeeeeehhhhhhhhhhhh..eeeeee......eeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1unn A   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360

Chain A from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECOLI | P0A988 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECOLI     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1unna1 A:1-122 DNA polymerase III, beta subunit                                                                          d1unna2 A:123-244 DNA polymerase III, beta subunit                                                                        d1unna3 A:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1unnA01 A:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1unnA02 A:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1unnA03 A:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhhhhhh....hhhh.eeeeeee..eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh....eeeeee....eeeee..eeeee.................eeeeehhhhhhhhhhhhhhhh.....hhhh.eeeeeee..eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh......eeeee...eeeeee..eeeeee.......hhhhhh.....eeeeeehhhhhhhhhhhhhh......eeeeeee..eeeeeee.....eeeeeee.......eeeeeehhhhhhhhhhhh..eeeeee......eeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1unn A   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360

Chain B from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECO57 | P0A990 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECO57     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1unnb1 B:1-122 DNA polymerase III, beta subunit                                                                          d1unnb2 B:123-244 DNA polymerase III, beta subunit                                                                        d1unnb3 B:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1unnB01 B:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1unnB02 B:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1unnB03 B:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhh........hhhh.eeeeeee..eeeeeee...eeeeeeee....ee.eeeeeehhhhhhhhhhh....eeeeeee..eeeeee..eeeeee..hhhhh.......eeeeeeeehhhhhhhhhhhhhhh.....hhhh.eeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeehhhhhhhhhhh.....eeeeeee..eeeeee..eeeeee.......hhhhhh.....eeeeeehhhhhhhhhhhhhh......eeeeeee..eeeeeee.....eeeeeee.......eeeeeehhhhhhhhhhhh..eeeeee......eeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1unn B   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360

Chain B from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECOL6 | P0A989 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECOL6     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1unnb1 B:1-122 DNA polymerase III, beta subunit                                                                          d1unnb2 B:123-244 DNA polymerase III, beta subunit                                                                        d1unnb3 B:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1unnB01 B:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1unnB02 B:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1unnB03 B:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhh........hhhh.eeeeeee..eeeeeee...eeeeeeee....ee.eeeeeehhhhhhhhhhh....eeeeeee..eeeeee..eeeeee..hhhhh.......eeeeeeeehhhhhhhhhhhhhhh.....hhhh.eeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeehhhhhhhhhhh.....eeeeeee..eeeeee..eeeeee.......hhhhhh.....eeeeeehhhhhhhhhhhhhh......eeeeeee..eeeeeee.....eeeeeee.......eeeeeehhhhhhhhhhhh..eeeeee......eeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1unn B   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360

Chain B from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECOLI | P0A988 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECOLI     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1unnb1 B:1-122 DNA polymerase III, beta subunit                                                                          d1unnb2 B:123-244 DNA polymerase III, beta subunit                                                                        d1unnb3 B:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1unnB01 B:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1unnB02 B:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1unnB03 B:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeehhhhhhhhhhhh........hhhh.eeeeeee..eeeeeee...eeeeeeee....ee.eeeeeehhhhhhhhhhh....eeeeeee..eeeeee..eeeeee..hhhhh.......eeeeeeeehhhhhhhhhhhhhhh.....hhhh.eeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeehhhhhhhhhhh.....eeeeeee..eeeeee..eeeeee.......hhhhhh.....eeeeeehhhhhhhhhhhhhh......eeeeeee..eeeeeee.....eeeeeee.......eeeeeehhhhhhhhhhhh..eeeeee......eeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1unn B   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360

Chain C from PDB  Type:PROTEIN  Length:111
 aligned with DPO4_ECOLI | Q47155 from UniProtKB/Swiss-Prot  Length:351

    Alignment length:111
                                   250       260       270       280       290       300       310       320       330       340       350
           DPO4_ECOLI   241 KSVGVERTMAEDIHHWSECEAIIERLYPELERRLAKVKPDLLIARQGVKLKFDDFQQTTQEHVWPRLNKADLIATARKTWDERRGGRGVRLVGLHVTLLDPQMERQLVLGL 351
               SCOP domains d1unnc_ C: DNA polymerase IV                                                                                    SCOP domains
               CATH domains 1unnC00 C:241-351  [code=3.30.1490.100, no name defined]                                                        CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhh......eeeeeeee....eeeeeee....hhhhhhhhhhhhhhhhh....eeeeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------S----------N------------------------------ SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 1unn C 241 HHVGVERTMAEDIHHWSECEAIIERLYPELERRLAKVKPDLLIARQGVKLKFDDFQQTTQEHVWPRLNKADLIATARKTWDERRGGRGVRLVGLHVTLLDPQMERQLVLGL 351
                                   250       260       270       280       290       300       310       320       330       340       350

Chain D from PDB  Type:PROTEIN  Length:112
 aligned with DPO4_ECOLI | Q47155 from UniProtKB/Swiss-Prot  Length:351

    Alignment length:112
                                   249       259       269       279       289       299       309       319       329       339       349
           DPO4_ECOLI   240 RKSVGVERTMAEDIHHWSECEAIIERLYPELERRLAKVKPDLLIARQGVKLKFDDFQQTTQEHVWPRLNKADLIATARKTWDERRGGRGVRLVGLHVTLLDPQMERQLVLGL 351
               SCOP domains d1unnd_ D: DNA polymerase IV                                                                                     SCOP domains
               CATH domains 1unnD00 D:240-351  [code=3.30.1490.100, no name defined]                                                         CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhh......eeeeeeee....ee..eee....hhhhhhhhhhhhhhhhh....eeeeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------S----------N------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 1unn D 240 HHHVGVERTMAEDIHHWSECEAIIERLYPELERRLAKVKPDLLIARQGVKLKFDDFQQTTQEHVWPRLNKADLIATARKTWDERRGGRGVRLVGLHVTLLDPQMERQLVLGL 351
                                   249       259       269       279       289       299       309       319       329       339       349

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 8)

Asymmetric/Biological Unit

(-) CATH Domains  (2, 8)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1UNN)

(-) Gene Ontology  (23, 51)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (DPO3B_ECOL6 | P0A989)
molecular function
    GO:0008408    3'-5' exonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by removing nucleotide residues from the 3' end.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0009360    DNA polymerase III complex    The DNA polymerase III holoenzyme is a complex that contains 10 different types of subunits. These subunits are organized into 3 functionally essential sub-assemblies: the pol III core, the beta sliding clamp processivity factor and the clamp-loading complex. The pol III core carries out the polymerase and the 3'-5' exonuclease proofreading activities. The polymerase is tethered to the template via the sliding clamp processivity factor. The clamp-loading complex assembles the beta processivity factor onto the primer template and plays a central role in the organization and communication at the replication fork.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Chain A,B   (DPO3B_ECO57 | P0A990)
molecular function
    GO:0008408    3'-5' exonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by removing nucleotide residues from the 3' end.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0009360    DNA polymerase III complex    The DNA polymerase III holoenzyme is a complex that contains 10 different types of subunits. These subunits are organized into 3 functionally essential sub-assemblies: the pol III core, the beta sliding clamp processivity factor and the clamp-loading complex. The pol III core carries out the polymerase and the 3'-5' exonuclease proofreading activities. The polymerase is tethered to the template via the sliding clamp processivity factor. The clamp-loading complex assembles the beta processivity factor onto the primer template and plays a central role in the organization and communication at the replication fork.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Chain A,B   (DPO3B_ECOLI | P0A988)
molecular function
    GO:0008408    3'-5' exonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by removing nucleotide residues from the 3' end.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0006271    DNA strand elongation involved in DNA replication    The process in which a DNA strand is synthesized from template DNA during replication by the action of polymerases, which add nucleotides to the 3' end of the nascent DNA strand.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0009360    DNA polymerase III complex    The DNA polymerase III holoenzyme is a complex that contains 10 different types of subunits. These subunits are organized into 3 functionally essential sub-assemblies: the pol III core, the beta sliding clamp processivity factor and the clamp-loading complex. The pol III core carries out the polymerase and the 3'-5' exonuclease proofreading activities. The polymerase is tethered to the template via the sliding clamp processivity factor. The clamp-loading complex assembles the beta processivity factor onto the primer template and plays a central role in the organization and communication at the replication fork.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Chain C,D   (DPO4_ECOLI | Q47155)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0003684    damaged DNA binding    Interacting selectively and non-covalently with damaged DNA.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006281    DNA repair    The process of restoring DNA after damage. Genomes are subject to damage by chemical and physical agents in the environment (e.g. UV and ionizing radiations, chemical mutagens, fungal and bacterial toxins, etc.) and by free radicals or alkylating agents endogenously generated in metabolism. DNA is also damaged because of errors during its replication. A variety of different DNA repair pathways have been reported that include direct reversal, base excision repair, nucleotide excision repair, photoreactivation, bypass, double-strand break repair pathway, and mismatch repair pathway.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0000731    DNA synthesis involved in DNA repair    Synthesis of DNA that proceeds from the broken 3' single-strand DNA end and uses the homologous intact duplex as the template.
    GO:0006261    DNA-dependent DNA replication    A DNA replication process that uses parental DNA as a template for the DNA-dependent DNA polymerases that synthesize the new strands.
    GO:0009432    SOS response    An error-prone process for repairing damaged microbial DNA.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
    GO:0019985    translesion synthesis    The replication of damaged DNA by synthesis across a lesion in the template strand; a specialized DNA polymerase or replication complex inserts a defined nucleotide across from the lesion which allows DNA synthesis to continue beyond the lesion. This process can be mutagenic depending on the damaged nucleotide and the inserted nucleotide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1unn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1unn
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DPO3B_ECO57 | P0A990
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  DPO3B_ECOL6 | P0A989
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  DPO3B_ECOLI | P0A988
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  DPO4_ECOLI | Q47155
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.7.7
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DPO3B_ECO57 | P0A990
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  DPO3B_ECOL6 | P0A989
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  DPO3B_ECOLI | P0A988
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  DPO4_ECOLI | Q47155
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DPO3B_ECO57 | P0A9901ok7 1wai
        DPO3B_ECOL6 | P0A9891ok7 1wai
        DPO3B_ECOLI | P0A9881jqj 1jql 1mmi 1ok7 1wai 2pol 2xur 3bep 3d1e 3d1f 3d1g 3f1v 3pwe 3q4j 3q4k 3q4l 3qsb 4k3k 4k3l 4k3m 4k3o 4k3p 4k3q 4k3r 4k3s 4mjp 4mjq 4mjr 4n94 4n95 4n96 4n97 4n98 4n99 4n9a 5fku 5fkv 5fkw 5m1s
        DPO4_ECOLI | Q471551ok7 4ir1 4ir9 4irc 4ird 4irk 4q43 4q44 4q45 4r8u 5c5j

(-) Related Entries Specified in the PDB File

1jqj MECHANISM OF PROCESSIVITY CLAMP OPENING BY THE DELTASUBUNIT WRENCH OF THE CLAMP LOADER COMPLEX OF E. COLI DNAPOLYMERASE III: STRUCTURE OF THE BETA-DELTA COMPLEX
1jql MECHANISM OF PROCESSIVITY CLAMP OPENING BY THE DELTASUBUNIT WRENCH OF THE CLAMP LOADER COMPLEX OF E. COLI DNAPOLYMERASE III: STRUCTURE OF BETA-DELTA (1-140)
1mmi E. COLI DNA POLYMERASE BETA SUBUNIT
1ok7 A CONSERVED PROTEIN BINDING-SITE ON BACTERIAL SLIDING CLAMPS
1wai DEOXYRIBONUCLEIC ACID POLYMERASE FROM BACTERIOPHAGE RB69, ALPHA-CARBONS ONLY, WITH DEOXYRIBONUCLEIC ACID MODELED IN THE POLYMERASE ACTIVE SITE, THEORETICAL MODEL
2pol POL III (BETA SUBUNIT)
