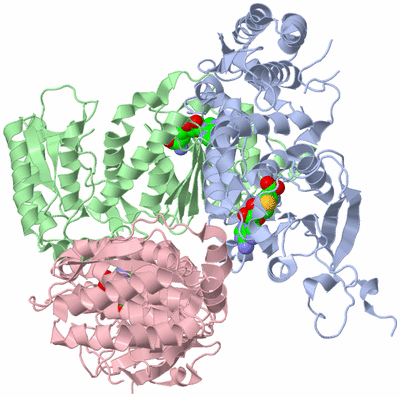

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

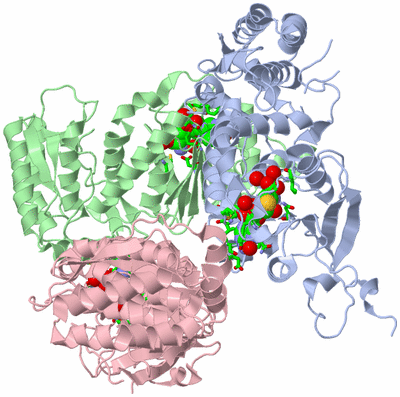

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

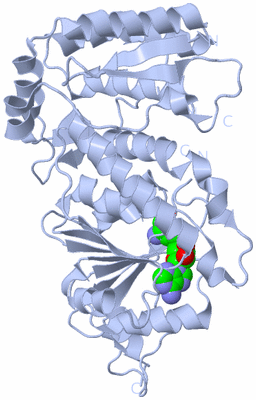

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

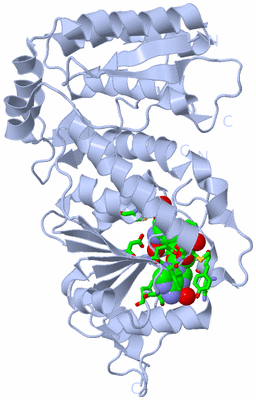

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

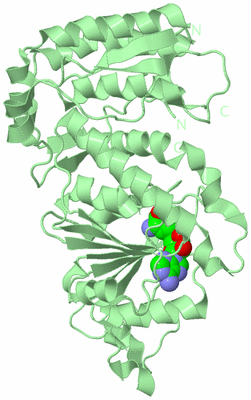

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

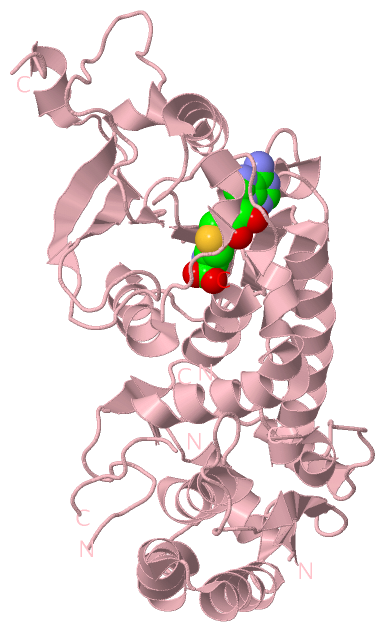

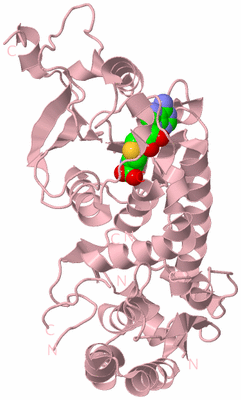

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HISTONE K79 METHYLTRANSFERASE DOT1P FROM YEAST

Authors :  K. Sawada, Z. Yang, J. R. Horton, R. E. Collins, X. Zhang, X. Cheng
Date :  20 Jul 04  (Deposition) - 07 Sep 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Keywords :  Histone Methyltransferase, Nucleosome (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. Sawada, Z. Yang, J. R. Horton, R. E. Collins, X. Zhang, X. Cheng
Structure Of The Conserved Core Of The Yeast Dot1P, A Nucleosomal Histone H3 Lysine 79 Methyltransferase
J. Biol. Chem. V. 279 43296 2004
PubMed-ID: 15292170  |  Reference-DOI: 10.1074/JBC.M405902200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HISTONE-LYSINE N-METHYLTRANSFERASE, H3 LYSINE-79 SPECIFIC
    ChainsA, B, C
    EC Number2.1.1.43
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21
    Expression System PlasmidPXC415
    Expression System StrainBL21
    Expression System Taxid511693
    Expression System Vector TypePLASMID
    FragmentC-TERMINAL DOMAIN
    GeneDOT1
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE
    Organism Taxid4932
    SynonymHISTONE H3-K79 METHYLTRANSFERASE, H3-K79-HMTASE, DISRUPTER OF TELOMERE SILENCING PROTEIN 1

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit ABC
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B
Biological Unit 3 (1x)  C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1SAH3Ligand/IonS-ADENOSYL-L-HOMOCYSTEINE
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1SAH1Ligand/IonS-ADENOSYL-L-HOMOCYSTEINE
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1SAH1Ligand/IonS-ADENOSYL-L-HOMOCYSTEINE
Biological Unit 3 (1, 1)
No.NameCountTypeFull Name
1SAH1Ligand/IonS-ADENOSYL-L-HOMOCYSTEINE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN A:369 , TYR A:370 , GLY A:373 , LEU A:375 , ASP A:397 , GLY A:399 , CYS A:405 , GLU A:422 , ILE A:423 , MET A:424 , SER A:459 , PHE A:460 , ASN A:479 , HOH A:802 , HOH A:814 , HOH A:867 , HOH A:874 , HOH A:916 , GLU C:197BINDING SITE FOR RESIDUE SAH A 801
2AC2SOFTWAREASN B:369 , TYR B:370 , GLY B:373 , LEU B:375 , ASP B:397 , GLY B:399 , CYS B:405 , GLU B:422 , ILE B:423 , MET B:424 , SER B:459 , PHE B:460 , ASN B:479 , HOH B:805 , HOH B:806 , HOH B:810 , HOH B:811 , HOH B:812BINDING SITE FOR RESIDUE SAH B 802
3AC3SOFTWAREASN C:369 , TYR C:370 , GLY C:373 , LEU C:375 , ASP C:397 , GLY C:399 , CYS C:405 , GLU C:422 , ILE C:423 , MET C:424 , SER C:459 , PHE C:460 , ASN C:479 , LEU C:487 , HOH C:805 , HOH C:825 , HOH C:830 , HOH C:858 , HOH C:878BINDING SITE FOR RESIDUE SAH C 803

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1U2Z)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Ser A:282 -Pro A:283
2Ser B:282 -Pro B:283
3Ser C:282 -Pro C:283

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1U2Z)

(-) PROSITE Motifs  (1, 3)

Asymmetric Unit (1, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DOT1PS51569 Histone-lysine N-methyltransferase DOT1 (EC 2.1.1.43) domain profile.DOT1_YEAST254-568


  3A:254-567
B:254-566
C:254-568
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DOT1PS51569 Histone-lysine N-methyltransferase DOT1 (EC 2.1.1.43) domain profile.DOT1_YEAST254-568


  1A:254-567
-
-
Biological Unit 2 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DOT1PS51569 Histone-lysine N-methyltransferase DOT1 (EC 2.1.1.43) domain profile.DOT1_YEAST254-568


  1-
B:254-566
-
Biological Unit 3 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DOT1PS51569 Histone-lysine N-methyltransferase DOT1 (EC 2.1.1.43) domain profile.DOT1_YEAST254-568


  1-
-
C:254-568

(-) Exons   (1, 3)

Asymmetric Unit (1, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YDR440W1YDR440W.1IV:1342486-13442341749DOT1_YEAST1-5825823A:176-581 (gaps)
B:177-581 (gaps)
C:176-582 (gaps)
406
405
407

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:379
 aligned with DOT1_YEAST | Q04089 from UniProtKB/Swiss-Prot  Length:582

    Alignment length:406
                                   185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515       525       535       545       555       565       575
           DOT1_YEAST   176 SSTFVDWNGPCLRLQYPLFDIEYLRSHEIYSGTPIQSISLRTNSPQPTSLTSDNDTSSVTTAKLQSILFSNYMEEYKVDFKRSTAIYNPMSEIGKLIEYSCLVFLPSPYAEQLKETILPDLNASFDNSDTKGFVNAINLYNKMIREIPRQRIIDHLETIDKIPRSFIHDFLHIVYTRSIHPQANKLKHYKAFSNYVYGELLPNFLSDVYQQCQLKKGDTFMDLGSGVGNCVVQAALECGCALSFGCEIMDDASDLTILQYEELKKRCKLYGMRLNNVEFSLKKSFVDNNRVAELIPQCDVILVNNFLFDEDLNKKVEKILQTAKVGCKIISLKSLRSLTYQINFYNVENIFNRLKVQRYDLKEDSVSWTHSGGEYYISTVMEDVDESLFSPAARGRRNRGTPVKYT 581
               SCOP domains d1u2za_ A: Catalytic, N-terminal domain o                  f histone methyltransferase Dot1l                                                                                                                                                                                                                                                                                                                           SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eee......hhhhhhhh........hhhhh.------------------.eeeee.......eeeee..........hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh..hhhhhhhhhh...eeehhhhhhhhhhhhhhhhhhhhhhhh....hhhhh....hhhhhhhhhhhh......eeeee....hhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh......eeeee......hhhhhhhhhhh.eeee.....hhhhhhhhhhhhh......eeee.................hhhh.eeeeeee.............eeeeeee....hhhhh...------.---.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------DOT1  PDB: A:254-567 UniProt: 254-568                                                                                                                                                                                                                                                                                      ------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:176-581 (gaps) UniProt: 1-582 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                            Transcript 1
                 1u2z A 176 SSTFVDWNGPCLRLQYPLFDIEYLRSHEIYSGTPIQSISLR------------------TTAKLQSILFSNYMEEYKVDFKRSTAIYNPMSEIGKLIEYSCLVFLPSPYAEQLKETILPDLNASFDNSDTKGFVNAINLYNKMIREIPRQRIIDHLETIDKIPRSFIHDFLHIVYTRSIHPQANKLKHYKAFSNYVYGELLPNFLSDVYQQCQLKKGDTFMDLGSGVGNCVVQAALECGCALSFGCEIMDDASDLTILQYEELKKRCKLYGMRLNNVEFSLKKSFVDNNRVAELIPQCDVILVNNFLFDEDLNKKVEKILQTAKVGCKIISLKSLRSLTYQINFYNVENIFNRLKVQRYDLKEDSVSWTHSGGEYYISTVMEDVDESLFSPA------R---VKYT 581
                                   185       195       205       215|        -       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515       525       535       545       555       565 |      |-  |
                                                                  216                235                                                                                                                                                                                                                                                                                                                                         567    574 578

Chain B from PDB  Type:PROTEIN  Length:379
 aligned with DOT1_YEAST | Q04089 from UniProtKB/Swiss-Prot  Length:582

    Alignment length:405
                                   186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576
           DOT1_YEAST   177 STFVDWNGPCLRLQYPLFDIEYLRSHEIYSGTPIQSISLRTNSPQPTSLTSDNDTSSVTTAKLQSILFSNYMEEYKVDFKRSTAIYNPMSEIGKLIEYSCLVFLPSPYAEQLKETILPDLNASFDNSDTKGFVNAINLYNKMIREIPRQRIIDHLETIDKIPRSFIHDFLHIVYTRSIHPQANKLKHYKAFSNYVYGELLPNFLSDVYQQCQLKKGDTFMDLGSGVGNCVVQAALECGCALSFGCEIMDDASDLTILQYEELKKRCKLYGMRLNNVEFSLKKSFVDNNRVAELIPQCDVILVNNFLFDEDLNKKVEKILQTAKVGCKIISLKSLRSLTYQINFYNVENIFNRLKVQRYDLKEDSVSWTHSGGEYYISTVMEDVDESLFSPAARGRRNRGTPVKYT 581
               SCOP domains d1u2zb_ B: Catalytic, N-terminal domain o                 f histone methyltransferase Dot1l                                                                                                                                                                                                                                                                                                                           SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eee......hhhhhhhh........hhhhh..-----------------.eeeee.......eeeee..........hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.hhhhhhhhhh...eeehhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh....hhhhhhhhhhhh......eeeee....hhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh......eeeee......hhhhhhhhhhh.eeee.....hhhhhhhhhhhhh......eeee...........hhhhh.hhhh.eeeeeee.............eeeeeee....hhhhh..-------.--..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------DOT1  PDB: B:254-566 UniProt: 254-568                                                                                                                                                                                                                                                                                      ------------- PROSITE
               Transcript 1 Exon 1.1  PDB: B:177-581 (gaps) UniProt: 1-582 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                           Transcript 1
                 1u2z B 177 STFVDWNGPCLRLQYPLFDIEYLRSHEIYSGTPIQSISLRT-----------------TTAKLQSILFSNYMEEYKVDFKRSTAIYNPMSEIGKLIEYSCLVFLPSPYAEQLKETILPDLNASFDNSDTKGFVNAINLYNKMIREIPRQRIIDHLETIDKIPRSFIHDFLHIVYTRSIHPQANKLKHYKAFSNYVYGELLPNFLSDVYQQCQLKKGDTFMDLGSGVGNCVVQAALECGCALSFGCEIMDDASDLTILQYEELKKRCKLYGMRLNNVEFSLKKSFVDNNRVAELIPQCDVILVNNFLFDEDLNKKVEKILQTAKVGCKIISLKSLRSLTYQINFYNVENIFNRLKVQRYDLKEDSVSWTHSGGEYYISTVMEDVDESLFSP-------R--PVKYT 581
                                   186       196       206       216|        -       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       | -|
                                                                  217               235                                                                                                                                                                                                                                                                                                                                        566     574  |
                                                                                                                                                                                                                                                                                                                                                                                                                                          577

Chain C from PDB  Type:PROTEIN  Length:385
 aligned with DOT1_YEAST | Q04089 from UniProtKB/Swiss-Prot  Length:582

    Alignment length:407
                                   185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515       525       535       545       555       565       575
           DOT1_YEAST   176 SSTFVDWNGPCLRLQYPLFDIEYLRSHEIYSGTPIQSISLRTNSPQPTSLTSDNDTSSVTTAKLQSILFSNYMEEYKVDFKRSTAIYNPMSEIGKLIEYSCLVFLPSPYAEQLKETILPDLNASFDNSDTKGFVNAINLYNKMIREIPRQRIIDHLETIDKIPRSFIHDFLHIVYTRSIHPQANKLKHYKAFSNYVYGELLPNFLSDVYQQCQLKKGDTFMDLGSGVGNCVVQAALECGCALSFGCEIMDDASDLTILQYEELKKRCKLYGMRLNNVEFSLKKSFVDNNRVAELIPQCDVILVNNFLFDEDLNKKVEKILQTAKVGCKIISLKSLRSLTYQINFYNVENIFNRLKVQRYDLKEDSVSWTHSGGEYYISTVMEDVDESLFSPAARGRRNRGTPVKYTR 582
               SCOP domains d1u2zc_ C: Catalytic, N-terminal domain of                  histone methyltransferase Dot1l                                                                                                                                                                                                                                                                                                                             SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DOT1-1u2zC01 C:350-555                                                                                                                                                                                        --------------------------- Pfam domains (1)
           Pfam domains (2) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DOT1-1u2zC02 C:350-555                                                                                                                                                                                        --------------------------- Pfam domains (2)
           Pfam domains (3) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DOT1-1u2zC03 C:350-555                                                                                                                                                                                        --------------------------- Pfam domains (3)
         Sec.struct. author ..........eee......hhhhhhhh........hhhhh..-----------------.eeeee.......eeeee..........hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh..hhhhhhhhhh...eeehhhhhhhhhhhhhhhhhhhhhhhh....hhhhh....hhhhhhhhhhhh......eeeee....hhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh......eeeee......hhhhhhhhhhh.eeee.....hhhhhhhhhhhhh......eeee.................hhhh.eeeeeee.............eeeeeee....hhhhhh....----.-....... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------DOT1  PDB: C:254-568 UniProt: 254-568                                                                                                                                                                                                                                                                                      -------------- PROSITE
               Transcript 1 Exon 1.1  PDB: C:176-582 (gaps) UniProt: 1-582 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                             Transcript 1
                 1u2z C 176 SSTFVDWNGPCLRLQYPLFDIEYLRSHEIYSGTPIQSISLRT-----------------TTAKLQSILFSNYMEEYKVDFKRSTAIYNPMSEIGKLIEYSCLVFLPSPYAEQLKETILPDLNASFDNSDTKGFVNAINLYNKMIREIPRQRIIDHLETIDKIPRSFIHDFLHIVYTRSIHPQANKLKHYKAFSNYVYGELLPNFLSDVYQQCQLKKGDTFMDLGSGVGNCVVQAALECGCALSFGCEIMDDASDLTILQYEELKKRCKLYGMRLNNVEFSLKKSFVDNNRVAELIPQCDVILVNNFLFDEDLNKKVEKILQTAKVGCKIISLKSLRSLTYQINFYNVENIFNRLKVQRYDLKEDSVSWTHSGGEYYISTVMEDVDESLFSPAAR----R-TPVKYTR 582
                                   185       195       205       215 |       -       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515       525       535       545       555       565   |    |-|
                                                                   217               235                                                                                                                                                                                                                                                                                                                                           569  574 |
                                                                                                                                                                                                                                                                                                                                                                                                                                          576

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1U2Z)

(-) Pfam Domains  (1, 3)

Asymmetric Unit

(-) Gene Ontology  (23, 23)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (DOT1_YEAST | Q04089)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0031151    histone methyltransferase activity (H3-K79 specific)    Catalysis of the reaction: S-adenosyl-L-methionine + histone H3 L-lysine (position 79) = S-adenosyl-L-homocysteine + histone H3 N6-methyl-L-lysine (position 79). This reaction is the addition of a methyl group onto lysine at position 79 of the histone H3 protein.
    GO:0018024    histone-lysine N-methyltransferase activity    Catalysis of the reaction: S-adenosyl-L-methionine + histone L-lysine = S-adenosyl-L-homocysteine + histone N6-methyl-L-lysine. The methylation of peptidyl-lysine in histones forms N6-methyl-L-lysine, N6,N6-dimethyl-L-lysine and N6,N6,N6-trimethyl-L-lysine derivatives.
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0031493    nucleosomal histone binding    Interacting selectively and non-covalently with a histone that is assembled into a nucleosome.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0000077    DNA damage checkpoint    A cell cycle checkpoint that regulates progression through the cell cycle in response to DNA damage. A DNA damage checkpoint may blocks cell cycle progression (in G1, G2 or metaphase) or slow the rate at which S phase proceeds.
    GO:0006281    DNA repair    The process of restoring DNA after damage. Genomes are subject to damage by chemical and physical agents in the environment (e.g. UV and ionizing radiations, chemical mutagens, fungal and bacterial toxins, etc.) and by free radicals or alkylating agents endogenously generated in metabolism. DNA is also damaged because of errors during its replication. A variety of different DNA repair pathways have been reported that include direct reversal, base excision repair, nucleotide excision repair, photoreactivation, bypass, double-strand break repair pathway, and mismatch repair pathway.
    GO:0044783    G1 DNA damage checkpoint    A cell cycle checkpoint that detects and negatively regulates progression from G1 to S phase in the cell cycle in response to DNA damage.
    GO:0006348    chromatin silencing at telomere    Repression of transcription of telomeric DNA by altering the structure of chromatin.
    GO:0070911    global genome nucleotide-excision repair    The nucleotide-excision repair process in which DNA lesions are removed from nontranscribed strands and from transcriptionally silent regions over the entire genome.
    GO:0034729    histone H3-K79 methylation    The modification of histone H3 by addition of a methyl group to lysine at position 79 of the histone.
    GO:0031573    intra-S DNA damage checkpoint    A mitotic cell cycle checkpoint that slows DNA synthesis in response to DNA damage by the prevention of new origin firing and the stabilization of slow replication fork progression.
    GO:0051598    meiotic recombination checkpoint    A checkpoint that acts during late prophase I (pachytene) and prevents segregation of homologous chromosomes until recombination is completed, ensuring proper distribution of the genetic material to the gametes.
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0006289    nucleotide-excision repair    A DNA repair process in which a small region of the strand surrounding the damage is removed from the DNA helix as an oligonucleotide. The small gap left in the DNA helix is filled in by the sequential action of DNA polymerase and DNA ligase. Nucleotide excision repair recognizes a wide range of substrates, including damage caused by UV irradiation (pyrimidine dimers and 6-4 photoproducts) and chemicals (intrastrand cross-links and bulky adducts).
    GO:0006301    postreplication repair    The conversion of DNA-damage induced single-stranded gaps into large molecular weight DNA after replication. Includes pathways that remove replication-blocking lesions in conjunction with DNA replication.
    GO:0000725    recombinational repair    A DNA repair process that involves the exchange, reciprocal or nonreciprocal, of genetic material between the broken DNA molecule and a homologous region of DNA.
    GO:0051726    regulation of cell cycle    Any process that modulates the rate or extent of progression through the cell cycle.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0000781    chromosome, telomeric region    The terminal region of a linear chromosome that includes the telomeric DNA repeats and associated proteins.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SAH  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser A:282 - Pro A:283   [ RasMol ]
    Ser B:282 - Pro B:283   [ RasMol ]
    Ser C:282 - Pro C:283   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1u2z
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DOT1_YEAST | Q04089
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.1.1.43
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DOT1_YEAST | Q04089
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DOT1_YEAST | Q040891m0r

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1U2Z)
