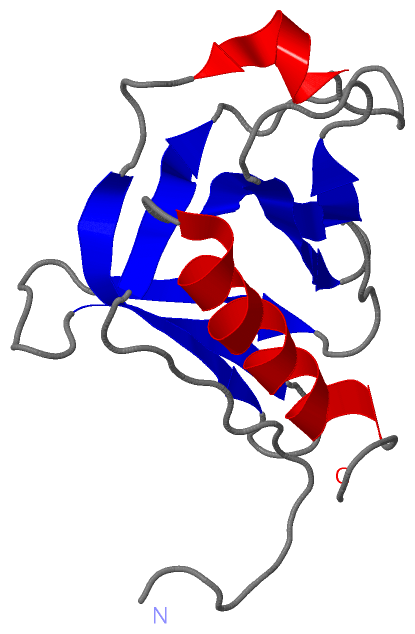

NMR Structure - model 1

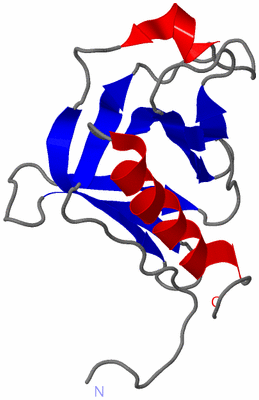

NMR Structure - all models

collapse

expand

NMR Structure - model 1 (Jmol Viewer)

NMR Structure - all models (Jmol Viewer)

Description

Title :   SOLUTION STRUCTURE OF NECAP1 PROTEIN

Authors :   A. Y. Denisov, B. Ritter, P. S. Mcpherson, K. Gehring

Date :   18 Jun 04 (Deposition) - 26 Jul 05 (Release) - 24 Feb 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (10x)

Keywords :   Necap1 Protein, Endocytosis, Structural Genomics, Endocytosis/Exocytosis Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Y. Denisov, B. Ritter, P. S. Mcpherson, K. Gehring
Solution Structure Of Necap1 Protein
To Be Published
PubMed: search
(for further references see the PDB file header)

Compounds

Molecule 1 - NECAP1
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21
	Expression System Plasmid	:	PGEX-4T1
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Expression System Vector Type	:	PLASMID
	Fragment	:	RESIDUES 1-133
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

Structural Features

Chains, Units


NMR Structure (10x)	:

Summary Information (see also Sequences/Alignments below)

Ligands, Modified Residues, Ions (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1TQZ)

Sites (0, 0)

(no "Site" information available for 1TQZ)

SS Bonds (0, 0)

(no "SS Bond" information available for 1TQZ)

Cis Peptide Bonds (0, 0)

(no "Cis Peptide Bond" information available for 1TQZ)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

(no "SAP(SNP)/Variant" information available for 1TQZ)

PROSITE Motifs (0, 0)

(no "PROSITE Motif" information available for 1TQZ)

Exons (5, 5)

NMR Structure (5, 5)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.2a	ENSMUST00000032477	2a	ENSMUSE00000197510	chr6:122824575-122824681	107	NECP1_MOUSE	1-32	32	1	A:1-32	32
1.3	ENSMUST00000032477	3	ENSMUSE00000197509	chr6:122830431-122830531	101	NECP1_MOUSE	32-66	35	1	A:32-66	35
1.4	ENSMUST00000032477	4	ENSMUSE00000197508	chr6:122830676-122830780	105	NECP1_MOUSE	66-101	36	1	A:66-101	36
1.5	ENSMUST00000032477	5	ENSMUSE00000197512	chr6:122831519-122831600	82	NECP1_MOUSE	101-128	28	1	A:101-128	28
1.6	ENSMUST00000032477	6	ENSMUSE00000283160	chr6:122832286-122832394	109	NECP1_MOUSE	128-164	37	1	A:128-133	6
1.7	ENSMUST00000032477	7	ENSMUSE00000406256	chr6:122832832-122833015	184	NECP1_MOUSE	165-226	62	0	-	-
1.8	ENSMUST00000032477	8	ENSMUSE00000197506	chr6:122836770-122836872	103	NECP1_MOUSE	226-260	35	0	-	-
1.9b	ENSMUST00000032477	9b	ENSMUSE00000413158	chr6:122837358-122838952	1595	NECP1_MOUSE	260-275	16	0	-	-

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:133
 aligned with NECP1_MOUSE | Q9CR95 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:133
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
          NECP1_MOUSE     1 MAAELEYESVLCVKPDVSVYRIPPRASNRGYRASDWKLDQPDWTGRLRITSKGKIAYIKLEDKVSGELFAQAPVEQYPGIAVETVTDSSRYFVIRIQDGTGRSAFIGIGFTDRGDAFDFNVSLQDHFKWVKQE 133
               SCOP domains d1tqza1 A:1-133 Necap1                                                                                                                SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----DUF1681-1tqzA01 A:6-133                                                                                                          Pfam domains
         Sec.struct. author ................eeeee..........hhhhhh.....eeeeeeee.....eeeeee........eeeee.......eee.......eeeeeee...eeeeeeee..hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.2a  PDB: A:1-32          ---------------------------------Exon 1.4  PDB: A:66-101             --------------------------1.6    Transcript 1 (1)
           Transcript 1 (2) -------------------------------Exon 1.3  PDB: A:32-66             ----------------------------------Exon 1.5  PDB: A:101-128    ----- Transcript 1 (2)
                 1tqz A   1 MAAELEYESVLCVKPDVSVYRIPPRASNRGYRASDWKLDQPDWTGRLRITSKGKIAYIKLEDKVSGELFAQAPVEQYPGIAVETVTDSSRYFVIRIQDGTGRSAFIGIGFTDRGDAFDFNVSLQDHFKWVKQE 133
                                    10        20        30        40        50        60        70        80        90       100       110       120       130

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

NMR Structure

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: PH domain-like barrel (258)

Superfamily: PH domain-like (257)

Family: Necap1 N-terminal domain-like (1)

Protein domain: Necap1 (1)

Mouse (Mus musculus) [TaxId: 10090] (1)

d1tqza1

A:1-133

CATH Domains (0, 0)

(no "CATH Domain" information available for 1TQZ)

Pfam Domains (1, 1)

NMR Structure

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: DUF1681] (1)

Family: DUF1681 (1)

Mus musculus (Mouse) (1)

DUF1681-1tqzA01

A:6-133

Gene Ontology (10, 10)

NMR Structure(hide GO term definitions)

Chain A (NECP1_MOUSE | Q9CR95)

molecular function
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0006897	endocytosis	A vesicle-mediated transport process in which cells take up external materials or membrane constituents by the invagination of a small region of the plasma membrane to form a new membrane-bounded vesicle.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0030125	clathrin vesicle coat	A clathrin coat found on a vesicle.
	GO:0005905	clathrin-coated pit	A part of the endomembrane system in the form of an invagination of a membrane upon which a clathrin coat forms, and that can be converted by vesicle budding into a clathrin-coated vesicle. Coated pits form on the plasma membrane, where they are involved in receptor-mediated selective transport of many proteins and other macromolecules across the cell membrane, in the trans-Golgi network, and on some endosomes.
	GO:0030665	clathrin-coated vesicle membrane	The lipid bilayer surrounding a clathrin-coated vesicle.
	GO:0031410	cytoplasmic vesicle	A vesicle found in the cytoplasm of a cell.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1tqz)

	Sites
(no "Sites" information available for 1tqz)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1tqz)

Still Images

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1tqz
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	NECP1_MOUSE \| Q9CR95
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	NECP1_MOUSE \| Q9CR95
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
