1SUZ | PD0530 - JenaLib

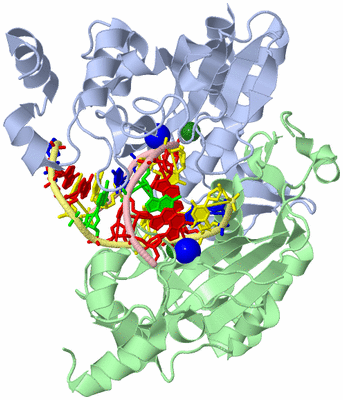

Asym./Biol. Unit (Jmol Viewer)

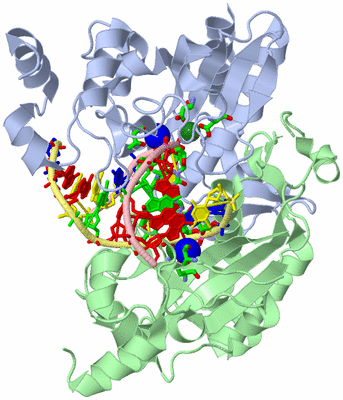

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   THE STRUCTURE OF K92A ECORV BOUND TO COGNATE DNA AND MG2+

Authors :   N. C. Horton, J. J. Perona

Date :   26 Mar 04 (Deposition) - 06 Apr 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Protein-Dna Complex, Phosphoryltransfer, Hydrolase/Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   N. C. Horton, J. J. Perona
Dna Cleavage By Ecorv Endonuclease: Two Metal Ions In Three Metal Ion Binding Sites.
Biochemistry V. 43 6841 2004
PubMed-ID: 15170321 | Reference-DOI: 10.1021/BI0499056
(for further references see the PDB file header)

*Molecule 1 - 5'-D(CAPAPGPAPTPAPTPCPTPT)-3'**
	Chains	:	C, D
	Engineered	:	YES
	Synthetic	:	YES

Molecule 2 - TYPE II RESTRICTION ENZYME ECORV
	Chains	:	A, B
	EC Number	:	3.1.21.4
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Strain	:	MM294
	Expression System Taxid	:	562
	Gene	:	ECORVR
	Mutation	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	ENDONUCLEASE ECORV, R.ECORV

		1	2	3	4
Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 4)

No.	Name	Count	Type	Full Name
1	MG	2	Ligand/Ion	MAGNESIUM ION
2	NA	2	Ligand/Ion	SODIUM ION

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP B:74 , ASP B:90 , HOH B:413 , HOH B:414 , DT D:6 , DA D:7 , HOH D:31	BINDING SITE FOR RESIDUE MG B 401
2	AC2	SOFTWARE	ASP A:74 , ASP A:90 , HOH A:425 , HOH A:428 , DT C:6 , DA C:7 , HOH C:49	BINDING SITE FOR RESIDUE MG A 402
3	AC3	SOFTWARE	THR A:106 , HOH A:540 , DA C:7 , DT C:8 , HOH C:195	BINDING SITE FOR RESIDUE NA A 403
4	AC4	SOFTWARE	THR B:106 , HOH B:427 , HOH B:497 , DA D:7 , DT D:8	BINDING SITE FOR RESIDUE NA B 404

(no "SS Bond" information available for 1SUZ)

Asymmetric/Biological Unit

No.	Residues
1	Tyr A:72	-	Pro A:73
2	Tyr B:72	-	Pro B:73

(no "SAP(SNP)/Variant" information available for 1SUZ)

(no "PROSITE Motif" information available for 1SUZ)

(no "Exon" information available for 1SUZ)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:243
 aligned with T2E5_ECOLX | P04390 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:244
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241
           T2E5_ECOLX     2 SLRSDLINALYDENQKYDVCGIISAEGKIYPLGSDTKVLSTIFELFSRPIINKIAEKHGYIVEEPKQQNHYPDFTLYKPSEPNKKIAIDIKTTYTNKENEKIKFTLGGYTSFIRNNTKNIVYPFDQYIAHWIIGYVYTRVATRKSSLKTYNINELNEIPKPYKGVKVFLQDKWVIAGDLAGSGNTTNIGSIHAHYKDFVEGKGIFDSEDEFLDYWRNYERTSQLRNDKYNNISEYRNWIYRGRK 245
               SCOP domains d1suza_ A: Restriction endonuclease EcoRV                                                                                                                                                                                                            SCOP domains
               CATH domains 1suzA00 A:2-245  [code=3.40.600.10, no name defined]                                                                                                                                                                                                 CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh.eeeeee....eee...hhhhhhhhhhhhhhhhhhhhhhhh..eee..........eeee.......eeeeeeeeeee.........eeee..............hhh.eeeeeeeeeeee....-hhhhh..hhhhhhhh.......eeeeeehhhhh..........eee....hhhhhhhh.....hhhhhhhhhhh...hhhhhhhh..hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1suz A   2 SLRSDLINALYDENQKYDVCGIISAEGKIYPLGSDTKVLSTIFELFSRPIINKIAEKHGYIVEEPKQQNHYPDFTLYKPSEPNKKIAIDIATTYTNKENEKIKFTLGGYTSFIRNNTKNIVYPFDQYIAHWIIGYVYTRVAT-KSSLKTYNINELNEIPKPYKGVKVFLQDKWVIAGDLAGSGNTTNIGSIHAHYKDFVEGKGIFDSEDEFLDYWRNYERTSQLRNDKYNNISEYRNWIYRGRK 245
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141 | |   151       161       171       181       191       201       211       221       231       241
                                                                                                                                                                       143 |
                                                                                                                                                                         145

Chain B from PDB  Type:PROTEIN  Length:237
 aligned with T2E5_ECOLX | P04390 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:244
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241
           T2E5_ECOLX     2 SLRSDLINALYDENQKYDVCGIISAEGKIYPLGSDTKVLSTIFELFSRPIINKIAEKHGYIVEEPKQQNHYPDFTLYKPSEPNKKIAIDIKTTYTNKENEKIKFTLGGYTSFIRNNTKNIVYPFDQYIAHWIIGYVYTRVATRKSSLKTYNINELNEIPKPYKGVKVFLQDKWVIAGDLAGSGNTTNIGSIHAHYKDFVEGKGIFDSEDEFLDYWRNYERTSQLRNDKYNNISEYRNWIYRGRK 245
               SCOP domains d1suzb_ B: Restriction endonuclease EcoRV                                                                                                                                                                                                            SCOP domains
               CATH domains 1suzB00 B:2-245  [code=3.40.600.10, no name defined]                                                                                                                                                                                                 CATH domains
           Pfam domains (1) ---Endonuc-EcoRV-1suzB01 B:5-244                                                                                                                                                                                                                   - Pfam domains (1)
           Pfam domains (2) ---Endonuc-EcoRV-1suzB02 B:5-244                                                                                                                                                                                                                   - Pfam domains (2)
         Sec.struct. author hhhhhhhhhhhhhhhhh.eeeeee....eee...hhhhhhhhhhhhhhhhhhhhhhhh..eee..........eeee.......eeeeeeeeeee.---.....eeee..............hhh.eeeeeeeeeeee...----.....hhhhhhhh.......eeeeeehhhhh..........eee....hhhhhhhh.....hhhhhhhhhhh...hhhhhhh...hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1suz B   2 SLRSDLINALYDENQKYDVCGIISAEGKIYPLGSDTKVLSTIFELFSRPIINKIAEKHGYIVEEPKQQNHYPDFTLYKPSEPNKKIAIDIATTYTN---EKIKFTLGGYTSFIRNNTKNIVYPFDQYIAHWIIGYVYTRVA----SLKTYNINELNEIPKPYKGVKVFLQDKWVIAGDLAGSGNTTNIGSIHAHYKDFVEGKGIFDSEDEFLDYWRNYERTSQLRNDKYNNISEYRNWIYRGRK 245
                                    11        21        31        41        51        61        71        81        91     | 101       111       121       131       141|    | 151       161       171       181       191       201       211       221       231       241
                                                                                                                          97 101                                      142  147

Chain C from PDB  Type:DNA  Length:10

                 1suz C   2 AAGATATCTT  11
                                    11

Chain D from PDB  Type:DNA  Length:10

                 1suz D   1 CAAGATATCT  10
                                    10

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Restriction endonuclease-like (209)

Superfamily: Restriction endonuclease-like (170)

Family: Restriction endonuclease EcoRV (30)

Protein domain: Restriction endonuclease EcoRV (30)

Escherichia coli [TaxId: 562] (30)

1a	d1suza_	A:
1b	d1suzb_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: ECO RV Endonuclease; Chain A (56)

Homologous Superfamily: [code=3.40.600.10, no name defined] (55)

[unclassified] (40)

1a	1suzB00	B:2-245
1b	1suzA00	A:2-245

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: Endonuc-EcoRV] (9)

Family: Endonuc-EcoRV (9)

Escherichia coli (9)

1a	Endonuc-EcoRV-1suzB01	B:5-244
1b	Endonuc-EcoRV-1suzB02	B:5-244

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (T2E5_ECOLX | P04390)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0009036	Type II site-specific deoxyribonuclease activity	Catalysis of the endonucleolytic cleavage of DNA to give specific double-stranded fragments with terminal 5'-phosphates and 3' hydroxyls. Cleavage is dependent on the presence in the DNA of a specific recognition site; cleavage occurs at or very near this recognition site.
	GO:0004519	endonuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0004518	nuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids.
biological process
	GO:0009307	DNA restriction-modification system	A defense process found in many bacteria and archaea that protects the organism from invading foreign DNA by cleaving it with a restriction endonuclease. The organism's own DNA is protected by methylation of a specific nucleotide, which occurs immediately following replication, in the same target site as the restriction enzyme.
	GO:0090305	nucleic acid phosphodiester bond hydrolysis	The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.

Asymmetric/Biological Unit

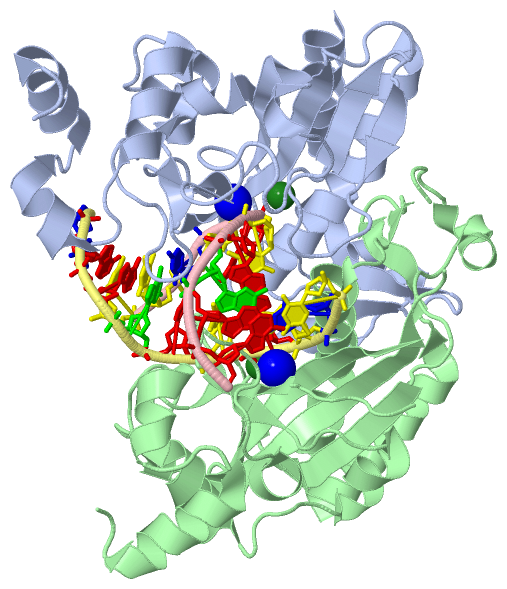

	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

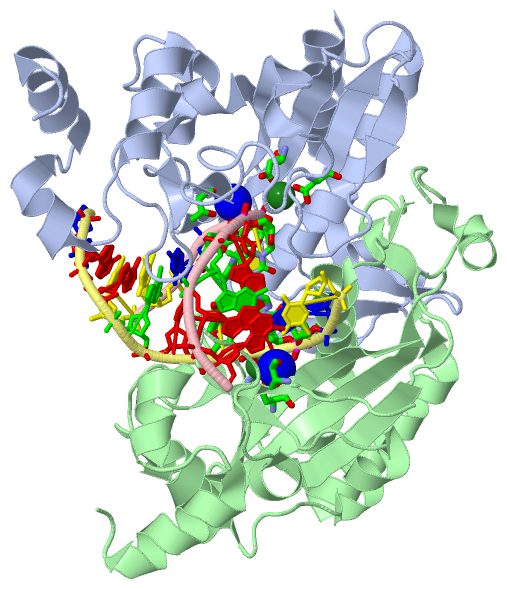

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Tyr A:72 - Pro A:73	[ RasMol ]
		Tyr B:72 - Pro B:73	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1suz
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	T2E5_ECOLX \| P04390
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.1.21.4
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	T2E5_ECOLX \| P04390
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
