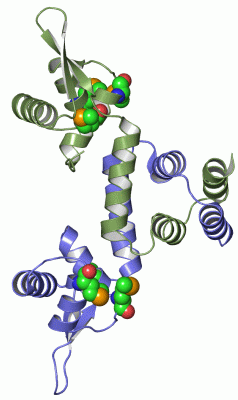

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

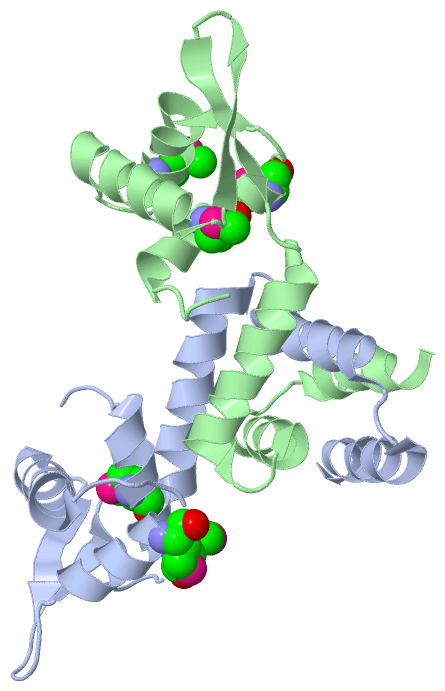

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A SEMET DERIVATIVE OF MECI AT 2.65 A

Authors :  M. K. Safo, Q. Zhao, F. N. Musayev, H. Robinson, N. Scarsdale, G. L. Archer
Date :  13 Feb 04  (Deposition) - 24 Feb 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.65
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Blai, Meci, Repressor, Methicillin, B-Lactam, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. K. Safo, Q. Zhao, T. -P. Ko, F. N. Musayev, H. Robinson, N. Scarsdale, A. H. -J. Wang, G. L. Archer
Crystal Structures Of The Blai Repressor From Staphylococcus Aureus And Its Complex With Dna: Insights Into Transcriptional Regulation Of The Bla And Mec Operons
J. Bacteriol. V. 187 1833 2005
PubMed-ID: 15716455  |  Reference-DOI: 10.1128/JB.187.5.1833-1844.2005
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - METHICILLIN RESISTANCE REGULATORY PROTEIN MECI
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET3
    Expression System Strain: B834 (DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: MECI, SA0040
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Synonym: MECI

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 6)

Asymmetric/Biological Unit (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1SD7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SD7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SD7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SD7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SD7)

(-) Exons   (0, 0)

(no "Exon" information available for 1SD7)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:119
 aligned with MECI_STAAN | P68261 from UniProtKB/Swiss-Prot  Length:123

    Alignment length:119
                                    14        24        34        44        54        64        74        84        94       104       114
           MECI_STAAN     5 TYEISSAEWEVMNIIWMKKYASANNIIEEIQMQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNKK 123
               SCOP domains d1sd7a_ A: Methicillin resistance regulatory protein MecI                                                               SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhh.....hhhhhhhhhhh....hhhhhhhhhhhhhhh..eeee......eeee..hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh..hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 1sd7 A   5 TYEISSAEWEVmNIIWmKKYASANNIIEEIQmQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNKK 123
                                    14 |    | 24        34 |      44        54        64        74        84        94       104       114
                                      16-MSE|             36-MSE
                                           21-MSE


Chain A from PDB  Type:PROTEIN  Length:119
 aligned with MECI_STAAU | P68262 from UniProtKB/Swiss-Prot  Length:123

    Alignment length:119
                                    14        24        34        44        54        64        74        84        94       104       114
           MECI_STAAU     5 TYEISSAEWEVMNIIWMKKYASANNIIEEIQMQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNKK 123
               SCOP domains d1sd7a_ A: Methicillin resistance regulatory protein MecI                                                               SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhh.....hhhhhhhhhhh....hhhhhhhhhhhhhhh..eeee......eeee..hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh..hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 1sd7 A   5 TYEISSAEWEVmNIIWmKKYASANNIIEEIQmQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNKK 123
                                    14 |    | 24        34 |      44        54        64        74        84        94       104       114
                                      16-MSE|             36-MSE
                                           21-MSE


Chain B from PDB  Type:PROTEIN  Length:118
 aligned with MECI_STAAN | P68261 from UniProtKB/Swiss-Prot  Length:123

    Alignment length:118
                                    14        24        34        44        54        64        74        84        94       104       114
           MECI_STAAN     5 TYEISSAEWEVMNIIWMKKYASANNIIEEIQMQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNK 122
               SCOP domains d1sd7b_ B: Methicillin resistance regulatory protein MecI                                                              SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---Pencillinase_R-1sd7B01 B:8-122                                                                                      Pfam domains (1)
           Pfam domains (2) ---Pencillinase_R-1sd7B02 B:8-122                                                                                      Pfam domains (2)
         Sec.struct. author ....hhhhhhhhhhhhh...eehhhhhhhhh.....hhhhhhhhhhhhhhh..eeeeee..eeeeee..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 1sd7 B   5 TYEISSAEWEVmNIIWmKKYASANNIIEEIQmQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNK 122
                                    14 |    | 24        34 |      44        54        64        74        84        94       104       114
                                      16-MSE|             36-MSE
                                           21-MSE


Chain B from PDB  Type:PROTEIN  Length:118
 aligned with MECI_STAAU | P68262 from UniProtKB/Swiss-Prot  Length:123

    Alignment length:118
                                    14        24        34        44        54        64        74        84        94       104       114
           MECI_STAAU     5 TYEISSAEWEVMNIIWMKKYASANNIIEEIQMQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNK 122
               SCOP domains d1sd7b_ B: Methicillin resistance regulatory protein MecI                                                              SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---Pencillinase_R-1sd7B01 B:8-122                                                                                      Pfam domains (1)
           Pfam domains (2) ---Pencillinase_R-1sd7B02 B:8-122                                                                                      Pfam domains (2)
         Sec.struct. author ....hhhhhhhhhhhhh...eehhhhhhhhh.....hhhhhhhhhhhhhhh..eeeeee..eeeeee..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 1sd7 B   5 TYEISSAEWEVmNIIWmKKYASANNIIEEIQmQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNK 122
                                    14 |    | 24        34 |      44        54        64        74        84        94       104       114
                                      16-MSE|             36-MSE
                                           21-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1SD7)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: HTH (544)

(-) Gene Ontology  (6, 12)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (MECI_STAAN | P68261)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Chain A,B   (MECI_STAAU | P68262)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1sd7)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1sd7)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1sd7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MECI_STAAN | P68261
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  MECI_STAAU | P68262
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MECI_STAAN | P68261
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  MECI_STAAU | P68262
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MECI_STAAN | P68261: 1okr 1sax 1sd6 2d45
        MECI_STAAU | P68262: 1okr 1sax 1sd6

(-) Related Entries Specified in the PDB File

1sd4 CRYSTAL STRUCTURE OF A SEMET DERIVATIVE OF BLAI AT 2.0 A
1sd6 CRYSTAL STRUCTURE OF NATIVE MECI AT 2.65 A
