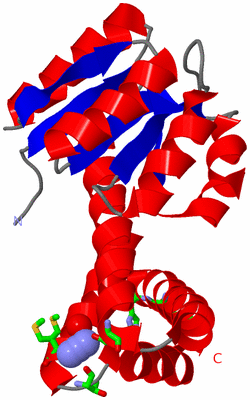

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF RV1626 FROM MYCOBACTERIUM TUBERCULOSIS

Authors :   J. P. Morth, V. Feng, L. J. Perry, D. I. Svergun, P. A. Tucker, Tb Structu Genomics Consortium (Tbsgc)

Date :   03 Feb 04 (Deposition) - 21 Sep 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.48

Chains :   Asym./Biol. Unit : A

Keywords :   Rv1626, Structural Genomics, Transcriptional Antiterminator, Two Component System, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tbsgc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. P. Morth, V. Feng, L. J. Perry, D. I. Svergun, P. A. Tucker
The Crystal And Solution Structure Of A Putative Transcriptional Antiterminator From Mycobacterium Tuberculosis.
Structure V. 12 1595 2004
PubMed-ID: 15341725 | Reference-DOI: 10.1016/J.STR.2004.06.018

Molecule 1 - PUTATIVE ANTITERMINATOR
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET22B
	Expression System Strain	:	BL21(DE3)RP
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	RV1626
	Organism Scientific	:	MYCOBACTERIUM TUBERCULOSIS
	Organism Taxid	:	83332
	Other Details	:	PHOSPHORYLATION DEPENDENT TRANSCRIPTIONAL ANTITERMINATION REGULATOR
	Strain	:	H37RV

		1
Asymmetric/Biological Unit	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 1)

No.	Name	Count	Type	Full Name
1	AZI	1	Ligand/Ion	AZIDE ION

Asymmetric Unit (1, 1)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU A:141 , LYS A:165 , HIS A:166 , ALA A:181 , MET A:182 , THR A:186 , HOH A:447	BINDING SITE FOR RESIDUE AZI A 401

(no "SS Bond" information available for 1S8N)

Asymmetric/Biological Unit

No.	Residues
1	Lys A:114	-	Pro A:115

(no "SAP(SNP)/Variant" information available for 1S8N)

Asymmetric/Biological Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RESPONSE_REGULATORY	PS50110	Response regulatory domain profile.	PDTAR_MYCTO	15-129	1	A:15-129
1	RESPONSE_REGULATORY	PS50110	Response regulatory domain profile.	PDTAR_MYCTU	15-129	1	A:15-129
2	ANTAR	PS50921	ANTAR domain profile.	PDTAR_MYCTO	135-196	1	A:135-196
2	ANTAR	PS50921	ANTAR domain profile.	PDTAR_MYCTU	135-196	1	A:135-196

(no "Exon" information available for 1S8N)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:190
 aligned with PDTAR_MYCTO | P9WGM2 from UniProtKB/Swiss-Prot  Length:205

    Alignment length:190
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
          PDTAR_MYCTO    11 AVPRRVLIAEDEALIRMDLAEMLREEGYEIVGEAGDGQEAVELAELHKPDLVIMDVKMPRRDGIDAASEIASKRIAPIVVLTAFSQRDLVERARDAGAMAYLVKPFSISDLIPAIELAVSRFREITALEGEVATLSERLETRKLVERAKGLLQTKHGMTEPDAFKWIQRAAMDRRTTMKRVAEVVLETLG 200
               SCOP domains d1s8na_ A: Probable two-component system transcriptional regulator Rv1626                                                                                                                      SCOP domains
               CATH domains 1s8nA01 A:11-142  [code=3.40.50.2300, no name defined]                                                                              1s8nA02 A:143-200                                          CATH domains
               Pfam domains -----Response_reg-1s8nA01 A:16-126                                                                                  --------------ANTAR-1s8nA02 A:141-196                                 ---- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhh..eeeee......hhhhhhhhhhhh....eeeeee..hhhhhhhhhhhh.eeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----RESPONSE_REGULATORY  PDB: A:15-129 UniProt: 15-129                                                                 -----ANTAR  PDB: A:135-196 UniProt: 135-196                        ---- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s8n A  11 AVPRRVLIAEDEALIRMDLAEMLREEGYEIVGEAGDGQEAVELAELHKPDLVIMDVKMPRRDGIDAASEIASKRIAPIVVLTAFSQRDLVERARDAGAMAYLVKPFSISDLIPAIELAVSRFREITALEGEVATLSERLETRKLVERAKGLLQTKHGMTEPDAFKWIQRAAMDRRTTMKRVAEVVLETLG 200
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200

Chain A from PDB  Type:PROTEIN  Length:190
 aligned with PDTAR_MYCTU | P9WGM3 from UniProtKB/Swiss-Prot  Length:205

    Alignment length:190
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
          PDTAR_MYCTU    11 AVPRRVLIAEDEALIRMDLAEMLREEGYEIVGEAGDGQEAVELAELHKPDLVIMDVKMPRRDGIDAASEIASKRIAPIVVLTAFSQRDLVERARDAGAMAYLVKPFSISDLIPAIELAVSRFREITALEGEVATLSERLETRKLVERAKGLLQTKHGMTEPDAFKWIQRAAMDRRTTMKRVAEVVLETLG 200
               SCOP domains d1s8na_ A: Probable two-component system transcriptional regulator Rv1626                                                                                                                      SCOP domains
               CATH domains 1s8nA01 A:11-142  [code=3.40.50.2300, no name defined]                                                                              1s8nA02 A:143-200                                          CATH domains
               Pfam domains -----Response_reg-1s8nA01 A:16-126                                                                                  --------------ANTAR-1s8nA02 A:141-196                                 ---- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhh..eeeee......hhhhhhhhhhhh....eeeeee..hhhhhhhhhhhh.eeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----RESPONSE_REGULATORY  PDB: A:15-129 UniProt: 15-129                                                                 -----ANTAR  PDB: A:135-196 UniProt: 135-196                        ---- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s8n A  11 AVPRRVLIAEDEALIRMDLAEMLREEGYEIVGEAGDGQEAVELAELHKPDLVIMDVKMPRRDGIDAASEIASKRIAPIVVLTAFSQRDLVERARDAGAMAYLVKPFSISDLIPAIELAVSRFREITALEGEVATLSERLETRKLVERAKGLLQTKHGMTEPDAFKWIQRAAMDRRTTMKRVAEVVLETLG 200
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Flavodoxin-like (1057)

Superfamily: CheY-like (258)

Family: CheY-related (166)

Protein domain: Probable two-component system transcriptional regulator Rv1626 (2)

Mycobacterium tuberculosis [TaxId: 1773] (2)

d1s8na_

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: CheY (97)

Family: Response_reg (94)

Mycobacterium tuberculosis (5)

Response_reg-1s8nA01

A:16-126

Clan: no clan defined [family: ANTAR] (3)

Family: ANTAR (3)

Mycobacterium tuberculosis (2)

ANTAR-1s8nA02

A:141-196

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (PDTAR_MYCTO | P9WGM2)

molecular function
	GO:0003723	RNA binding	Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
biological process
	GO:0000160	phosphorelay signal transduction system	A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0031564	transcription antitermination	Regulation of transcription by a mechanism that allows RNA polymerase to continue transcription beyond termination site(s).
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005622	intracellular	The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

Chain A (PDTAR_MYCTU | P9WGM3)

molecular function
	GO:0003723	RNA binding	Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
biological process
	GO:0040007	growth	The increase in size or mass of an entire organism, a part of an organism or a cell.
	GO:0000160	phosphorelay signal transduction system	A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0031564	transcription antitermination	Regulation of transcription by a mechanism that allows RNA polymerase to continue transcription beyond termination site(s).
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005618	cell wall	The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.
	GO:0005622	intracellular	The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		AZI	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Lys A:114 - Pro A:115	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1s8n
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PDTAR_MYCTO \| P9WGM2
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	PDTAR_MYCTU \| P9WGM3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PDTAR_MYCTO \| P9WGM2
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	PDTAR_MYCTU \| P9WGM3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	PDTAR_MYCTO \| P9WGM2	:	1sd5
	PDTAR_MYCTU \| P9WGM3	:	1sd5
