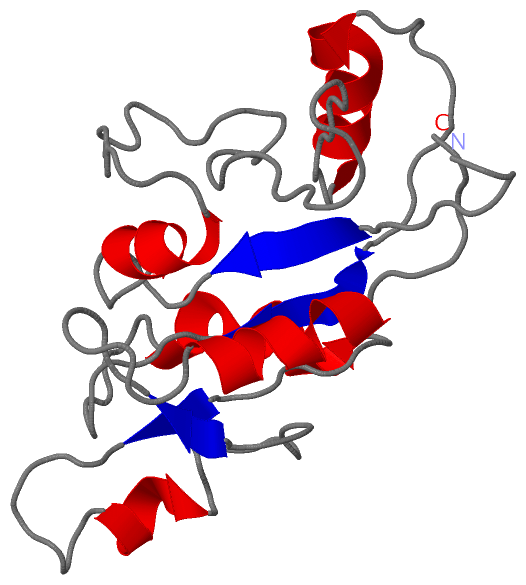

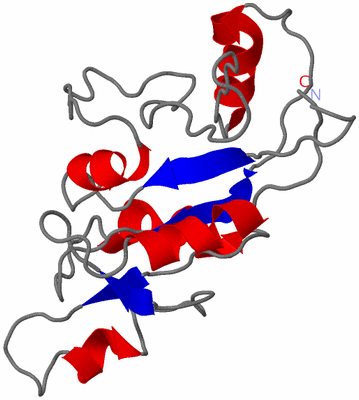

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

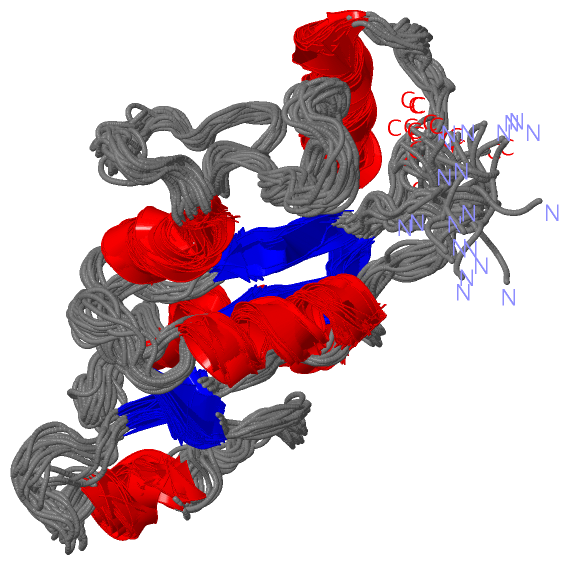

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR DATA DRIVEN STRUCTURAL MODEL OF G-DOMAIN OF MNME PROTEIN

Authors :  D. Monleon, V. Esteve, M. Martinez-Vicente, L. Yim, M. E. Armengod, B. Celda
Date :  10 Nov 03  (Deposition) - 02 Dec 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Gtpase Domain, Alpha/Beta, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Monleon, M. Martinez-Vicente, V. Esteve, L. Yim, S. Prado, M. E. Armengod, B. Celda
Structural Insights Into The Gtpase Domain Of Escherichia Coli Mnme Protein.
Proteins V. 66 726 2007
PubMed-ID: 17143896  |  Reference-DOI: 10.1002/PROT.21186
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROBABLE TRNA MODIFICATION GTPASE TRME
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: GDOMAIN
    Gene: TRME, THDF, MNME, B3706
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1RFL)

(-) Sites  (0, 0)

(no "Site" information available for 1RFL)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1RFL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1RFL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RFL)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1G_TRMEPS51709 TrmE-type guanine nucleotide-binding (G) domain profile.MNME_ECOLI216-377  1A:7-168

(-) Exons   (0, 0)

(no "Exon" information available for 1RFL)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:172
 aligned with MNME_ECOLI | P25522 from UniProtKB/Swiss-Prot  Length:454

    Alignment length:172
                                   219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379
           MNME_ECOLI   210 GSLLREGMKVVIAGRPNAGKSSLLNALAGREAAIVTDIAGTTRDVLREHIHIDGMPLHIIDTAGLREASDEVERIGIERAWQEIEQADRVLFMVDGTTTDAVDPAEIWPEFIARLPAKLPITVVRNKADITGETLGMSEVNGHALIRLSARTGEGVDVLRNHLKQSMGFDTN 381
               SCOP domains d1rfla_ A: Probable tRNA modification GTPase TrmE (MnmE), G domain                                                                                                           SCOP domains
               CATH domains 1rflA00 A:1-172 P-loop containing nucleotide triphosphate hydrolases                                                                                                         CATH domains
               Pfam domains --------MMR_HSR1-1rflA01 A:9-127                                                                                               --------------------------------------------- Pfam domains
         Sec.struct. author ........eeee.......hhhhhhhhh....................................hhhhhhhhhhhh..........eeeee...........hhhhhhhhhh.......ee........hhhhh...........ee........hhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------G_TRME  PDB: A:7-168 UniProt: 216-377                                                                                                                             ---- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1rfl A   1 GSLLREGMKVVIAGRPNAGKSSLLNALAGREAAIVTDIAGTTRDVLREHIHIDGMPLHIIDTAGLREASDEVERIGIERAWQEIEQADRVLFMVDGTTTDAVDPAEIWPEFIARLPAKLPITVVRNKADITGETLGMSEVNGHALIRLSARTGEGVDVLRNHLKQSMGIHRD 172
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure

(-) Gene Ontology  (19, 19)

NMR Structure(hide GO term definitions)
Chain A   (MNME_ECOLI | P25522)
molecular function
    GO:0019003    GDP binding    Interacting selectively and non-covalently with GDP, guanosine 5'-diphosphate.
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0003924    GTPase activity    Catalysis of the reaction: GTP + H2O = GDP + phosphate.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0030955    potassium ion binding    Interacting selectively and non-covalently with potassium (K+) ions.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0061077    chaperone-mediated protein folding    The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
    GO:0009268    response to pH    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a pH stimulus. pH is a measure of the acidity or basicity of an aqueous solution.
    GO:0030488    tRNA methylation    The posttranscriptional addition of methyl groups to specific residues in a tRNA molecule.
    GO:0006400    tRNA modification    The covalent alteration of one or more nucleotides within a tRNA molecule to produce a tRNA molecule with a sequence that differs from that coded genetically.
    GO:0008033    tRNA processing    The process in which a pre-tRNA molecule is converted to a mature tRNA, ready for addition of an aminoacyl group.
    GO:0002098    tRNA wobble uridine modification    The process in which a uridine in position 34 of a tRNA is post-transcriptionally modified.
    GO:0006805    xenobiotic metabolic process    The chemical reactions and pathways involving a xenobiotic compound, a compound foreign to living organisms. Used of chemical compounds, e.g. a xenobiotic chemical, such as a pesticide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1rfl)

  Sites
(no "Sites" information available for 1rfl)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1rfl)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1rfl
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MNME_ECOLI | P25522
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MNME_ECOLI | P25522
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MNME_ECOLI | P25522: 2gj8 2gj9 2gja

(-) Related Entries Specified in the PDB File

5861 BACKBONE RESONANCE ASSIGNMENT OF GDOMAIN MNME PROTEIN
