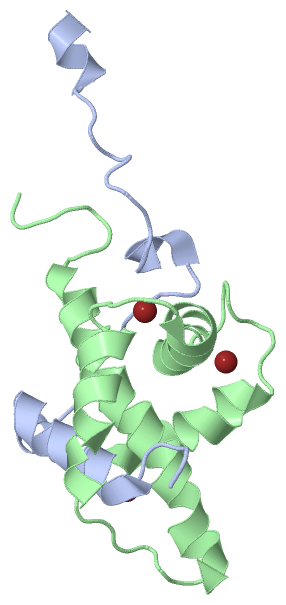

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

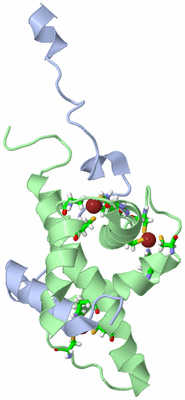

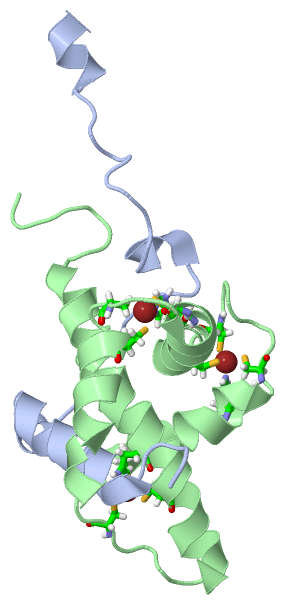

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

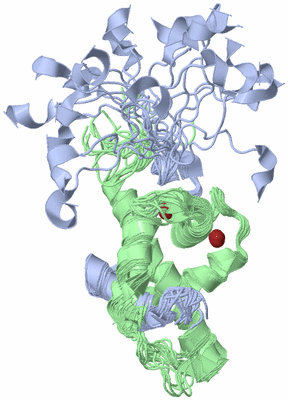

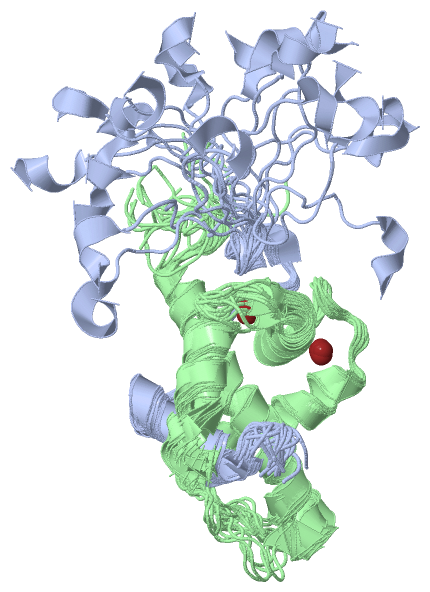

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF CBP TAZ1/CITED2 COMPLEX

Authors :  R. N. De Guzman, M. Martinez-Yamout, H. J. Dyson, P. E. Wright
Date :  28 Oct 03  (Deposition) - 23 Mar 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (20x)
Keywords :  Zinc-Binding Motifs, Protein-Protein Complex, Taz Zinc Finger, Transcription/Transcription Activator Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  R. N. De Guzman, M. A. Martinez-Yamout, H. J. Dyson, P. E. Wright
Interaction Of The Taz1 Domain Of The Creb-Binding Protein With The Activation Domain Of Cited2: Regulation By Competition Between Intrinsically Unstructured Ligands For Non-Identical Binding Sites.
J. Biol. Chem. V. 279 3042 2004
PubMed-ID: 14594809  |  Reference-DOI: 10.1074/JBC.M310348200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CBP/P300-INTERACTING TRANSACTIVATOR 2
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System PlasmidPET
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    FragmentCITED2 CAD (RESIDUES 200-269)
    GeneCITED2, MRG1
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymMSG-RELATED PROTEIN 1, MRG1 PROTEIN, P35SRJ, CITED2

Molecule 2 - CREB-BINDING PROTEIN
    ChainsB
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System PlasmidPET
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    FragmentCBP TAZ1 (RESIDUES 334-433)
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    SynonymCBP

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

NMR Structure (1, 3)
No.NameCountTypeFull Name
1ZN3Ligand/IonZINC ION

(-) Sites  (3, 3)

NMR Structure (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS B:362 , CYS B:366 , CYS B:379 , CYS B:384BINDING SITE FOR RESIDUE ZN B 440
2AC2SOFTWAREHIS B:393 , CYS B:397 , CYS B:403 , CYS B:408BINDING SITE FOR RESIDUE ZN B 441
3AC3SOFTWAREHIS B:417 , CYS B:421 , CYS B:426 , CYS B:429BINDING SITE FOR RESIDUE ZN B 442

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R8U)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1R8U)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R8U)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ZF_TAZPS50134 Zinc finger TAZ-type profile.CBP_MOUSE346-432
1766-1847
  1B:346-432
-

(-) Exons   (1, 1)

NMR Structure (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENST000003676511ENSE00001445266chr6:139695757-139695550208CITE2_HUMAN-00--
1.2aENST000003676512aENSE00001445265chr6:139695089-1396933931697CITE2_HUMAN1-2732731A:220-26950

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:50
 aligned with CITE2_HUMAN | Q99967 from UniProtKB/Swiss-Prot  Length:270

    Alignment length:50
                                   229       239       249       259       269
          CITE2_HUMAN   220 TDFIDEEVLMSLVIEMGLDRIKELPELWLGQNEFDFMTDFVCKQQPSRVS 269
               SCOP domains d1r8ua_ A:                                         SCOP domains
               CATH domains -------------------------------------------------- CATH domains
               Pfam domains CITED-1r8uA01 A:220-269                            Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhh.........hhhhh..........hhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------- PROSITE
               Transcript 1 Exon 1.2a  PDB: A:220-269 UniProt: 1-273           Transcript 1
                 1r8u A 220 TDFIDEEVLMSLVIEMGLDRIKELPELWLGQNEFDFMTDFVCKQQPSRVS 269
                                   229       239       249       259       269

Chain B from PDB  Type:PROTEIN  Length:100
 aligned with CBP_MOUSE | P45481 from UniProtKB/Swiss-Prot  Length:2441

    Alignment length:100
                                   349       359       369       379       389       399       409       419       429       439
            CBP_MOUSE   340 ATGPTADPEKRKLIQQQLVLLLHAHKCQRREQANGEVRACSLPHCRTMKNVLNHMTHCQAGKACQVAHCASSRQIISHWKNCTRHDCPVCLPLKNASDKR 439
               SCOP domains d1r8ub_ B: CREB-binding transcriptional adaptor protein CBP (p300)                                   SCOP domains
               CATH domains 1r8uB00 B:340-439 CREB-binding Protein; Chain A                                                      CATH domains
               Pfam domains -----------zf-TAZ-1r8uB01 B:351-431                                                         -------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------ZF_TAZ  PDB: B:346-432 UniProt: 346-432                                                ------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 1r8u B 340 ATGPTADPEKRKLIQQQLVLLLHAHKCQRREQANGEVRACSLPHCRTMKNVLNHMTHCQAGKACQVAHCASSRQIISHWKNCTRHDCPVCLPLKNASDKR 439
                                   349       359       369       379       389       399       409       419       429       439

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

NMR Structure
(-)
Class: Peptides (792)

(-) CATH Domains  (1, 1)

NMR Structure

(-) Pfam Domains  (2, 2)

NMR Structure

(-) Gene Ontology  (82, 94)

NMR Structure(hide GO term definitions)
Chain A   (CITE2_HUMAN | Q99967)
molecular function
    GO:0050693    LBD domain binding    Interacting selectively and non-covalently with the LBD, the ligand binding domain found in nuclear receptors. In general, the LBDs consist of three layers comprised of twelve alpha-helices and several beta-strands that are organized around a lipophilic ligand-binding pocket.
    GO:0001105    RNA polymerase II transcription coactivator activity    Interacting selectively and non-covalently with an RNA polymerase II (RNAP II) regulatory transcription factor and also with the RNAP II basal transcription machinery in order to increase the frequency, rate or extent of transcription. Cofactors generally do not bind DNA, but rather mediate protein-protein interactions between activating transcription factors and the basal RNAP II transcription machinery.
    GO:0001106    RNA polymerase II transcription corepressor activity    Interacting selectively and non-covalently with an RNA polymerase II repressing transcription factor and also with the RNA polymerase II basal transcription machinery in order to stop, prevent, or reduce the frequency, rate or extent of transcription. Cofactors generally do not bind DNA, but rather mediate protein-protein interactions between repressive transcription factors and the basal transcription machinery.
    GO:0003682    chromatin binding    Interacting selectively and non-covalently with chromatin, the network of fibers of DNA, protein, and sometimes RNA, that make up the chromosomes of the eukaryotic nucleus during interphase.
    GO:0035035    histone acetyltransferase binding    Interacting selectively and non-covalently with the enzyme histone acetyltransferase.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0003713    transcription coactivator activity    Interacting selectively and non-covalently with a activating transcription factor and also with the basal transcription machinery in order to increase the frequency, rate or extent of transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between activating transcription factors and the basal transcription machinery.
    GO:0003714    transcription corepressor activity    Interacting selectively and non-covalently with a repressing transcription factor and also with the basal transcription machinery in order to stop, prevent, or reduce the frequency, rate or extent of transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between repressive transcription factors and the basal transcription machinery.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0035802    adrenal cortex formation    The process that gives rise to the adrenal cortex. This process pertains to the initial formation of a structure from unspecified parts. The adrenogonadal primordium from which the adrenal cortex is formed derives from a condensation of coelomic epithelial cells (the urogenital ridge; the same structure from which gonads and kidney also originate).
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0008283    cell proliferation    The multiplication or reproduction of cells, resulting in the expansion of a cell population.
    GO:0007368    determination of left/right symmetry    The establishment of an organism's body plan or part of an organism with respect to the left and right halves. The pattern can either be symmetric, such that the halves are mirror images, or asymmetric where the pattern deviates from this symmetry.
    GO:0060971    embryonic heart tube left/right pattern formation    The pattern specification process that results in the subdivision of the left/right axis of the embryonic heart tube in space to define an area or volume in which specific patterns of cell differentiation will take place.
    GO:0007507    heart development    The process whose specific outcome is the progression of the heart over time, from its formation to the mature structure. The heart is a hollow, muscular organ, which, by contracting rhythmically, keeps up the circulation of the blood.
    GO:0070986    left/right axis specification    The establishment, maintenance and elaboration of the left/right axis. The left/right axis is defined by a line that runs orthogonal to both the anterior/posterior and dorsal/ventral axes. Each side is defined from the viewpoint of the organism rather of the observer (as per anatomical axes).
    GO:0060972    left/right pattern formation    The pattern specification process that results in the subdivision of the left/right axis in space to define an area or volume in which specific patterns of cell differentiation will take place or in which cells interpret a specific environment.
    GO:0001889    liver development    The process whose specific outcome is the progression of the liver over time, from its formation to the mature structure. The liver is an exocrine gland which secretes bile and functions in metabolism of protein and carbohydrate and fat, synthesizes substances involved in the clotting of the blood, synthesizes vitamin A, detoxifies poisonous substances, stores glycogen, and breaks down worn-out erythrocytes.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:0043066    negative regulation of apoptotic process    Any process that stops, prevents, or reduces the frequency, rate or extent of cell death by apoptotic process.
    GO:0030336    negative regulation of cell migration    Any process that stops, prevents, or reduces the frequency, rate or extent of cell migration.
    GO:0010629    negative regulation of gene expression    Any process that decreases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0061428    negative regulation of transcription from RNA polymerase II promoter in response to hypoxia    Any process that decreases the frequency, rate or extent of transcription from an RNA polymerase II promoter as a result of a hypoxia stimulus.
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:1900164    nodal signaling pathway involved in determination of lateral mesoderm left/right asymmetry    A series of molecular signals initiated by the binding of a nodal protein to an activin receptor on the surface of a target cell, which contributes to the establishment of lateral mesoderm with respect to the left and right halves.
    GO:0003151    outflow tract morphogenesis    The process in which the anatomical structures of the outflow tract are generated and organized. The outflow tract is the portion of the heart through which blood flows into the arteries.
    GO:0045787    positive regulation of cell cycle    Any process that activates or increases the rate or extent of progression through the cell cycle.
    GO:0022409    positive regulation of cell-cell adhesion    Any process that activates or increases the rate or extent of cell adhesion to another cell.
    GO:0010628    positive regulation of gene expression    Any process that increases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:2000020    positive regulation of male gonad development    Any process that activates or increases the frequency, rate or extent of male gonad development.
    GO:0035360    positive regulation of peroxisome proliferator activated receptor signaling pathway    Any process that activates or increases the frequency, rate or extent of the peroxisome proliferator activated receptor signaling pathway.
    GO:0045944    positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0030511    positive regulation of transforming growth factor beta receptor signaling pathway    Any process that activates or increases the frequency, rate or extent of TGF-beta receptor signaling pathway activity.
    GO:0003156    regulation of animal organ formation    Any process that modulates the rate, frequency or extent of animal organ formation. Organ formation is the process pertaining to the initial formation of an organ from unspecified parts. The process begins with the specific processes that contribute to the appearance of the discrete structure, such as inductive events, and ends when the structural rudiment of the organ is recognizable, such as a condensation of mesenchymal cells into the organ rudiment.
    GO:1903506    regulation of nucleic acid-templated transcription    Any process that modulates the frequency, rate or extent of nucleic acid-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0043627    response to estrogen    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of stimulus by an estrogen, C18 steroid hormones that can stimulate the development of female sexual characteristics.
    GO:0034405    response to fluid shear stress    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a fluid shear stress stimulus. Fluid shear stress is the force acting on an object in a system where the fluid is moving across a solid surface.
    GO:0001666    response to hypoxia    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating lowered oxygen tension. Hypoxia, defined as a decline in O2 levels below normoxic levels of 20.8 - 20.95%, results in metabolic adaptation at both the cellular and organismal level.
    GO:0007530    sex determination    Any process that establishes and transmits the specification of sexual status of an individual organism.
    GO:0048536    spleen development    The process whose specific outcome is the progression of the spleen over time, from its formation to the mature structure. The spleen is a large vascular lymphatic organ composed of white and red pulp, involved both in hemopoietic and immune system functions.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0060412    ventricular septum morphogenesis    The developmental process in which a ventricular septum is generated and organized. A ventricular septum is an anatomical structure that separates the lower chambers (ventricles) of the heart from one another.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0000790    nuclear chromatin    The ordered and organized complex of DNA, protein, and sometimes RNA, that forms the chromosome in the nucleus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain B   (CBP_MOUSE | P45481)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043426    MRF binding    Interacting selectively and non-covalently with Myogenic Regulatory Factor (MRF), a member of the basic Helix-Loop-Helix (bHLH) superfamily of transcription factors.
    GO:0000977    RNA polymerase II regulatory region sequence-specific DNA binding    Interacting selectively and non-covalently with a specific sequence of DNA that is part of a regulatory region that controls the transcription of a gene or cistron by RNA polymerase II.
    GO:0001085    RNA polymerase II transcription factor binding    Interacting selectively and non-covalently with an RNA polymerase II transcription factor, any protein required to initiate or regulate transcription by RNA polymerase II.
    GO:0016407    acetyltransferase activity    Catalysis of the transfer of an acetyl group to an acceptor molecule.
    GO:0003682    chromatin binding    Interacting selectively and non-covalently with chromatin, the network of fibers of DNA, protein, and sometimes RNA, that make up the chromosomes of the eukaryotic nucleus during interphase.
    GO:0000987    core promoter proximal region sequence-specific DNA binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to the core promoter. The transcribed region might be described as a gene, cistron, or operon.
    GO:0003684    damaged DNA binding    Interacting selectively and non-covalently with damaged DNA.
    GO:0004402    histone acetyltransferase activity    Catalysis of the reaction: acetyl-CoA + histone = CoA + acetyl-histone.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0002039    p53 binding    Interacting selectively and non-covalently with one of the p53 family of proteins.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0003713    transcription coactivator activity    Interacting selectively and non-covalently with a activating transcription factor and also with the basal transcription machinery in order to increase the frequency, rate or extent of transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between activating transcription factors and the basal transcription machinery.
    GO:0003712    transcription cofactor activity    Interacting selectively and non-covalently with a regulatory transcription factor and also with the basal transcription machinery in order to modulate transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between regulatory transcription factors and the basal transcription machinery.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
    GO:0001228    transcriptional activator activity, RNA polymerase II transcription regulatory region sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in the transcription regulatory region for RNA polymerase II (RNAP II) in order to activate or increase the frequency, rate or extent of transcription from the RNAP II promoter.
    GO:0001078    transcriptional repressor activity, RNA polymerase II core promoter proximal region sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II (RNAP II) in order to stop, prevent, or reduce the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0001191    transcriptional repressor activity, RNA polymerase II transcription factor binding    Interacting selectively and non-covalently with an RNA polymerase II transcription factor, which may be a single protein or a complex, in order to stop, prevent, or reduce the frequency, rate or extent of transcription from an RNA polymerase II promoter. A protein binding transcription factor may or may not also interact with the template nucleic acid (either DNA or RNA) as well.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016746    transferase activity, transferring acyl groups    Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0018076    N-terminal peptidyl-lysine acetylation    The acetylation of the N-terminal lysine of proteins.
    GO:0034644    cellular response to UV    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an ultraviolet radiation (UV light) stimulus. Ultraviolet radiation is electromagnetic radiation with a wavelength in the range of 10 to 380 nanometers.
    GO:0035729    cellular response to hepatocyte growth factor stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a hepatocyte growth factor stimulus.
    GO:0030718    germ-line stem cell population maintenance    Any process by which an organism or tissue maintains a population of germ-line stem cells.
    GO:0016573    histone acetylation    The modification of a histone by the addition of an acetyl group.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0010628    positive regulation of gene expression    Any process that increases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0051091    positive regulation of sequence-specific DNA binding transcription factor activity    Any process that activates or increases the frequency, rate or extent of activity of a transcription factor, any factor involved in the initiation or regulation of transcription.
    GO:0045944    positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006473    protein acetylation    The addition of an acetyl group to a protein amino acid. An acetyl group is CH3CO-, derived from acetic [ethanoic] acid.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0048511    rhythmic process    Any process pertinent to the generation and maintenance of rhythms in the physiology of an organism.
    GO:0006366    transcription from RNA polymerase II promoter    The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0016605    PML body    A class of nuclear body; they react against SP100 auto-antibodies (PML, promyelocytic leukemia); cells typically contain 10-30 PML bodies per nucleus; alterations in the localization of PML bodies occurs after viral infection.
    GO:0090575    RNA polymerase II transcription factor complex    A transcription factor complex that acts at promoters of genes transcribed by RNA polymerase II.
    GO:0000940    condensed chromosome outer kinetochore    The region of a condensed chromosome kinetochore most external to centromeric DNA; this outer region mediates kinetochore-microtubule interactions.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0000123    histone acetyltransferase complex    A protein complex that possesses histone acetyltransferase activity.
    GO:0016604    nuclear body    Extra-nucleolar nuclear domains usually visualized by confocal microscopy and fluorescent antibodies to specific proteins.
    GO:0000790    nuclear chromatin    The ordered and organized complex of DNA, protein, and sometimes RNA, that forms the chromosome in the nucleus.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005667    transcription factor complex    A protein complex that is capable of associating with DNA by direct binding, or via other DNA-binding proteins or complexes, and regulating transcription.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1r8u)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1r8u
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CBP_MOUSE | P45481
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  CITE2_HUMAN | Q99967
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  CBP_MOUSE | P45481
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  CITE2_HUMAN | Q99967
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CBP_MOUSE | P454811f81 1jjs 1kbh 1kdx 1l8c 1sb0 1tot 1u2n 2agh 2c52 2ka4 2ka6 2kkj 2l14 2lqh 2lqi 2lww 4i9o 5hou 5hp0 5hpd 5u4k
        CITE2_HUMAN | Q999671p4q

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1R8U)
