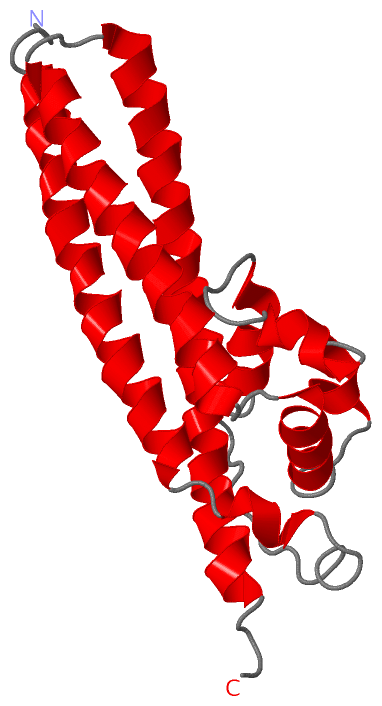

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TRAC

Authors :  H. -J. Yeo, Q. Yuan, M. R. Beck, C. Baron, G. Waksman
Date :  24 Oct 03  (Deposition) - 06 Jan 04  (Release) - 28 Sep 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Trac, Virb5, Helical Bundle, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. -J. Yeo, Q. Yuan, M. R. Beck, C. Baron, G. Waksman
Structural And Functional Characterization Of The Virb5 Protein From The Type Iv Secretion System Encoded By The Conjugative Plasmid Pkm101
Proc. Natl. Acad. Sci. Usa V. 100 15947 2003
PubMed-ID: 14673074  |  Reference-DOI: 10.1073/PNAS.2535211100

(-) Compounds

Molecule 1 - TRAC
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PTRCTRAC
    Expression System Strain: JM109, DL41
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TRAC
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1R8I)

(-) Sites  (0, 0)

(no "Site" information available for 1R8I)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R8I)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1R8I)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R8I)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1R8I)

(-) Exons   (0, 0)

(no "Exon" information available for 1R8I)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:187
 aligned with Q9L6G5_ECOLX | Q9L6G5 from UniProtKB/TrEMBL  Length:237

    Alignment length:187
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
         Q9L6G5_ECOLX    32 TELIKQGEQLEQMAQQLEQLKSQLETQKNMYESMAKTTNLGDLLGTSTNTLANNLPDNWKEVYSDAMNSSSSVTPSVNSMMGQFNAEVDDMTPSEAIAYMNKKLAEKGAYDRVMAEKAYNNQMQELSDMQALTEQIKSTPDLKSIADLQARIQTSQGAIQGEQAKLNLMNMLQQSQDKLLRAQKDRA 218
               SCOP domains d1r8ia_ A: Typo IV secretion system protein TraC                                                                                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains T4SS-1r8iA01 A:32-217                                                                                                                                                                     - Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.................hhhhhhhhh......hhhhhh..hhhhhh......hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r8i A  32 TELIKQGEQLEQMAQQLEQLKSQLETQKNMYESMAKTTNLGDLLGTSTNTLANNLPDNWKEVYSDAMNSSSSVTPSVNSMMGQFNAEVDDMTPSEAIAYMNKKLAEKGAYDRVMAEKAYNNQMQELSDMQALTEQIKSTPDLKSIADLQARIQTSQGAIQGEQAKLNLMNMLQQSQDKLLRAQKDRA 218
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1R8I)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: T4SS] (1)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1R8I)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1r8i)

  Sites
(no "Sites" information available for 1r8i)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1r8i)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
