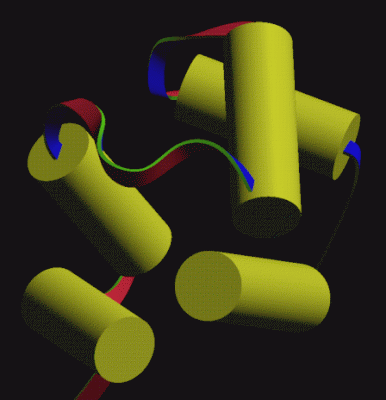

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

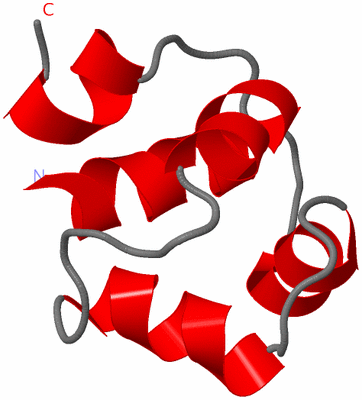

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE AMINO-TERMINAL DOMAIN OF PHAGE 434 REPRESSOR AT 2.0 ANGSTROMS RESOLUTION

Authors :  A. Mondragon, S. Subbiah, S. C. Alamo, M. Drottar, S. C. Harrison
Date :  08 Dec 88  (Deposition) - 15 Oct 89  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Gene Regulating Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  A. Mondragon, S. Subbiah, S. C. Almo, M. Drottar, S. C. Harrison
Structure Of The Amino-Terminal Domain Of Phage 434 Repressor At 2. 0 A Resolution.
J. Mol. Biol. V. 205 189 1989
PubMed-ID: 2926803  |  Reference-DOI: 10.1016/0022-2836(89)90375-6
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - REPRESSOR PROTEIN CI
    ChainsA
    EngineeredYES
    Organism ScientificPHAGE 434
    Organism Taxid10712

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1R69)

(-) Sites  (0, 0)

(no "Site" information available for 1R69)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R69)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1R69)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R69)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_CROC1PS50943 Cro/C1-type HTH domain profile.RPC1_BP4347-60  1A:6-59

(-) Exons   (0, 0)

(no "Exon" information available for 1R69)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:63
 aligned with RPC1_BP434 | P16117 from UniProtKB/Swiss-Prot  Length:95

    Alignment length:63
                                    11        21        31        41        51        61
            RPC1_BP434    2 SISSRVKSKRIQLGLNQAELAQKVGTTQQSIEQLENGKTKRPRFLPELASALGVSVDWLLNGT 64
               SCOP domains d1r69a_ A: 434 C1 repressor, DNA-binding domain                 SCOP domains
               CATH domains 1r69A00 A:1-63 lambda repressor-like DNA-binding domains        CATH domains
               Pfam domains -----HTH_3-1r69A01 A:6-59                                  ---- Pfam domains
         Sec.struct. author hhhhhhhhhhhh...hhhhhhh.....hhhhhhhhh........hhhhhhh....hhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----HTH_CROC1  PDB: A:6-59 UniProt: 7-60                  ---- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                  1r69 A  1 SISSRVKSKRIQLGLNQAELAQKVGTTQQSIEQLENGKTKRPRFLPELASALGVSVDWLLNGT 63
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: HTH (544)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RPC1_BP434 | P16117)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1r69)

  Sites
(no "Sites" information available for 1r69)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1r69)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
Setor
  ribbon, secondary structure
  spacefill

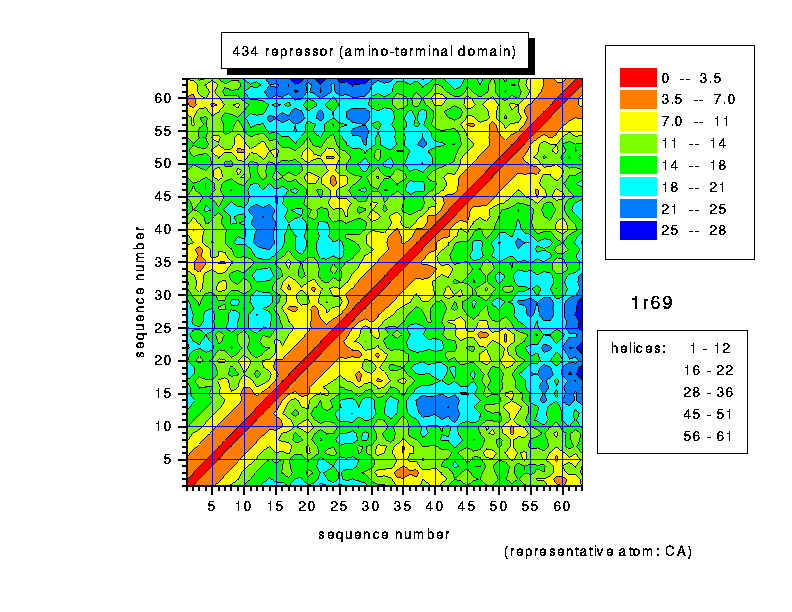

Distance Plot
  representative atom: CA
