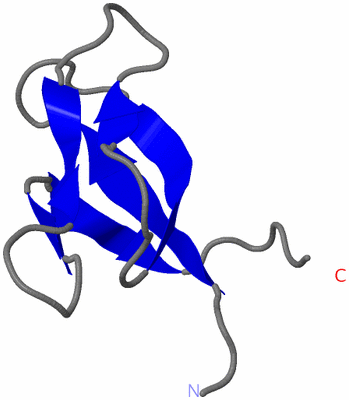

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

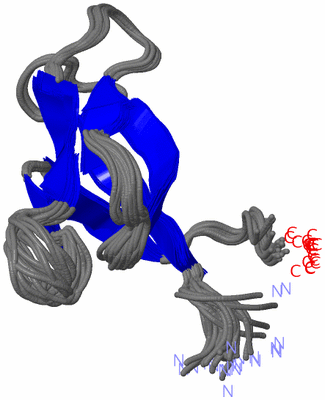

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF 30S RIBOSOMAL PROTEIN S27E FROM ARCHAEOGLOBUS FULGIDUS: GR2, A NESG TARGET PROTEIN

Authors :  C. Herve Du Penhoat, H. S. Atreya, Y. Shen, G. Liu, T. B. Acton, R. Xiao, G. T. Montelione, T. Szyperski, Northeast Structural Genomics Consortium (Nesg)
Date :  05 Sep 03  (Deposition) - 16 Sep 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Structural Genomics, Beta Sheet, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Ribosome (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Herve Du Penhoat, H. S. Atreya, Y. Shen, G. Liu, T. B. Acton, R. Xiao, Z. Li, D. Murray, G. T. Montelione, T. Szyperski
The Nmr Solution Structure Of The 30S Ribosomal Protein S27E Encoded In Gene Rs27_arcfu Of Archaeoglobus Fulgidis Reveals A Novel Protein Fold
Protein Sci. V. 13 1407 2004
PubMed-ID: 15096641  |  Reference-DOI: 10.1110/PS.03589204
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 30S RIBOSOMAL PROTEIN S27E
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ARCHAEOGLOBUS FULGIDUS
    Organism Taxid: 2234
    Synonym: GR2

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1QXF)

(-) Sites  (0, 0)

(no "Site" information available for 1QXF)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1QXF)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1QXF)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QXF)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RIBOSOMAL_S27EPS01168 Ribosomal protein S27e signature.RS27_ARCFU9-41  1A:9-41

(-) Exons   (0, 0)

(no "Exon" information available for 1QXF)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:58
 aligned with RS27_ARCFU | O28935 from UniProtKB/Swiss-Prot  Length:58

    Alignment length:58
                                    10        20        30        40        50
            RS27_ARCFU    1 MHSRFVKVKCPDCEHEQVIFDHPSTIVKCIICGRTVAEPTGGKGNIKAEIIEYVDQIE 58
               SCOP domains d1qxfa_ A: Ribosomal protein S27e                          SCOP domains
               CATH domains 1qxfA00 A:1-58 Zn-binding ribosomal proteins               CATH domains
               Pfam domains Ribosomal_S27e-1qxfA01 A:1-55                          --- Pfam domains
         Sec.struct. author ....eeeee......eeeee......ee......eeee......ee..eeee...... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------RIBOSOMAL_S27E  PDB: A:9-41      ----------------- PROSITE
                 Transcript ---------------------------------------------------------- Transcript
                  1qxf A  1 MHSRFVKVKCPDCEHEQVIFDHPSTIVKCIICGRTVAEPTGGKGNIKAEIIEYVDQIE 58
                                    10        20        30        40        50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Zn_Beta_Ribbon (109)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (RS27_ARCFU | O28935)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003735    structural constituent of ribosome    The action of a molecule that contributes to the structural integrity of the ribosome.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006412    translation    The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0030529    intracellular ribonucleoprotein complex    An intracellular macromolecular complex containing both protein and RNA molecules.
    GO:0005840    ribosome    An intracellular organelle, about 200 A in diameter, consisting of RNA and protein. It is the site of protein biosynthesis resulting from translation of messenger RNA (mRNA). It consists of two subunits, one large and one small, each containing only protein and RNA. Both the ribosome and its subunits are characterized by their sedimentation coefficients, expressed in Svedberg units (symbol: S). Hence, the prokaryotic ribosome (70S) comprises a large (50S) subunit and a small (30S) subunit, while the eukaryotic ribosome (80S) comprises a large (60S) subunit and a small (40S) subunit. Two sites on the ribosomal large subunit are involved in translation, namely the aminoacyl site (A site) and peptidyl site (P site). Ribosomes from prokaryotes, eukaryotes, mitochondria, and chloroplasts have characteristically distinct ribosomal proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1qxf)

  Sites
(no "Sites" information available for 1qxf)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1qxf)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
