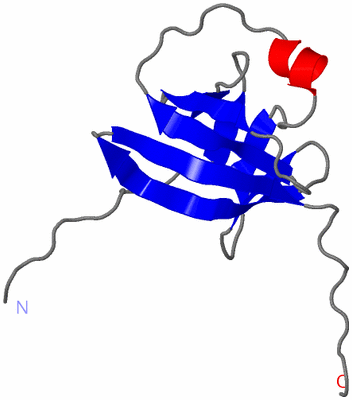

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

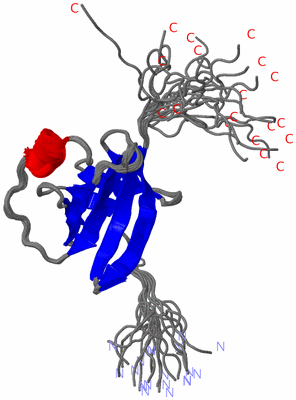

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE ONCOPROTEIN P13MTCP1

Authors :  L. Guignard, A. Padilla, J. Mispelter, Y-S. Yang, M-H. Stern, J- M. Lhoste, C. Roumestand
Date :  29 Jun 99  (Deposition) - 19 Jan 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Beta Barrel, Gene Regulation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Guignard, A. Padilla, J. Mispelter, Y. S. Yang, M. H. Stern, J. M. Lhoste, C. Roumestand
Backbone Dynamics And Solution Structure Refinement Of The 15N-Labeled Human Oncogenic Protein P13Mtcp1: Comparison With X-Ray Data.
J. Biomol. Nmr V. 17 215 2000
PubMed-ID: 10959629  |  Reference-DOI: 10.1023/A:1008386110930
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PRODUCT OF THE MTCP1 ONCOGENE
    Cell: T-CELLS
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Cell Line: BL21
    Expression System Taxid: 562
    Expression System Vector: PGEX-2T
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1QTT)

(-) Sites  (0, 0)

(no "Site" information available for 1QTT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1QTT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1QTT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QTT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1QTT)

(-) Exons   (3, 3)

NMR Structure (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.2bENST000003694762bENSE00001852005X:154299501-154298969533MTCP1_HUMAN-00--
1.3ENST000003694763ENSE00001622983X:154294332-154294181152MTCP1_HUMAN1-35351A:3-3735
1.4ENST000003694764ENSE00001598211X:154294064-154293894171MTCP1_HUMAN36-92571A:38-9457
1.5aENST000003694765aENSE00001661504X:154293812-15429376152MTCP1_HUMAN93-107151A:95-10915
1.6eENST000003694766eENSE00001450119X:154293674-1542923091366MTCP1_HUMAN-00--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:117
 aligned with MTCP1_HUMAN | P56278 from UniProtKB/Swiss-Prot  Length:107

    Alignment length:117
                              1                                                                                                       107
                              |      8        18        28        38        48        58        68        78        88        98        |-
          MTCP1_HUMAN     - --MAGEDVGAPPDHLWVHQEGIYRDEYQRTWVAVVEEETSFLRARVQQIQVPLGDAARPSHLLTSQLPLMWQLYPEERYMDNNSRLWQIQHHLMVRGVQELLLKLLPDD--------   -
               SCOP domains d1qtta_ A: p13-MTCP1                                                                                                  SCOP domains
               CATH domains 1qttA00 A:1-117 Proto-oncogene - Oncogene Product P14tcl1;                                                            CATH domains
               Pfam domains --TCL1_MTCP1-1qttA01 A:3-108                                                                                --------- Pfam domains
         Sec.struct. author .............eee......ee.....eeeeee......eeeeeee.........hhhhhhh.....eeee....eeee....eeeeeeeeee..eeeeeeee............ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 --Exon 1.3  PDB: A:3-37 UniProt: 1-35Exon 1.4  PDB: A:38-94 UniProt: 36-92                    Exon 1.5a      -------- Transcript 1
                 1qtt A   1 GSMAGEDVGAPPDHLWVHQEGIYRDEYQRTWVAVVEEETSFLRARVQQIQVPLGDAARPSHLLTSQLPLMWQLYPEERYMDNNSRLWQIQHHLMVRGVQELLLKLLPDDRSPGIHRD 117
                                    10        20        30        40        50        60        70        80        90       100       110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: TCL1_MTCP1] (3)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (MTCP1_HUMAN | P56278)
biological process
    GO:0008283    cell proliferation    The multiplication or reproduction of cells, resulting in the expansion of a cell population.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
