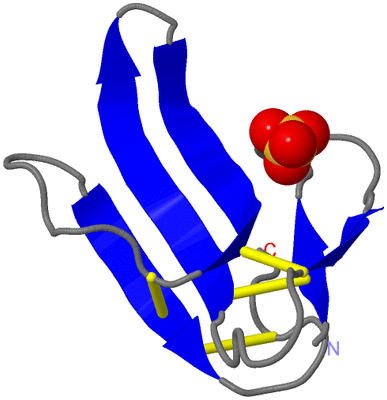

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

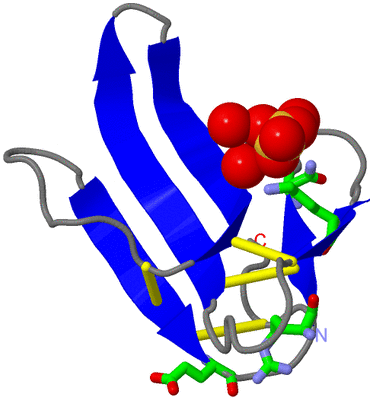

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ERABUTOXIN

Authors :  V. Nastopoulos, P. N. Kanellopoulos, D. Tsernoglou
Date :  16 Jan 98  (Deposition) - 16 Feb 99  (Release) - 26 Oct 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Neurotoxin, Erabutoxin (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  V. Nastopoulos, P. N. Kanellopoulos, D. Tsernoglou
Structure Of Dimeric And Monomeric Erabutoxin A Refined At 1. 5 A Resolution.
Acta Crystallogr. , Sect. D V. 54 964 1998
PubMed-ID: 9757111  |  Reference-DOI: 10.1107/S0907444998005125

(-) Compounds

Molecule 1 - ERABUTOXIN A
    ChainsA
    Organism CommonBROAD-BANDED BLUE SEA KRAIT
    Organism ScientificLATICAUDA SEMIFASCIATA
    Organism Taxid8631
    Other DetailsSNAKE VENOM, JAPANESE SEA SNAKE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:1 , ASN A:5 , LYS A:15 , GLU A:56 , HOH A:71 , HOH A:107 , HOH A:159BINDING SITE FOR RESIDUE SO4 A 63

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1A:3 -A:24
2A:17 -A:41
3A:43 -A:54
4A:55 -A:60

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1QKE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QKE)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SNAKE_TOXINPS00272 Snake toxins signature.3S1EA_LATSE61-79  1A:40-58

(-) Exons   (0, 0)

(no "Exon" information available for 1QKE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:62
 aligned with 3S1EA_LATSE | P60775 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:62
                                    31        41        51        61        71        81
           3S1EA_LATSE   22 RICFNHQSSQPQTTKTCSPGESSCYNKQWSDFRGTIIERGCGCPTVKPGIKLSCCESEVCNN 83
               SCOP domains d1qkea_ A: Erabutoxin B (also neurotoxin B)                    SCOP domains
               CATH domains 1qkeA00 A:1-62 CD59                                            CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.........eee.......eeeeeeee..eeeeeeee.........eeeee....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------SNAKE_TOXIN        ---- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                  1qke A  1 RICFNHQSSQPQTTKTCSPGESSCYNKQWSDFRGTIIERGCGCPTVKPGIKLSCCESEVCNN 62
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1QKE)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (3S1EA_LATSE | P60775)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0035792    other organism postsynaptic membrane    A postsynaptic membrane that is part of another organism, i.e. a secondary organism with which the first organism is interacting. A postsynaptic membrane is a specialized area of membrane facing the presynaptic membrane on the tip of the nerve ending and separated from it by a minute cleft (the synaptic cleft). Neurotransmitters transmit the signal across the synaptic cleft to the postsynaptic membrane.
