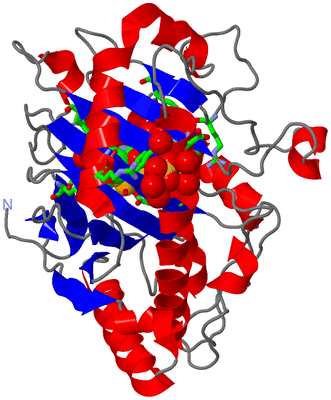

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ISOPENICILLIN N SYNTHASE FROM ASPERGILLUS NIDULANS (ACMC FE COMPLEX)

Authors :  P. J. Rutledge, I. J. Clifton, N. I. Burzlaff, P. L. Roach, R. M. Adlingto J. E. Baldwin
Date :  15 Jun 99  (Deposition) - 16 Jun 00  (Release) - 05 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Antibiotic Biosynthesis, B-Lactam Antibiotic, Monocyclic Intermediate, Oxygenase, Penicillin Biosynthesis (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. I. Burzlaff, P. J. Rutledge, I. J. Clifton, C. M. H. Hensgens, M. Pickford, R. M. Adlington, P. L. Roach, J. E. Baldwin
The Reaction Cycle Of Isopenicillin N Synthase Observed By X-Ray Diffraction.
Nature V. 401 721 1999
PubMed-ID: 10537113  |  Reference-DOI: 10.1038/44400
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ISOPENICILLIN N SYNTHASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PJB703
    Expression System Strain: NM554
    Expression System Taxid: 562
    Gene: PCB C
    Organism Scientific: EMERICELLA NIDULANS
    Organism Taxid: 162425
    Strain: NM554

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.NameCountTypeFull Name
1ACC1Ligand/IonN-[N-[2-AMINO-6-OXO-HEXANOIC ACID-6-YL]CYSTEINYL]-S-METHYLCYSTEINE
2FE1Ligand/IonFE (III) ION
3SO41Ligand/IonSULFATE ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:214 , ASP A:216 , HIS A:270 , ACC A:332 , HOH A:2289BINDING SITE FOR RESIDUE FE A 333
2AC2SOFTWAREARG A:53 , ASP A:140 , PHE A:141 , HOH A:2210 , HOH A:3001 , HOH A:3002 , HOH A:3003 , HOH A:3004 , HOH A:3005BINDING SITE FOR RESIDUE SO4 A 334
3AC3SOFTWAREARG A:87 , TYR A:91 , SER A:183 , TYR A:189 , PHE A:211 , HIS A:214 , ASP A:216 , GLN A:225 , LEU A:231 , SER A:281 , PHE A:285 , LEU A:324 , FE A:333 , HOH A:2397 , HOH A:2399 , HOH A:2400 , HOH A:2401 , HOH A:2402 , HOH A:2403 , HOH A:2404 , HOH A:2405BINDING SITE FOR RESIDUE ACC A 332

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1QIQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1QIQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QIQ)

(-) PROSITE Motifs  (3, 3)

Asymmetric/Biological Unit (3, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1IPNS_1PS00185 Isopenicillin N synthase signature 1.IPNS_EMENI97-106  1A:97-106
2FE2OG_OXYPS51471 Fe(2+) 2-oxoglutarate dioxygenase domain profile.IPNS_EMENI176-288  1A:176-288
3IPNS_2PS00186 Isopenicillin N synthase signature 2.IPNS_EMENI250-263  1A:250-263

(-) Exons   (0, 0)

(no "Exon" information available for 1QIQ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:328
 aligned with IPNS_EMENI | P05326 from UniProtKB/Swiss-Prot  Length:331

    Alignment length:328
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323
           IPNS_EMENI     4 VSKANVPKIDVSPLFGDDQAAKMRVAQQIDAASRDTGFFYAVNHGINVQRLSQKTKEFHMSITPEEKWDLAIRAYNKEHQDQVRAGYYLSIPGKKAVESFCYLNPNFTPDHPRIQAKTPTHEVNVWPDETKHPGFQDFAEQYYWDVFGLSSALLKGYALALGKEENFFARHFKPDDTLASVVLIRYPYLDPYPEAAIKTAADGTKLSFEWHEDVSLITVLYQSNVQNLQVETAAGYQDIEADDTGYLINCGSYMAHLTNNYYKAPIHRVKWVNAERQSLPFFVNLGYDSVIDPFDPREPNGKSDREPLSYGDYLQNGLVSLINKNGQT 331
               SCOP domains d1qiqa_ A: Isopenicillin N synthase                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains 1qiqA00 A:4-331 B-lactam Antibiotic, Isopenicillin N Synthase; Chain                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains -----DIOX_N-1qiqA02 A:9-132                                                                                                      ------------------------------------------------2OG-FeII_Oxy-1qiqA01 A:181-288                                                                              ------------------------------------------- Pfam domains
         Sec.struct. author ......eeee.hhhhh.hhhhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhhhhhhhhh..............eee.........eeeee........hhhhhh.................hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhh........eeeeee......hhhhh...................eeeeee.....eeeee..eeee.......eeeeehhhhhhhh........eee......eeeeeeee.........................hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------------------------------------------------------------------------------------------IPNS_1    ---------------------------------------------------------------------FE2OG_OXY  PDB: A:176-288 UniProt: 176-288                                                                       ------------------------------------------- PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------IPNS_2        -------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1qiq A   4 VSKANVPKIDVSPLFGDDQAAKMRVAQQIDAASRDTGFFYAVNHGINVQRLSQKTKEFHMSITPEEKWDLAIRAYNKEHQDQVRAGYYLSIPGKKAVESFCYLNPNFTPDHPRIQAKTPTHEVNVWPDETKHPGFQDFAEQYYWDVFGLSSALLKGYALALGKEENFFARHFKPDDTLASVVLIRYPYLDPYPEAAIKTAADGTKLSFEWHEDVSLITVLYQSNVQNLQVETAAGYQDIEADDTGYLINCGSYMAHLTNNYYKAPIHRVKWVNAERQSLPFFVNLGYDSVIDPFDPREPNGKSDREPLSYGDYLQNGLVSLINKNGQT 331
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Clan: Cupin (179)
(-)
Clan: no clan defined [family: DIOX_N] (24)

(-) Gene Ontology  (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (IPNS_EMENI | P05326)
molecular function
    GO:0031418    L-ascorbic acid binding    Interacting selectively and non-covalently with L-ascorbic acid, (2R)-2-[(1S)-1,2-dihydroxyethyl]-4-hydroxy-5-oxo-2,5-dihydrofuran-3-olate; L-ascorbic acid is vitamin C and has co-factor and anti-oxidant activities in many species.
    GO:0051213    dioxygenase activity    Catalysis of an oxidation-reduction (redox) reaction in which both atoms of oxygen from one molecule of O2 are incorporated into the (reduced) product(s) of the reaction. The two atoms of oxygen may be distributed between two different products.
    GO:0005506    iron ion binding    Interacting selectively and non-covalently with iron (Fe) ions.
    GO:0016216    isopenicillin-N synthase activity    Catalysis of the reaction: N-[(5S)-5-amino-5-carboxypentanoyl]-L-cysteinyl-D-valine + O(2) = 2 H(2)O + isopenicillin N.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
    GO:0009058    biosynthetic process    The chemical reactions and pathways resulting in the formation of substances; typically the energy-requiring part of metabolism in which simpler substances are transformed into more complex ones.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0042318    penicillin biosynthetic process    The chemical reactions and pathways resulting in the formation of any antibiotic that contains the condensed beta-lactamthiazolidine ring system.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.
