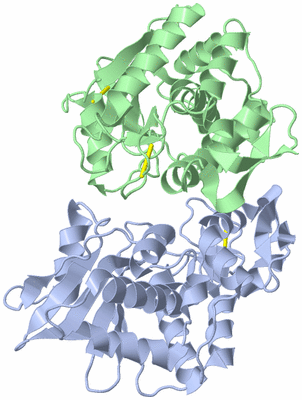

Asymmetric Unit (Jmol Viewer)

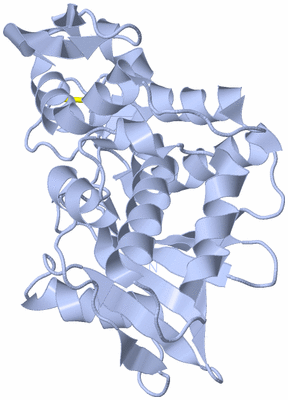

Biological Unit 1 (Jmol Viewer)

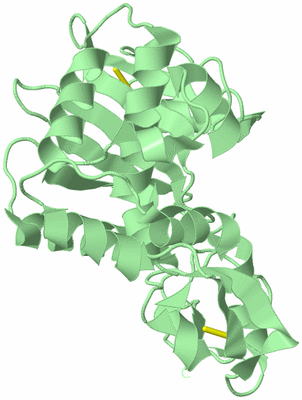

Biological Unit 2 (Jmol Viewer)

Title :   LOW TEMPERATURE STRUCTURE OF POKEWEED ANTIVIRAL PROTEIN

Authors :   I. V. Kurinov, D. E. Myers, J. D. Irvin, F. M. Uckun

Date :   04 May 99 (Deposition) - 15 Sep 99 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Pokeweed Antiviral Protein, Ribosome Inactivating Protein, Rna Substrate Analogs (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   I. V. Kurinov, D. E. Myers, J. D. Irvin, F. M. Uckun
X-Ray Crystallographic Analysis Of The Structural Basis For The Interactions Of Pokeweed Antiviral Protein With Its Active Site Inhibitor And Ribosomal Rna Substrate Analogs.
Protein Sci. V. 8 1765 1999
PubMed-ID: 10493577
(for further references see the PDB file header)

Molecule 1 - POKEWEED ANTIVIRAL PROTEIN
	Chains	:	A, B
	Organism Common	:	AMERICAN POKEWEED
	Organism Scientific	:	PHYTOLACCA AMERICANA
	Organism Taxid	:	3527

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1QCG)

(no "Site" information available for 1QCG)

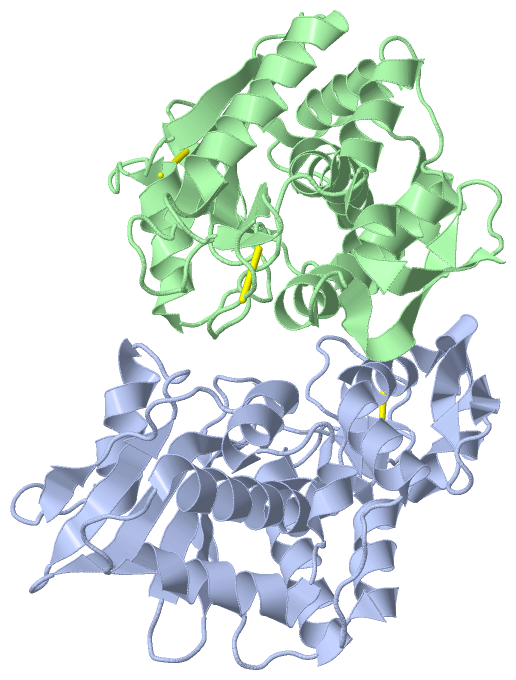

Asymmetric Unit

No.	Residues
1	A:34	-	A:259
2	A:85	-	A:106
3	B:34	-	B:259
4	B:85	-	B:106

Asymmetric Unit

No.	Residues
1	Asn A:46	-	Pro A:47
2	Asn B:46	-	Pro B:47

(no "SAP(SNP)/Variant" information available for 1QCG)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SHIGA_RICIN	PS00275	Shiga/ricin ribosomal inactivating toxins active site signature.	RIP1_PHYAM	193-209	2	A:171-187 B:171-187

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SHIGA_RICIN	PS00275	Shiga/ricin ribosomal inactivating toxins active site signature.	RIP1_PHYAM	193-209	1	A:171-187 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SHIGA_RICIN	PS00275	Shiga/ricin ribosomal inactivating toxins active site signature.	RIP1_PHYAM	193-209	1	- B:171-187

(no "Exon" information available for 1QCG)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:262
 aligned with RIP1_PHYAM | P10297 from UniProtKB/Swiss-Prot  Length:313

    Alignment length:262
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282
           RIP1_PHYAM    23 VNTIIYNVGSTTISKYATFLNDLRNEAKDPSLKCYGIPMLPNTNTNPKYVLVELQGSNKKTITLMLRRNNLYVMGYSDPFETNKCRYHIFNDISGTERQDVETTLCPNANSRVSKNINFDSRYPTLESKAGVKSRSQVQLGIQILDSNIGKISGVMSFTEKTEAEFLLVAIQMVSEAARFKYIENQVKTNFNRAFNPNPKVLNLQETWGKISTAIHDAKNGVLPKPLELVDASGAKWIVLRVDEIKPDVALLNYVGGSCQTT 284
               SCOP domains d1qcga_ A: Pokeweed antiviral protein alpha                                                                                                                                                                                                                            SCOP domains
               CATH domains 1qcgA01 A:1-178 Ricin (A subunit), domain 1                                                                                                                                       1qcgA02 A:179-259 Ricin (A Subunit), domain 2                                    --- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee....hhhhhhhhhhhhhhhhh....ee..ee..........eeeeeee.....eeeeeee.....eeeeeeee...eeeeee.....hhhhhhhhhhhh.....eee.......hhhhhhhhh...hhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhh...eeeeeeeee.....eeeeee.hhhhhh.............. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------SHIGA_RICIN      --------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1qcg A   1 VNTIIYNVGSTTISKYATFLNDLRNEAKDPSLKCYGIPMLPNTNTNPKYVLVELQGSNKKTITLMLRRNNLYVMGYSDPFETNKCRYHIFNDISGTERQDVETTLCPNANSRVSKNINFDSRYPTLESKAGVKSRSQVQLGIQILDSNIGKISGVMSFTEKTEAEFLLVAIQMVSEAARFKYIENQVKTNFNRAFNPNPKVLNLQETWGKISTAIHDAKNGVLPKPLELVDASGAKWIVLRVDEIKPDVALLNYVGGSCQTT 262
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260

Chain B from PDB  Type:PROTEIN  Length:262
 aligned with RIP1_PHYAM | P10297 from UniProtKB/Swiss-Prot  Length:313

    Alignment length:262
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282
           RIP1_PHYAM    23 VNTIIYNVGSTTISKYATFLNDLRNEAKDPSLKCYGIPMLPNTNTNPKYVLVELQGSNKKTITLMLRRNNLYVMGYSDPFETNKCRYHIFNDISGTERQDVETTLCPNANSRVSKNINFDSRYPTLESKAGVKSRSQVQLGIQILDSNIGKISGVMSFTEKTEAEFLLVAIQMVSEAARFKYIENQVKTNFNRAFNPNPKVLNLQETWGKISTAIHDAKNGVLPKPLELVDASGAKWIVLRVDEIKPDVALLNYVGGSCQTT 284
               SCOP domains d1qcgb_ B: Pokeweed antiviral protein alpha                                                                                                                                                                                                                            SCOP domains
               CATH domains 1qcgB01 B:1-178 Ricin (A subunit), domain 1                                                                                                                                       1qcgB02 B:179-259 Ricin (A Subunit), domain 2                                    --- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee....hhhhhhhhhhhhhhhhh....ee..ee..........eeeeeee.....eeeeeee.....eeeeeeee...eeeeee.....hhhhhhhhhhhh.....eee.......hhhhhhhhh...hhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhh...eeeeeeeee.....eeeeeehhhhh................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------SHIGA_RICIN      --------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1qcg B   1 VNTIIYNVGSTTISKYATFLNDLRNEAKDPSLKCYGIPMLPNTNTNPKYVLVELQGSNKKTITLMLRRNNLYVMGYSDPFETNKCRYHIFNDISGTERQDVETTLCPNANSRVSKNINFDSRYPTLESKAGVKSRSQVQLGIQILDSNIGKISGVMSFTEKTEAEFLLVAIQMVSEAARFKYIENQVKTNFNRAFNPNPKVLNLQETWGKISTAIHDAKNGVLPKPLELVDASGAKWIVLRVDEIKPDVALLNYVGGSCQTT 262
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Ribosome inactivating proteins (RIP) (180)

Superfamily: Ribosome inactivating proteins (RIP) (180)

Family: Plant cytotoxins (166)

Protein domain: Pokeweed antiviral protein alpha (7)

Pokeweed (Phytolacca americana) [TaxId: 3527] (7)

1a	d1qcga_	A:
1b	d1qcgb_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Ricin (A subunit); domain 1 (112)

Homologous Superfamily: Ricin (A subunit), domain 1 (112)

American pokeweed (Phytolacca americana) (12)

1a	1qcgA01	A:1-178
1b	1qcgB01	B:1-178

Class: Few Secondary Structures (1120)

Architecture: Irregular (1120)

Topology: Ricin (A Subunit), domain 2 (112)

Homologous Superfamily: Ricin (A Subunit), domain 2 (112)

American pokeweed (Phytolacca americana) (12)

2a	1qcgA02	A:179-259
2b	1qcgB02	B:179-259

(no "Pfam Domain" information available for 1QCG)

Asymmetric Unit(hide GO term definitions)

Chain A,B (RIP1_PHYAM | P10297)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0030598	rRNA N-glycosylase activity	Catalysis of the hydrolysis of the N-glycosylic bond at A-4324 in 28S rRNA from rat ribosomes or corresponding sites in 28S RNA from other species.
biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
	GO:0051607	defense response to virus	Reactions triggered in response to the presence of a virus that act to protect the cell or organism.
	GO:0017148	negative regulation of translation	Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of proteins by the translation of mRNA or circRNA.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1qcg)

	Sites
(no "Sites" information available for 1qcg)

	Cis Peptide Bonds
		Asn A:46 - Pro A:47	[ RasMol ]
		Asn B:46 - Pro B:47	[ RasMol ]

Biological Units
	Complete Structure

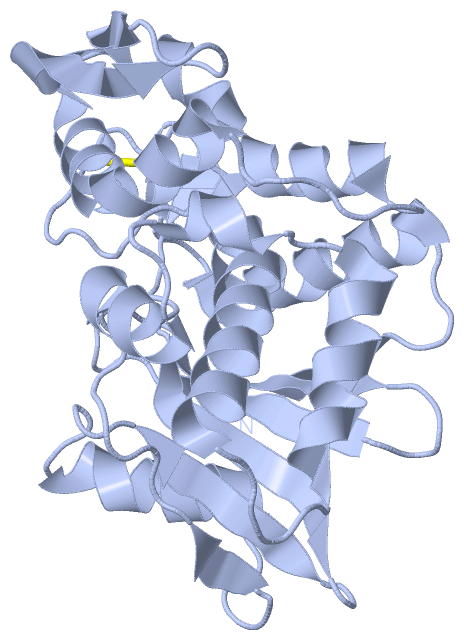

		Biological Unit 1	[ Jena3D ]

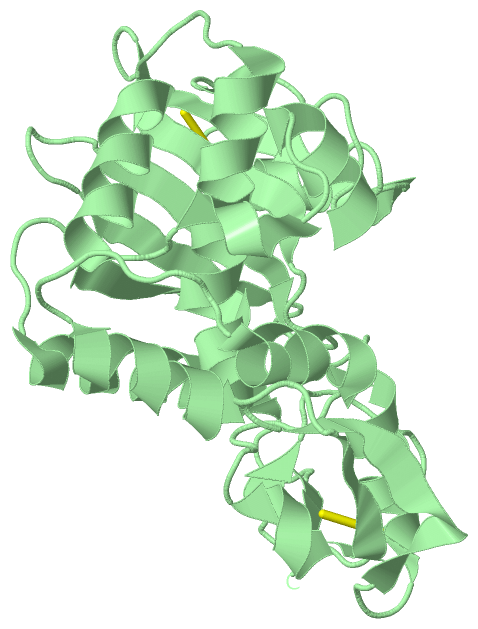

		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1qcg
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RIP1_PHYAM \| P10297
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RIP1_PHYAM \| P10297
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RIP1_PHYAM \| P10297	:	1d6a 1paf 1pag 1qci 1qcj
