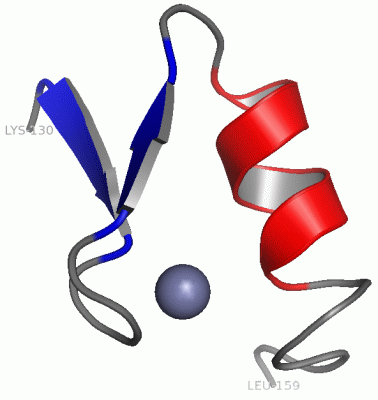

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

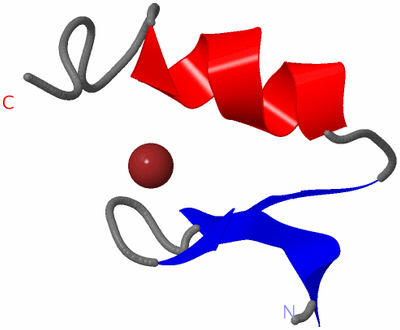

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

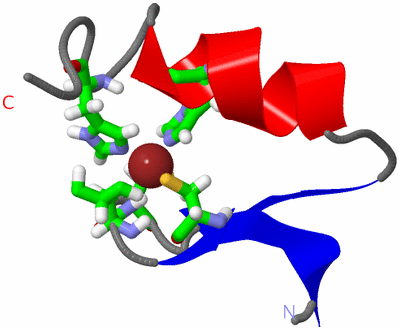

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

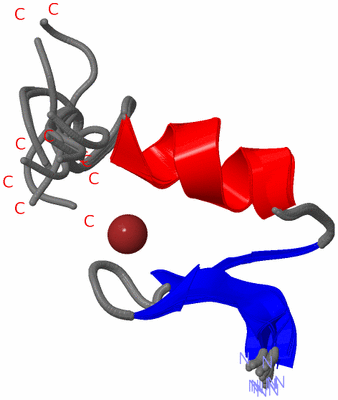

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF A HISTIDINE-X4-HISTIDINE ZINC FINGER DOMAIN: INSIGHTS INTO ADR1-UAS1 PROTEIN-DNA RECOGNITION

Authors :  B. E. Bernstein, R. C. Hoffman, S. J. Horvath, J. R. Herriott, R. E. Klevit
Date :  15 Jul 94  (Deposition) - 15 Oct 94  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Transcription Regulation (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  B. E. Bernstein, R. C. Hoffman, S. Horvath, J. R. Herriott, R. E. Klevit
Structure Of A Histidine-X4-Histidine Zinc Finger Domain: Insights Into Adr1-Uas1 Protein-Dna Recognition.
Biochemistry V. 33 4460 1994
PubMed-ID: 8161501  |  Reference-DOI: 10.1021/BI00181A005
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - YEAST TRANSCRIPTION FACTOR ADR1
    ChainsA
    EngineeredYES
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE
    Organism Taxid4932

 Structural Features

(-) Chains, Units


NMR Structure (10x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1ZN1Ligand/IonZINC ION

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:134 , LEU A:136 , CYS A:137 , HIS A:150 , HIS A:155BINDING SITE FOR RESIDUE ZN A 160

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1PAA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1PAA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1PAA)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ZINC_FINGER_C2H2_1PS00028 Zinc finger C2H2 type domain signature.ADR1_YEAST106-126
134-155
  1-
A:134-155

(-) Exons   (1, 1)

NMR Structure (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YDR216W1YDR216W.1IV:895032-8990033972ADR1_YEAST1-132313231A:130-15930

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:30
 aligned with ADR1_YEAST | P07248 from UniProtKB/Swiss-Prot  Length:1323

    Alignment length:30
                                   139       149       159
           ADR1_YEAST   130 KPYPCGLCNRCFTRRDLLIRHAQKIHSGNL 159
               SCOP domains d1paaa_ A: ADR1                SCOP domains
               CATH domains ------------------------------ CATH domains
               Pfam domains ----zf-C2H2-1paaA01       ---- Pfam domains
         Sec.struct. author .eeee....eee..hhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ------------------------------ SAPs(SNPs)
                    PROSITE ----ZINC_FINGER_C2H2_1    ---- PROSITE
               Transcript 1 Exon 1.1  PDB: A:130-159       Transcript 1
                 1paa A 130 KAYACGLCNRAFTRRDLLIRHAQKIHSGNL 159
                                   139       149       159

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1PAA)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: C2H2-zf (71)

(-) Gene Ontology  (22, 22)

NMR Structure(hide GO term definitions)
Chain A   (ADR1_YEAST | P07248)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0001102    RNA polymerase II activating transcription factor binding    Interacting selectively and non-covalently with an RNA polymerase II transcription activating factor, a protein involved in positive regulation of transcription.
    GO:0000978    RNA polymerase II core promoter proximal region sequence-specific DNA binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II.
    GO:0001093    TFIIB-class transcription factor binding    Interacting selectively and non-covalently with a basal RNA polymerase II transcription factor of the TFIIB class, one of the factors involved in formation of the preinitiation complex (PIC) by RNA polymerase II and defined as a basal or general transcription factor.
    GO:0001094    TFIID-class transcription factor binding    Interacting selectively and non-covalently with a basal RNA polymerase II transcription factor of the TFIID class, one of the factors involved in formation of the preinitiation complex (PIC) by RNA polymerase II and defined as a basal or general transcription factor.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0000982    transcription factor activity, RNA polymerase II core promoter proximal region sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II (RNAP II) in order to modulate transcription by RNAP II.
    GO:0001190    transcriptional activator activity, RNA polymerase II transcription factor binding    Interacting selectively and non-covalently with an RNA polymerase II transcription factor, which may be a single protein or a complex, in order to increase the frequency, rate or extent of transcription from an RNA polymerase II promoter. A protein binding transcription factor may or may not also interact with the template nucleic acid (either DNA or RNA) as well.
biological process
    GO:0071400    cellular response to oleic acid    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an oleic acid stimulus.
    GO:0006325    chromatin organization    Any process that results in the specification, formation or maintenance of the physical structure of eukaryotic chromatin.
    GO:0031936    negative regulation of chromatin silencing    Any process that stops, prevents, or reduces the frequency, rate or extent of chromatin silencing.
    GO:0007031    peroxisome organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a peroxisome. A peroxisome is a small, membrane-bounded organelle that uses dioxygen (O2) to oxidize organic molecules.
    GO:0061425    positive regulation of ethanol catabolic process by positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter and activates or increases the frequency, rate or extent of an ethanol catabolic process.
    GO:0097235    positive regulation of fatty acid beta-oxidation by positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of fatty acid beta-oxidation by activating or increasing the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0061424    positive regulation of peroxisome organization by positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter and activates or increases the frequency, rate or extent of peroxisome organization.
    GO:0061429    positive regulation of transcription from RNA polymerase II promoter by oleic acid    Any process involving oleic acid that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0061410    positive regulation of transcription from RNA polymerase II promoter in response to ethanol    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter as a result of an ethanol stimulus.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006366    transcription from RNA polymerase II promoter    The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1paa)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1paa
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ADR1_YEAST | P07248
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  ADR1_YEAST | P07248
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ADR1_YEAST | P072481ard 1are 1arf 2adr 5a7u
