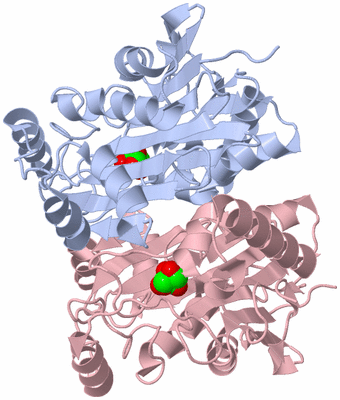

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

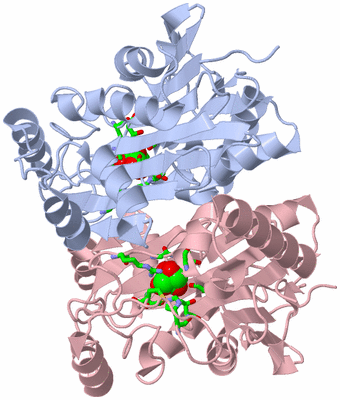

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE GLYCOSYLASPARAGINASE PRECURSOR D151N MUTANT

Authors :  X. Qian, C. Guan, H. C. Guo
Date :  23 Apr 03  (Deposition) - 06 May 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,C
Keywords :  Alpha Beta, Beta Alpha, Sandwich, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Qian, C. Guan, H. C. Guo
A Dual Role For An Aspartic Acid In Glycosylasparaginase Autoproteolysis.
Structure V. 11 997 2003
PubMed-ID: 12906830  |  Reference-DOI: 10.1016/S0969-2126(03)00150-3

(-) Compounds

Molecule 1 - N(4)-(BETA-N-ACETYLGLUCOSAMINYL)-L-ASPARAGINASE
    Chains: A, C
    EC Number: 3.5.1.26
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMAL-C2X
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: GLYCOSYLASPARAGINASE, ALPHA AND BETA CHAINS
    Mutation: YES
    Organism Scientific: ELIZABETHKINGIA MENINGOSEPTICA
    Organism Taxid: 238
    Synonym: GLYCOSYLASPARAGINASE, ASPARTYLGLUCOSAMINIDASE, N4-N- ACETYL- BETA-GLUCOSAMINYL, -L-ASPARAGINE AMIDASE, AGA

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1GOL4Ligand/IonGLYCEROL

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:150 , THR A:152 , THR A:170 , GLY A:172 , MET A:173 , ARG A:180 , GLY A:182 , ASP A:183 , SER A:184 , GLY A:204 , GOL A:297BINDING SITE FOR RESIDUE GOL A 296
2AC2SOFTWAREHIS A:150 , THR A:152 , THR A:170 , GLY A:172 , MET A:173 , ARG A:180 , GLY A:182 , ASP A:183 , SER A:184 , GLY A:204 , GLY A:206 , GOL A:296BINDING SITE FOR RESIDUE GOL A 297
3AC3SOFTWAREGOL C:4 , HIS C:450 , THR C:452 , THR C:470 , GLY C:472 , MET C:473 , ARG C:480 , GLY C:482 , ASP C:483 , SER C:484 , GLY C:504BINDING SITE FOR RESIDUE GOL C 2
4AC4SOFTWAREGOL C:2 , HIS C:450 , THR C:470 , GLY C:472 , MET C:473 , ARG C:480 , GLY C:482 , ASP C:483 , SER C:484 , GLY C:504 , GLY C:506BINDING SITE FOR RESIDUE GOL C 4

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1P4K)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Lys A:4 -Pro A:5
2Lys C:304 -Pro C:305

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1P4K)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1P4K)

(-) Exons   (0, 0)

(no "Exon" information available for 1P4K)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:295
 aligned with ASPG_ELIMR | Q47898 from UniProtKB/Swiss-Prot  Length:340

    Alignment length:295
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335
           ASPG_ELIMR    46 TTNKPIVLSTWNFGLHANVEAWKVLSKGGKALDAVEKGVRLVEDDPTERSVGYGGRPDRDGRVTLDACIMDENYNIGSVACMEHIKNPISVARAVMEKTPHVMLVGDGALEFALSQGFKKENLLTAESEKEWKEWLKTSQYKPIVNIENHDTIGMIALDAQGNLSGACTTSGMAYKMHGRVGDSPIIGAGLFVDNEIGAATATGHGEEVIRTVGTHLVVELMNQGRTPQQACKEAVERIVKIVNRRGKNLKDIQVGFIALNKKGEYGAYCIQDGFNFAVHDQKGNRLETPGFALK 340
               SCOP domains d1p4ka_ A: Glycosylasparaginase (aspartylglucosaminidase, AGA)                                                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee..hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh...................eeeeee.....eeeeeee....hhhhhhhhhhhhh...eeehhhhhhhhhhh........hhhhhhhhhhhhh...............eeeeee.....eeeeeee....................eeee...eeeeeeehhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh..hhhhh.eeeeeee....eeeee......eeeee..eeeee..ee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1p4k A   1 TTNKPIVLSTWNFGLHANVEAWKVLSKGGKALDAVEKGVRLVEDDPTERSVGYGGRPDRDGRVTLDACIMDENYNIGSVACMEHIKNPISVARAVMEKTPHVMLVGDGALEFALSQGFKKENLLTAESEKEWKEWLKTSQYKPIVNIENHNTIGMIALDAQGNLSGACTTSGMAYKMHGRVGDSPIIGAGLFVDNEIGAATATGHGEEVIRTVGTHLVVELMNQGRTPQQACKEAVERIVKIVNRRGKNLKDIQVGFIALNKKGEYGAYCIQDGFNFAVHDQKGNRLETPGFALK 295
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290


Chain C from PDB  Type:PROTEIN  Length:295
 aligned with ASPG_ELIMR | Q47898 from UniProtKB/Swiss-Prot  Length:340

    Alignment length:295
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335
           ASPG_ELIMR    46 TTNKPIVLSTWNFGLHANVEAWKVLSKGGKALDAVEKGVRLVEDDPTERSVGYGGRPDRDGRVTLDACIMDENYNIGSVACMEHIKNPISVARAVMEKTPHVMLVGDGALEFALSQGFKKENLLTAESEKEWKEWLKTSQYKPIVNIENHDTIGMIALDAQGNLSGACTTSGMAYKMHGRVGDSPIIGAGLFVDNEIGAATATGHGEEVIRTVGTHLVVELMNQGRTPQQACKEAVERIVKIVNRRGKNLKDIQVGFIALNKKGEYGAYCIQDGFNFAVHDQKGNRLETPGFALK 340
               SCOP domains d1p4kc_ C: Glycosylasparaginase (aspartylglucosaminidase, AGA)                                                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Asparaginase_2-1p4kC01 C:301-595                                                                                                                                                                                                                                                                        Pfam domains (1)
           Pfam domains (2) Asparaginase_2-1p4kC02 C:301-595                                                                                                                                                                                                                                                                        Pfam domains (2)
         Sec.struct. author .....eeeee..hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh...................eeeeee.....eeeeeee....hhhhhhhhhhhhh...eeehhhhhhhhhhh........hhhhhhhhhhhhh...............eeeeee.....eeeeeee....................eeee...eeeeeeehhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh..hhhhh.eeeeeee....eeeee......eeeee..eeeee..ee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1p4k C 301 TTNKPIVLSTWNFGLHANVEAWKVLSKGGKALDAVEKGVRLVEDDPTERSVGYGGRPDRDGRVTLDACIMDENYNIGSVACMEHIKNPISVARAVMEKTPHVMLVGDGALEFALSQGFKKENLLTAESEKEWKEWLKTSQYKPIVNIENHNTIGMIALDAQGNLSGACTTSGMAYKMHGRVGDSPIIGAGLFVDNEIGAATATGHGEEVIRTVGTHLVVELMNQGRTPQQACKEAVERIVKIVNRRGKNLKDIQVGFIALNKKGEYGAYCIQDGFNFAVHDQKGNRLETPGFALK 595
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1P4K)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: NTN (93)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,C   (ASPG_ELIMR | Q47898)
molecular function
    GO:0003948    N4-(beta-N-acetylglucosaminyl)-L-asparaginase activity    Catalysis of the reaction: N(4)-(beta-N-acetyl-D-glucosaminyl)-L-asparagine + H(2)O = N-acetyl-beta-D-glucosaminylamine + L-aspartate + H(+).
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:4 - Pro A:5   [ RasMol ]
    Lys C:304 - Pro C:305   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

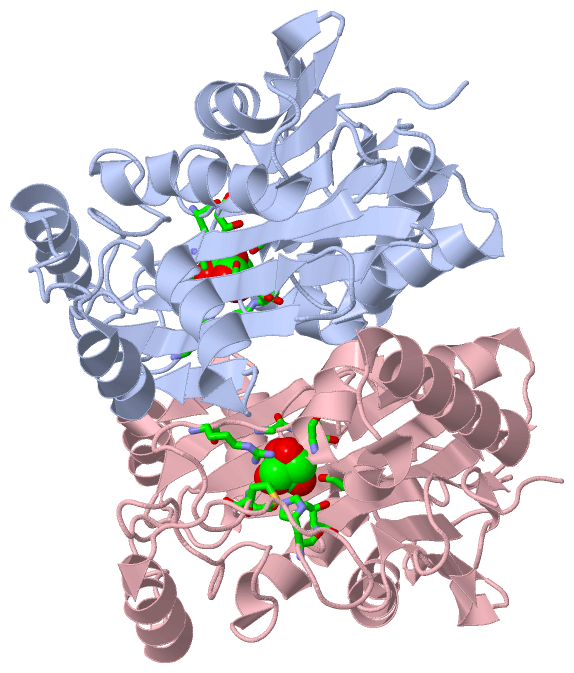

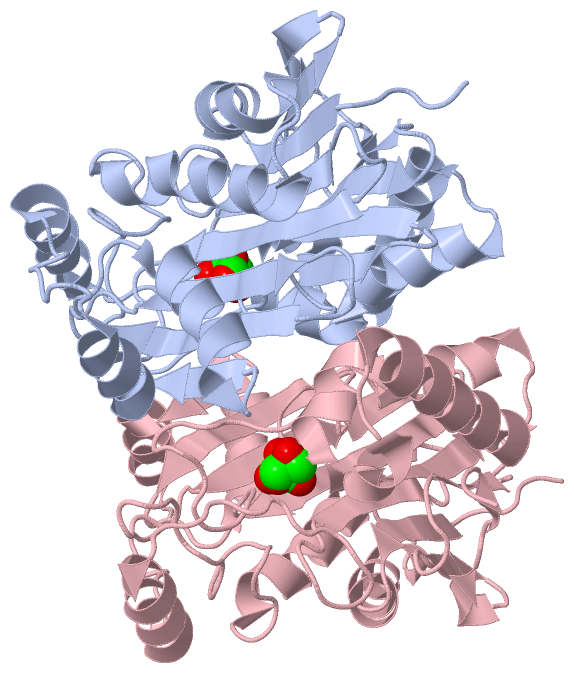

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1p4k
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ASPG_ELIMR | Q47898
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.5.1.26
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ASPG_ELIMR | Q47898
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ASPG_ELIMR | Q47898: 1ayy 1p4v 2gac 2gaw 2gl9 3ljq 4r4y 9gaa 9gac 9gaf

(-) Related Entries Specified in the PDB File

1p4v CRYSTAL STRUCTURE OF THE GLYCOSYLASPARAGINASE PRECURSOR D151N MUTANT WITH GLYCINE
