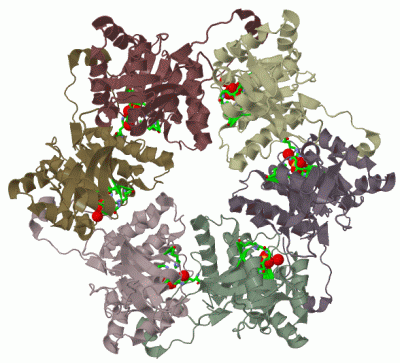

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

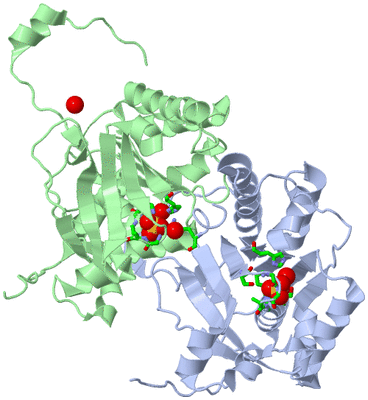

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

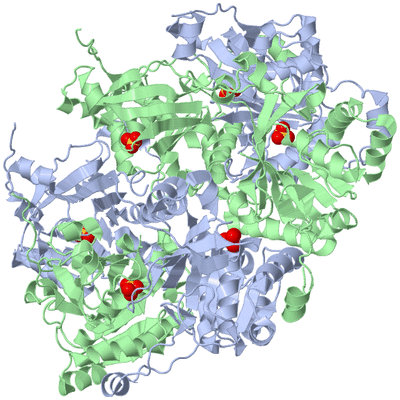

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  HEXAMERIC REPLICATIVE DNA HELICASE REPA FROM PLASMID RSF1010 - CUBIC CRYSTAL STRUCTURE

Authors :  T. Niedenzu, W. Saenger
Date :  08 Aug 03  (Deposition) - 19 Sep 03  (Release) - 28 Jun 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.55
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (3x)
Keywords :  Dna Helicase, Atpase, Motor Protein, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Ziegelin, T. Niedenzu, R. Lurz, W. Saenger, E. Lanka
Hexameric Rsf1010 Helicase Repa: The Structural And Functional Importance Of Single Amino Acid Residues
Nucleic Acids Res. V. 31 5917 2003
PubMed-ID: 14530440  |  Reference-DOI: 10.1093/NAR/GKG790

(-) Compounds

Molecule 1 - REGULATORY PROTEIN REPA
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PTACREP-A
    Expression System Strain: XL1-BLUE
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Other Details: BROAD HOST RANGE PLASMID RSF1010

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1SO46Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:37 , GLY A:39 , GLY A:40 , ALA A:41 , GLY A:42 , LYS A:43 , SER A:44 , HIS A:179 , HOH A:2136 , HOH B:2193BINDING SITE FOR RESIDUE SO4 A 300
2AC2SOFTWAREARG A:207 , GLY B:40 , ALA B:41 , GLY B:42 , LYS B:43 , SER B:44 , HIS B:179 , HOH B:2208 , HOH B:2209BINDING SITE FOR RESIDUE SO4 B 300

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1OLO)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Asp A:140 -Thr A:141
2Asp B:140 -Thr B:141

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1OLO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1OLO)

(-) Exons   (0, 0)

(no "Exon" information available for 1OLO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:249
 aligned with REPJ_ECOLX | P20356 from UniProtKB/Swiss-Prot  Length:279

    Alignment length:269
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261
           REPJ_ECOLX     2 ATHKPINILEAFAAAPPPLDYVLPNMVAGTVGALVSPGGAGKSMLALQLAAQIAGGPDLLEVGELPTGPVIYLPAEDPPTAIHHRLHALGAHLSAEERQAVADGLLIQPLIGSLPNIMAPEWFDGLKRAAEGRRLMVLDTLRRFHIEEENASGPMAQVIGRMEAIAADTGCSIVFLHHASKGAAMMGAGDQQQASRGSSVLVDNIRWQSYLSSMTSAEAEEWGVDDDQRRFFVRFGVSKANYGAPFADRWFRRHDGGVLKPAVLERQRK 270
               SCOP domains d1oloa_ A: Hexameric replicative helicase repA                                                                                                                                                                                                                                SCOP domains
               CATH domains 1oloA00 A:2-270 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                          CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhh......eee..ee...eeeeee....hhhhhhhhhhhhhhh..............eeeee...hhhhhhhhhhhhhh..hhhhhhhhhhheee...........hhhhhhhhhhhhh...eeeeehhhhhh.....hhhhhhhhhhhhhhhhhhhh.eeeeeee.--------------------.......eeeeeee.hhhhhhhh..hhhhhh.eeeeeeee.........eeeee.hhh.eee........ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1olo A   2 ATHKPINILEAFAAAPPPLDYVLPNMVAGTVGALVSPGGAGKSMLALQLAAQIAGGPDLLEVGELPTGPVIYLPAEDPPTAIHHRLHALGAHLSAEERQAVADGLLIQPLIGSLPNIMAPEWFDGLKRAAEGRRLMVLDTLRRFHIEEENASGPMAQVIGRMEAIAADTGCSIVFLHHA--------------------VLVDNIRWQSYLSSMTSAEAEEWGVDDDQRRFFVRFGVSKANYGAPFADRWFRRHDGGVLKPAVLERQRK 270
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171        |-         -       201       211       221       231       241       251       261
                                                                                                                                                                                                            180                  201


Chain B from PDB  Type:PROTEIN  Length:250
 aligned with REPJ_ECOLX | P20356 from UniProtKB/Swiss-Prot  Length:279

    Alignment length:270
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
           REPJ_ECOLX     2 ATHKPINILEAFAAAPPPLDYVLPNMVAGTVGALVSPGGAGKSMLALQLAAQIAGGPDLLEVGELPTGPVIYLPAEDPPTAIHHRLHALGAHLSAEERQAVADGLLIQPLIGSLPNIMAPEWFDGLKRAAEGRRLMVLDTLRRFHIEEENASGPMAQVIGRMEAIAADTGCSIVFLHHASKGAAMMGAGDQQQASRGSSVLVDNIRWQSYLSSMTSAEAEEWGVDDDQRRFFVRFGVSKANYGAPFADRWFRRHDGGVLKPAVLERQRKS 271
               SCOP domains d1olob_ B: Hexameric replicative helicase repA                                                                                                                                                                                                                                 SCOP domains
               CATH domains 1oloB00 B:2-271 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                           CATH domains
           Pfam domains (1) ---AAA_25-1oloB01 B:5-180                                                                                                                                                          ------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) ---AAA_25-1oloB02 B:5-180                                                                                                                                                          ------------------------------------------------------------------------------------------- Pfam domains (2)
         Sec.struct. author ......hhhhhhhh......eee..ee...eeeeee....hhhhhhhhhhhhhh...............eeeee...hhhhhhhhhhhhhh..hhhhhhhhhhheee...........hhhhhhhhhhhhh...eeeeehhhhhh.....hhhhhhhhhhhhhhhhhhhh.eeeeeee.--------------------hhhhhh.eeeeeee.hhhhhh....hhhhhh.eeeeeeee.........eeeee.hhh.eee......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1olo B   2 ATHKPINILEAFAAAPPPLDYVLPNMVAGTVGALVSPGGAGKSMLALQLAAQIAGGPDLLEVGELPTGPVIYLPAEDPPTAIHHRLHALGAHLSAEERQAVADGLLIQPLIGSLPNIMAPEWFDGLKRAAEGRRLMVLDTLRRFHIEEENASGPMAQVIGRMEAIAADTGCSIVFLHHA--------------------VLVDNIRWQSYLSSMTSAEAEEWGVDDDQRRFFVRFGVSKANYGAPFADRWFRRHDGGVLKPAVLERQRKS 271
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171        |-         -       201       211       221       231       241       251       261       271
                                                                                                                                                                                                            180                  201
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (REPJ_ECOLX | P20356)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0006276    plasmid maintenance    The maintenance of the integrity of extrachromosomal plasmid DNA; includes processes that ensure plasmids are retained in the daughter cells after cell division.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asp A:140 - Thr A:141   [ RasMol ]
    Asp B:140 - Thr B:141   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

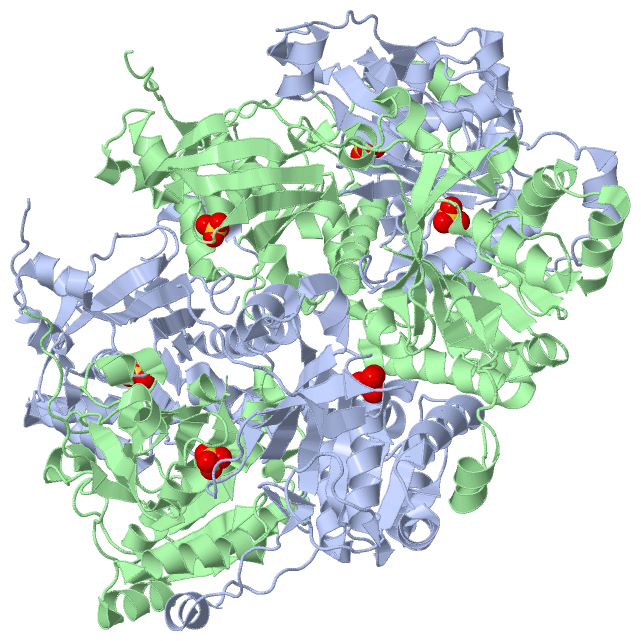

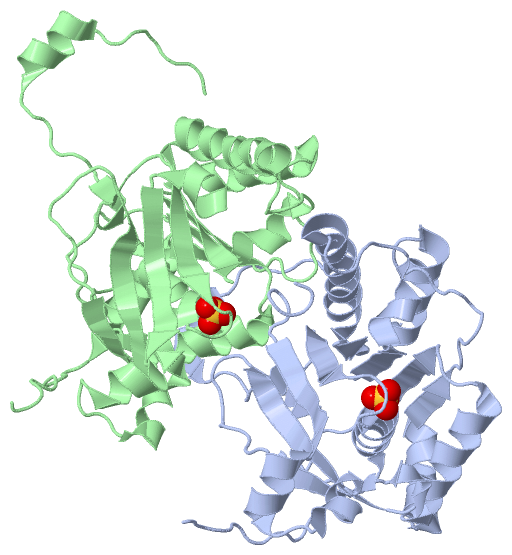

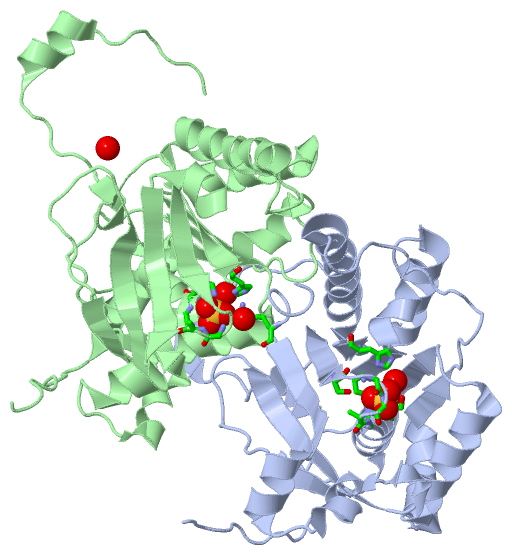

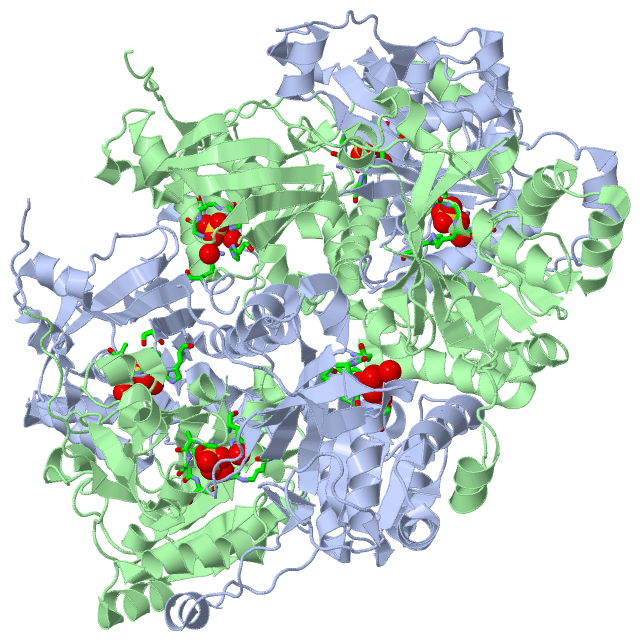

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1olo
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  REPJ_ECOLX | P20356
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  REPJ_ECOLX | P20356
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        REPJ_ECOLX | P20356: 1g8y 1nlf

(-) Related Entries Specified in the PDB File

1g8y CRYSTAL STRUCTURE OF THE HEXAMERIC REPLICATIVE HELICASE REPA OF PLASMID RSF1010
1nlf CRYSTAL STRUCTURE OF DNA HELICASE REPA IN COMPLEX WITH SULFATE AT 1.95 A RESOLUTION
