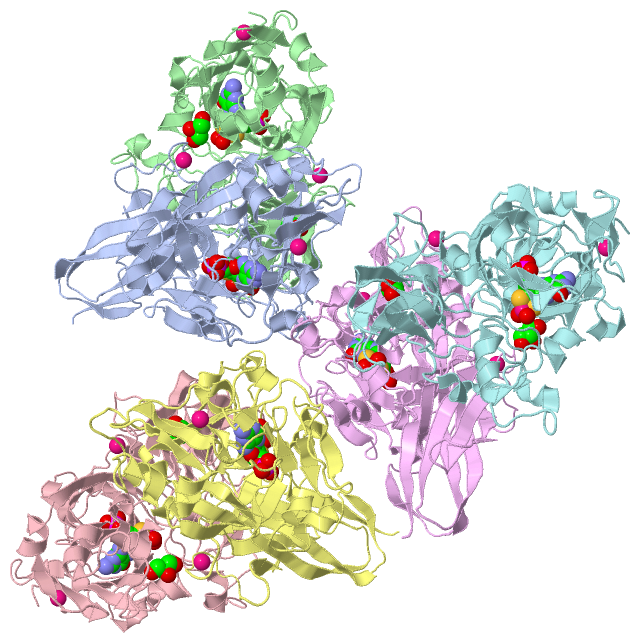

Asymmetric Unit (Jmol Viewer)

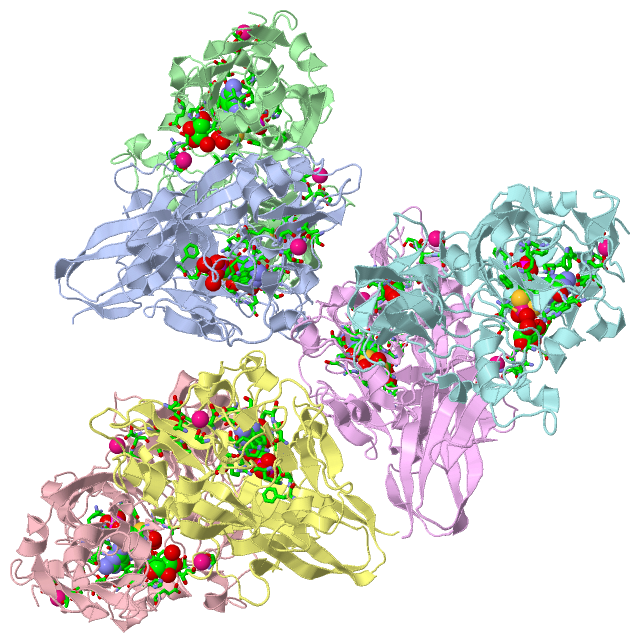

Asym. Unit - sites (Jmol Viewer)

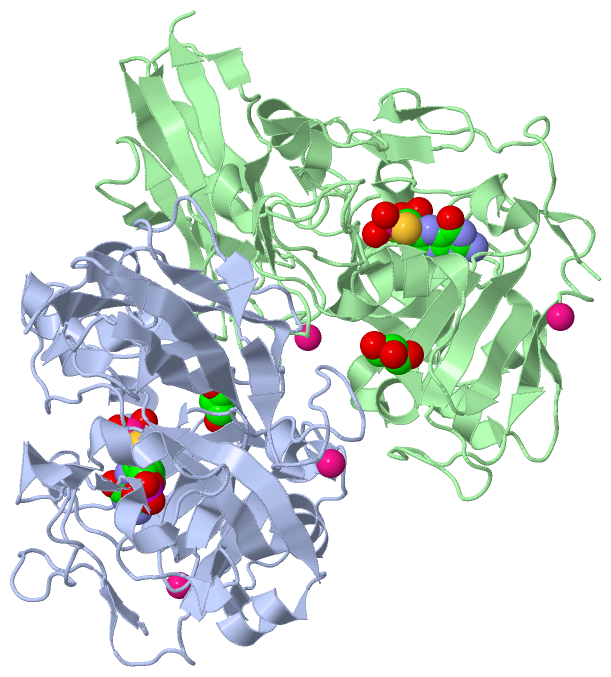

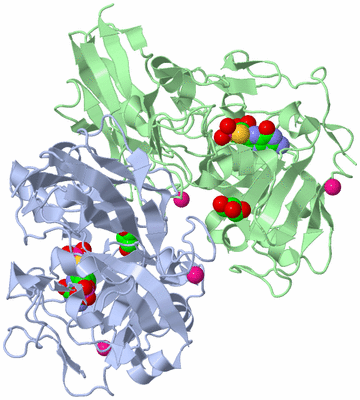

Biological Unit 1 (Jmol Viewer)

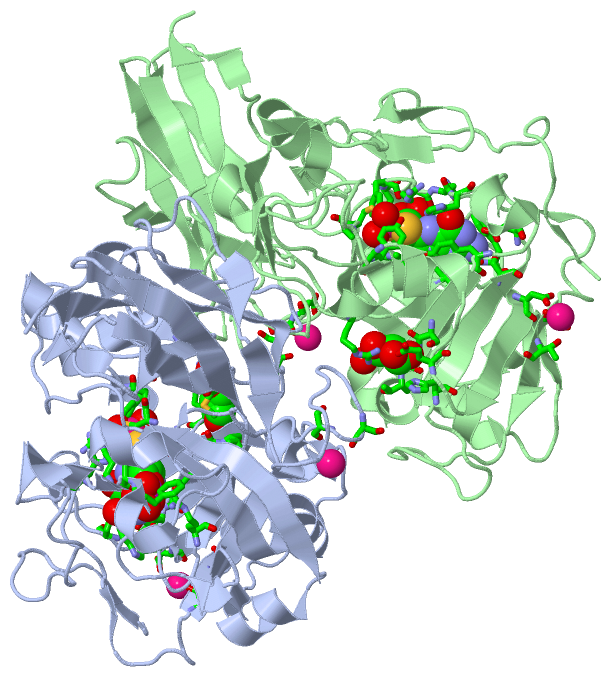

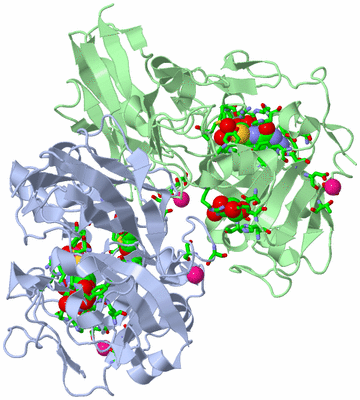

Biol. Unit 1 - sites (Jmol Viewer)

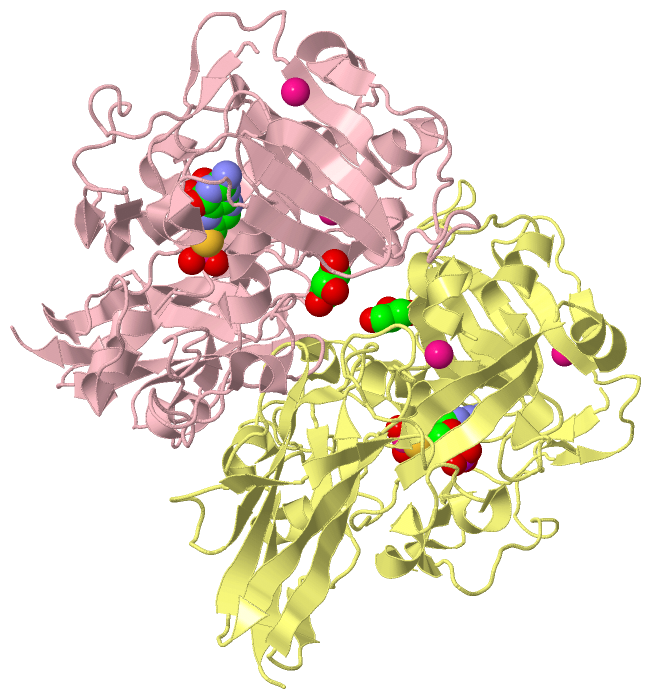

Biological Unit 2 (Jmol Viewer)

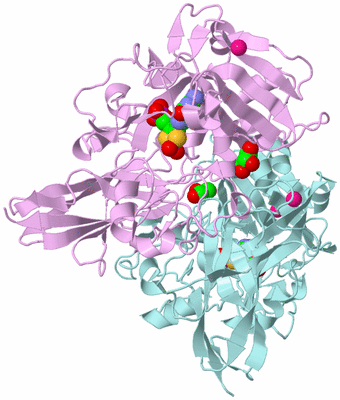

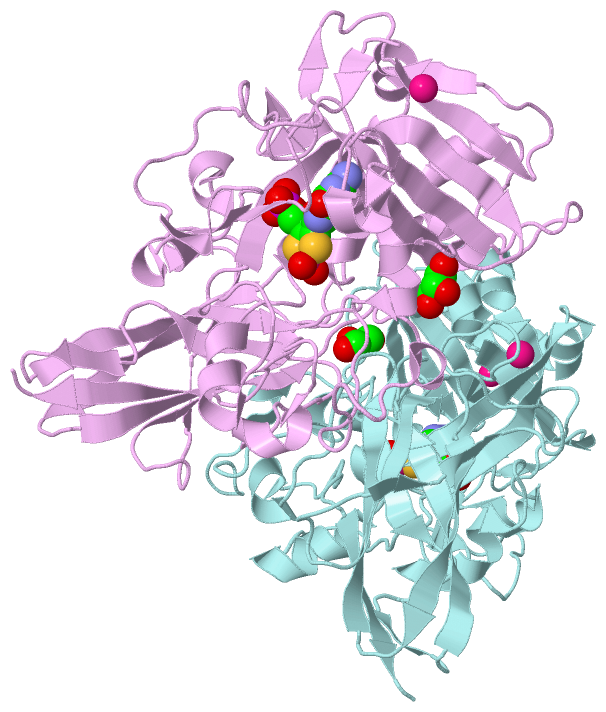

Biological Unit 3 (Jmol Viewer)

Title :   THE CRYSTAL STRUCTURE OF PLANT SULFITE OXIDASE PROVIDES INSIGHT INTO SULFITE OXIDATION IN PLANTS AND ANIMALS

Authors :   N. Schrader, K. Fischer, K. Theis, R. R. Mendel, G. Schwarz, C. Kisker

Date :   08 May 03 (Deposition) - 09 Oct 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.60

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)
Biol. Unit 3: E,F  (1x)

Keywords :   Oxidoreductase, Molybdenum Cofactor, Molybdopterin, Plant Sulfite Oxidase, Peroxisomes, Intramolecular Electron Transfer, Oxidoreductas (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   N. Schrader, K. Fischer, K. Theis, R. R. Mendel, G. Schwarz, C. Kisker
The Crystal Structure Of Plant Sulfite Oxidase Provides Insights Into Sulfite Oxidation In Plants And Animals
Structure V. 11 1251 2003
PubMed-ID: 14527393 | Reference-DOI: 10.1016/J.STR.2003.09.001

Molecule 1 - SULFITE OXIDASE
	Chains	:	A, B, C, D, E, F
	EC Number	:	1.8.3.1
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PQE80
	Expression System Strain	:	TP1000
	Expression System Taxid	:	562
	Organism Common	:	MOUSE-EAR CRESS
	Organism Scientific	:	ARABIDOPSIS THALIANA
	Organism Taxid	:	3702
	Other Details	:	ONE MOLYBDENUMN COFACTOR IN EACH MOLECULE
	Synonym	:	SOX, MOCO CONTAINING PROTEIN

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D
Biological Unit 3 (1x)	:					E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 24)

No.	Name	Count	Type	Full Name
1	CS	12	Ligand/Ion	CESIUM ION
2	GOL	6	Ligand/Ion	GLYCEROL
3	MTQ	6	Ligand/Ion	(MOLYBDOPTERIN-S,S)-DIOXO-THIO-MOLYBDENUM(VI)

Biological Unit 1 (2, 4)

No.	Name	Count	Type	Full Name
1	CS	-1	Ligand/Ion	CESIUM ION
2	GOL	2	Ligand/Ion	GLYCEROL
3	MTQ	2	Ligand/Ion	(MOLYBDOPTERIN-S,S)-DIOXO-THIO-MOLYBDENUM(VI)

Biological Unit 2 (2, 4)

No.	Name	Count	Type	Full Name
1	CS	-1	Ligand/Ion	CESIUM ION
2	GOL	2	Ligand/Ion	GLYCEROL
3	MTQ	2	Ligand/Ion	(MOLYBDOPTERIN-S,S)-DIOXO-THIO-MOLYBDENUM(VI)

Biological Unit 3 (2, 4)

No.	Name	Count	Type	Full Name
1	CS	-1	Ligand/Ion	CESIUM ION
2	GOL	2	Ligand/Ion	GLYCEROL
3	MTQ	2	Ligand/Ion	(MOLYBDOPTERIN-S,S)-DIOXO-THIO-MOLYBDENUM(VI)

Asymmetric Unit (24, 24)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	SER A:66 , THR A:68 , ASP A:223	BINDING SITE FOR RESIDUE CS A1391
02	AC2	SOFTWARE	SER A:329 , SER A:331 , HOH A:2090	BINDING SITE FOR RESIDUE CS A1392
03	AC3	SOFTWARE	SER B:66 , THR B:68 , ASP B:223	BINDING SITE FOR RESIDUE CS B1391
04	AC4	SOFTWARE	SER B:329 , SER B:330 , SER B:331 , ASP B:332 , HOH B:2073	BINDING SITE FOR RESIDUE CS B1392
05	AC5	SOFTWARE	SER C:66 , THR C:68 , ASP C:223	BINDING SITE FOR RESIDUE CS C1391
06	AC6	SOFTWARE	SER C:329 , SER C:331 , ASP C:332 , HOH C:2070	BINDING SITE FOR RESIDUE CS C1392
07	AC7	SOFTWARE	SER D:66 , THR D:68 , ASP D:223	BINDING SITE FOR RESIDUE CS D1391
08	AC8	SOFTWARE	SER D:329 , SER D:331 , HOH D:2074	BINDING SITE FOR RESIDUE CS D1392
09	AC9	SOFTWARE	SER E:66 , THR E:68 , ASP E:223	BINDING SITE FOR RESIDUE CS E1391
10	BC1	SOFTWARE	SER E:329 , SER E:330 , SER E:331 , ASP E:332	BINDING SITE FOR RESIDUE CS E1392
11	BC2	SOFTWARE	SER F:66 , THR F:68 , ASP F:223	BINDING SITE FOR RESIDUE CS F1391
12	BC3	SOFTWARE	SER F:329 , SER F:330 , SER F:331 , ASP F:332 , HOH F:2082	BINDING SITE FOR RESIDUE CS F1392
13	BC4	SOFTWARE	PHE A:48 , TYR A:49 , ARG A:51 , HIS A:53 , CYS A:98 , ALA A:99 , SER A:159 , ASP A:161 , TYR A:171 , ARG A:207 , GLY A:215 , ALA A:216 , SER A:218 , VAL A:219 , LYS A:220 , TRP A:221 , TYR A:241 , HOH A:2060 , HOH A:2061	BINDING SITE FOR RESIDUE MTQ A1394
14	BC5	SOFTWARE	PHE B:48 , TYR B:49 , ARG B:51 , ASN B:52 , HIS B:53 , CYS B:98 , ALA B:99 , SER B:159 , ASP B:161 , TYR B:171 , HIS B:202 , ARG B:207 , GLY B:215 , ALA B:216 , SER B:218 , VAL B:219 , LYS B:220 , TRP B:221 , TYR B:241	BINDING SITE FOR RESIDUE MTQ B1394
15	BC6	SOFTWARE	TYR C:49 , LYS C:50 , ARG C:51 , ASN C:52 , HIS C:53 , CYS C:98 , ALA C:99 , SER C:159 , ASP C:161 , TYR C:171 , HIS C:202 , ARG C:207 , GLY C:215 , ALA C:216 , SER C:218 , LYS C:220 , TRP C:221 , TYR C:241	BINDING SITE FOR RESIDUE MTQ C1394
16	BC7	SOFTWARE	PHE D:48 , TYR D:49 , ARG D:51 , ASN D:52 , HIS D:53 , CYS D:98 , ALA D:99 , SER D:159 , ASP D:161 , TYR D:171 , HIS D:202 , ARG D:207 , GLY D:215 , ALA D:216 , SER D:218 , LYS D:220 , TRP D:221 , TYR D:241 , HOH D:2090	BINDING SITE FOR RESIDUE MTQ D1394
17	BC8	SOFTWARE	TYR E:49 , ARG E:51 , HIS E:53 , CYS E:98 , ALA E:99 , SER E:159 , ASP E:161 , TYR E:171 , HIS E:202 , ARG E:207 , GLY E:215 , ALA E:216 , SER E:218 , LYS E:220 , TRP E:221 , TYR E:241	BINDING SITE FOR RESIDUE MTQ E1394
18	BC9	SOFTWARE	PHE F:48 , TYR F:49 , LYS F:50 , ARG F:51 , HIS F:53 , CYS F:98 , ALA F:99 , SER F:159 , ASP F:161 , TYR F:171 , HIS F:202 , ARG F:207 , GLY F:215 , ALA F:216 , SER F:218 , VAL F:219 , LYS F:220 , TRP F:221 , TYR F:241 , HOH F:2111	BINDING SITE FOR RESIDUE MTQ F1394
19	CC1	SOFTWARE	SER A:174 , ILE A:175 , GLU A:231 , ARG A:259 , MET A:262 , HOH A:2081	BINDING SITE FOR RESIDUE GOL A1393
20	CC2	SOFTWARE	HIS B:154 , SER B:174 , ILE B:175 , THR B:176 , GLU B:231 , ARG B:259 , HOH B:2095	BINDING SITE FOR RESIDUE GOL B1393
21	CC3	SOFTWARE	HIS C:154 , SER C:174 , ILE C:175 , THR C:176 , GLU C:231 , PRO C:260 , HOH C:2086	BINDING SITE FOR RESIDUE GOL C1393
22	CC4	SOFTWARE	GLU C:327 , HOH C:2068 , HIS D:154 , SER D:174 , ILE D:175 , THR D:176 , GLU D:231 , ARG D:259 , HOH D:2089	BINDING SITE FOR RESIDUE GOL D1393
23	CC5	SOFTWARE	HIS E:154 , SER E:174 , ILE E:175 , THR E:176 , GLU E:231 , ARG E:259 , HOH E:2107	BINDING SITE FOR RESIDUE GOL E1393
24	CC6	SOFTWARE	HIS F:154 , SER F:174 , ILE F:175 , THR F:176 , GLU F:231 , ARG F:259	BINDING SITE FOR RESIDUE GOL F1393

(no "SS Bond" information available for 1OGP)

Asymmetric Unit

No.	Residues
1	Glu A:26	-	Pro A:27
2	Phe A:204	-	Pro A:205
3	Glu B:26	-	Pro B:27
4	Phe B:204	-	Pro B:205
5	Glu C:26	-	Pro C:27
6	Phe C:204	-	Pro C:205
7	Glu D:26	-	Pro D:27
8	Phe D:204	-	Pro D:205
9	Glu E:26	-	Pro E:27
10	Phe E:204	-	Pro E:205
11	Glu F:26	-	Pro F:27
12	Phe F:204	-	Pro F:205

(no "SAP(SNP)/Variant" information available for 1OGP)

(no "PROSITE Motif" information available for 1OGP)

(no "Exon" information available for 1OGP)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:388
 aligned with SUOX_ARATH | Q9S850 from UniProtKB/Swiss-Prot  Length:393

    Alignment length:388
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
           SUOX_ARATH     2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
               SCOP domains d1ogpa2 A:2-262 Sulfite oxidase, middle catalytic domain                                                                                                                                                                                                             d1ogpa1 A:263-389 Sulfite oxidase, C-terminal domain                                                                            SCOP domains
               CATH domains 1ogpA01 A:2-262 Sulfite Oxidase; Chain A, domain 2                                                                                                                                                                                                                   1ogpA02 A:263-389  [code=2.60.40.650, no name defined]                                                                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..ee...............eeee....eee.hhhhhh.....hhhhh.ee......ee......eeeeee......eeehhhhhh..eeeeeeeee....hhhhhhhhh...........eeeeeeeeeehhhhhhh...............eeeeee...hhhhh....eeeeehhhhhhhhhh.eeeeee..ee.........eee....hhhhh...eeeeeee.....hhhhhh..............hhhhh........eeee.....eee...eeeeeeeeee......eeeeeee.......ee.eee...................eeeeeeeee...eeeeeeeee........hhhhhh..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ogp A   2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Chain B from PDB  Type:PROTEIN  Length:388
 aligned with SUOX_ARATH | Q9S850 from UniProtKB/Swiss-Prot  Length:393

    Alignment length:388
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
           SUOX_ARATH     2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
               SCOP domains d1ogpb2 B:2-262 Sulfite oxidase, middle catalytic domain                                                                                                                                                                                                             d1ogpb1 B:263-389 Sulfite oxidase, C-terminal domain                                                                            SCOP domains
               CATH domains 1ogpB01 B:2-262 Sulfite Oxidase; Chain A, domain 2                                                                                                                                                                                                                   1ogpB02 B:263-389  [code=2.60.40.650, no name defined]                                                                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..ee...............eeee....eee.hhhhhh.....hhhhh.........ee......eeeeee......eeehhhhhh..eeeeeeeee....hhhhhhhhh...........eeeeeeeeeehhhhhhh...............eeeeee...hhhhh....eeeeehhhhhhhhhh.eeeeee..ee.........eee....hhhhh...eeeeeee.....hhhhhh..............hhhhh........eeee.....eee...eeeeeeeeee......eeeeeee.......ee.eee...................eeeeeeeee...eeeeeeeee........hhhhh...........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ogp B   2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Chain C from PDB  Type:PROTEIN  Length:388
 aligned with SUOX_ARATH | Q9S850 from UniProtKB/Swiss-Prot  Length:393

    Alignment length:388
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
           SUOX_ARATH     2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
               SCOP domains d1ogpc2 C:2-262 Sulfite oxidase, middle catalytic domain                                                                                                                                                                                                             d1ogpc1 C:263-389 Sulfite oxidase, C-terminal domain                                                                            SCOP domains
               CATH domains 1ogpC01 C:2-262 Sulfite Oxidase; Chain A, domain 2                                                                                                                                                                                                                   1ogpC02 C:263-389  [code=2.60.40.650, no name defined]                                                                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..ee...............eeee....eee.hhhhhh.....hhhhh.ee......ee......eeeeee......eeehhhhhh..eeeeeeeee....hhhhhhhhh...........eeeeeeeeeehhhhhhh...............eeeeee...hhhhh....eeeeehhhhhhhhhh.eeeeee..ee.........eee....hhhhh...eeeeeee.....hhhhhh..............hhhhh........eeee.....eee...eeeeeeeeee......eeeeeee.......ee.eee...................eeeeeeeee...eeeeeeeee........hhhhhh..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ogp C   2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Chain D from PDB  Type:PROTEIN  Length:388
 aligned with SUOX_ARATH | Q9S850 from UniProtKB/Swiss-Prot  Length:393

    Alignment length:388
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
           SUOX_ARATH     2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
               SCOP domains d1ogpd2 D:2-262 Sulfite oxidase, middle catalytic domain                                                                                                                                                                                                             d1ogpd1 D:263-389 Sulfite oxidase, C-terminal domain                                                                            SCOP domains
               CATH domains 1ogpD01 D:2-262 Sulfite Oxidase; Chain A, domain 2                                                                                                                                                                                                                   1ogpD02 D:263-389  [code=2.60.40.650, no name defined]                                                                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..ee...............eeee....eee.hhhhhh.....hhhhh.ee......ee......eeeeee......eeehhhhhh..eeeeeeeee....hhhhhhhhh...........eeeeeeeeeehhhhhhh...............eeeeee...hhhhh....eeeeehhhhhhhhhh.eeeeee..ee.........eee....hhhhh...eeeeeee.....hhhhhh..............hhhhh........eeee.....eee...eeeeeeeeee......eeeeeee.......ee.eee...................eeeeeeeee...eeeeeeeee........hhhhhh..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ogp D   2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Chain E from PDB  Type:PROTEIN  Length:388
 aligned with SUOX_ARATH | Q9S850 from UniProtKB/Swiss-Prot  Length:393

    Alignment length:388
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
           SUOX_ARATH     2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
               SCOP domains d1ogpe2 E:2-262 Sulfite oxidase, middle catalytic domain                                                                                                                                                                                                             d1ogpe1 E:263-389 Sulfite oxidase, C-terminal domain                                                                            SCOP domains
               CATH domains 1ogpE01 E:2-262 Sulfite Oxidase; Chain A, domain 2                                                                                                                                                                                                                   1ogpE02 E:263-389  [code=2.60.40.650, no name defined]                                                                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..ee...............eeee....eee.hhhhhh.....hhhhh.ee......ee......eeeeee......eeehhhhhh..eeeeeeeee....hhhhhhhhh...........eeeeeeeeeehhhhhhh...............eeeeee...hhhhh....eeeeehhhhhhhhhh.eeeeee..ee.........eee....hhhhh...eeeeeee.....hhhhhh..............hhhhh........eeee.....eee...eeeeeeeeee......eeeeeee.......ee.eee...................eeeeeeeee...eeeeeeeee........hhhhhh..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ogp E   2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Chain F from PDB  Type:PROTEIN  Length:388
 aligned with SUOX_ARATH | Q9S850 from UniProtKB/Swiss-Prot  Length:393

    Alignment length:388
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
           SUOX_ARATH     2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
               SCOP domains d1ogpf2 F:2-262 Sulfite oxidase, middle catalytic domain                                                                                                                                                                                                             d1ogpf1 F:263-389 Sulfite oxidase, C-terminal domain                                                                            SCOP domains
               CATH domains 1ogpF01 F:2-262 Sulfite Oxidase; Chain A, domain 2                                                                                                                                                                                                                   1ogpF02 F:263-389  [code=2.60.40.650, no name defined]                                                                          CATH domains
           Pfam domains (1) -------------------------------------------------Oxidored_molyb-1ogpF07 F:51-238                                                                                                                                                             -------------------Mo-co_dimer-1ogpF01 F:258-388                                                                                                      - Pfam domains (1)
           Pfam domains (2) -------------------------------------------------Oxidored_molyb-1ogpF08 F:51-238                                                                                                                                                             -------------------Mo-co_dimer-1ogpF02 F:258-388                                                                                                      - Pfam domains (2)
           Pfam domains (3) -------------------------------------------------Oxidored_molyb-1ogpF09 F:51-238                                                                                                                                                             -------------------Mo-co_dimer-1ogpF03 F:258-388                                                                                                      - Pfam domains (3)
           Pfam domains (4) -------------------------------------------------Oxidored_molyb-1ogpF10 F:51-238                                                                                                                                                             -------------------Mo-co_dimer-1ogpF04 F:258-388                                                                                                      - Pfam domains (4)
           Pfam domains (5) -------------------------------------------------Oxidored_molyb-1ogpF11 F:51-238                                                                                                                                                             -------------------Mo-co_dimer-1ogpF05 F:258-388                                                                                                      - Pfam domains (5)
           Pfam domains (6) -------------------------------------------------Oxidored_molyb-1ogpF12 F:51-238                                                                                                                                                             -------------------Mo-co_dimer-1ogpF06 F:258-388                                                                                                      - Pfam domains (6)
         Sec.struct. author ..ee...............eeee....eee.hhhhhh.....hhhhh.ee......ee......eeeeee......eeehhhhhh..eeeeeeeee....hhhhhhhhh...........eeeeeeeeeehhhhhhh...............eeeeee...hhhhh....eeeeehhhhhhhhhh.eeeeee..ee.........eee....hhhhh...eeeeeee.....hhhhhh..............hhhhh........eeee.....eee...eeeeeeeeee......eeeeeee.......ee.eee...................eeeeeeeee...eeeeeeeee........hhhhhh..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ogp F   2 PGIRGPSEYSQEPPRHPSLKVNAKEPFNAEPPRSALVSSYVTPVDLFYKRNHGPIPIVDHLQSYSVTLTGLIQNPRKLFIKDIRSLPKYNVTATLQCAGNRRTAMSKVRNVRGVGWDVSAIGNAVWGGAKLADVLELVGIPKLTASTNLGARHVEFVSVDRCKEENGGPYKASITLSQATNPEADVLLAYEMNGETLNRDHGFPLRVVVPGVIGARSVKWLDSINVIAEESQGFFMQKDYKMFPPSVNWDNINWSSRRPQMDFPVQSAICSVEDVQMVKPGKVSIKGYAVSGGGRGIERVDISLDGGKNWVEASRTQEPGKQYISEHSSSDKWAWVLFEATIDVSQTTEVIAKAVDSAANVQPENVESVWNLRGVLNTSWHRVLLRLG 389
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Complex (3881)

Topology: Sulfite Oxidase; Chain A, domain 2 (11)

Homologous Superfamily: Sulfite Oxidase; Chain A, domain 2 (11)

Mouse-ear cress (Arabidopsis thaliana) (1)

1a	1ogpA01	A:2-262
1b	1ogpB01	B:2-262
1c	1ogpC01	C:2-262
1d	1ogpD01	D:2-262
1e	1ogpE01	E:2-262
1f	1ogpF01	F:2-262

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Immunoglobulin-like (3897)

Homologous Superfamily: [code=2.60.40.650, no name defined] (9)

Mouse-ear cress (Arabidopsis thaliana) (1)

2a	1ogpA02	A:263-389
2b	1ogpB02	B:263-389
2c	1ogpC02	C:263-389
2d	1ogpD02	D:263-389
2e	1ogpE02	E:263-389
2f	1ogpF02	F:263-389

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: E-set (290)

Family: Mo-co_dimer (3)

Arabidopsis thaliana (Mouse-ear cress) (1)

1a	Mo-co_dimer-1ogpF01	F:258-388
1b	Mo-co_dimer-1ogpF02	F:258-388
1c	Mo-co_dimer-1ogpF03	F:258-388
1d	Mo-co_dimer-1ogpF04	F:258-388
1e	Mo-co_dimer-1ogpF05	F:258-388
1f	Mo-co_dimer-1ogpF06	F:258-388

Clan: no clan defined [family: Oxidored_molyb] (3)

Family: Oxidored_molyb (3)

Arabidopsis thaliana (Mouse-ear cress) (1)

2a	Oxidored_molyb-1ogpF07	F:51-238
2b	Oxidored_molyb-1ogpF08	F:51-238
2c	Oxidored_molyb-1ogpF09	F:51-238
2d	Oxidored_molyb-1ogpF10	F:51-238
2e	Oxidored_molyb-1ogpF11	F:51-238
2f	Oxidored_molyb-1ogpF12	F:51-238

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (SUOX_ARATH | Q9S850)

molecular function
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0030151	molybdenum ion binding	Interacting selectively and non-covalently with molybdenum (Mo) ions.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0008482	sulfite oxidase activity	Catalysis of the reaction: H(2)O + O(2) + sulfite = H(2)O(2) + H(+) + sulfate.
biological process
	GO:0015994	chlorophyll metabolic process	The chemical reactions and pathways involving chlorophyll, any compound of magnesium complexed in a porphyrin (tetrapyrrole) ring and which functions as a photosynthetic pigment.
	GO:0042128	nitrate assimilation	The nitrogen metabolic process that encompasses the uptake of nitrate from the environment and reduction to ammonia, and results in the incorporation of nitrogen derived from nitrate into cellular substances.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0010477	response to sulfur dioxide	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a sulfur dioxide (SO2) stimulus.
	GO:0006790	sulfur compound metabolic process	The chemical reactions and pathways involving the nonmetallic element sulfur or compounds that contain sulfur, such as the amino acids methionine and cysteine or the tripeptide glutathione.
cellular component
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005739	mitochondrion	A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
	GO:0005777	peroxisome	A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MTQ	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]
		CC5	[ RasMol ]	+environment [ RasMol ]
		CC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:26 - Pro A:27	[ RasMol ]
		Glu B:26 - Pro B:27	[ RasMol ]
		Glu C:26 - Pro C:27	[ RasMol ]
		Glu D:26 - Pro D:27	[ RasMol ]
		Glu E:26 - Pro E:27	[ RasMol ]
		Glu F:26 - Pro F:27	[ RasMol ]
		Phe A:204 - Pro A:205	[ RasMol ]
		Phe B:204 - Pro B:205	[ RasMol ]
		Phe C:204 - Pro C:205	[ RasMol ]
		Phe D:204 - Pro D:205	[ RasMol ]
		Phe E:204 - Pro E:205	[ RasMol ]
		Phe F:204 - Pro F:205	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ogp
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	SUOX_ARATH \| Q9S850
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.8.3.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	SUOX_ARATH \| Q9S850
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1OGP)

(no "Related Entries Specified in the PDB File" available for 1OGP)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 24)

Sites (24, 24)

SS Bonds (0, 0)

Cis Peptide Bonds (12, 12)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 12)

CATH Domains (2, 12)

Pfam Domains (2, 12)

Gene Ontology (12, 12)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
